This is a remix of the Rugged Box to hold the ODDV brand action camera that is a great camera for the price.  Here is a link to the camera that this case is modeled for:



Amazon.com : ODDV 4K60FPS 30MP Action Camera with Front LCD and Touch Rear Screens, Underwater Camera with 64GB Memory Card, 132FT Waterproof Camera, EIS, 5X Zoom, WiFi Remote Control (Black) : Electronics

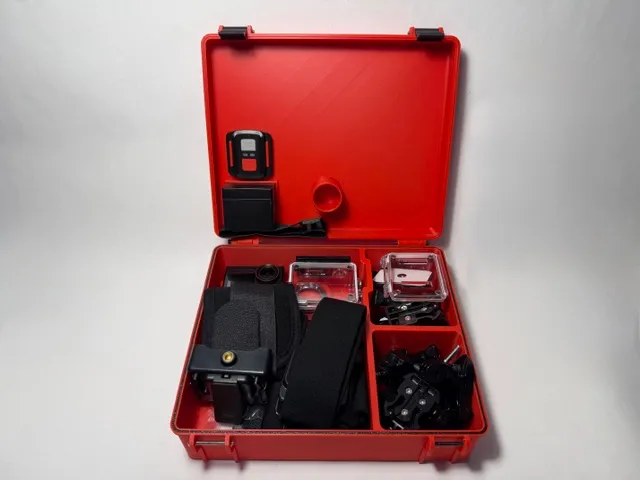

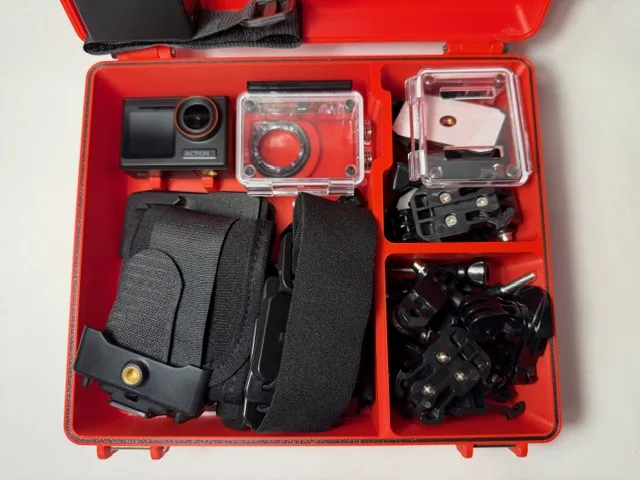

The case is large enough to hold the camera, battery charging hub, clear waterproof case, remote control, all the accessories, and the accessories pack I purchased to go along with the camera.  Other cameras may fit in this but you would have to measure to be sure.  This case is designed so the camera fits snugly into its compartment (along with the other specific components).  The opening for the camera is 59.7mm X 41.5mm.  The charging hub is also a friction fit into the space on the lid part of the box.



Everything prints without support.  I didn't have any TPU to print the thin black weather seal that fits into the groove in the box so I just printed it out of PLA and it seems fine.  TPU would be ideal though.

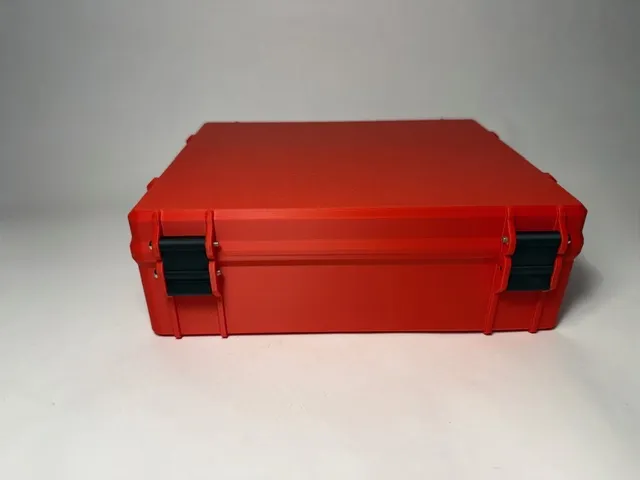

The hinges and clasps require 3x28mm or 3x30mm screws.  Order them on Amazon or if I find that Bambu has them I will add it to the parts list.



If you think this might work for you but you have a different camera and want me to change some dimensions, I would happily do so if you ask.
