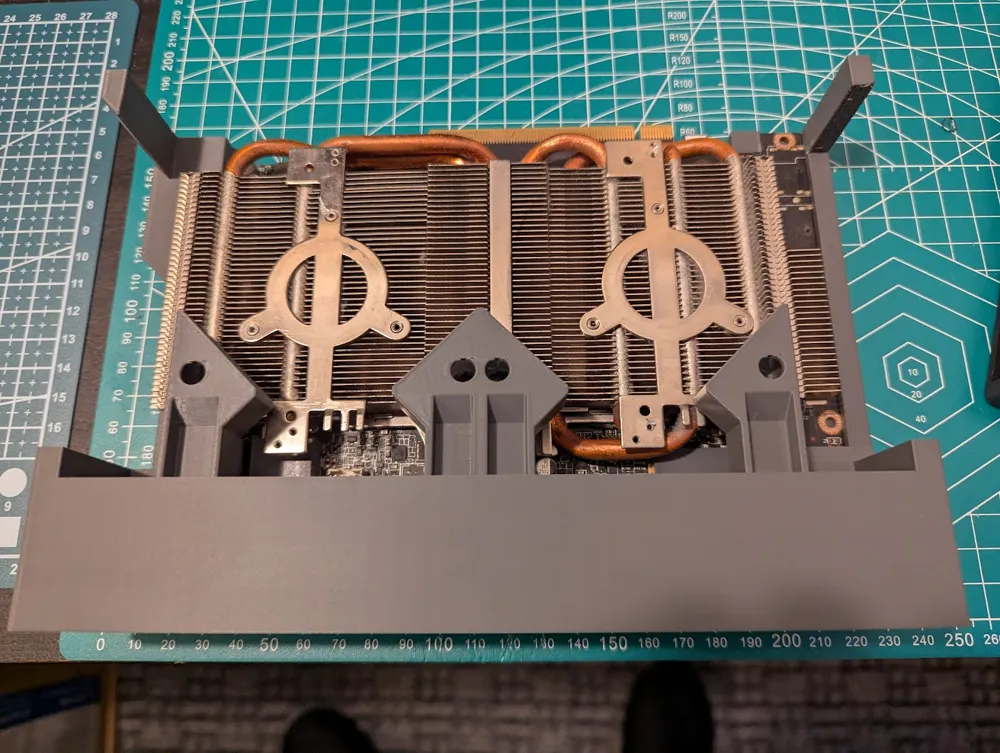

Brackets to mount fanless P102-100 GPU's in.

Print Profile(2)

All
X1 Carbon
P1S
X1
H2D Pro
P1P
H2S
H2D
X1E
A1
P2S
H2C
X2D
A2L

0.12mm layer, 2 walls, 15% infill
0.12mm layer, 2 walls, 15% infill
Designer
10.2 h
1 plate

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
4.6 h
1 plate

Open in Bambu Studio
Boost
3
7
2
0
2
0
Released

Description

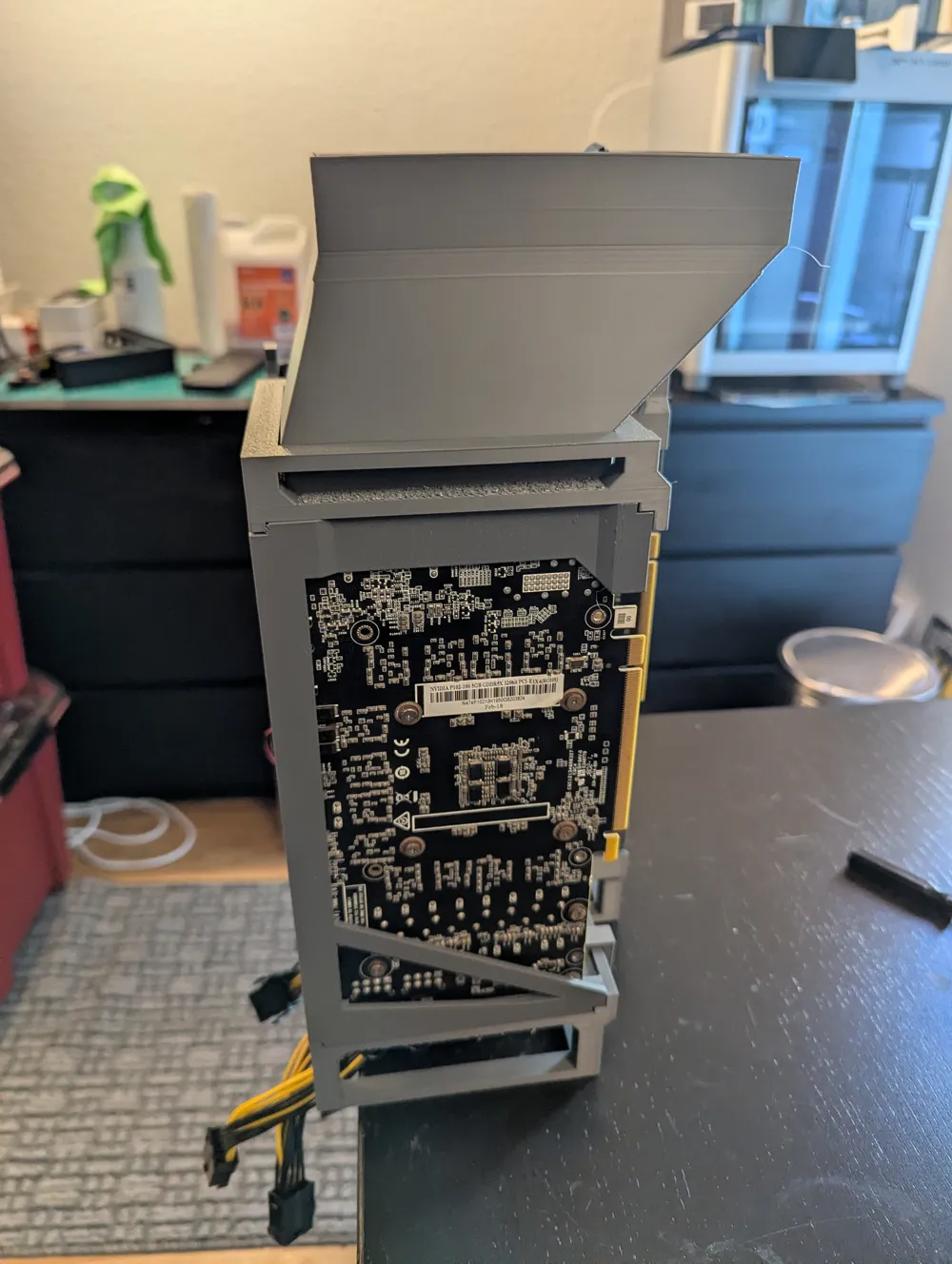

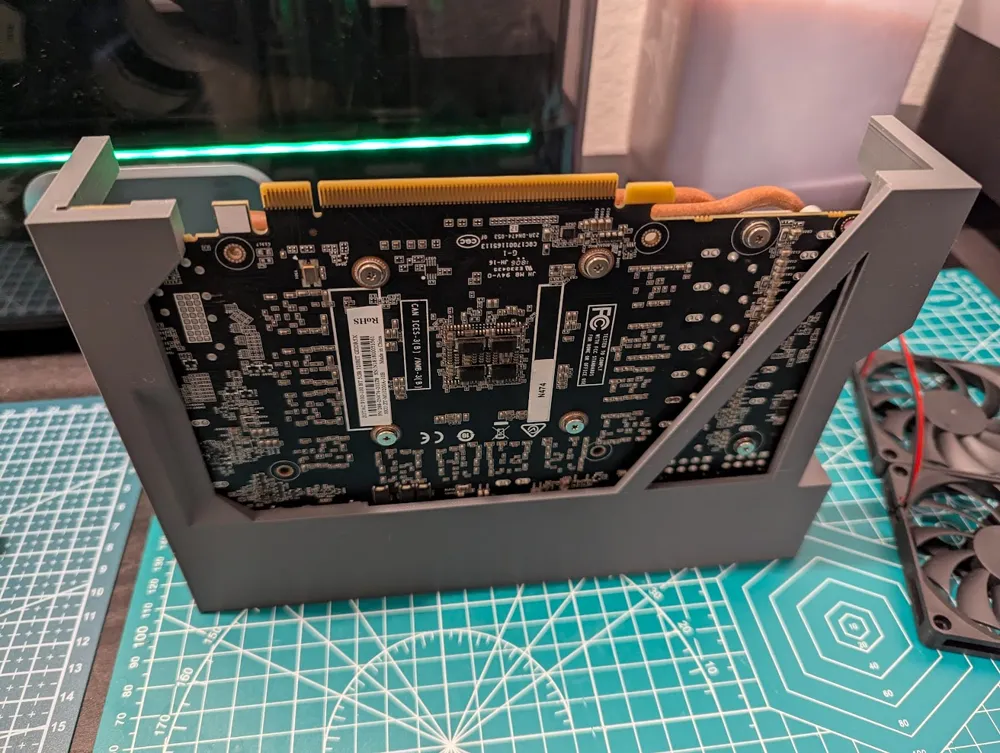

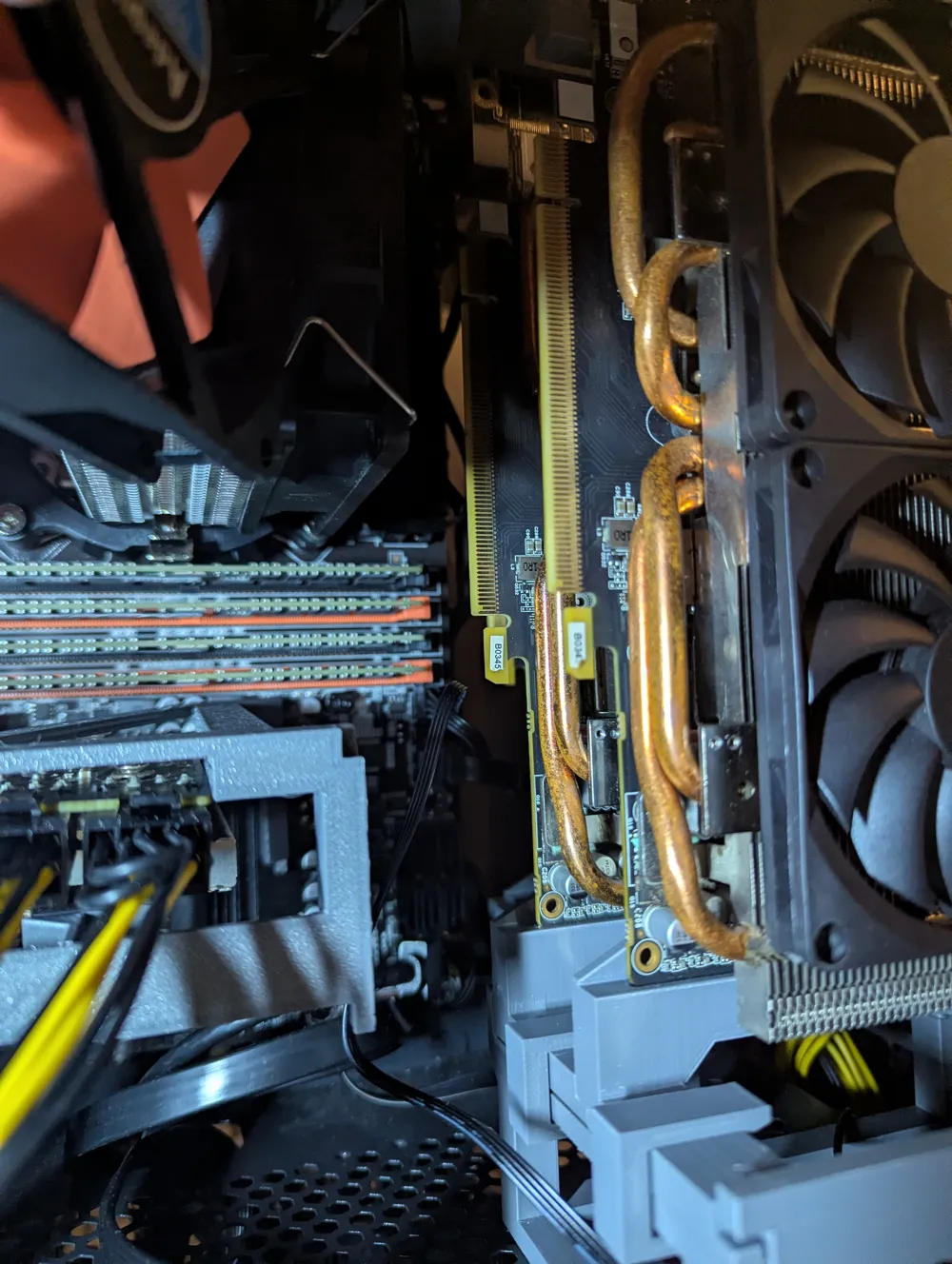

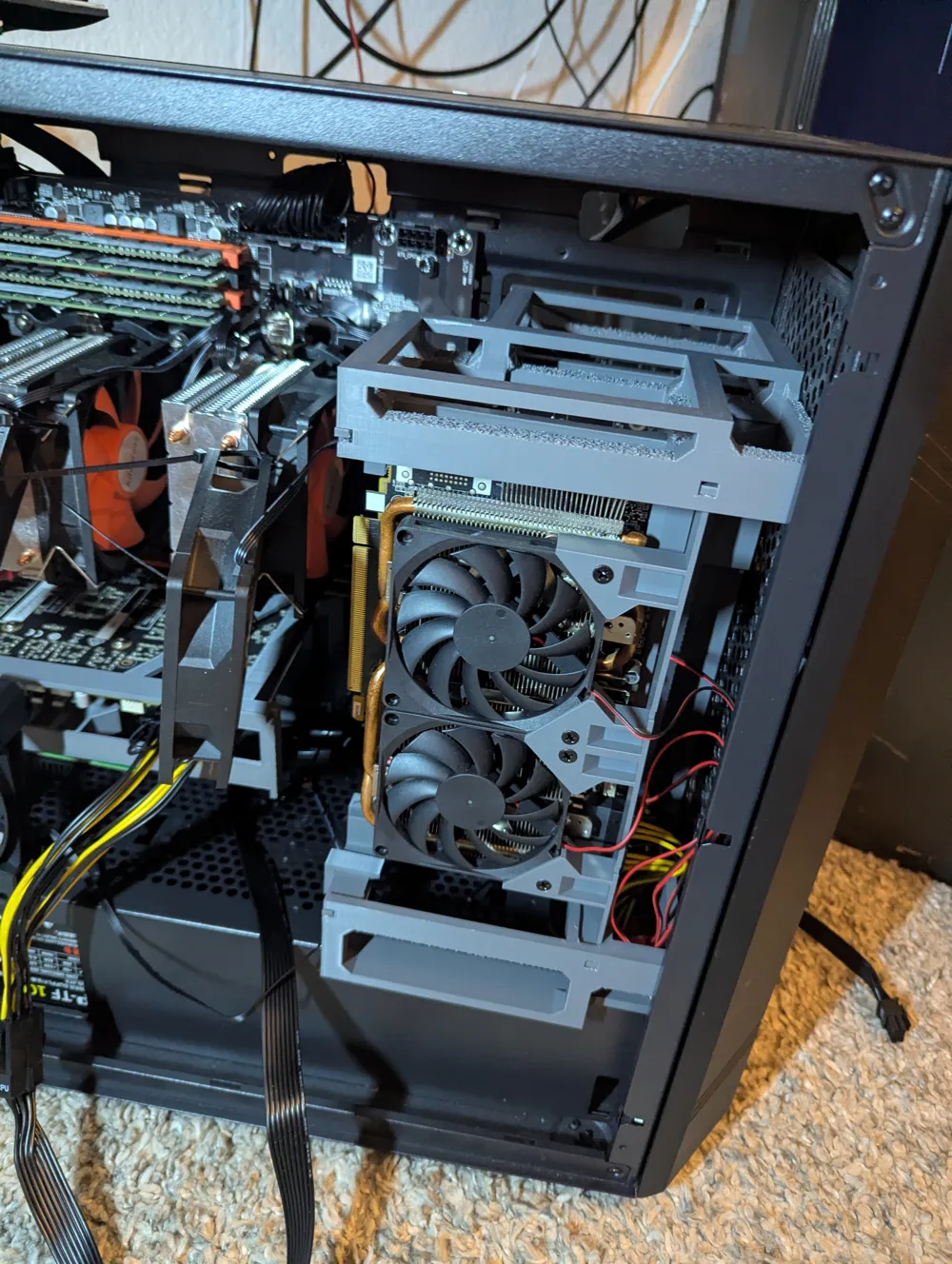

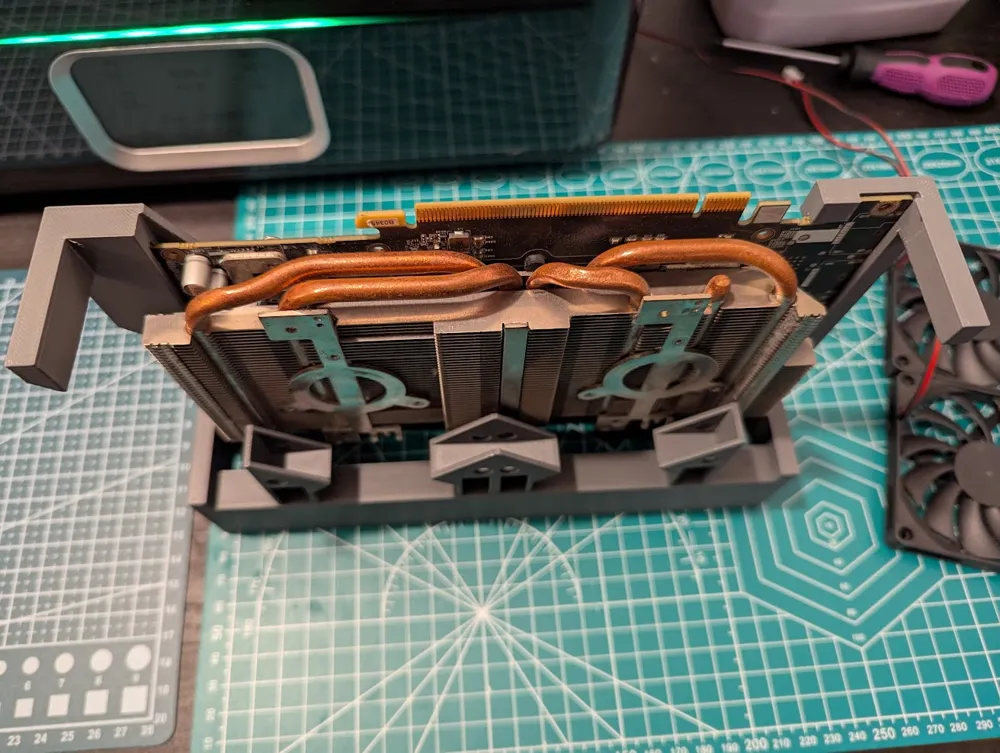

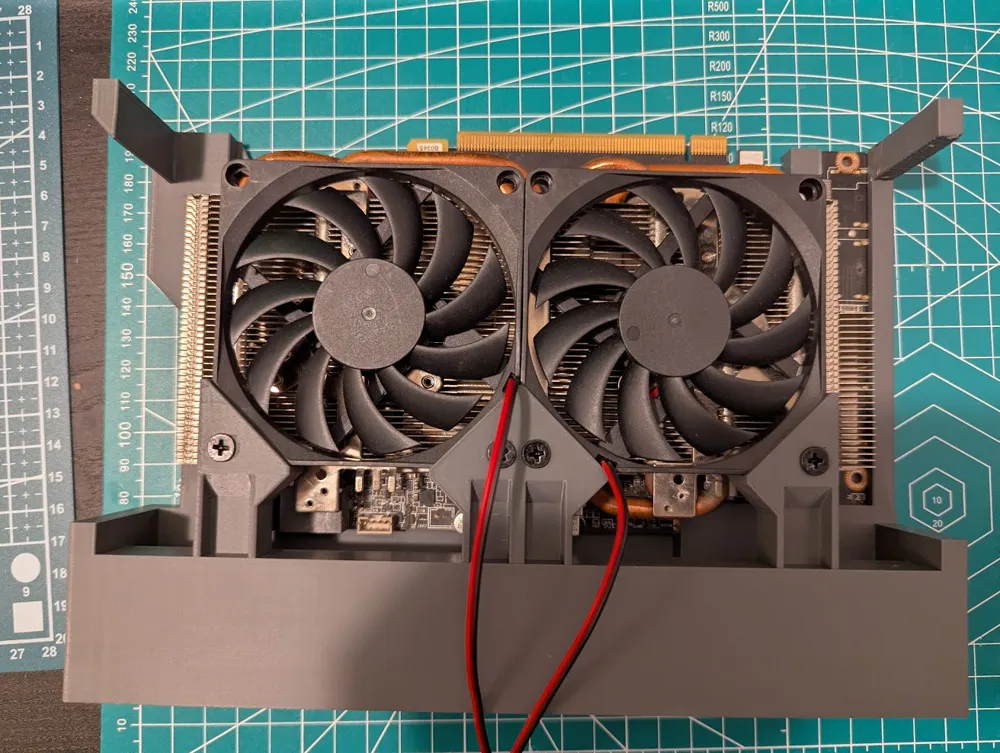

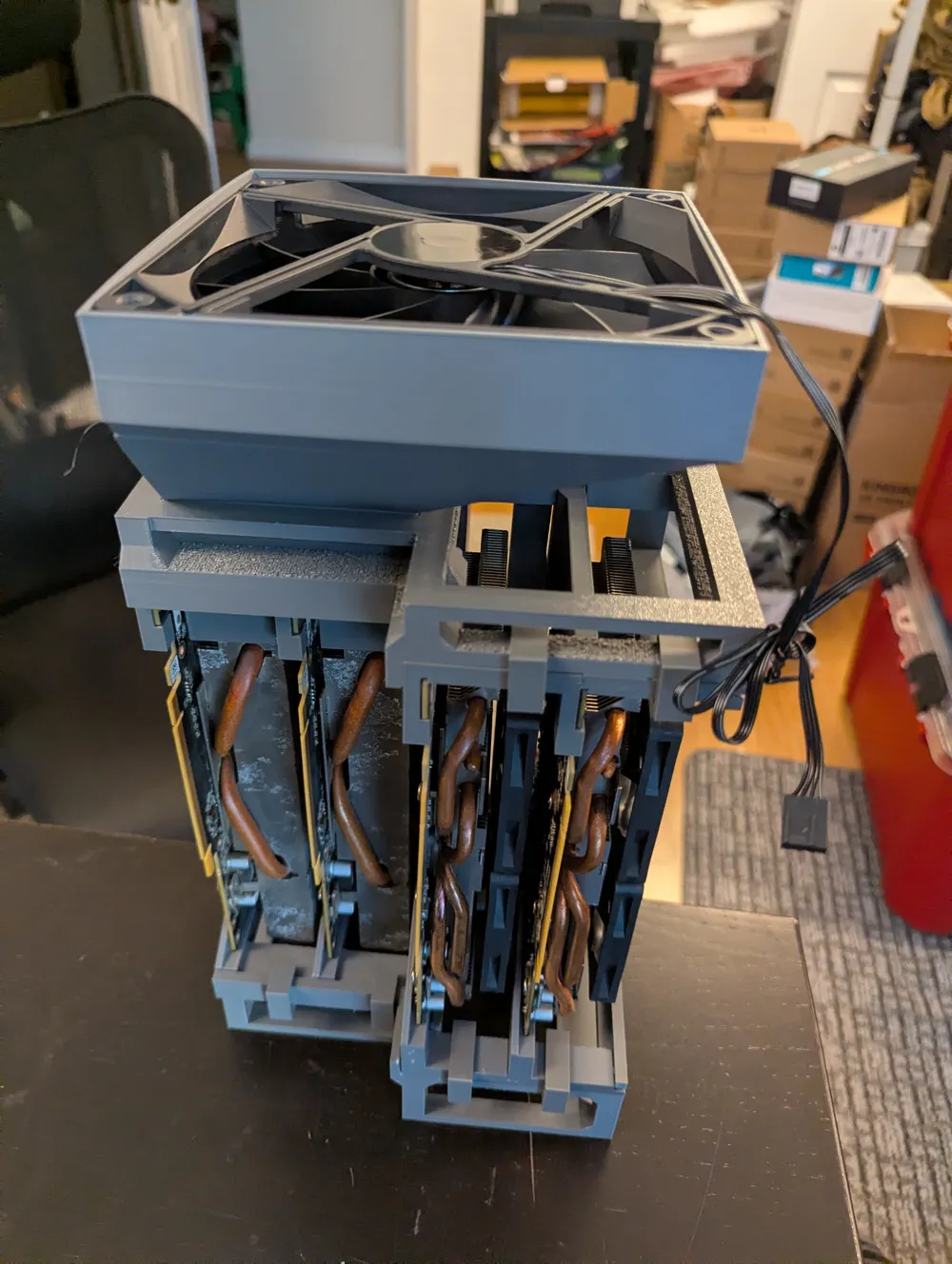

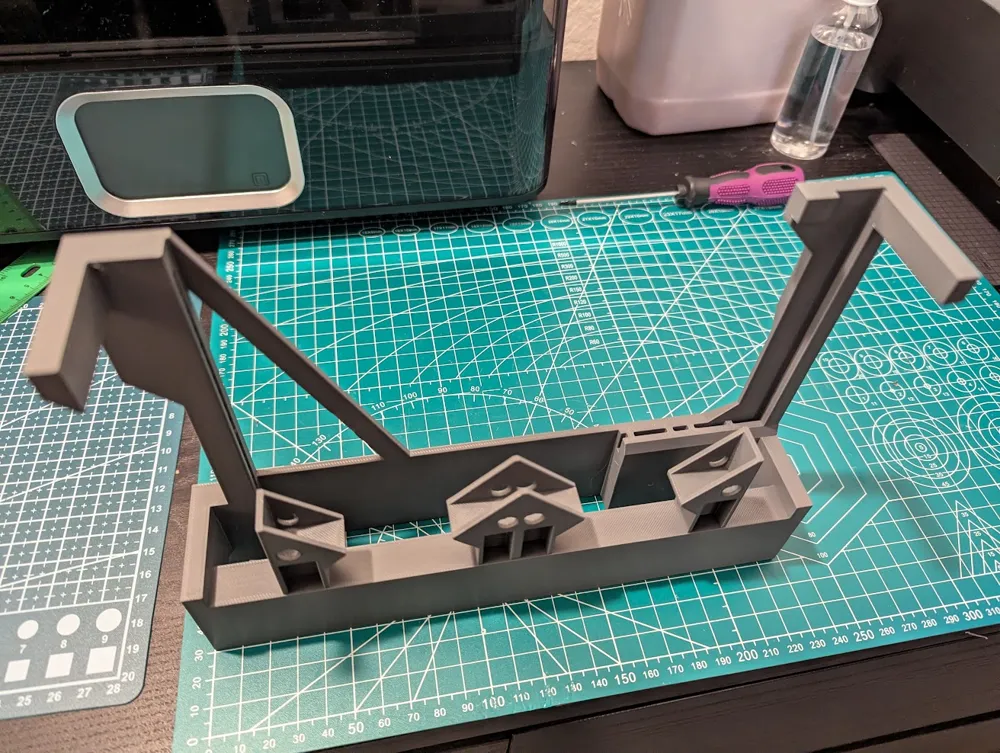

I wanted something that I could mount some P102-100 GPU's in that otherwise would not didn't fit in my PC case. This should fit, I think, and work well enough at the half power I want to run them at, probably.

The jury is still out whether this is a good idea to do, but sharing what I have so far anyway. This is my first thing I made in FreeCAD, still learning how to be effective using that. Probably doing things all wrong, but it got me the prints I wanted, which is what matters.

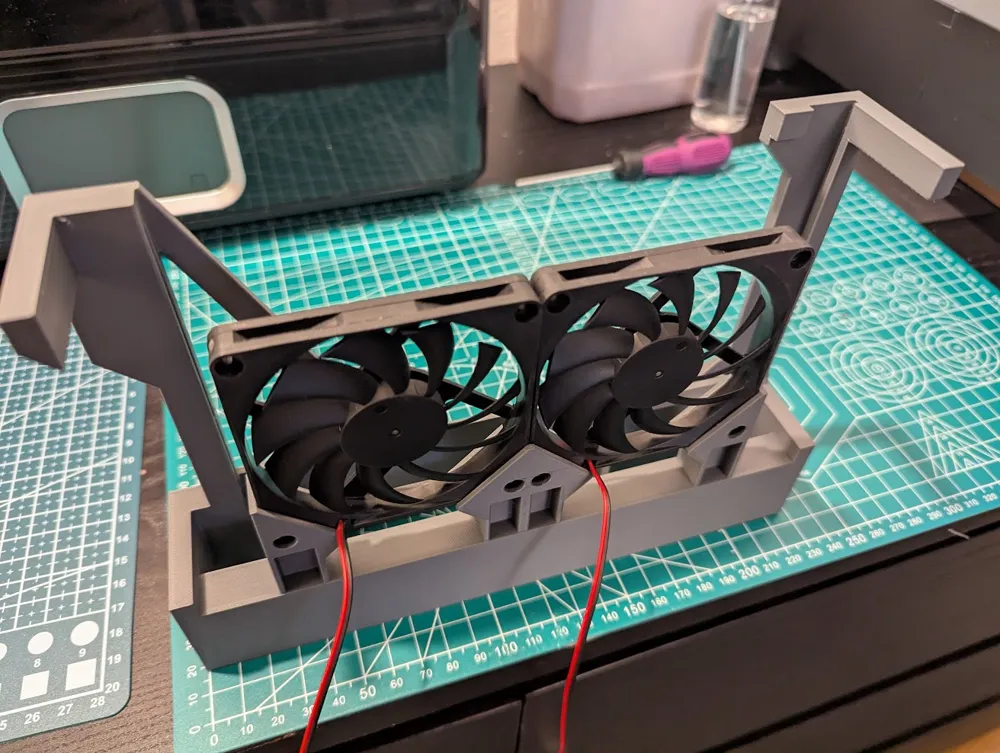

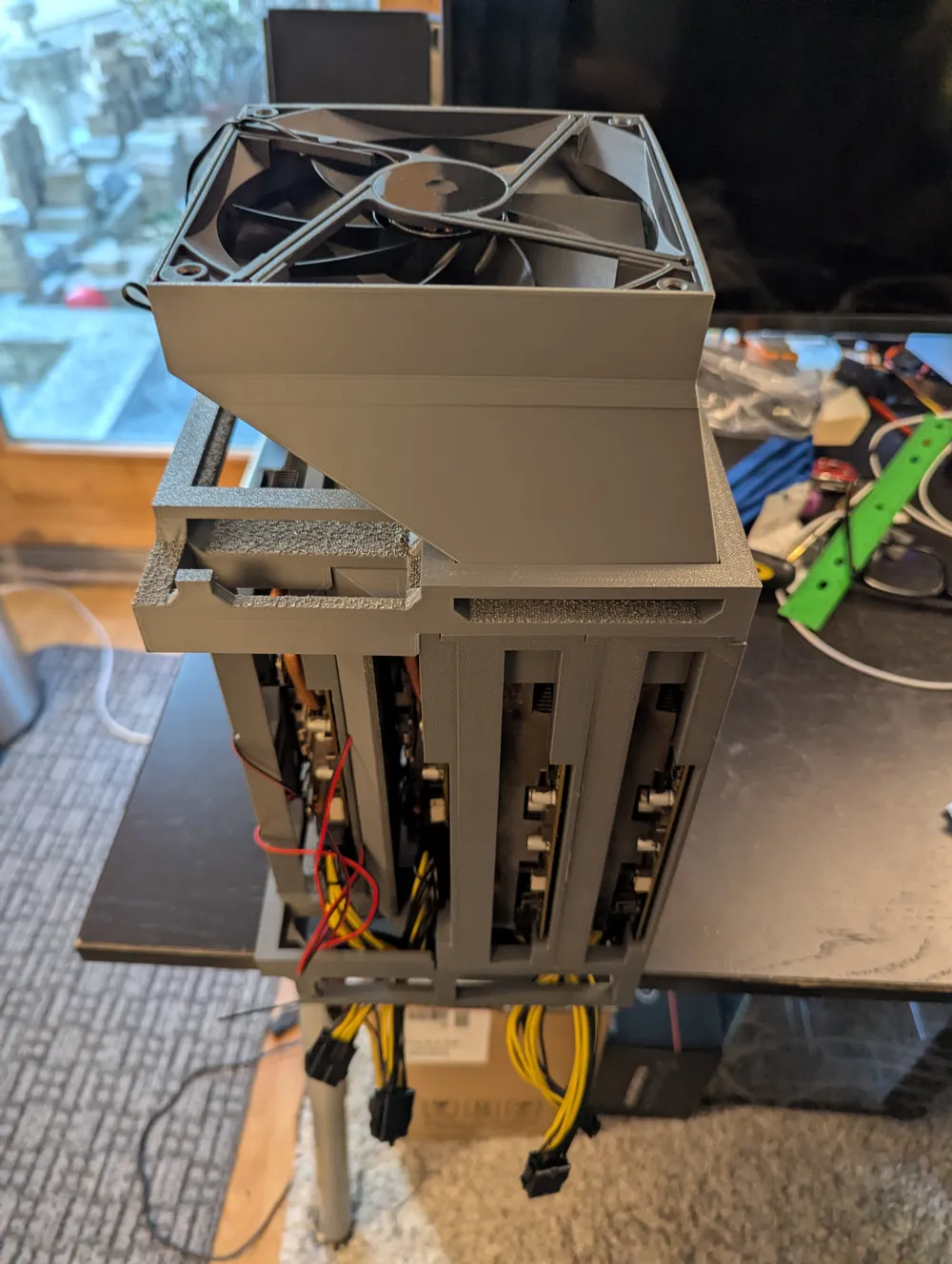

 I also haven't tested it under load yet with the case closed, but I think this should cool it enough at 50% powercap (125W per card).
