GPU support bracket
Print Profile(2)
Description

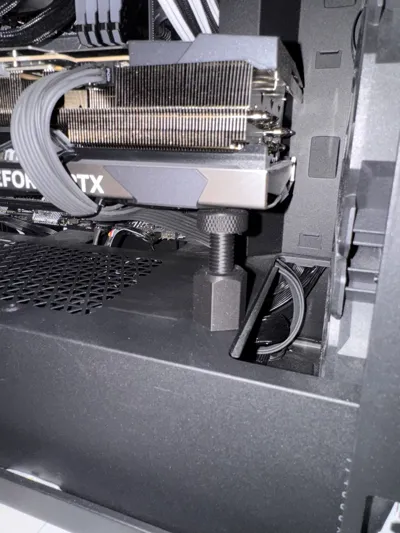

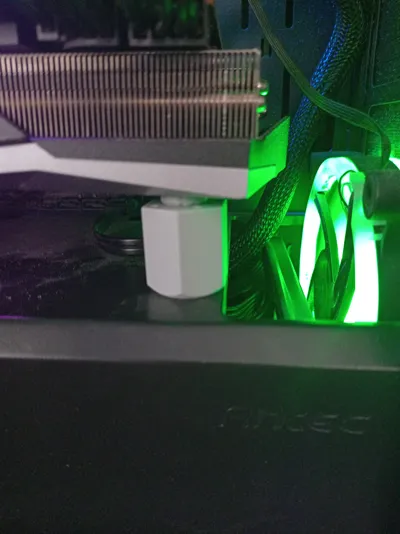

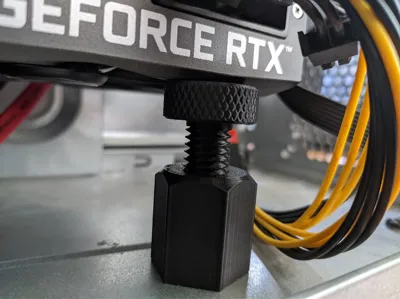

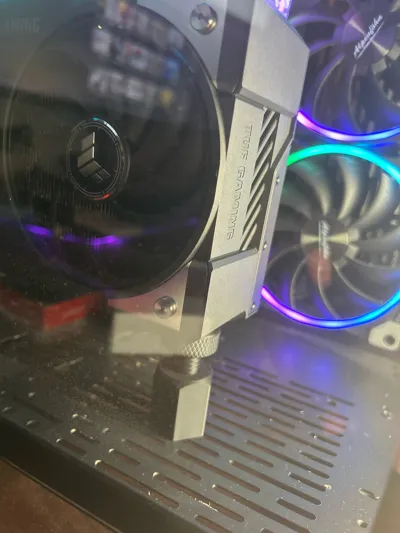

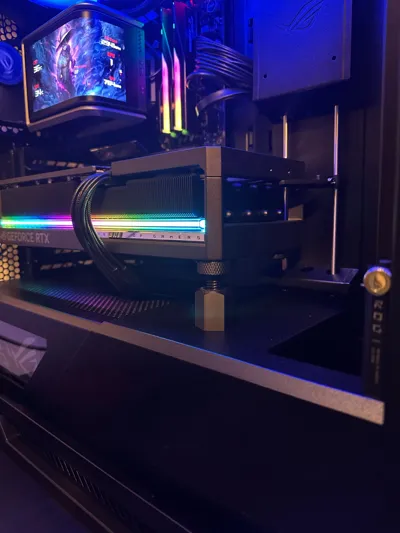

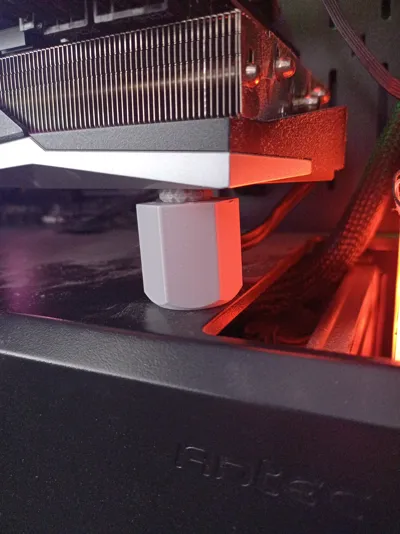

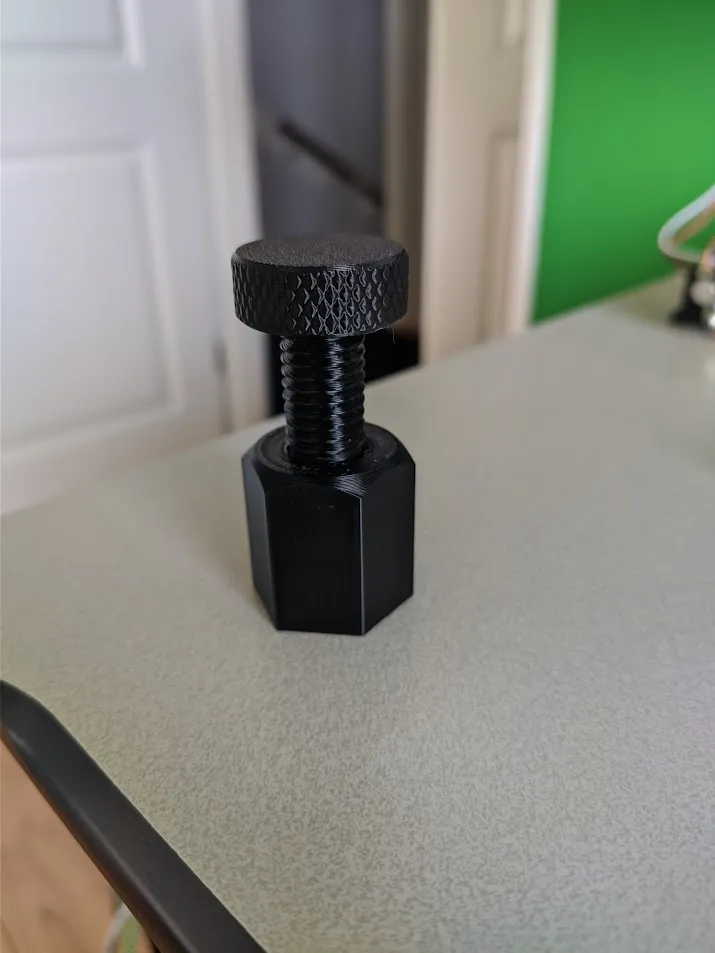

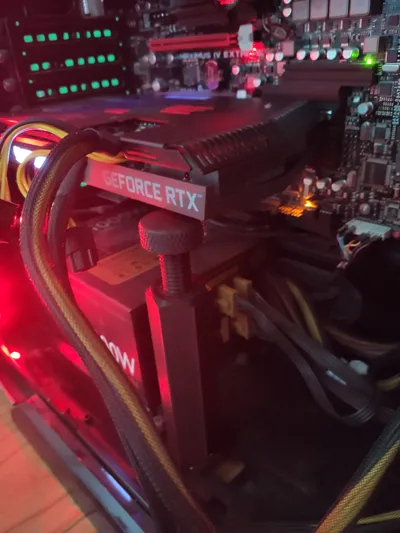

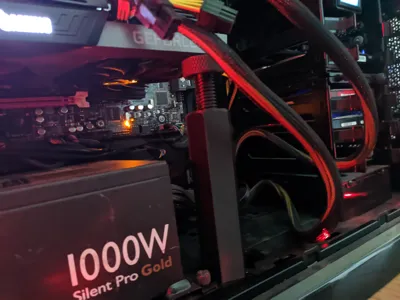

GPU sagging/bending can cause strain on the PCB, leading to potential cracks or damage to solder joints. This simple GPU support bracket can be used to prevent GPU sagging, keeping the GPU at a straight angle.
Specifications:

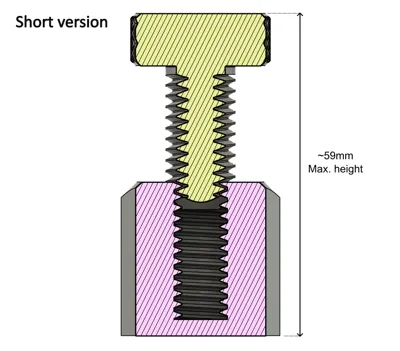

short version:
- Minimum height ~39mm
- Maximum height ~59mm

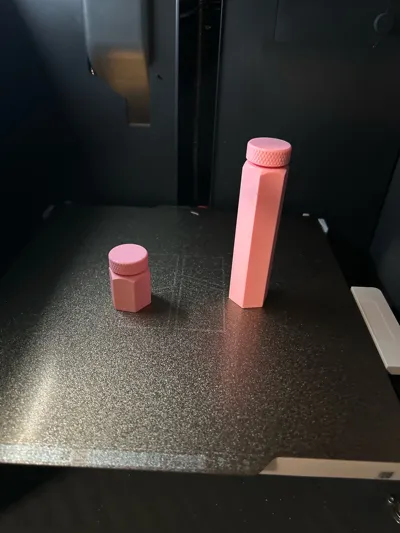

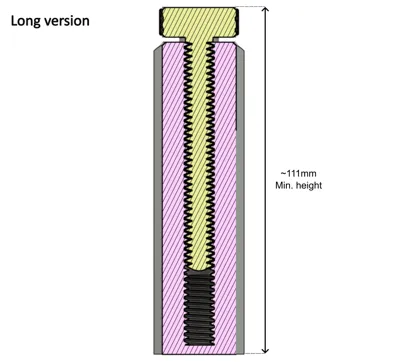

Long version:
- Minimum height ~111mm
- Maximum height ~180.5mm

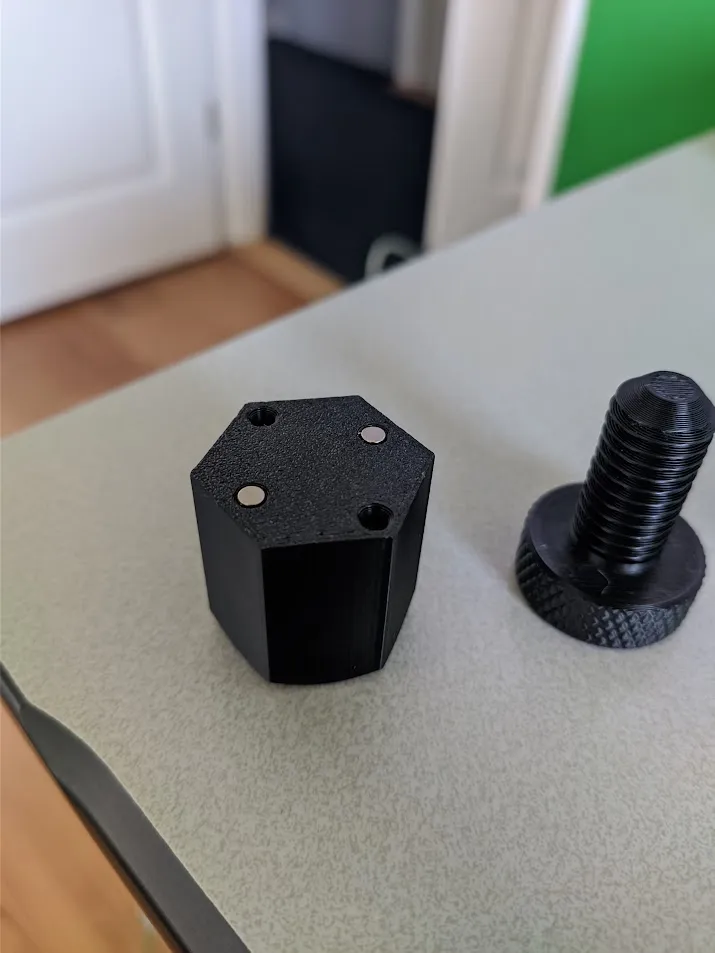

Magnets can be added (optionally) to attach the support bracket to a metal PC case. These magnets need to have a diameter of 3mm and a thickness of 1.75mm.
