UAEFI Case
Print Profile(1)
Description
UAEFI case

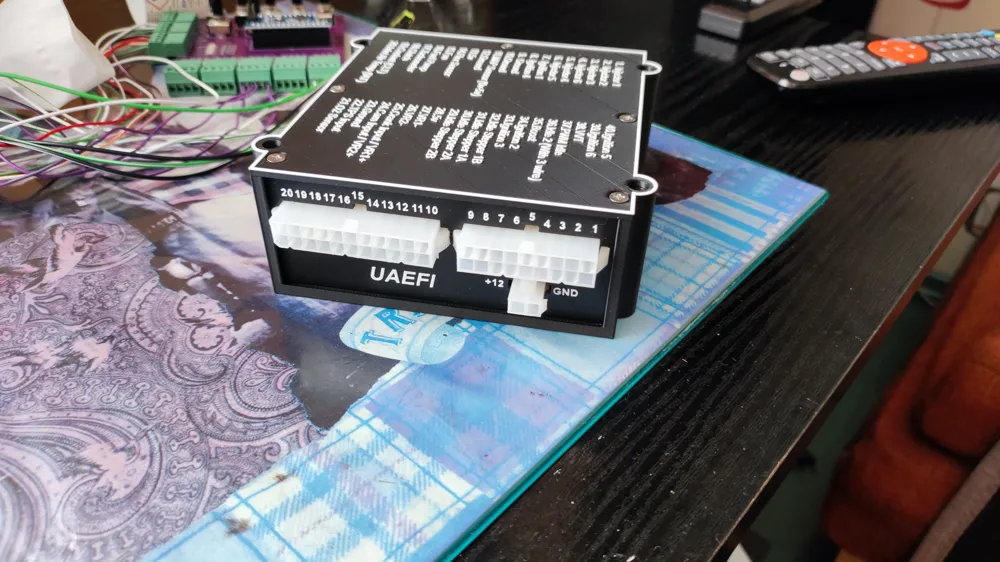

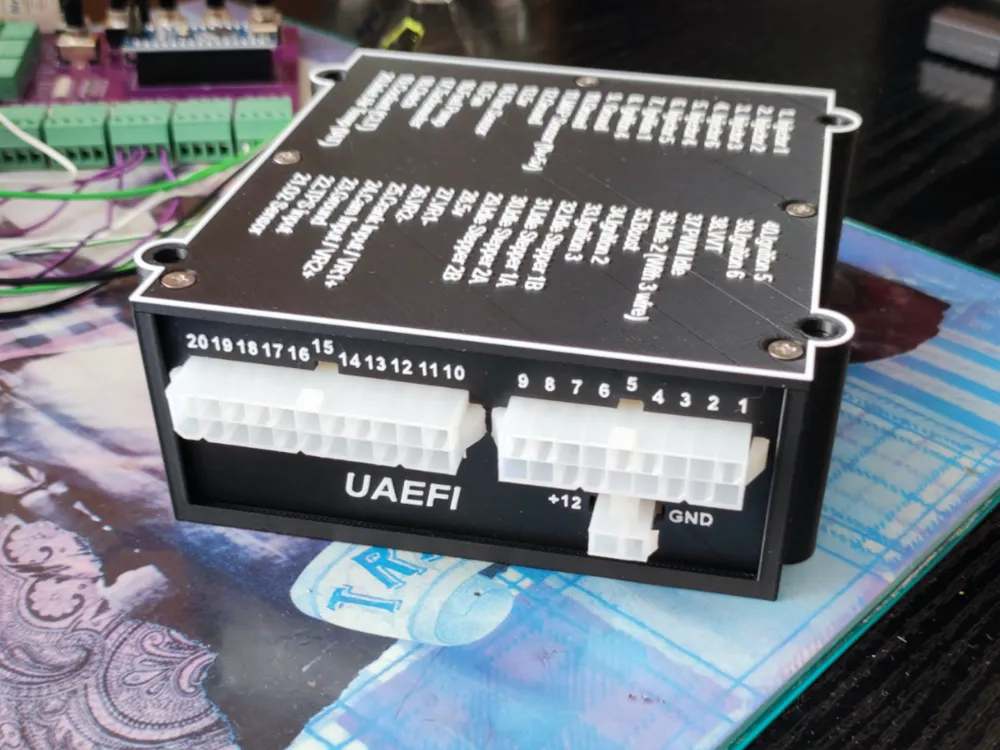

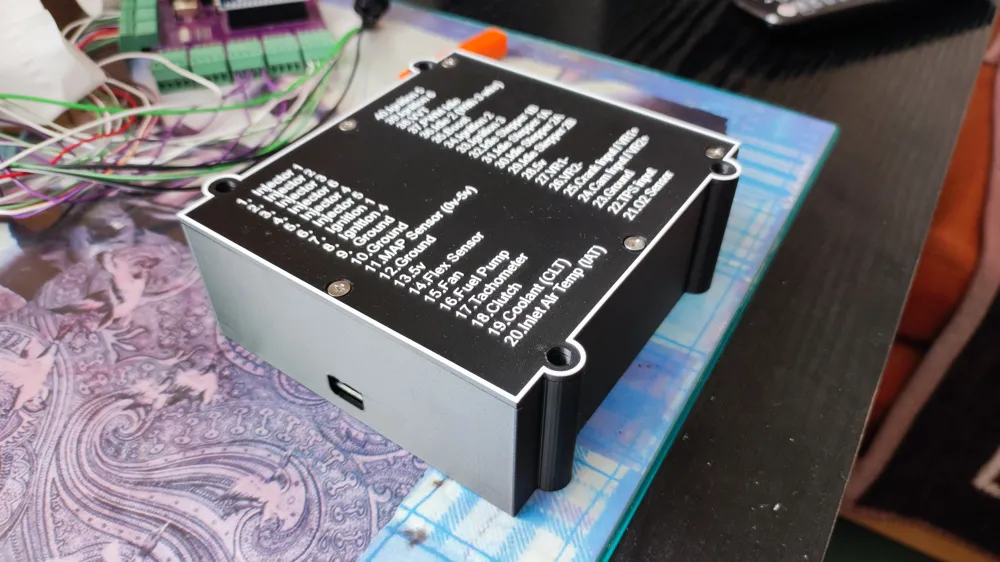

UAEFI housing with Molex Mini-Fit 4,2mm connectors.
You will need:
1. Molex 2-PIN 39012021 (Excon: 420102HP051)
2. Molex 18-PIN 39012181 (Excon: 420118HP051)
3. Molex 22-PIN 39012221 (Excon: 420122HP051)
4. Molex 6-PIN 39012061 (Excon: 420106HP051)
5. Screw DIN965 M3x8 5pcs
6. Screw DIN 7985 M3x6 4pcs

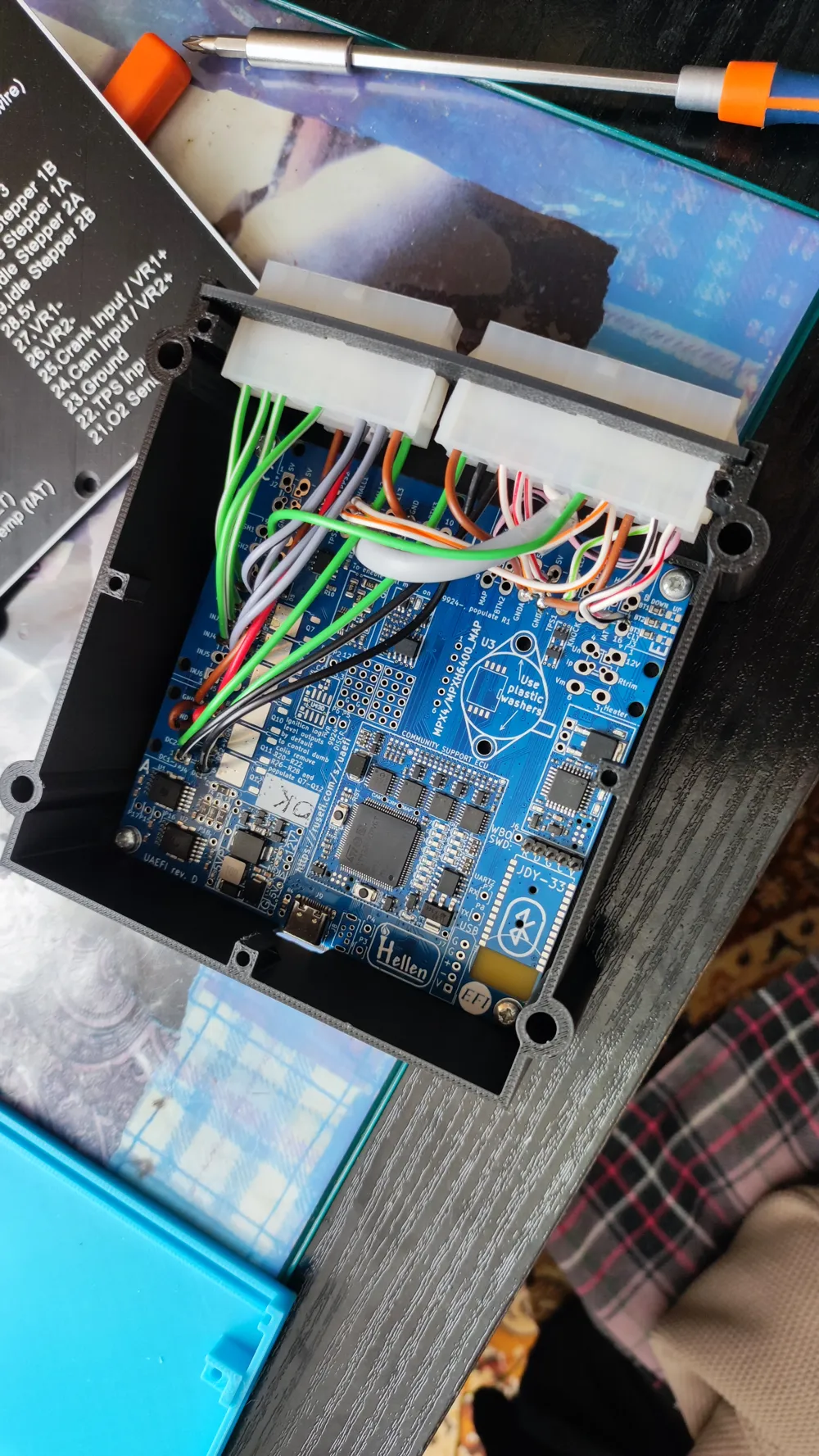

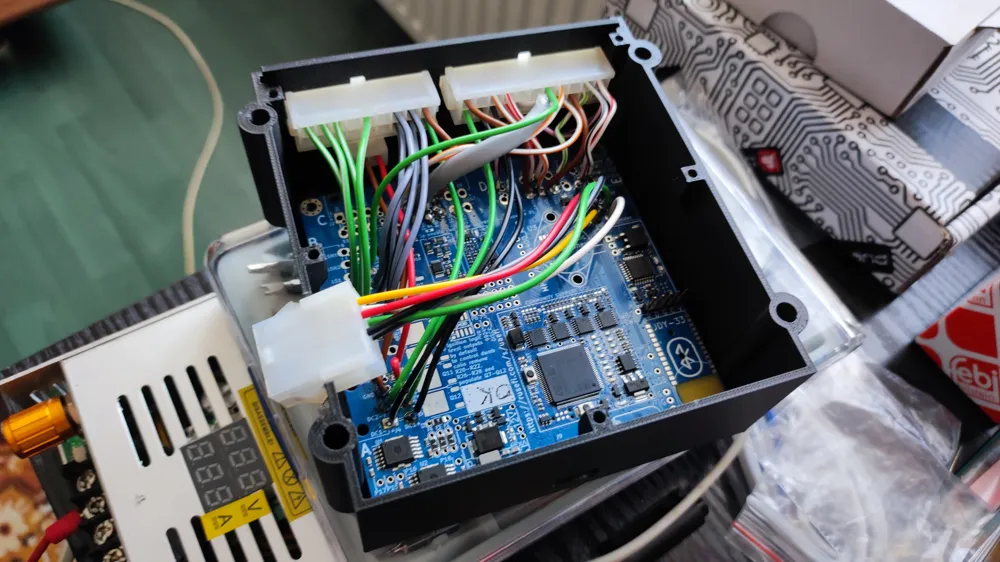

I recommend using a shielded cable for the VR sensor and connecting the shield to the nearest ground pin.
I recommend printing the second and third table with a 0.2 nozzle.
On my profile there is also a tool available to facilitate soldering and board assembly.
