45° Connection Box / Housing for PTZ Camera

### 💡 The Problem: The blind spot directly below the camera.

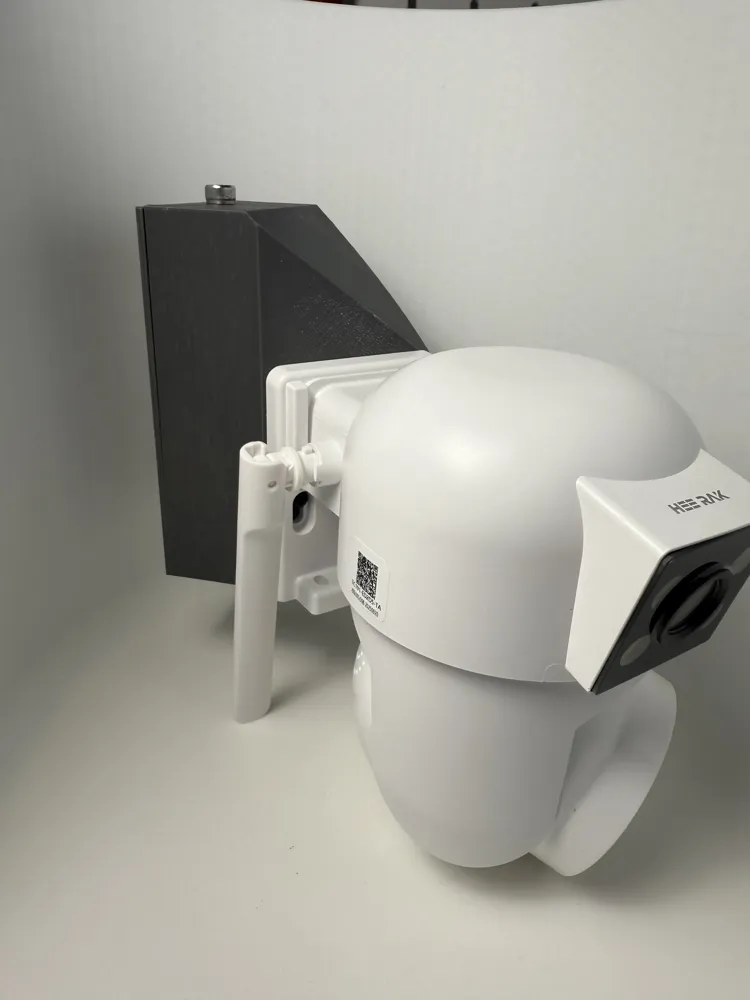

When a PTZ camera is mounted high on a wall, it often cannot pan down far enough to monitor the area directly below it. This 45° angled housing is the perfect solution to eliminate this blind spot.

It serves as a stable, angled mounting base that also neatly conceals the unsightly power supply and excess cables inside.

---

### ⚠️ Important Note: Not waterproof!

This housing serves as a mounting aid and privacy screen to organize the power supply and cables. It is **not** designed to be waterproof and offers **no protection** against direct rain or moisture. Only operate the power supply in a **weather-protected location** (e.g., under a roof overhang).

---

### The Solution in Detail:

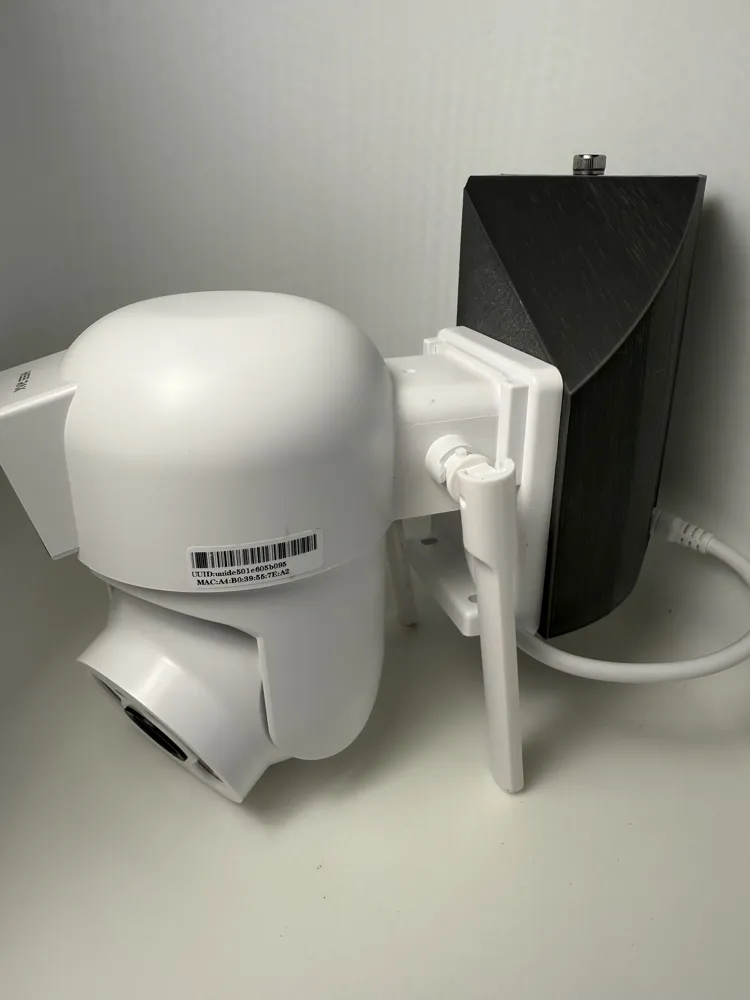

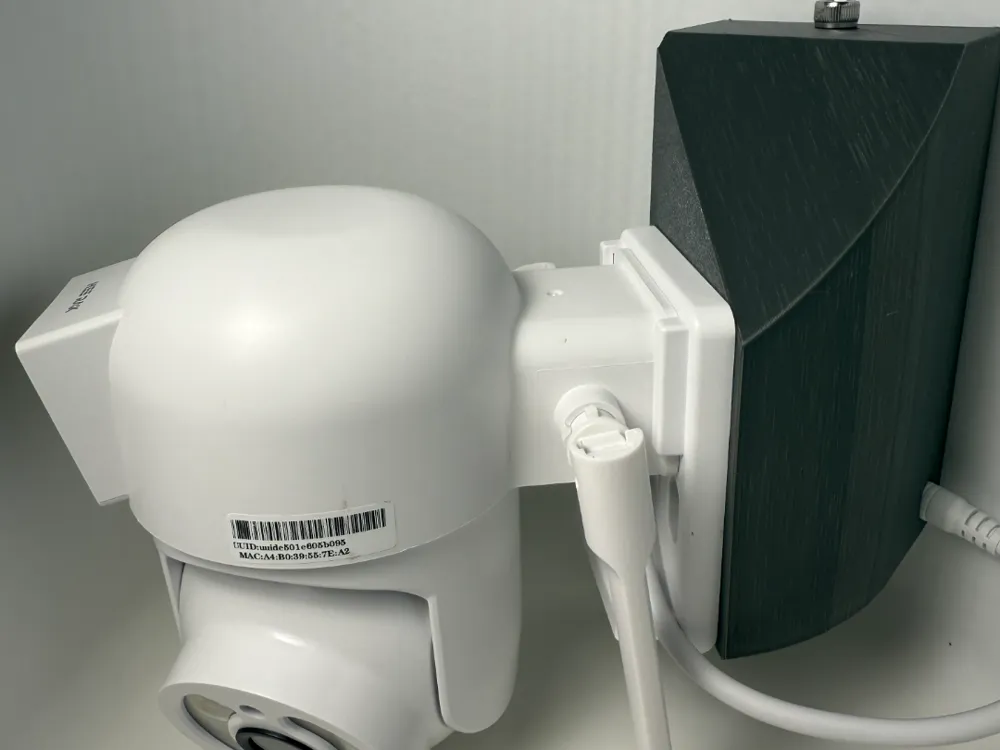

* ✅ **Fixed 45° Tilt Angle:** Positions your camera ideally to monitor an area from above. Perfect for entrance areas, courtyards, or corners.

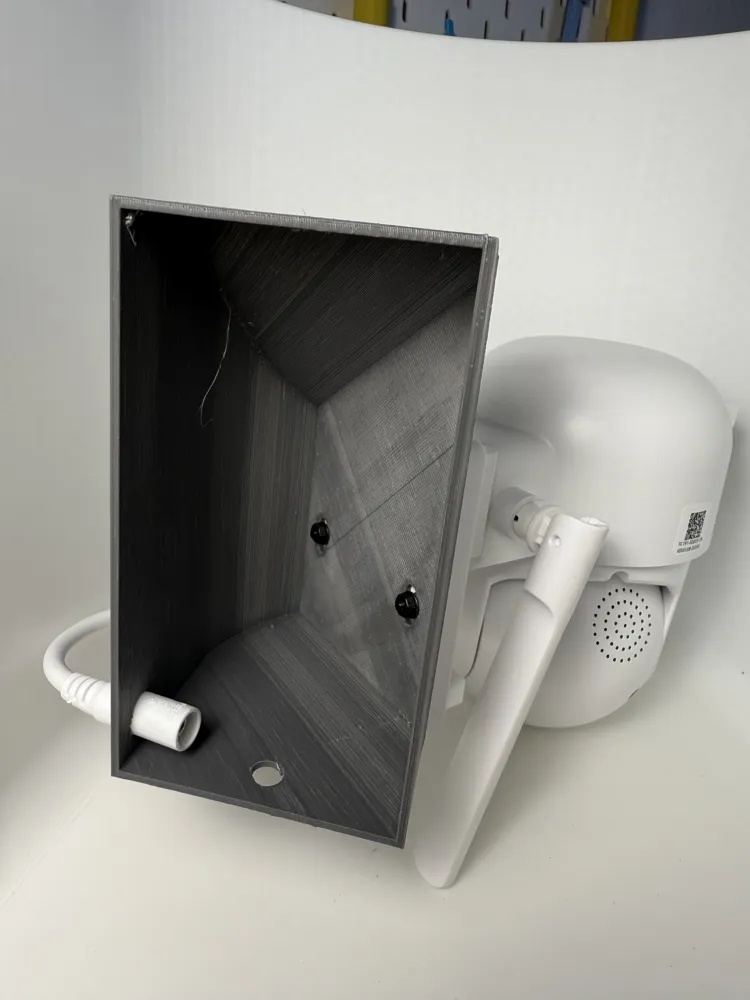

* ✅ **Clean & Tidy Installation:** The housing offers enough space for most standard power supplies. Everything is neatly stowed away and out of sight.
* ✅ **Suitable for Common PTZ Cameras:** The mounting holes (43.5mm spacing) are designed for widely available models from platforms like AliExpress, Amazon, or Temu.
   * **Tested with this camera model:** **https://s.click.aliexpress.com/e/_c4DPATEL**
       *(Note: If you make a purchase through this affiliate link, I receive a small commission at no additional cost to you.)*

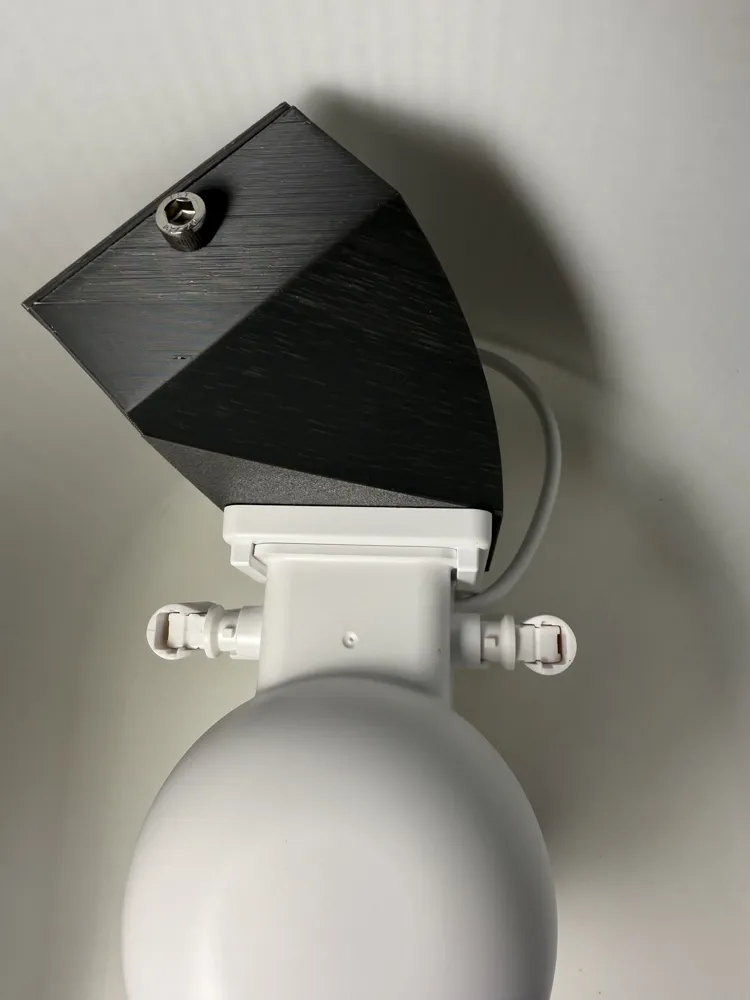

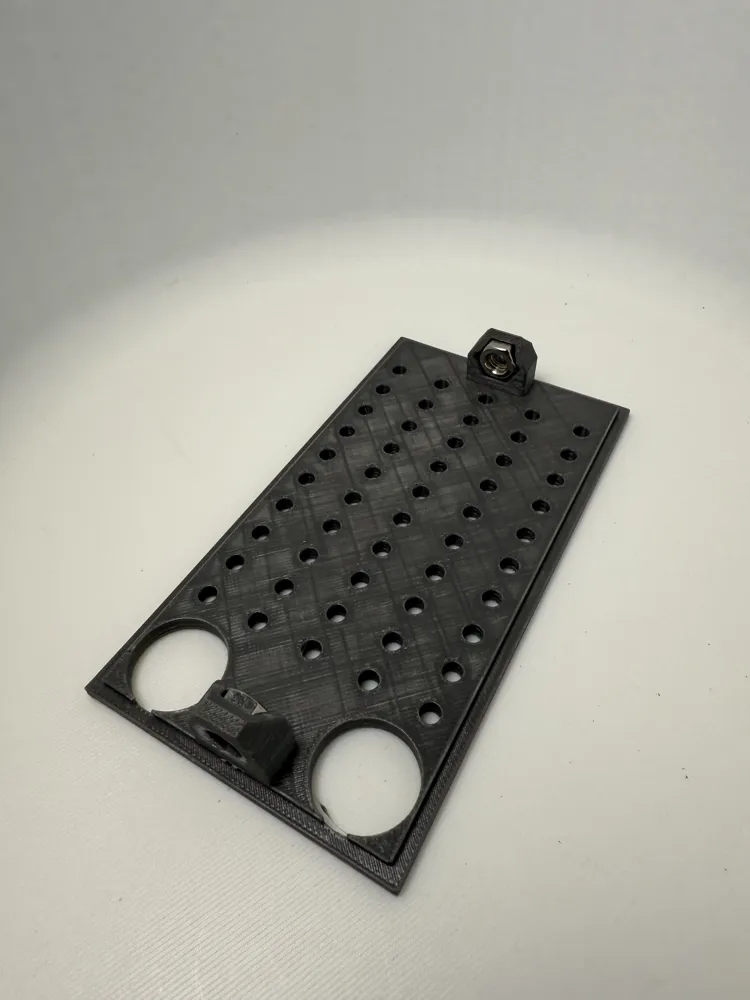

* ✅ **Easy Assembly for Everyone:** Requires no special tools. The two M6 nuts for camera attachment are simply fixed in the recesses with a drop of superglue.
* ✅ **Also Available as a Straight Version:** Don't need an angle? You can find the straight version of this box here: ** https://makerworld.com/en/models/1867244 **

---

### ⭐ Optimized 3MF Project File

You receive a .3mf project file that can be loaded directly into Bambu Studio (and other compatible slicers). The file already contains **optimally placed and painted support structures (Supports)** to simplify printing.

---

### 🔧 Recommended Print Settings

* **Material:** **PETG** or **ASA** are highly recommended for outdoor use due to their UV and temperature resistance.
* **Hardware:** 2x M6x10 screws and 2x M6 nuts.
* **Walls:** 3
* **Infill Density:** 20-25%
* **Infill Pattern:** Gyroid
