Speeduino Case
Print Profile(1)
Description

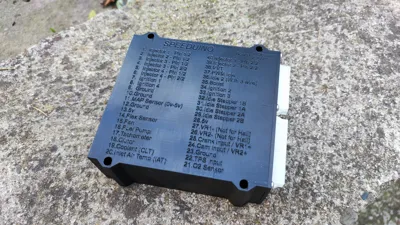

Speeduino case

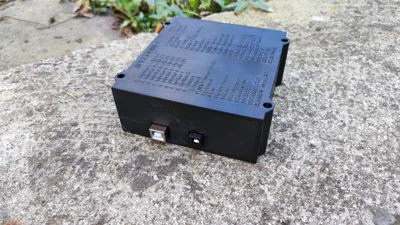

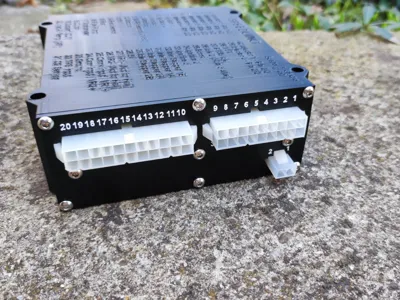

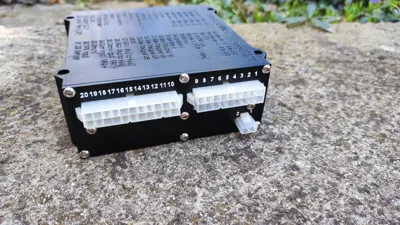

Speeduino housing with Molex Mini-Fit 4,2mm connectors.
You will need:
1. Molex 2-PIN 39012021 (Excon: 420102HP051)
2. Molex 18-PIN 39012181 (Excon: 420118HP051)
3. Molex 22_PIN 39012221 (Excon: 420122HP051)
4. Connector BLS 2x20PIN 2,54mm
5. Screw M3x10 9pcs
6. Cables 0.3-0.5mm2
I recommend using a shielded cable for the VR sensor and connecting the shield to the nearest ground pin.
I recommend printing the second table with a front plate with a 0.2 nozzle.

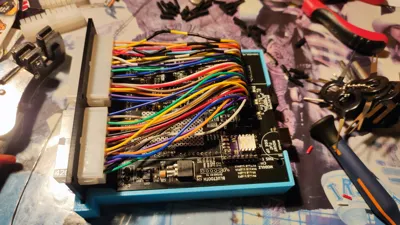

On my profile there is also a tool available to facilitate soldering and board assembly.
