WLED Holder for SKADIS (Final Version)
Print Profile(3)
Description
Last Update 20.09.2024
Changelog at end
Thank you very much for all your likes to this project!
This is an other holder for a WLED stripe facing the LEDs and the light inwards. The light can shine through the backside of your Skadis.
I found the basic idea in this Youtube video. All credits to him. Thanks for this Project. I redesigned this project for WLED stripes. Just use my 3D files to fit it to your Skadis.
Don‘t forget to like, push the heart and spread love to the world. Feel free to comment, i like feedback from you!
There will come a new and final version with further improvements, so this is still work in progress.
CHECK THE VIDEO FIRST TO GET THE IDEA HOW IT WORKS.
Description:

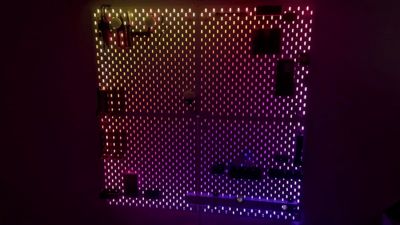

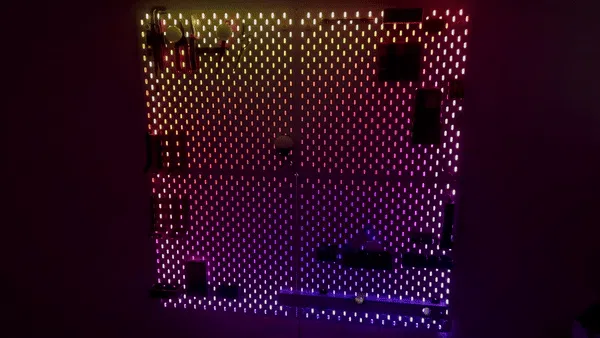

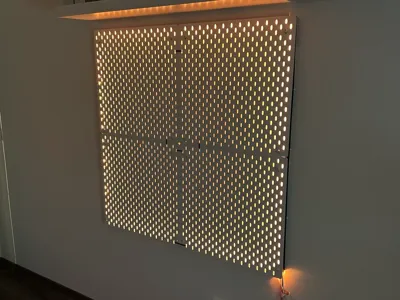

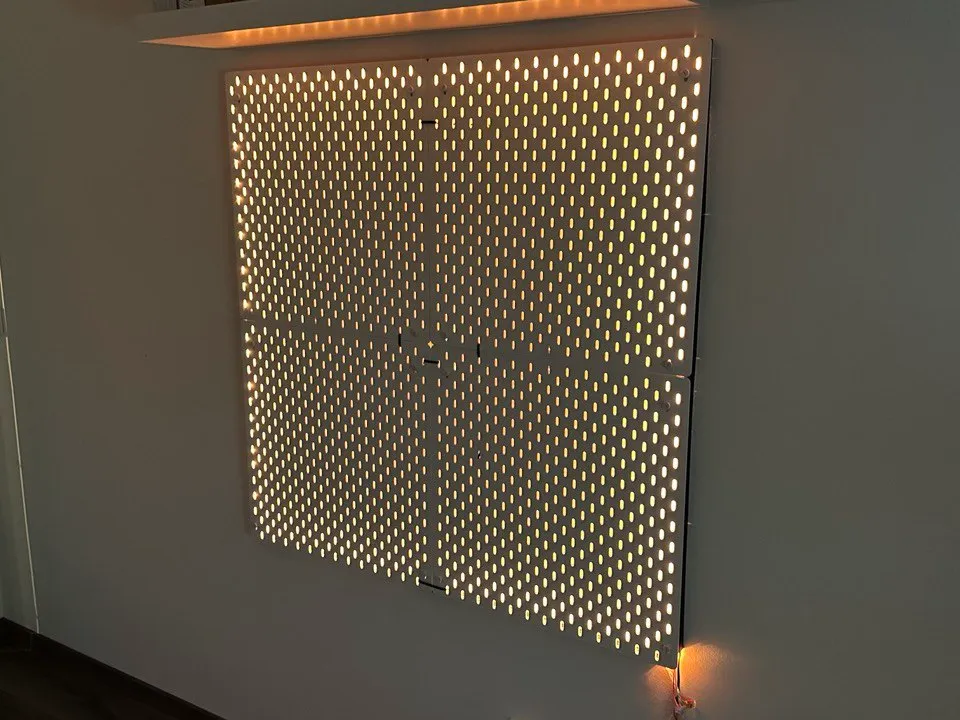

First of all you need Skadis Boards. I used 4 x 56cm x 56cm boards shown in the pictures. The facing of the LEDS is like in the video. You also need double sided tape to attach the 3D printed parts to the board. The fitting is tight but it schould work fine.
It is very IMPORTANT that you DO NOT insert the WLED stripe from above into the model. You have to insert the LED stripe from the side into the 3D printed parts!
The Basic components:
I printed:
16 x WLED Schiene V1
4 x WLED Schiene kurz
3 x WLED Kurve
1 x WLED Endstück alpha version (finally uploaded)
Important! Let the parts cool down!
Boost Me (for free)
Feel free to boost, like my models. I love feedback of your makes with pictures.
For my 4 Skadis Board I need
5m WLED
https://www.amazon.de/dp/B01CDTEG1O?psc=1&ref=ppx_yo2ov_dt_b_product_details
NodeMCU or other ESP Device
https://www.amazon.de/gp/product/B06Y1ZPNMS/ref=ppx_yo_dt_b_search_asin_image?ie=UTF8&th=1
Power Supply:
https://www.amazon.de/gp/product/B078B5BWDF/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
3M double-sided adhesive tape or other
*********CHANGELOG & Updates*********
20.09.2024 Endstück is now incuded in the print profile and uploaded as a separate printplate if you are missing the last part of the frame

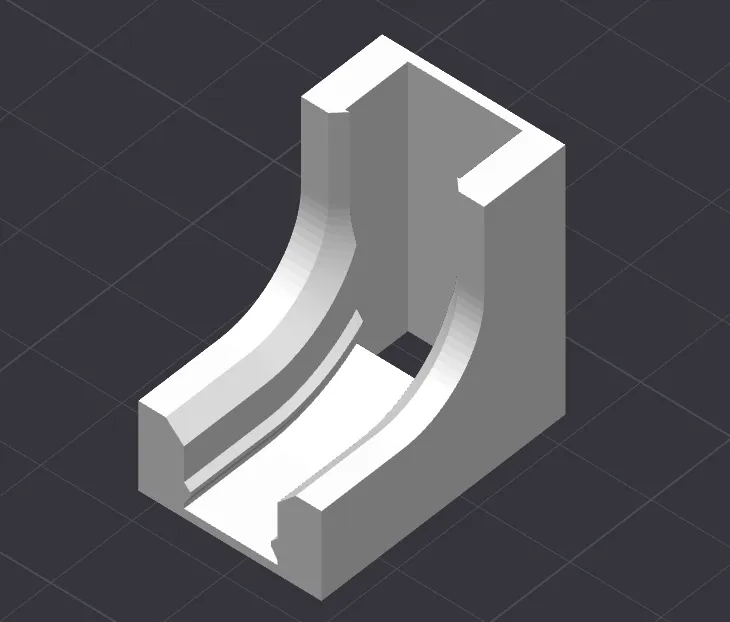

14.08.2024 Endstück released. V5 alpha print it like shown below

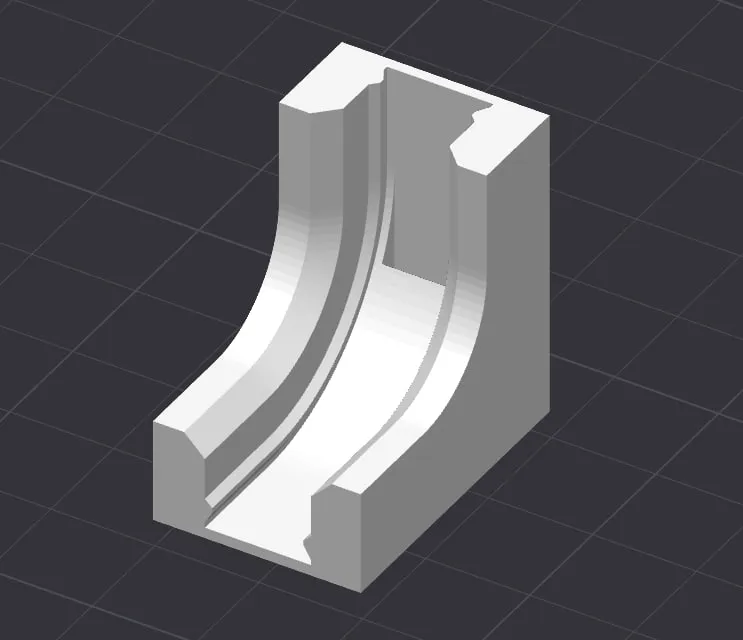

09.08.2024 Upcoming Update in a few days. Preview (Upload of last part. Now there is no light leakage anymore. The part “Endstück” will close the entire project. Print it with the hole facing up and down like shown in the picture.)
08.08. Changed the licence to Standard Licence
Warnings
Advise. This project is on your own risk, because you work with electronic parts which can be dangerous for you, if you do not know how to use.
