Compliant Mechanism Spherical Flexure Joint Demo

Improved Version: https://makerworld.com/en/models/2180805-compliant-mechanism-spherical-flexure-joint-v2#profileId-2366894

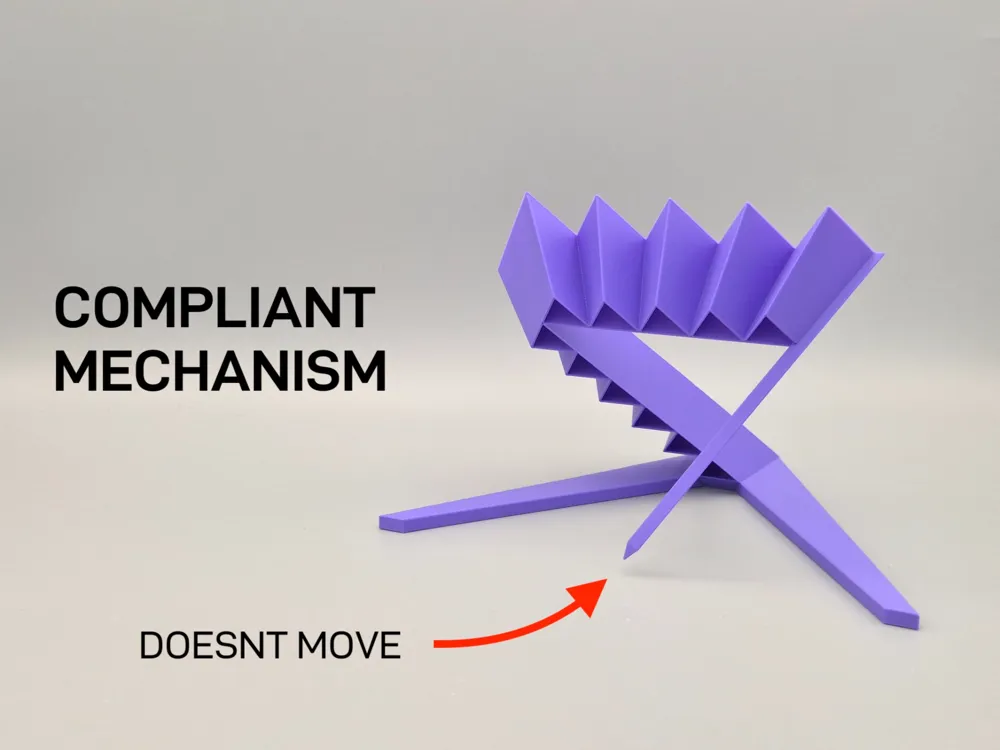

A compliant mechanism demo object of a spherical flexure joint.


Video of it: https://www.instagram.com/quadmovr.print/reel/DPZEKBRjMM8/

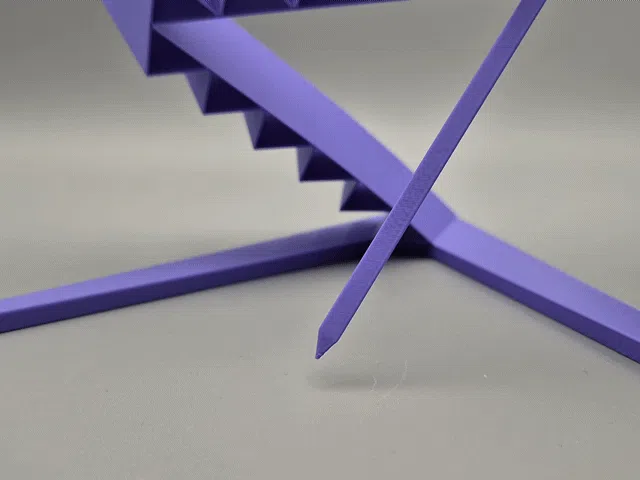

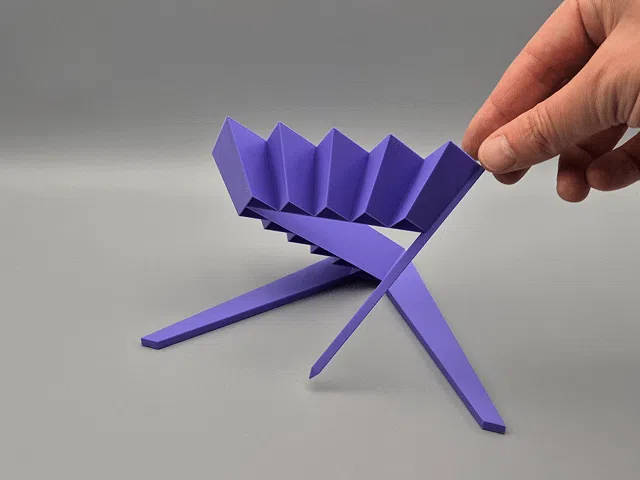

Video of how it behaves: https://www.instagram.com/quadmovr.print/reel/DQwtShUDPnL/

Inspired by Jelle Rommers' work.

Ive tried to figure out how it works and created my own version from scratch to validate if i understood. Seems i did.

Its printable with any Bambu Lab printer. No supports needed.

What can improve adhesion during printing:

• use glue stick
• disable Auxiliary Fan
• disable Exhaust Fan (if H2D/S is used)
• increase print bed temp
