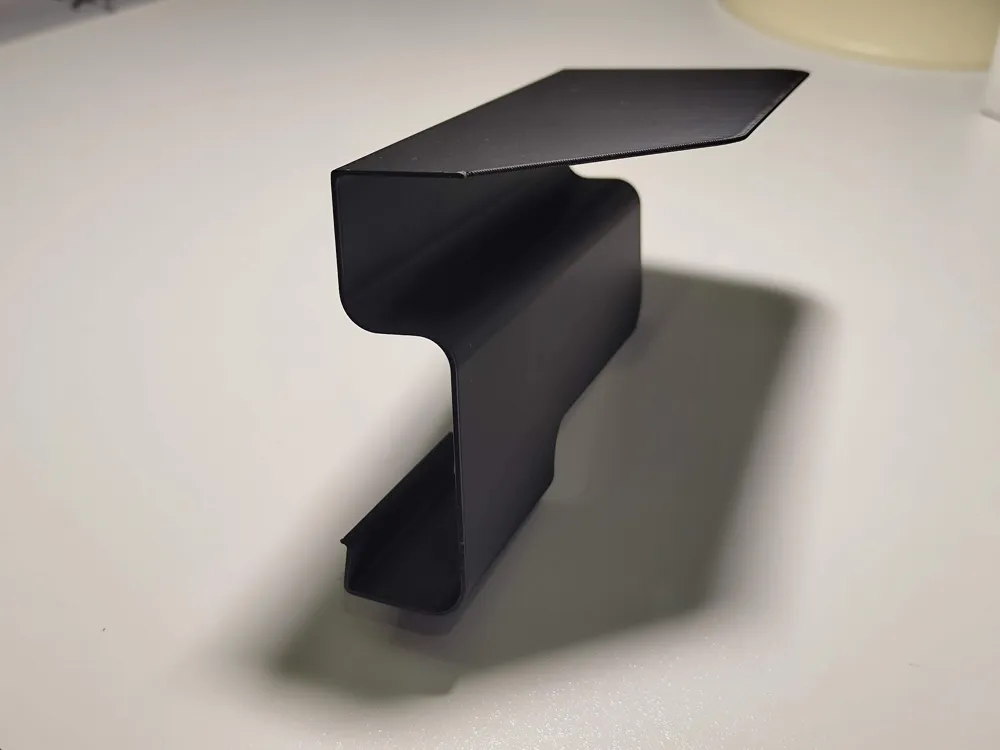

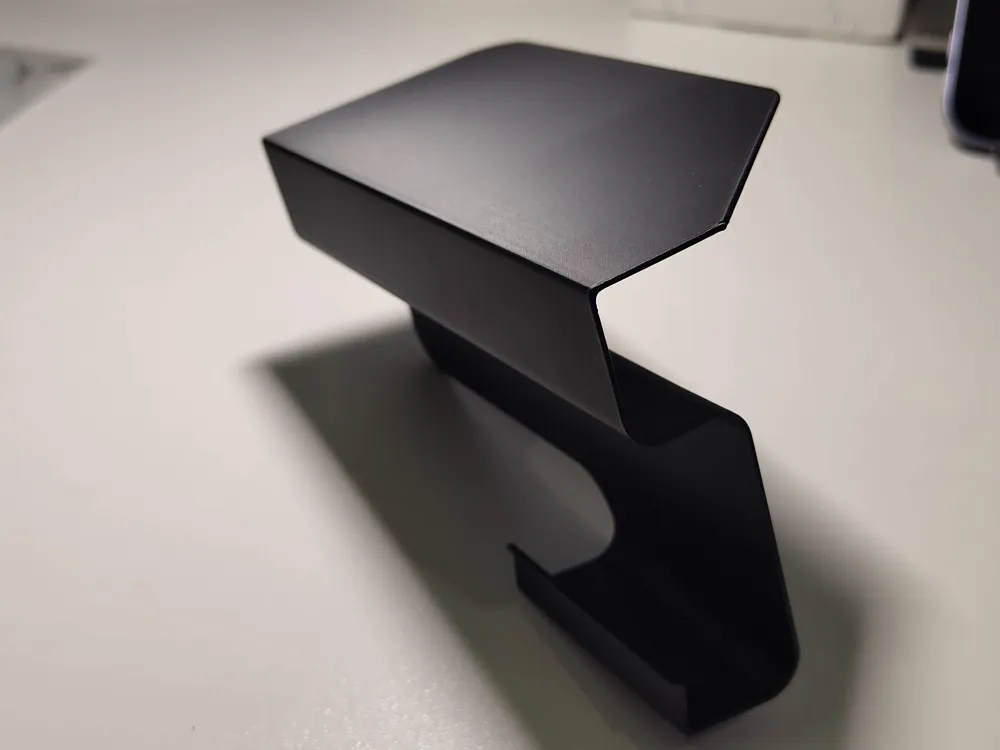

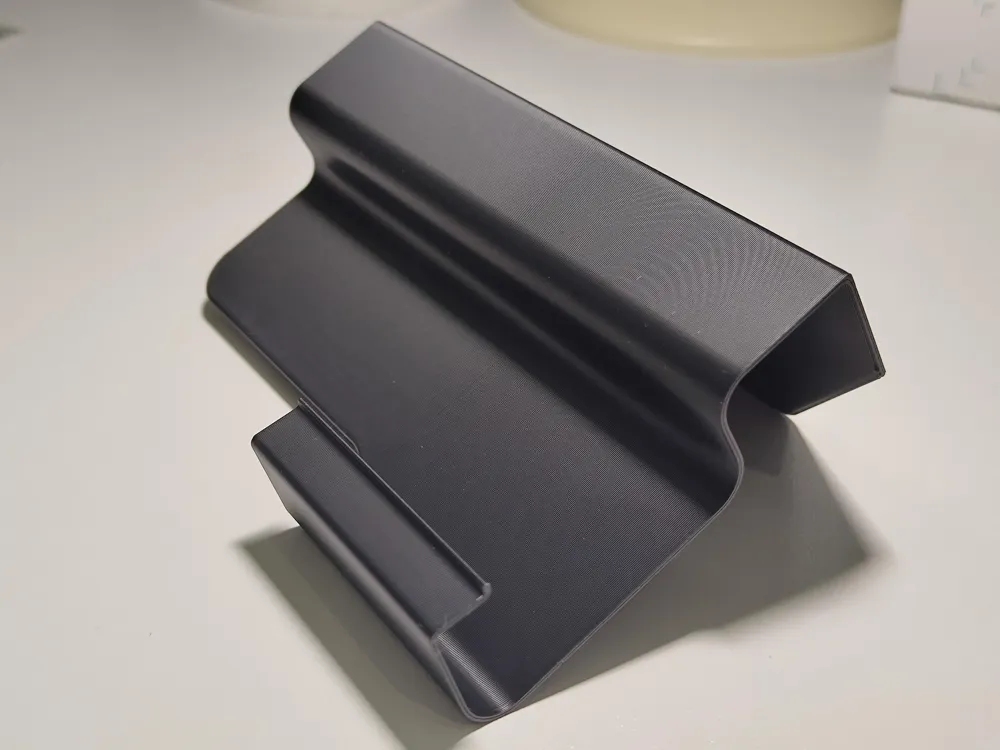

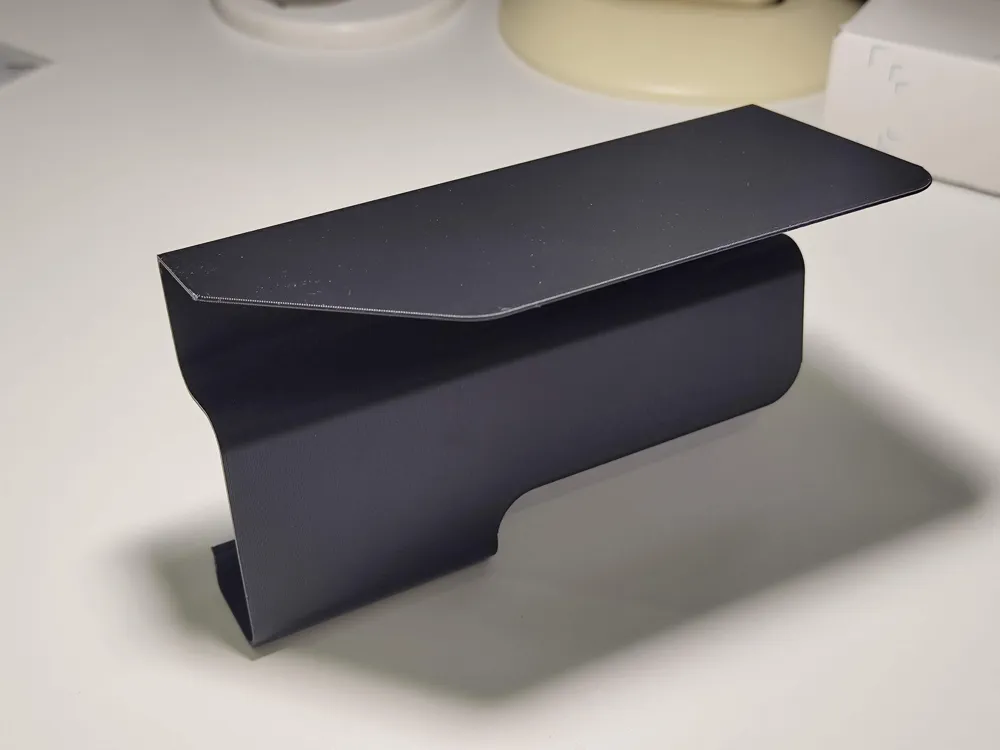

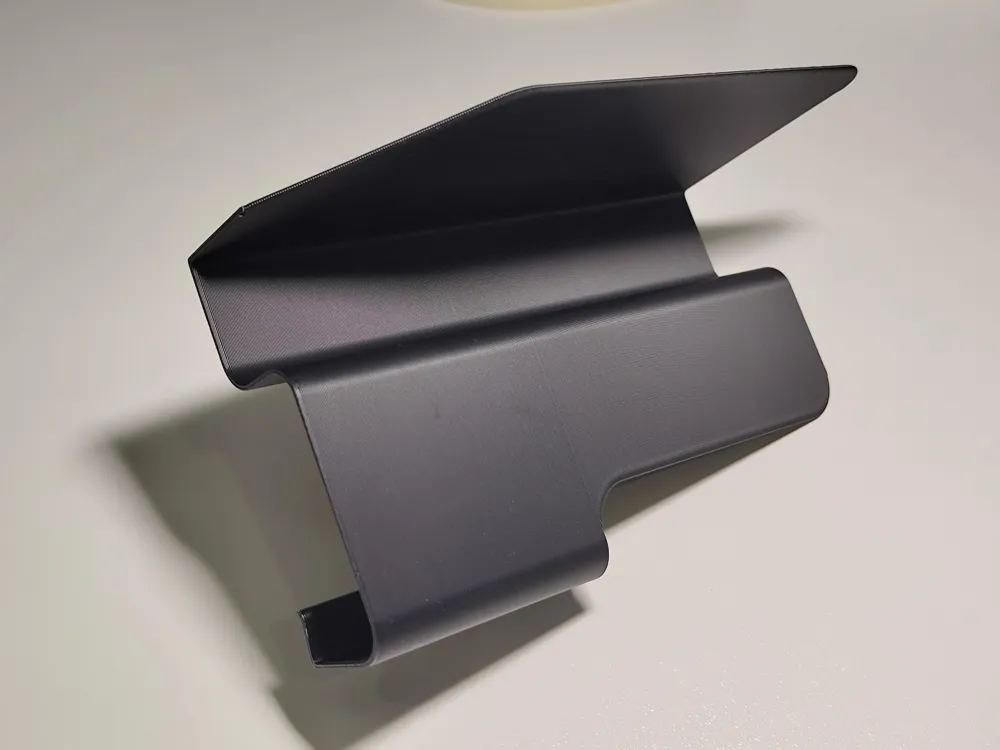

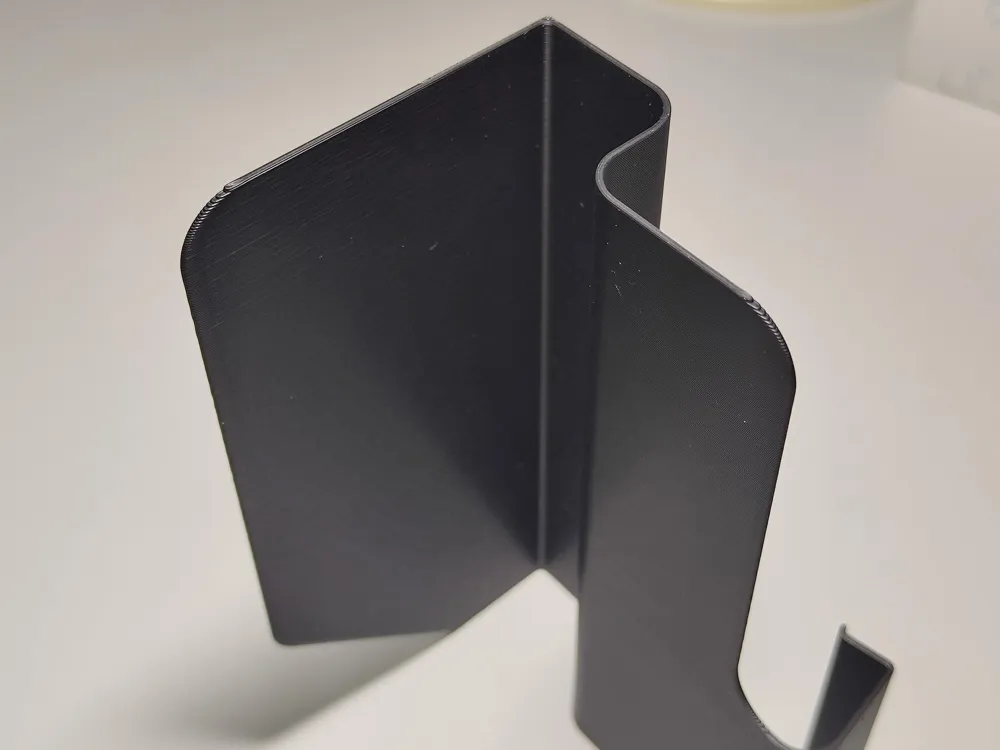

Glare Shield for Bambu A1

Features:

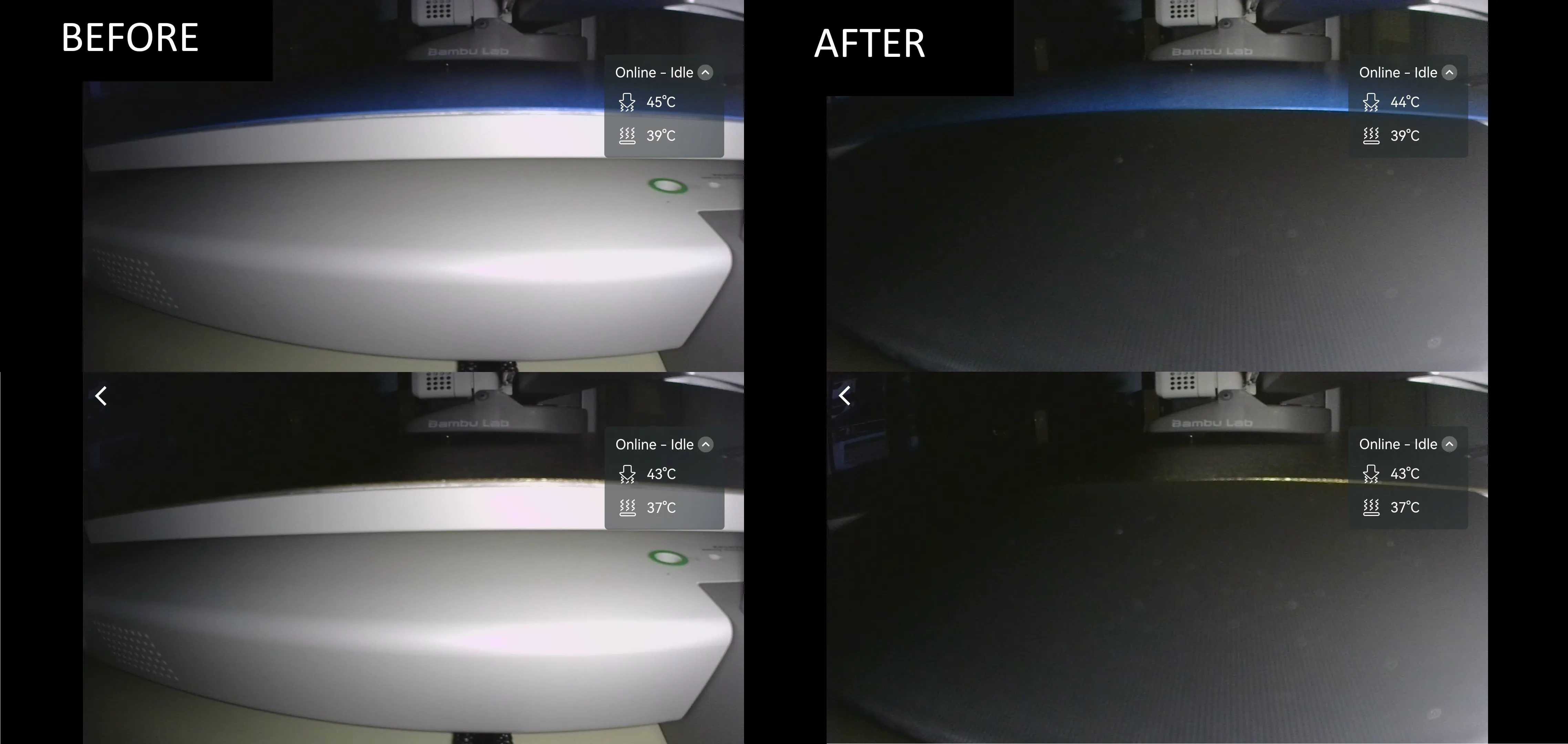

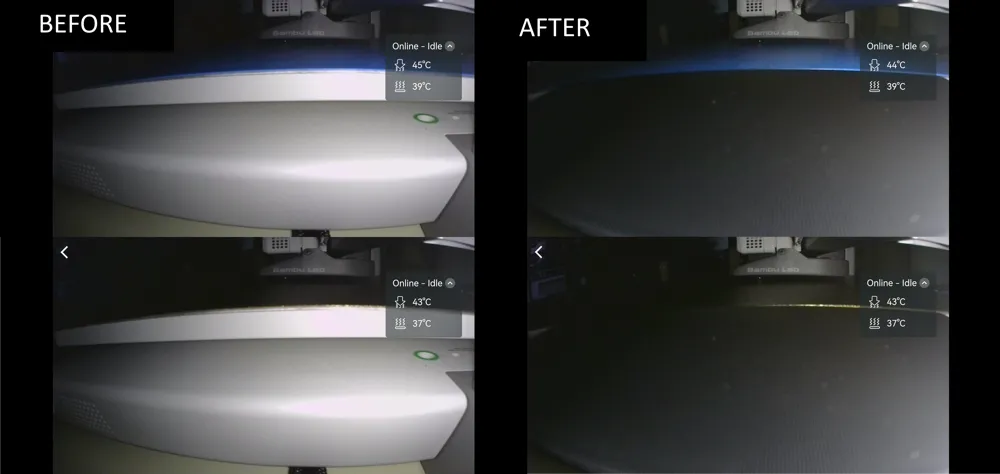

Reduce glare by covering most of the white parts that cause the Bambu A1 camera to underexpose the actual print area.
Optimized to be less wasteful on filament.
Minimal and elegant (IMO). Printable in spiral vase mode.

Installation:

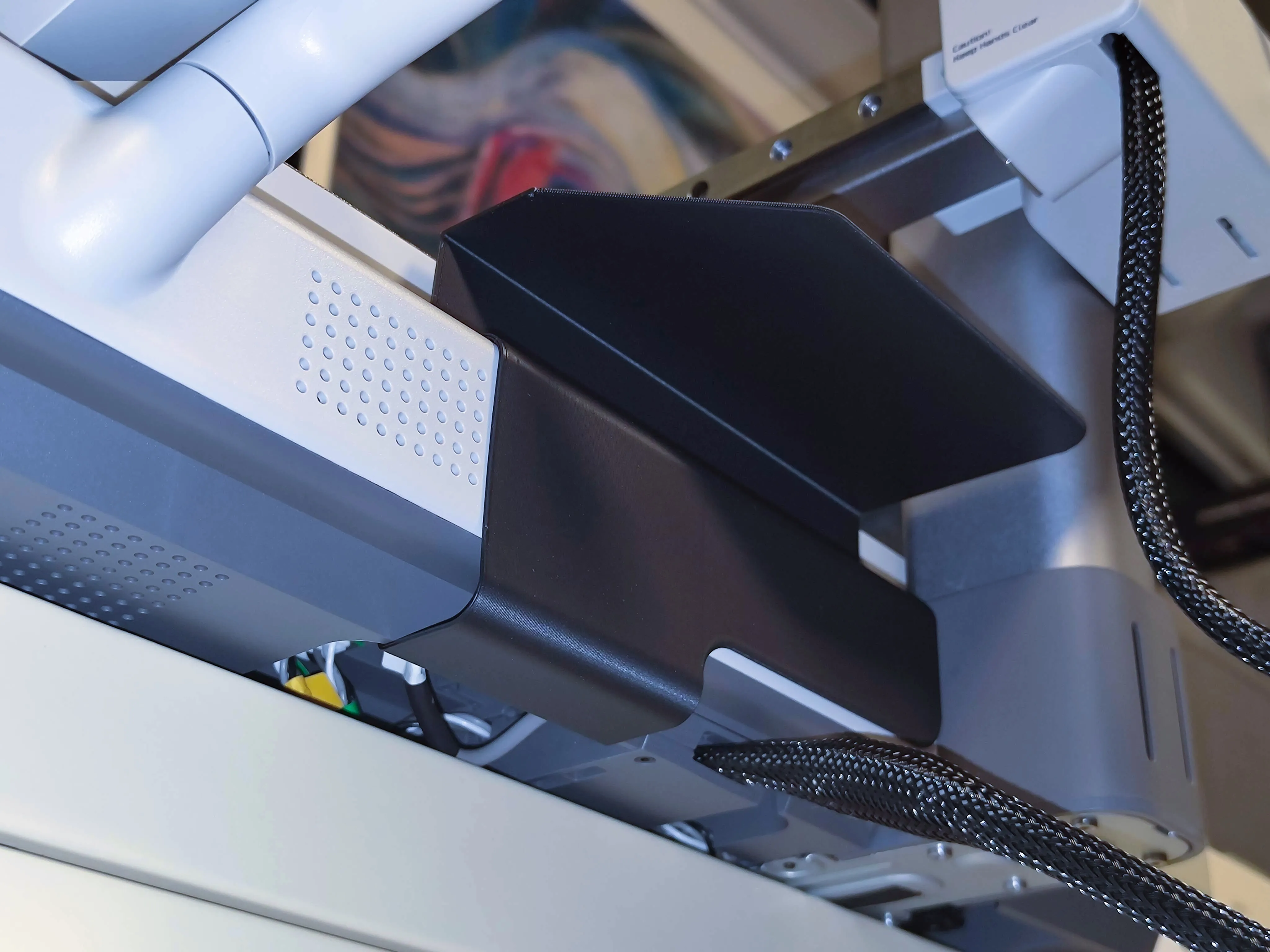

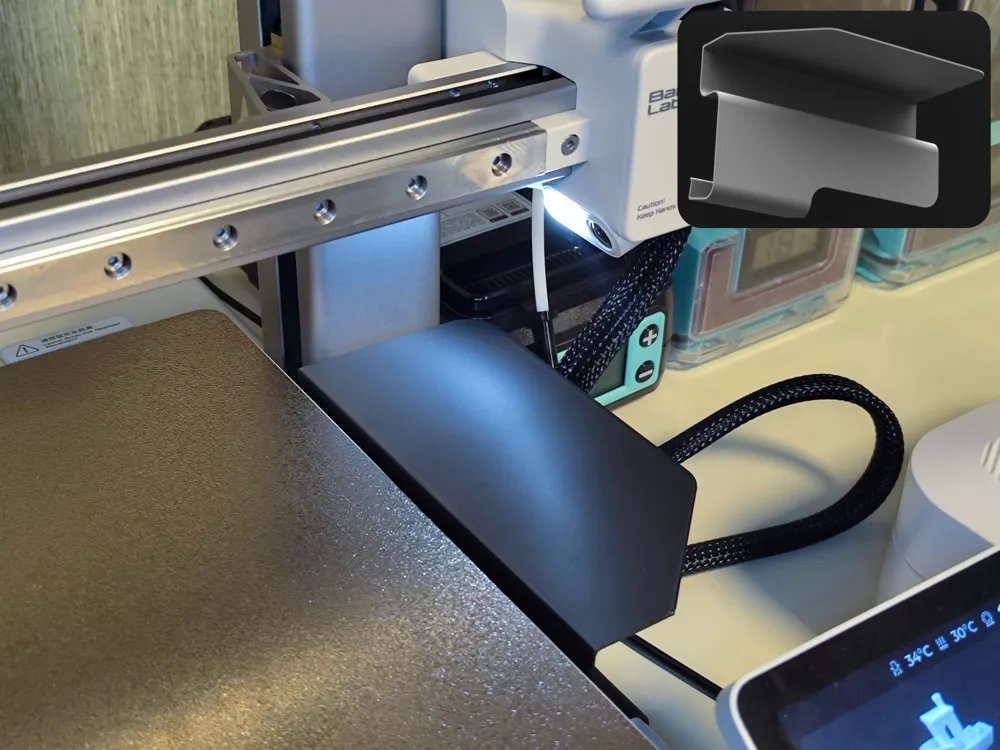

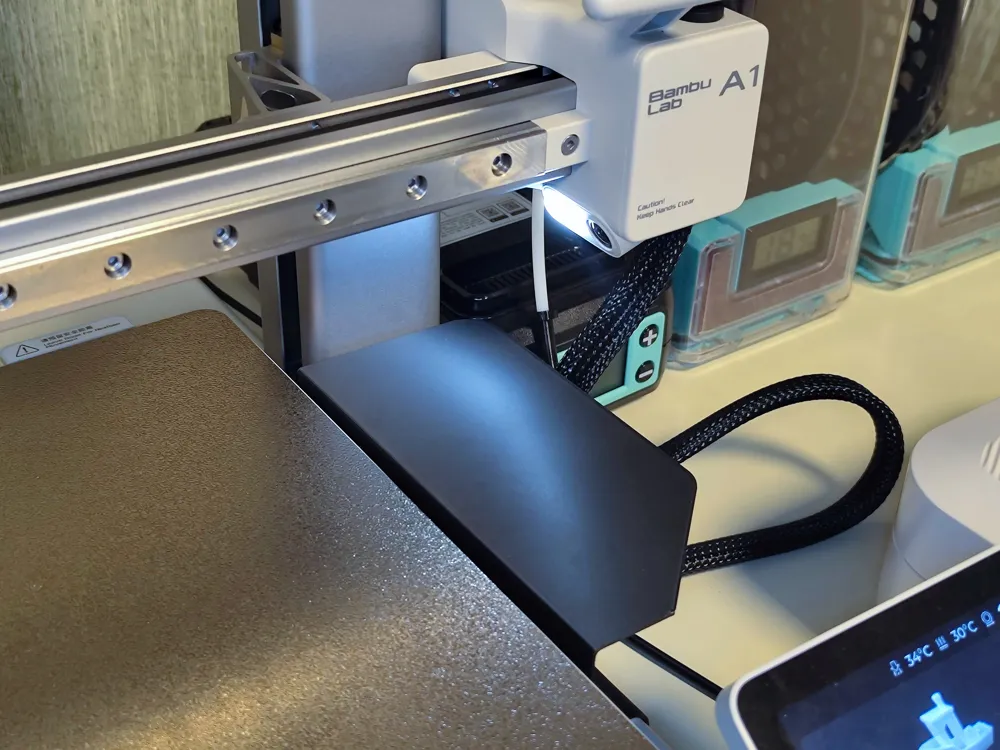

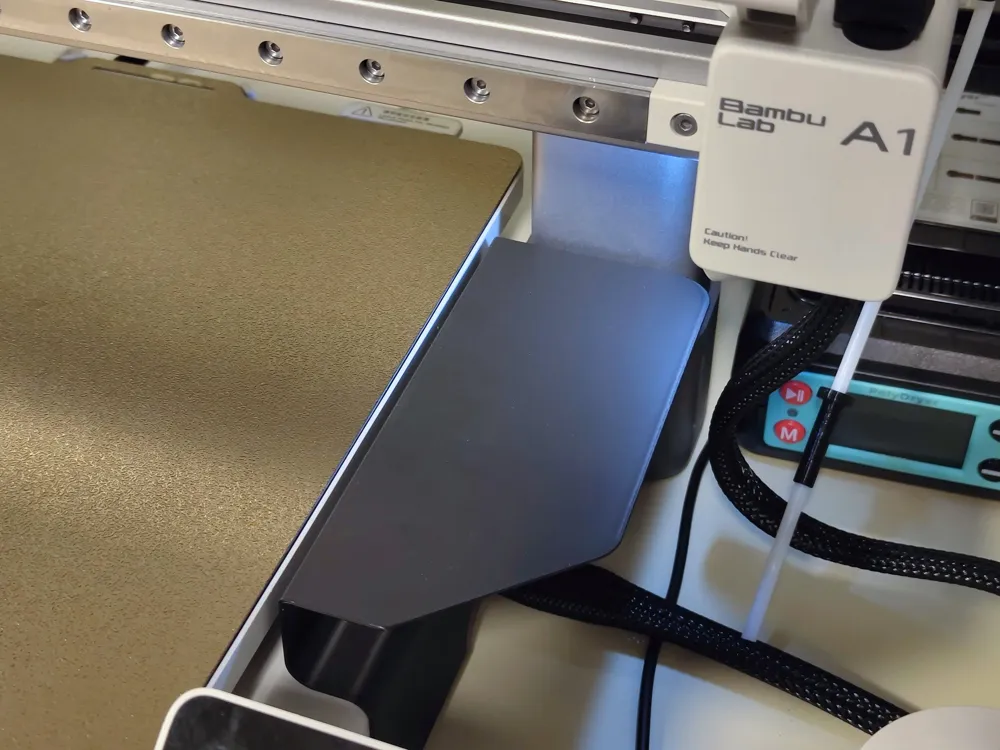

Snaps onto the bottom cavity of the printer with a snug fit.

Notes on print profile:

Please print with black filament.
I'm using matte black PETG, but PLA should work too if the environment isn't too hot.
I'm using CryoGrip build plate for improved bed adhesion; otherwise I would suggest adding a brim.

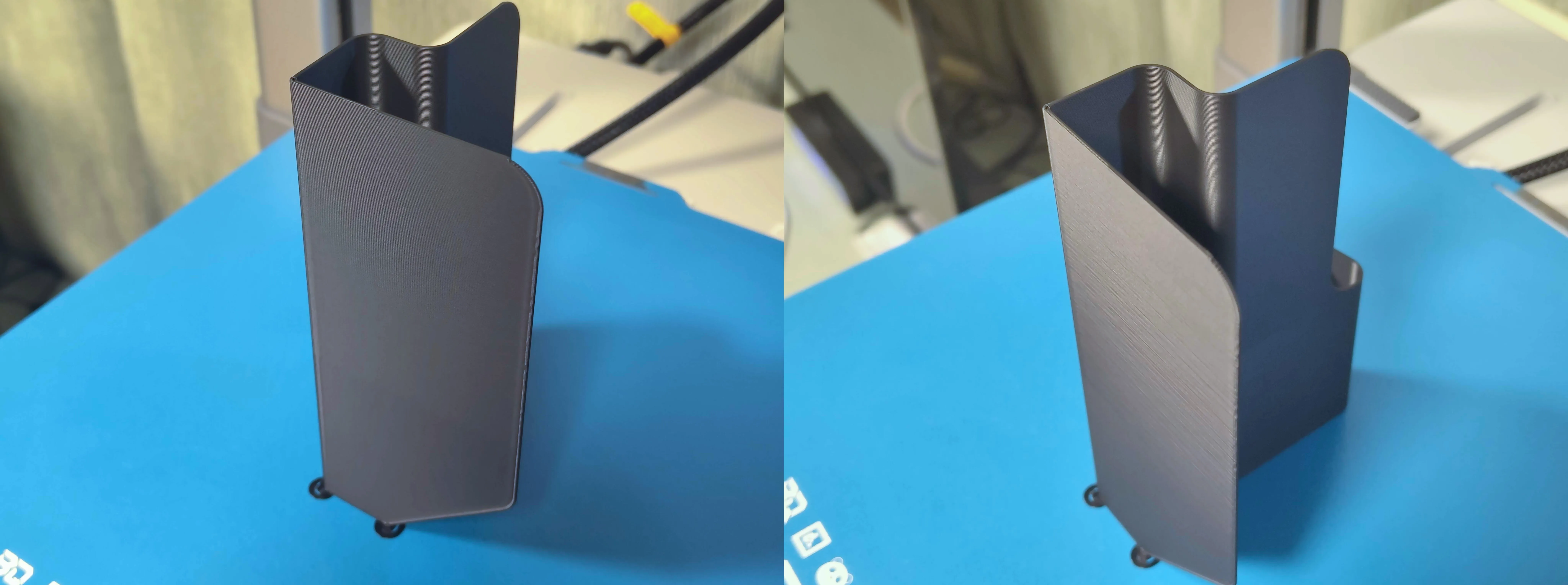

I'm also using a 0.6 nozzle to take full advantage of spiral vase mode (1mm thickness with 0.6 nozzle in vase mode produces a solid instead of a hollow part).
- Vase mode produced less stringing.
- 0.4 nozzle with vase mode produces a hollow part, which is also fine.
A thicker model print profile designed for non-vase mode is also included.

upgrades for bambu lab

Comment & Rating (15)

@NeedMoreCoffee

Print Profile

0.4mm nozzle, thicker, no vase mode

Looks great so far, printed in PLA so curious on how much it may sag over time due to heat.

(Edited)

@user_1807421514

Print Profile

0.4mm nozzle, thicker, no vase mode

Printed in PLA with tree supports It fits perfectly on my A1

Show original

@user_558524854

After wearing it, I don't know when, it interfered with the nozzle and got scratched. Why?

(Edited)

Show original

@L1V3N_1T_13

Print Profile

0.4mm nozzle, thicker, no vase mode

@MishuFishu

Printed in vase mode, the shield doesnt stay firm, theres a large gap. but the worst thing is that the part under the printer blocked the rods or something, the bed started making loud bangs and all axes were stucked, no homing possible.

The designer has replied

@ChickenBar

eh? i've been using the vase mode version myself since upload, and had 0 problems. what "rods" do you mean?

@matt_mkIV

Has the plate the space for nozzle clogging check?

The designer has replied

@ChickenBar

should be fine. i've been using it since and never see the nozzle colliding with it.

@DadaH44

What is the space between the build plate and the manufactured part I have a 5mm thick build plate guide and I suppose that it won't fit is it possible to make a version less close to the build plate

The designer has replied

Show original

@ChickenBar

the clearance is just about 5mm; i suggest to cut a small part in slicer and print it to check if it's wide enough for your set up. i could probably make one with wider clearance down the road.

@Moemo

great fit

@user_1267099692

Print Profile

0.4mm nozzle, thicker, no vase mode

👍

@wsta2

Print Profile

0.4mm nozzle, thicker, no vase mode

ganz ok
