MightyOhm Geiger Counter Case
Print Profile(1)
Description

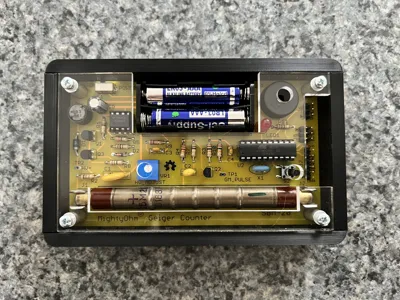

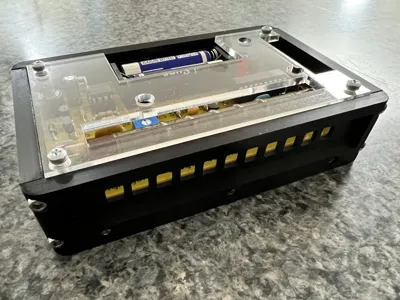

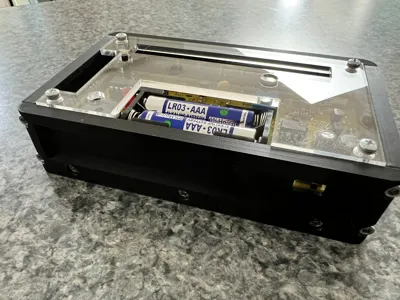

A case for the MightyOhm Geiger Counter Kit, which “fully” encloses the sides of the board. This model can be printed in any of your favorite materials (though TPU might be a bit difficult) and in any print profile.
Reuses these parts from the kit's case:
- 4 short hex standoffs
- 4 long round standoffs
- top plate
- 8 screws
- 4 washers
Additional parts needed:
- 18 M3 SHCS - 6-10mm length
Assembly is straightforward:
- Install the 4 short hex standoffs and 4 long round standoffs to the PCB as instructed in the kit's manual
- Place the printed base on the bottom of the kit using 4 of the kit's included screws
- Attach the sides to the base using 10 M3 SHCS
- Attach the kit's clear plastic top cover using 4 of the kit's included screws and washers
- Finish by using 8 M3 SHCS for structural support for the sides
This case for the MightyOhm Geiger Counter Kit is intended for educational and entertainment purposes only. This case is not intended to keep you or the MightyOhm Geiger Counter Kit safe. Use caution when interacting with high-voltage and static sensitive devices. This case should not be relied on to provide safety in radiological environments, or where ionizing radiation may be a concern.
