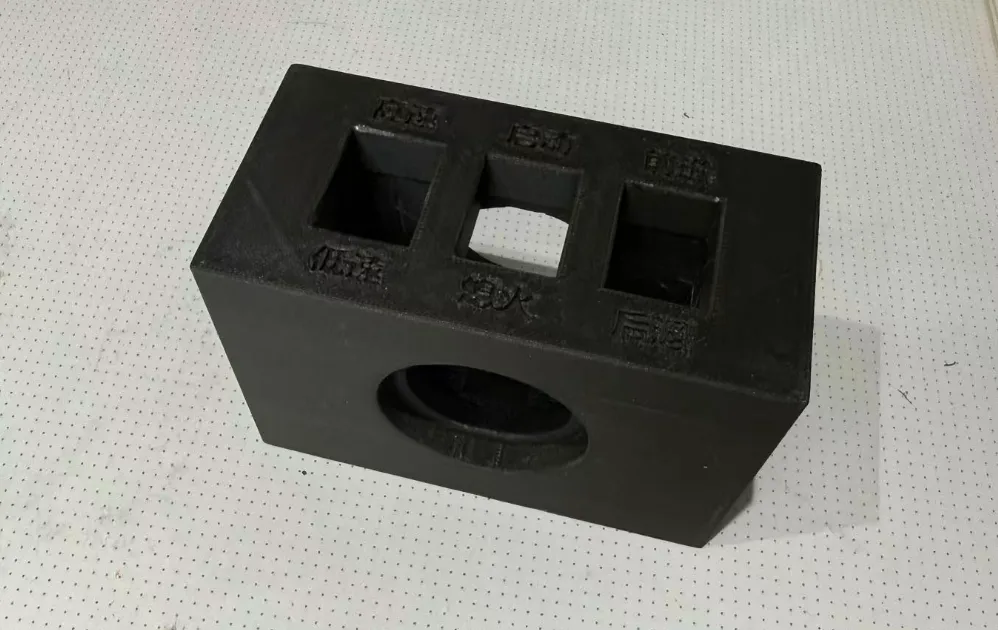

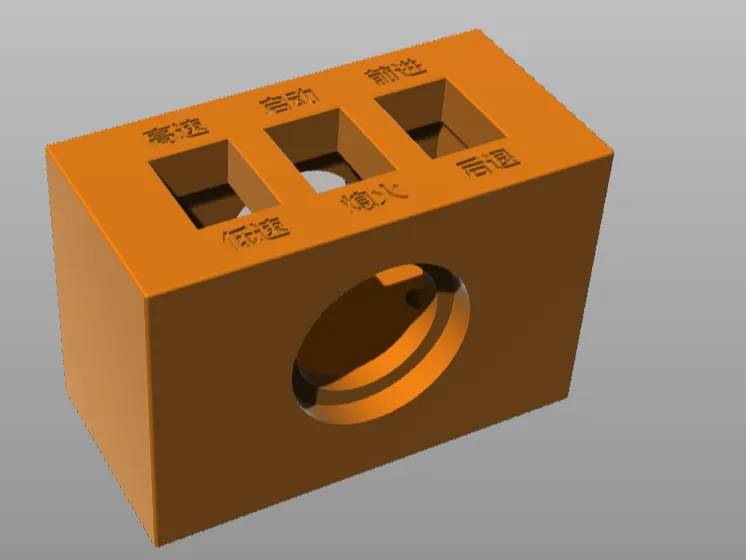

Go-kart Modification Part: A-012-D 1x2 Tech Brick Triple Switch Seat Modification

《Go-kart Modification Part: A-012-D 1x2 Tech Brick Triple Switch Seat Modification》

Note: This is not universal with LEGO or other brands of block toys!!!

Note: This is not universal with LEGO or other brands of block toys!!!

Note: This is not universal with LEGO or other brands of block toys!!!

These are huge blocks, about the size of a palm, and can be used to build indoor houses, vehicles, etc...

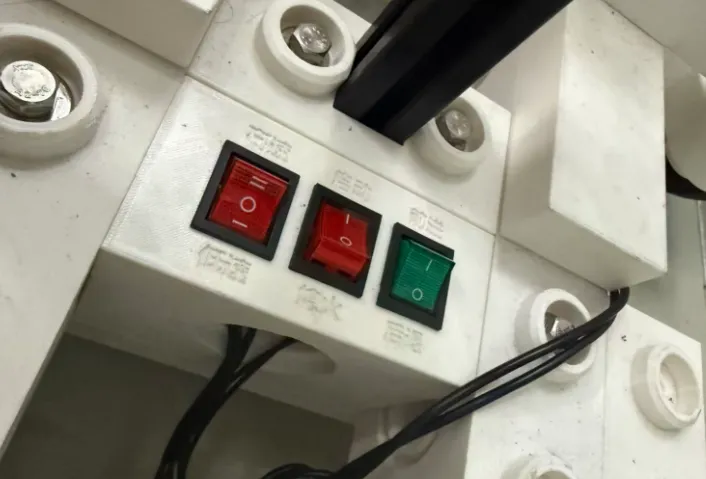

Use a KCD4 type boat switch; it can be pressed directly into the front.

--------------------------------------------------------------------------------------------------------------------

Naming convention: a-bbb-c xxxxxxxxx

        a: Type of large block, generally divided into five categories: Brick, Tile, Beam, Gear, Pin, Other. See below for details.

                Brick-A-: Divided into ordinary bricks without holes and tech bricks with side holes. As the basic component of large blocks. The center hole is suitable for M8 nuts.

                Tile-B-: The thickness is 1/3 of a brick, meaning three stacked tiles can form a brick of the same model. The center hole is suitable for M8 nuts.

                Beam-C-: The thickness of the beam is similar to a tile, but the protrusion of the tile is changed to a concave hole, and the hole size is consistent with the side holes of tech bricks.

                Gear-D-: Gear.

                Pin-H-: Components used to connect various holes.

                Axle-I-: No 3D printed design for this component; this component is replaced by 3030 European standard aluminum profiles.

        bbb: Serial number of the large block:

                First b: Indicates layer height, generally 0 for single layer, 2 for double layer, 3 for triple layer.

                Middle b: Indicates number of rows, generally 1 for single row, 2 for double row.

                Last b: Indicates number of columns, generally 1 for single unit, 2 for double unit, 3 for triple unit, and so on.

        c: Variant of this model, arranged alphabetically from ABCDEFG…

        xxxxxx: Chinese description for this content model.

--------------------------------------------------------------------------------------------------------------------

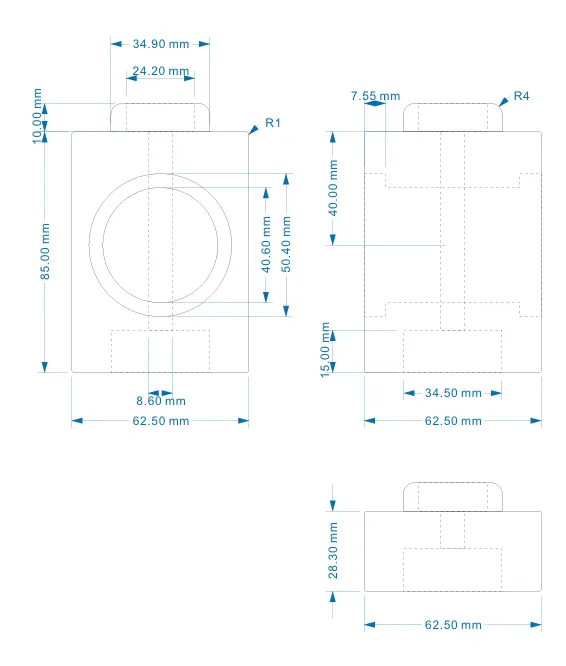

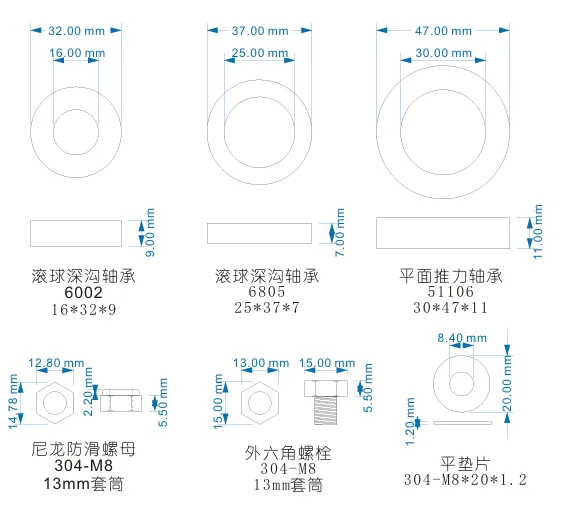

Adaptive size data:

--------------------------------------------------------------------------------------------------------------------

Open source license: Complies with the CC-BY-NC-SA open source license. Including but not limited to the following requirements:

        1. Modified models based on this open source solution must follow the same open source license.

        2. This model may not be used for commercial activities, including commercial educational activities, without permission.
