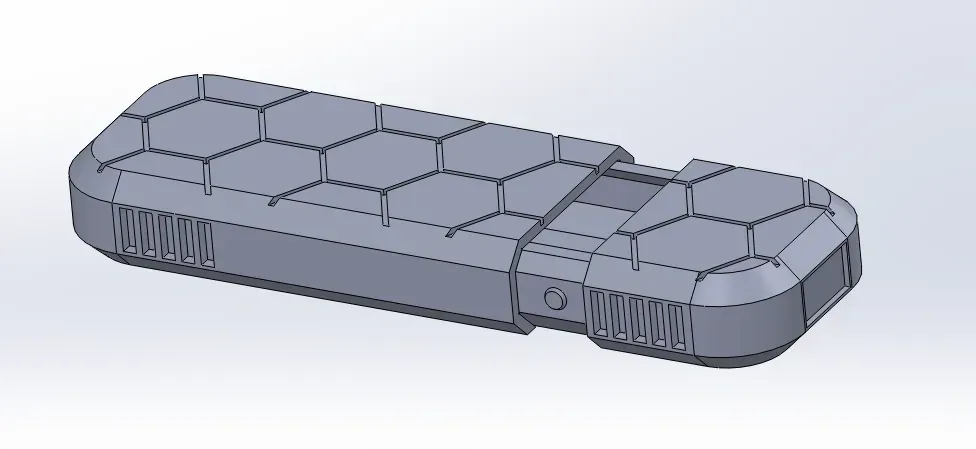

A compact and portable parts case featuring a sliding lid and a hexagonal textured top. Two sizes are available: small (90mm x 32mm x 13mm) and large (90mm x 32mm x 18mm)

16g of material, 40-minute print time.

=================================================================================================================

Here's another small parts case I designed, with dual independent sliding lids for double the capacity:

Comment & Rating (271)

@g0llum

Boosted

Print Profile

13mm thickness

really cool model, easy to print. I printed mine with the top upside down to have the same finish (otherwise you have one part with build plate pattern and one without) and tree supports. Also printed with concentric pattern for top layer :)

@Joywent

The effect is amazing! Your superb 3D printing skills have made this model come out so perfectly. Thank you so much! If possible, could you share your printing profile? I would be extremely grateful.

@g0llum

Boosted

Replying to @Joywent :

sure, will upload it here :)

@rivas2303

perfect

@Evyatar

Boosted

hii can you please create this one with 7 compartments and a stopping mechanism for each compartment? will tip

The designer has replied

@Joywent

Hello, if 7 compartments are added to this model, each compartment will be extremely small. You can check out my other design, the double - sliding cover parts box. According to your requirements, I will create a version with 4 compartments on each side, making a total of 8 compartments. Stay tuned. Thank you.

@Evyatar

Boosted

Replying to @Joywent :

hello, thank you so much for the answer. I do need one with 7 compartments because I take my pills each day. they are small pills so it should be ok. I also measured it and saw it will fit, again thank you very much

@Evyatar

Boosted

Replying to @Joywent :

hii so will it be possible?

@IndustrialJones

Boosted

Print Profile

18mm thickness

Great design. Useful for everyday carry stuff

@Joywent

Wow. Amazing effect! Thank you for the great review and the boost

@tinidesign

Print Profile

13mm thickness

top

@Joywent

The color-blocking effect is amazing! Thank you for the great comment.

@thisisbenny

I have printed this model two times and didn’t get it managed to have a good result. the first print was printed with the 0,16 optimal profile and breaks in the middle on both part. maybe some problems with the filament on this layer 🤔 The second print was printed with the 0,2 strength profile and has problems with hanging strings in the internal part.

The designer has replied

@Joywent

Thank you for your feedback. I see that you indeed encountered the problem of hanging strings. I'm still not sure what caused it. Under normal circumstances, overhangs and bridges less than 20mm are relatively easy to print with the default parameters. I conducted test prints using PLA and PETG materials on both the A1 and A1mini, and there were no issues. This picture shows the printing effect when using PETG on the A1mini, and the overhanging part is perfect. Please allow me to gather some more feedback from others, and then I'll consider whether it's necessary to modify the model. Thank you!

@thisisbenny

Replying to @Joywent :

Thanks for the feedback. I have printed it with BambuLab PLA on an P1S. The Print with 0.16 Profil didn‘t have the issue. but it runs in the issue that the middle layer was broken, for any reason.

@PidgeonLucci

Boosted

I made a super scaled up version to hold my pen/booklight/cord in my book sleeve, and I love it. Seriously one of the best containers I’ve ever printed. 10/10 model

The designer has replied

@Joywent

Thank you so much for the great review and the boost! It looks smoother after scaled up, and it becomes more practical.👍🏻

@Skeetz

Print Profile

18mm thickness

pretty cool design, thanks for sharing!

@Joywent

Thank you for the great comment!😄

@AnimeFanlove

Print Profile

13mm thickness

easy print, nice result 👍

@Joywent

Thank you for the great comment!😄

@Giadenant

Print Profile

18mm thickness

Already in operation. Magnificent.

Show original

@Joywent

Thank you for the great comment!😄

@Romko

Print Profile

18mm thickness

Easy and quick print :)

@Joywent

Thank you for the great comment!😄
