Titanic Humidifier/ Essential Oil Diffuser

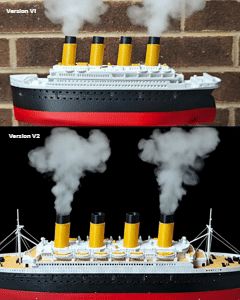

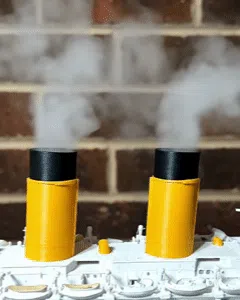

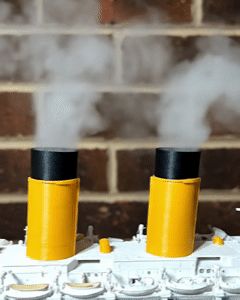

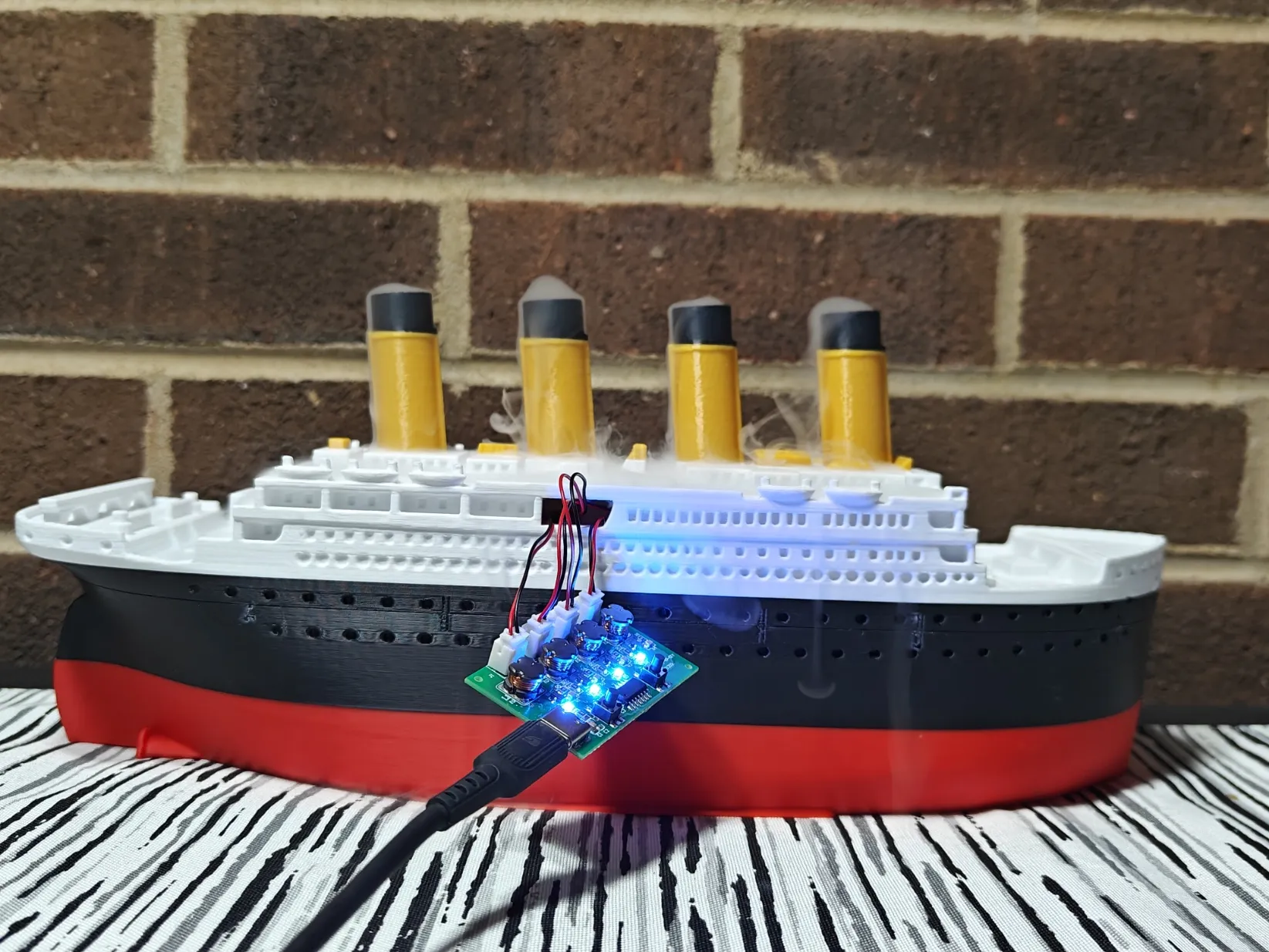

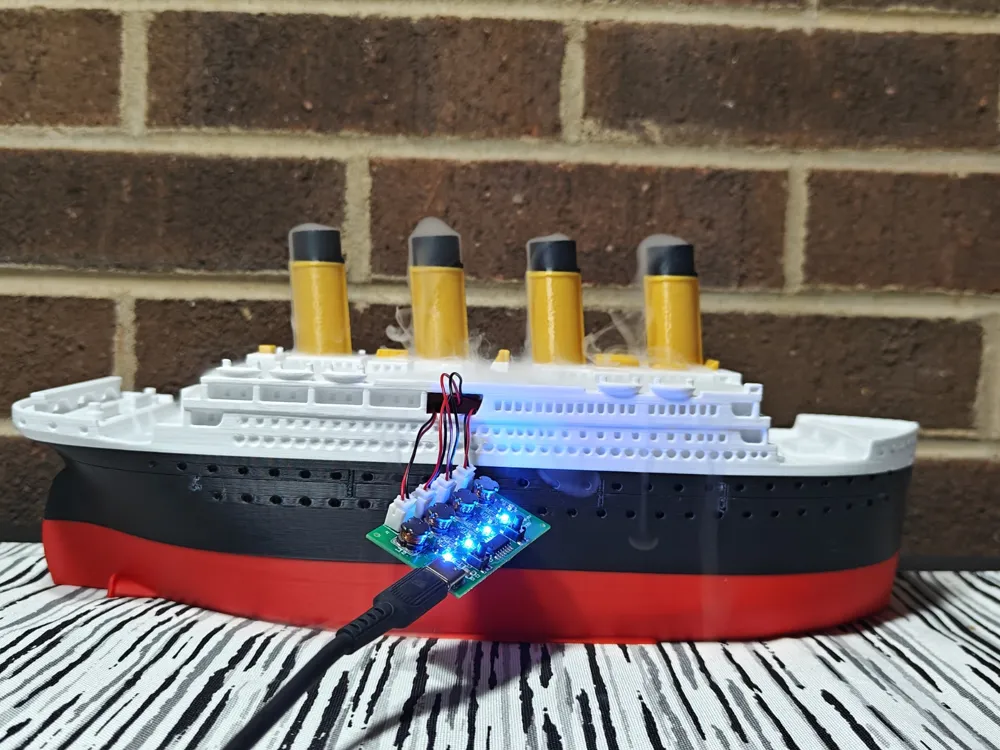

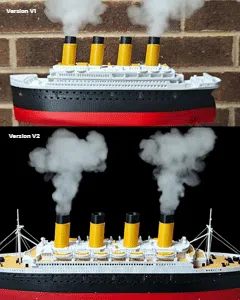

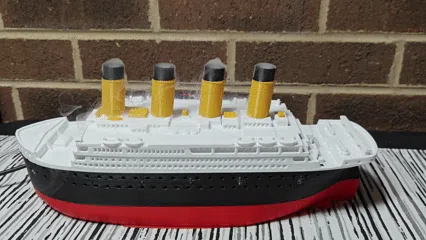

Bring the legend of the seas into your home with the Titanic Humidifier – a quick and accessible DIY project that turns a detailed 3D-printed model of the Titanic into a functional tabletop humidifier. With plug-and-play electronics, magnetic closures for easy refilling, and realistic steam rising from its funnels, this build combines practicality with a striking display piece. It can also be used as an essential oil diffuser, adding both atmosphere and aroma to your space.
Boost Me (for free)
Boosts help this project reach more makers and keep me motivated to design fun, functional builds like the Titanic Humidifier. If you enjoy it or plan to make one, a boost would mean a lot.
Features
- ⚡ No electrical knowledge required – just connect the USB atomizer module.
- 🔌 Plug and Play – works straight away once assembled.
- 🧲 Magnetic closure with 5 mm x 2 mm magnets for easy refill and maintenance.
- 💧 Internal max fill marking to prevent spills or overfilling.
- 🖨️ Includes AMS & No-AMS print profiles for flexibility.
- ⏱️ Quick build – complete within 30 minutes.
The main hull and ship design is adapted from this beautiful Titanic model.
This build uses an affordable DIY misting kit: 👉 USB Mini Humidifier Atomizer Kit – only $3.76
Assembly Instructions

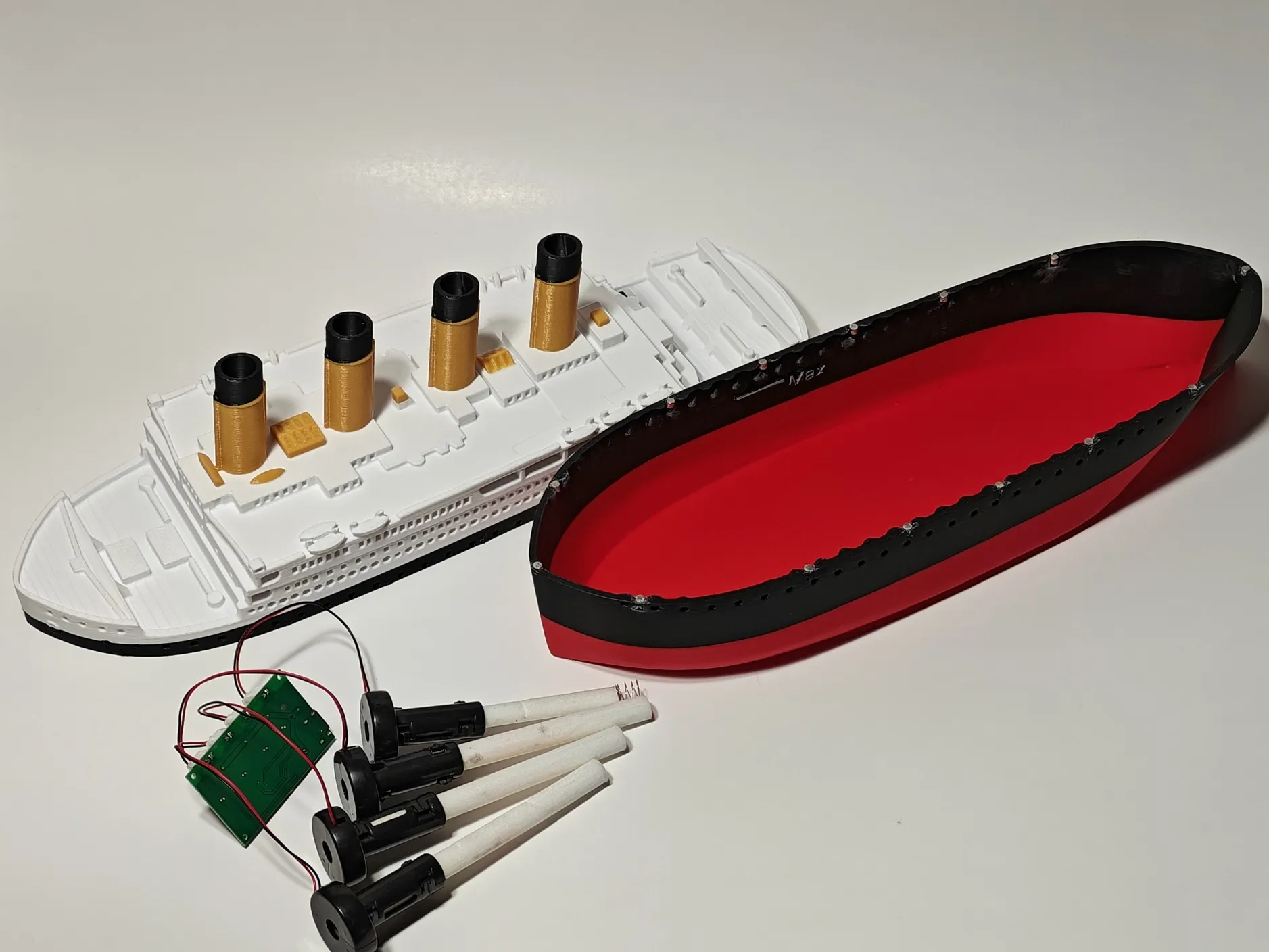

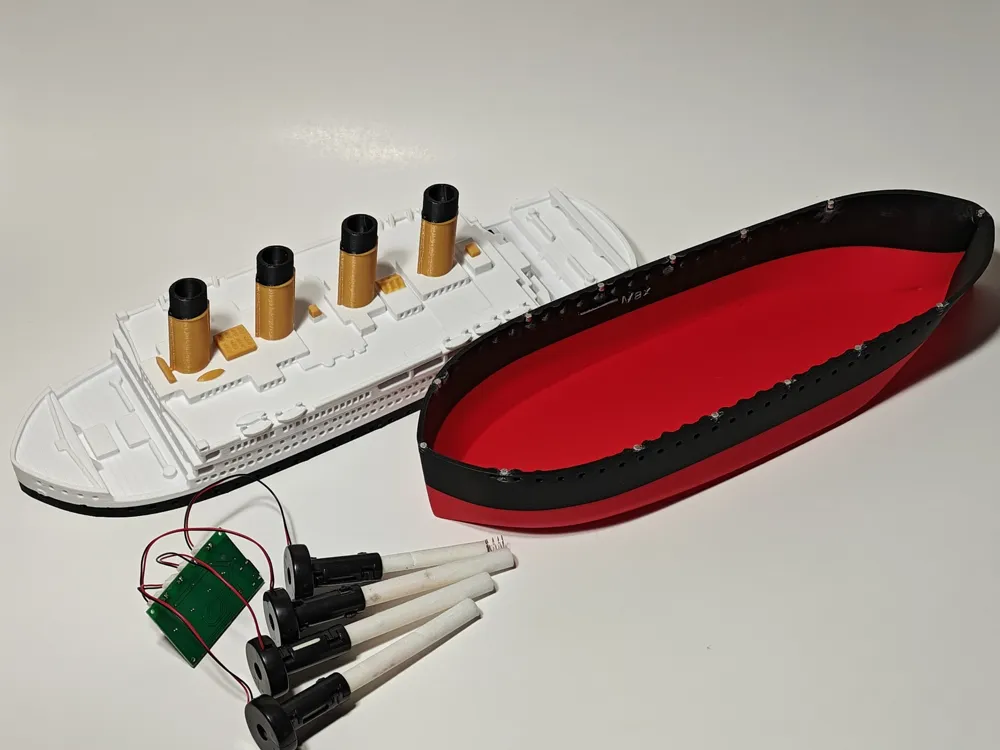

- Print the model parts and prepare the base and top sections.
2. Insert 5x2 mm magnets into the slots to allow easy opening and closing.

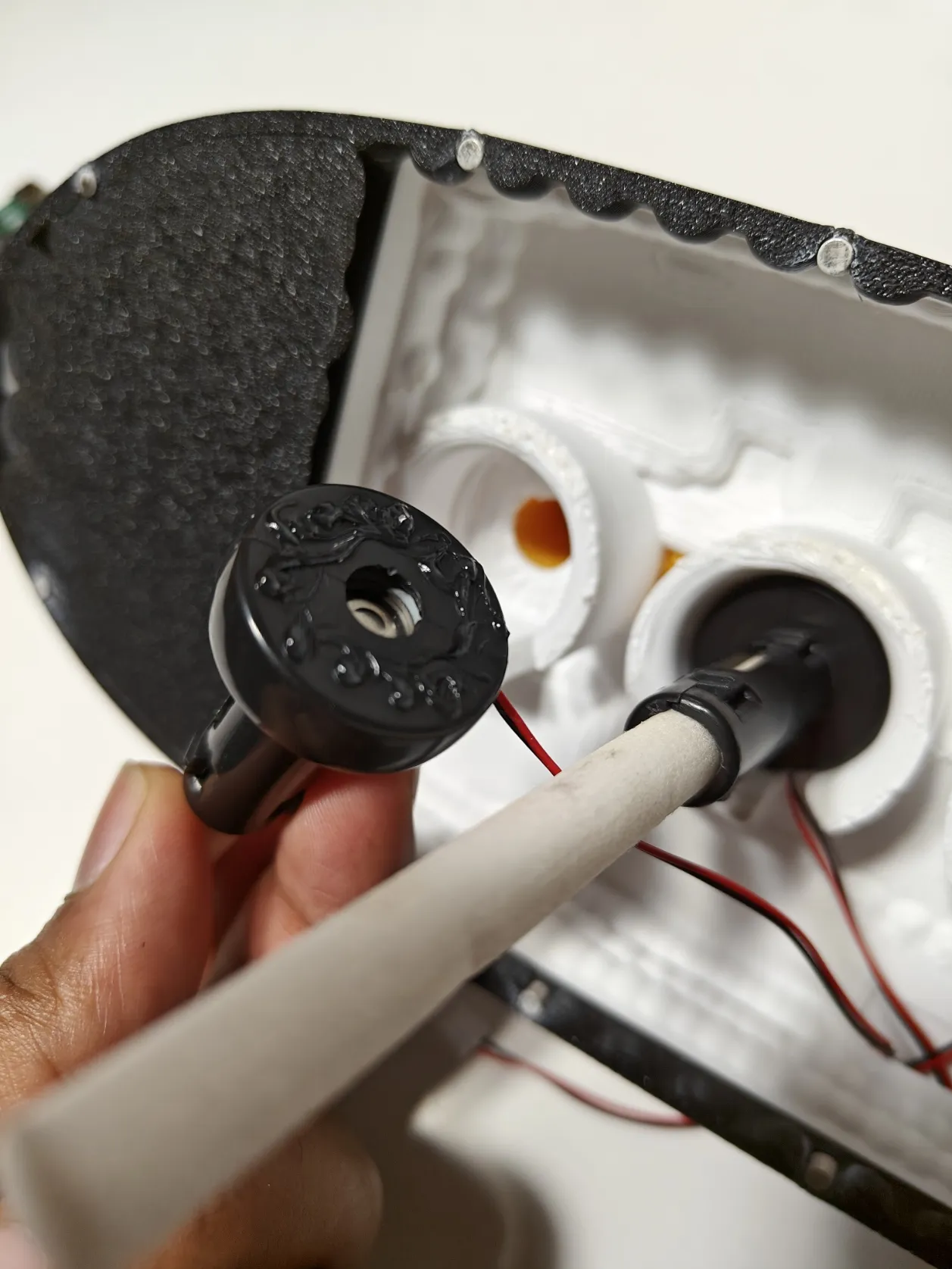

3. Place the atomizer modules into the chimney slots. Use superglue/ hot glue gun to secure the modules.

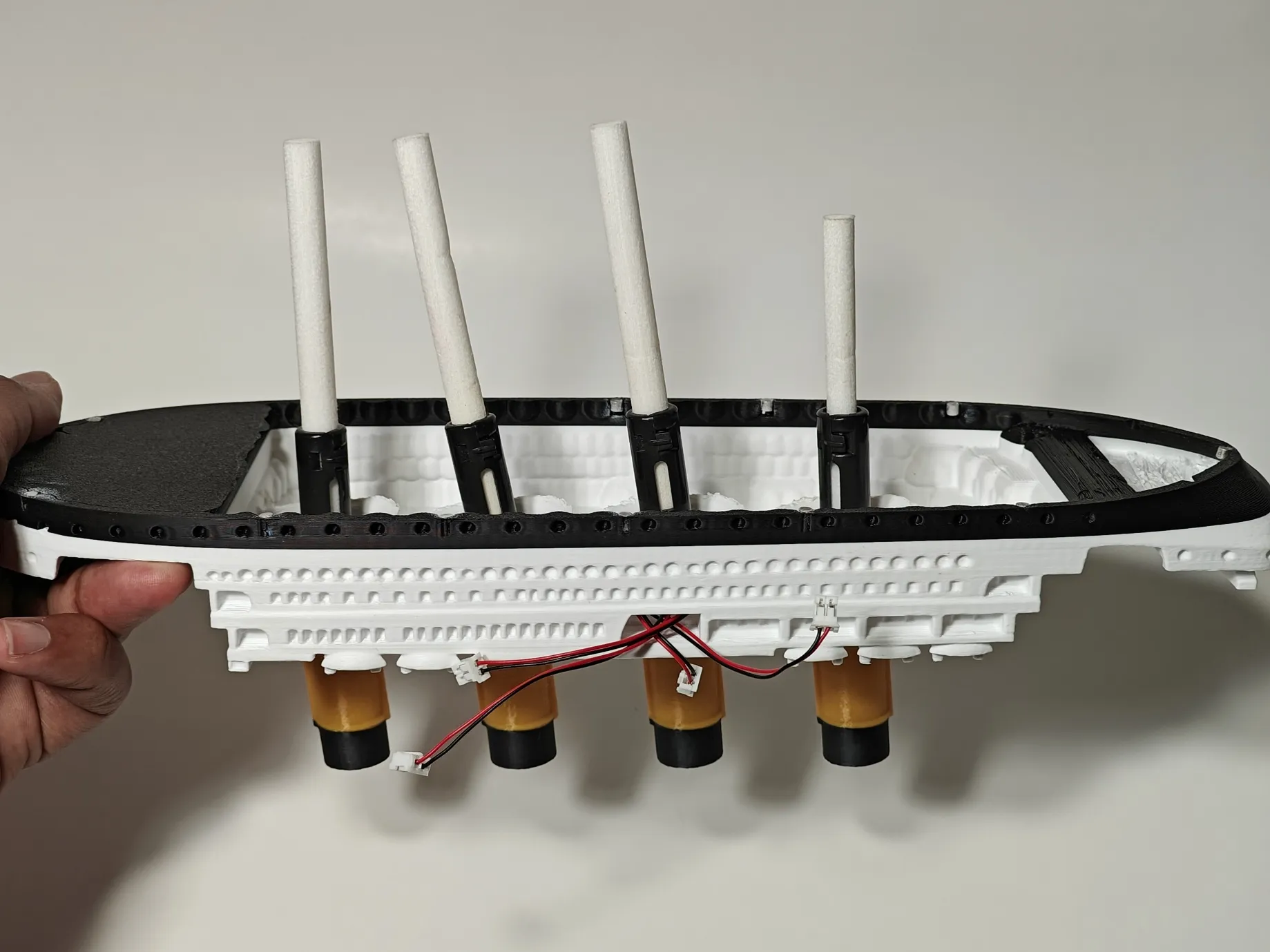

4. Cut the wicks to length so they extend into the water reservoir.
5. Route the wires neatly through the provided openings.

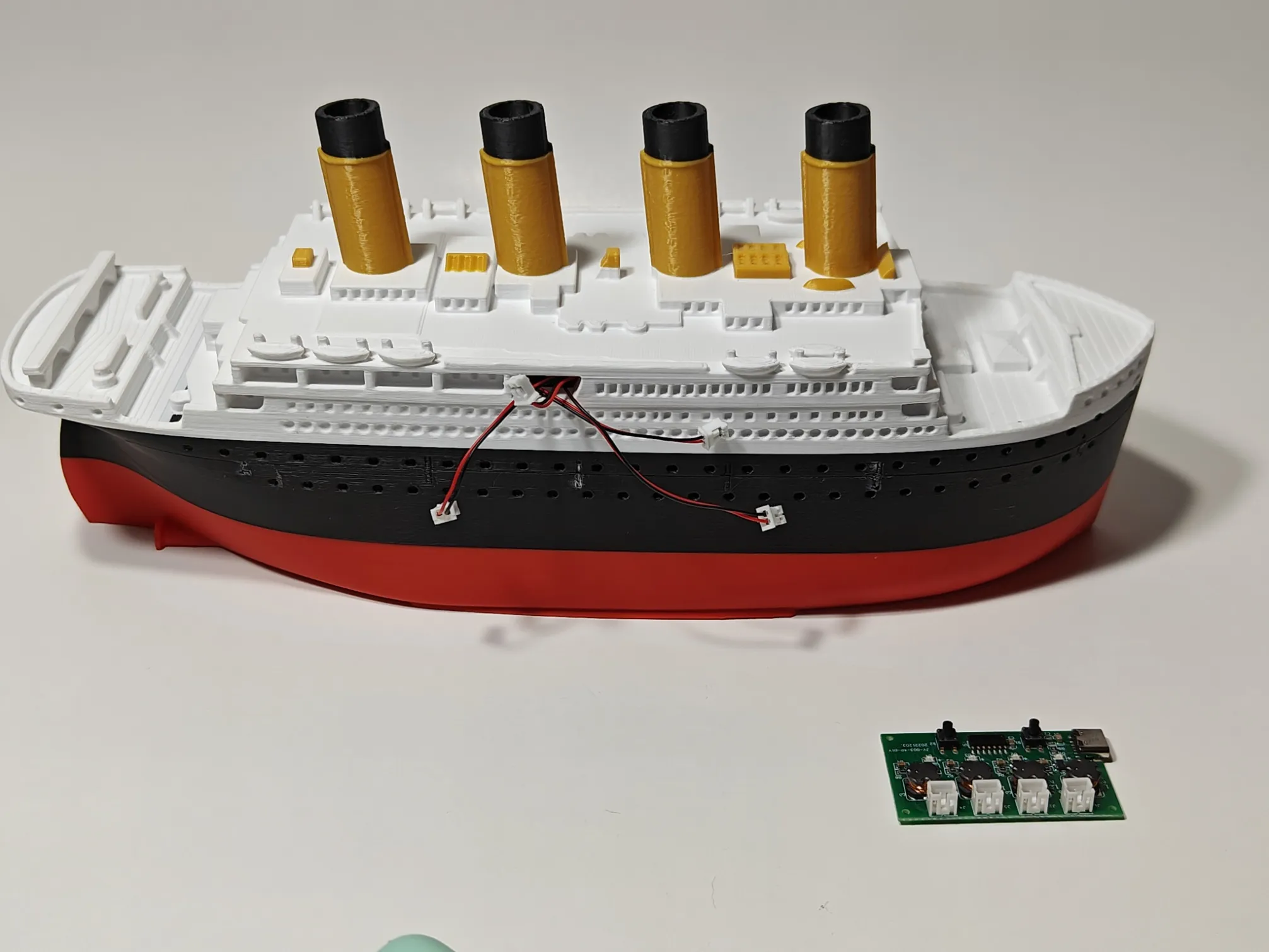

6. Connect all atomizer leads to the control board.
7. Fill the bottom reservoir with water up to the max marking.
8. Close the two halves of the model using the magnetic alignment.

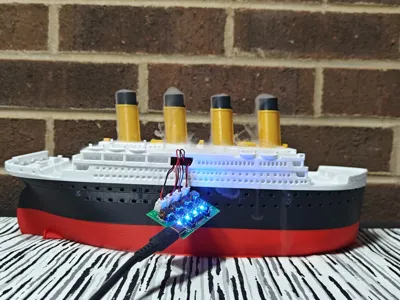

9. Plug in the USB control board and power on to generate mist !!
