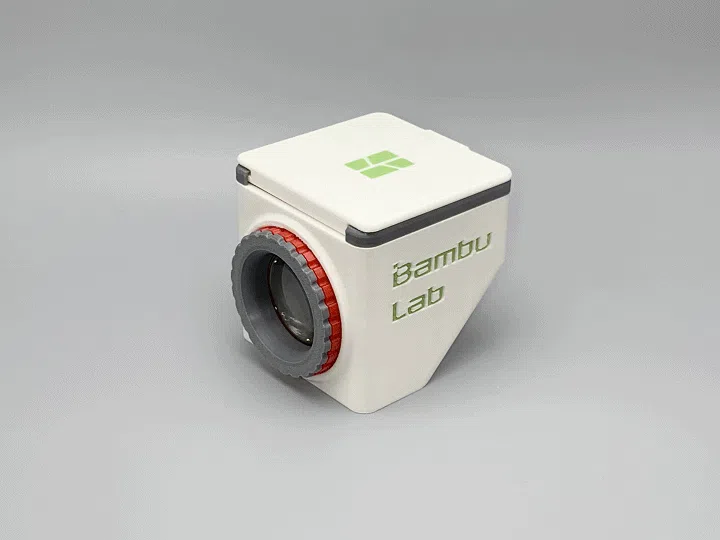

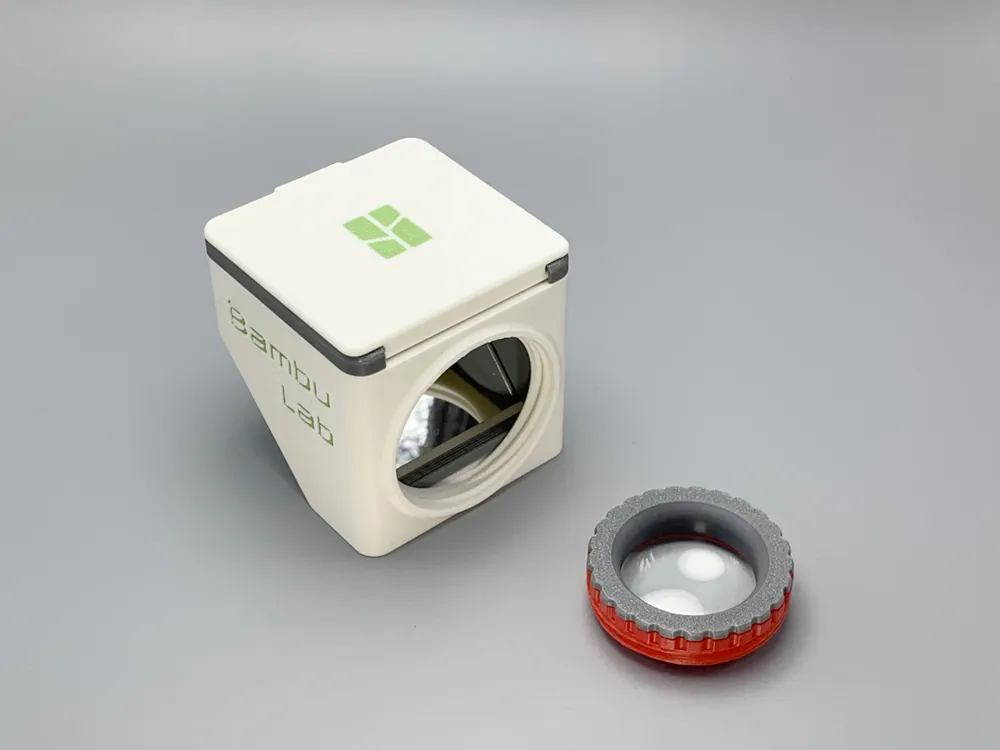

waist-level viewfinder (fully assembled part)
Print Profile(2)
Description
As soon as the video came out, I wanted to make one, didn't expect such a variety of styles now, so I'll also join in on the trend

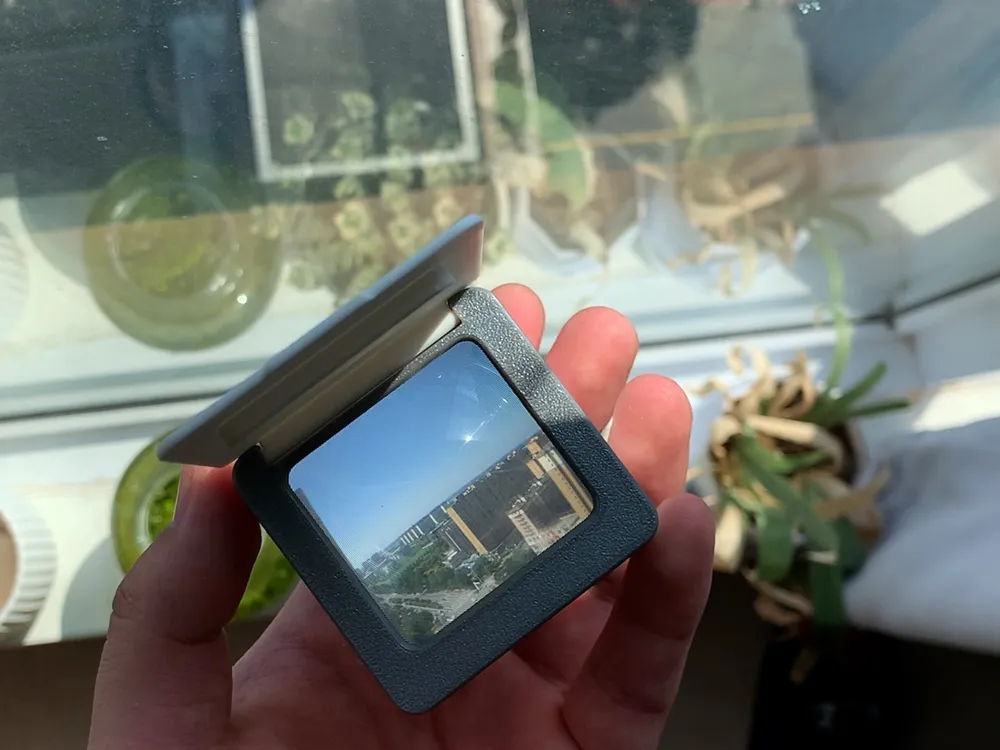

I made an aesthetically pleasing waist-level viewfinder that requires no glue, no hardware, and is fully constrained with no wobbling
Here is a detailed introduction
Features:
- Simple and fast printing, can be printed in separate parts and colors
- Assembled with threads and snap-fits, requires no glue or screws
- A 5.8mm hole, 8mm deep, is reserved at the bottom for screwing onto a hot shoe screw
- All parts are fully constrained, extremely high precision, no glue needed, and parts will not wobble

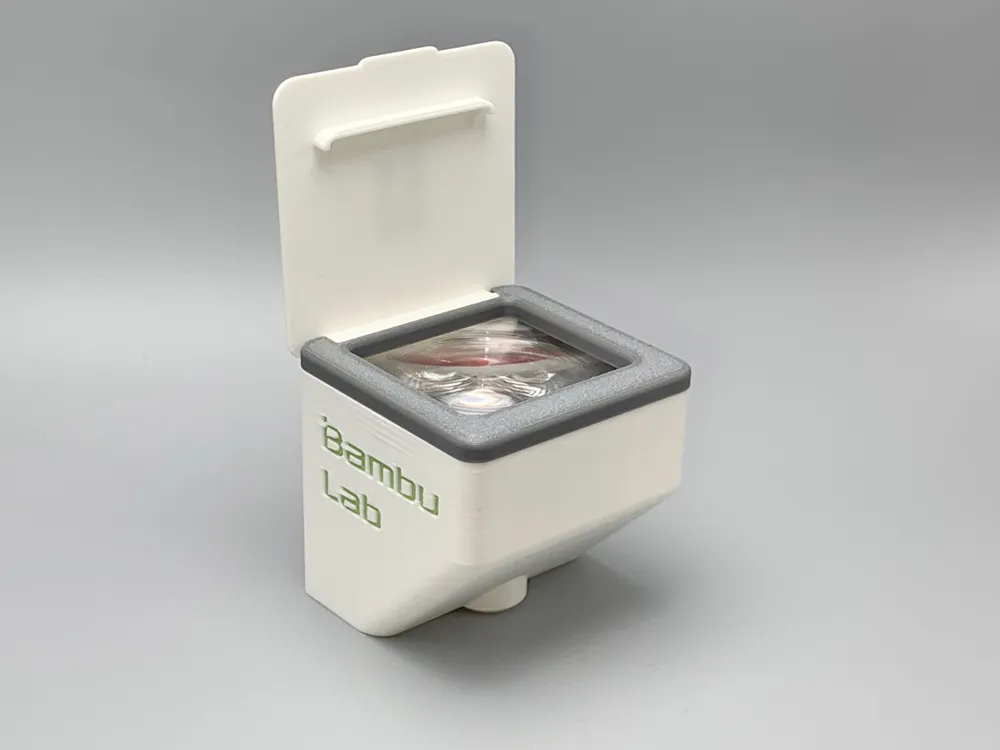

- Dust cover design reduces dirt
- If parts need cleaning, it's relatively easy to disassemble

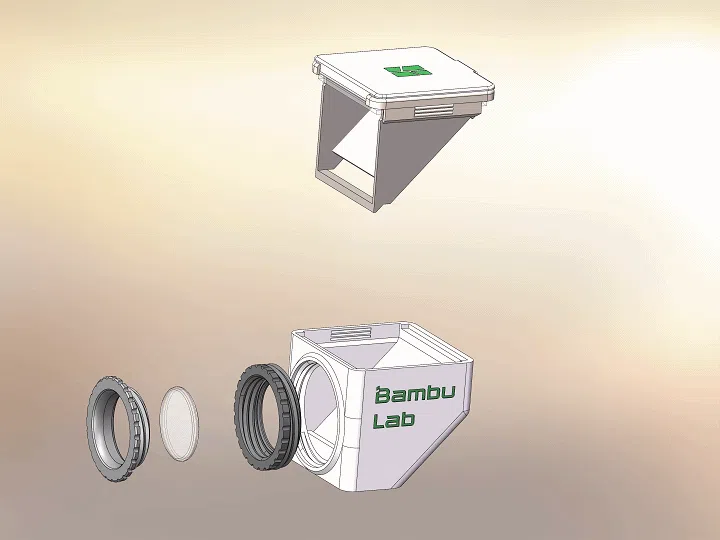

Assembly:
|  |

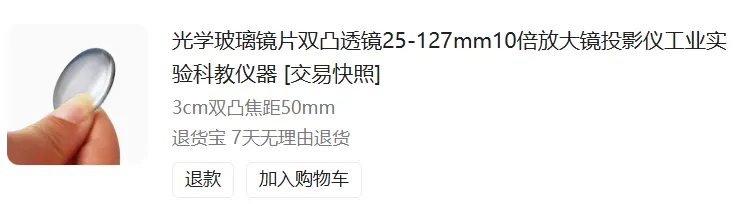

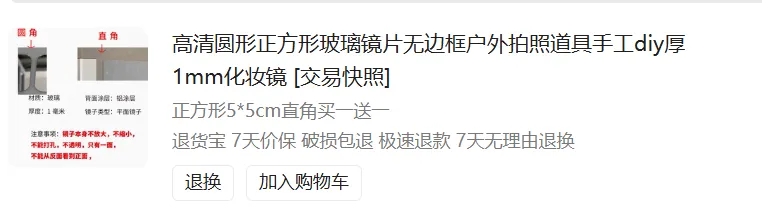

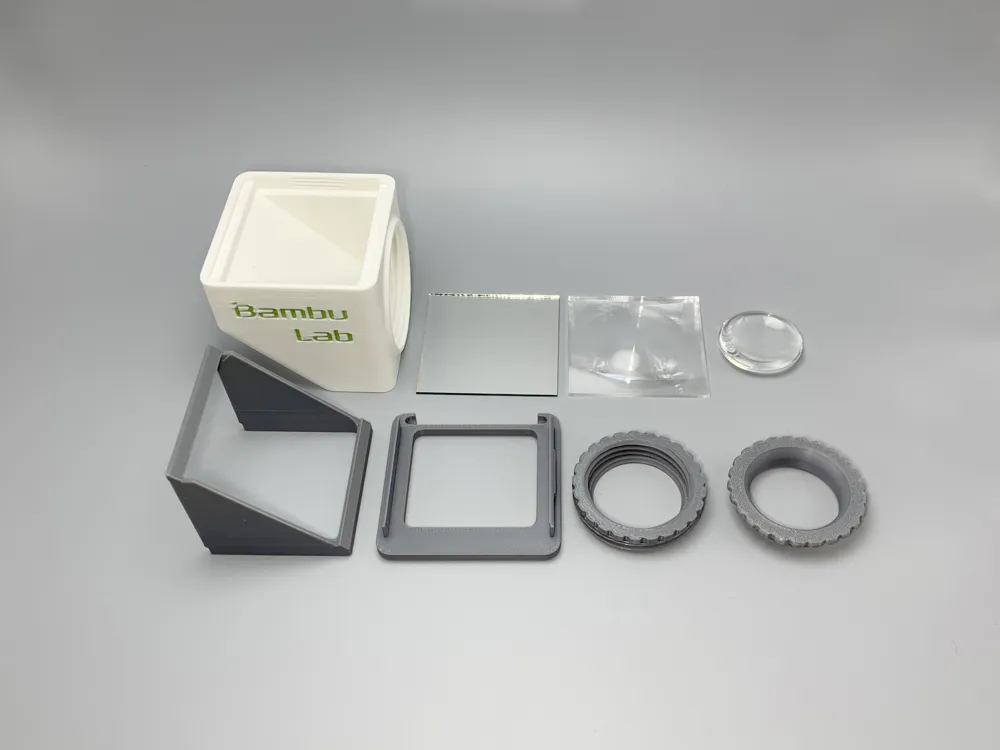

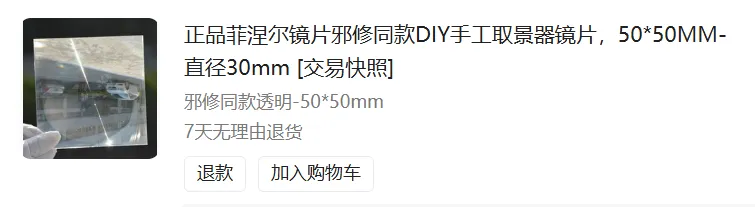

Material List: (Popular accessories, strong versatility)
|
|
*After testing multiple versions, although not perfect, it's very good for entertainment, perhaps this small toy will make you want to buy real professional shooting equipment (I'm already itching to get one)
*2025.9.21 modified: Adjusted internal snap-fit tightness for easier insertion; removed upper cover resistance strip for easier opening and closing *2025.9.22 modified: Adjusted lid parameters to alleviate lid sticking and hinge jamming issues |  |
