Enclosure for USB Cable Tester DT3
Boost Me (for free)
If you like my project, press BOOST Me.
Thank you

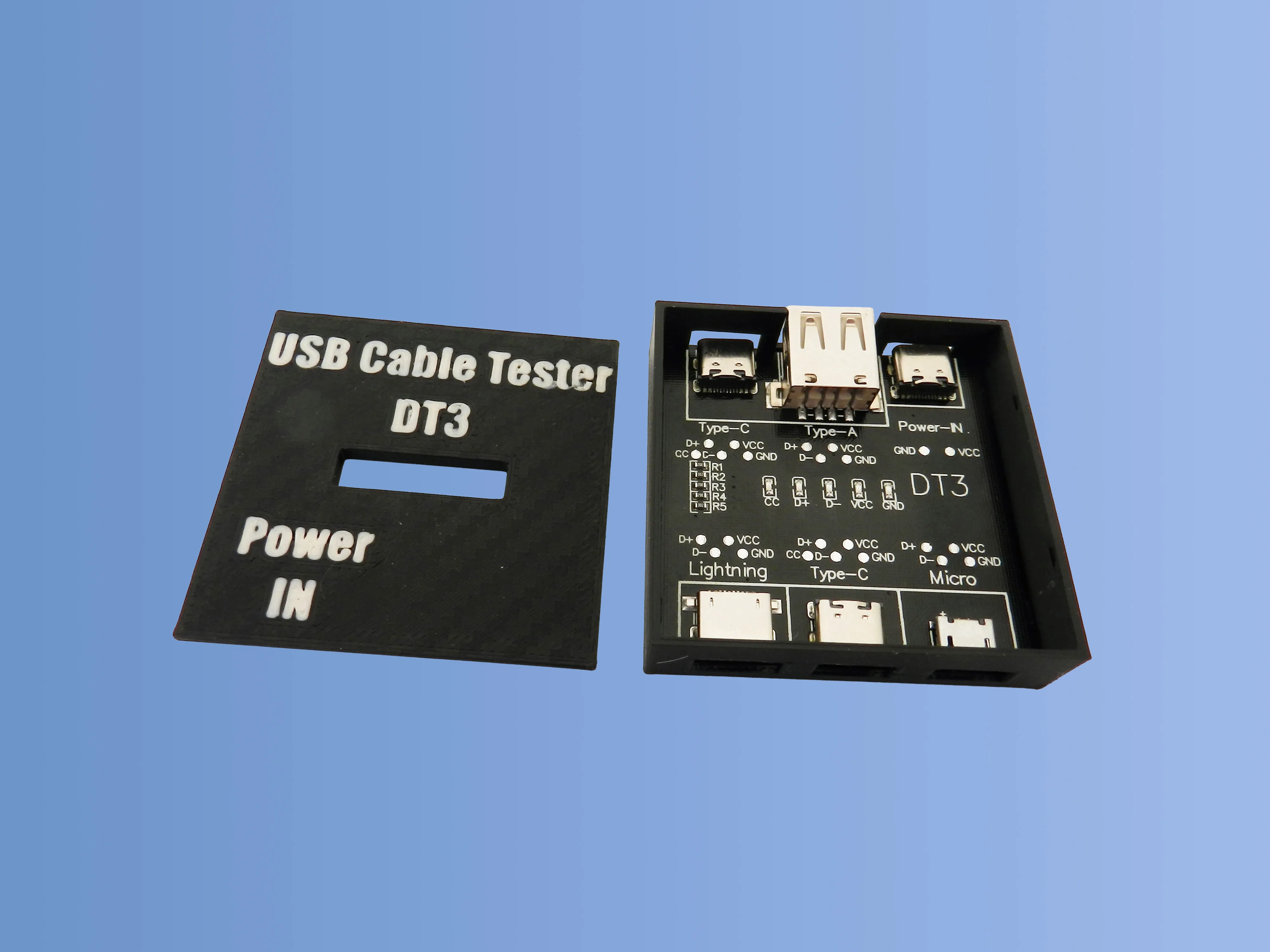

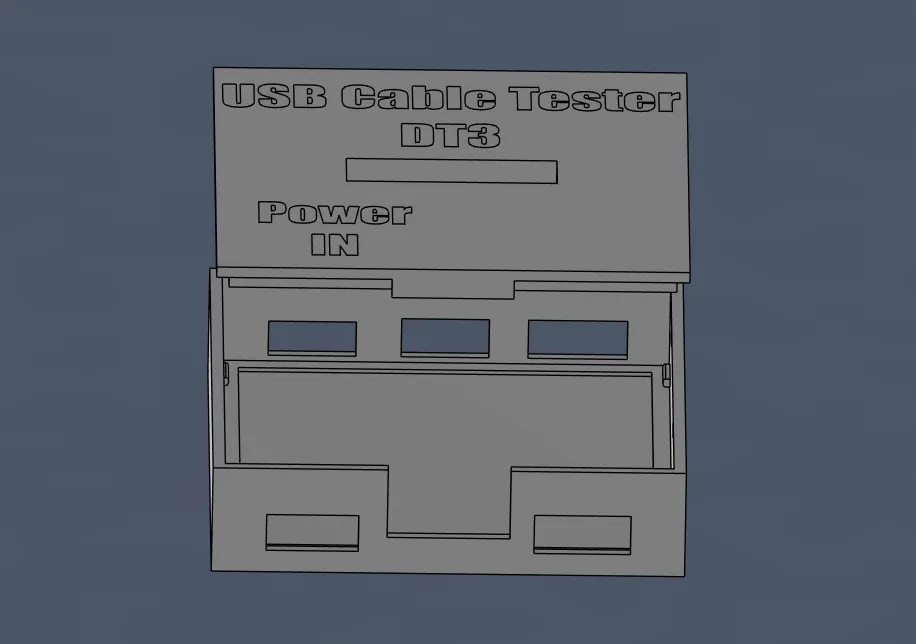

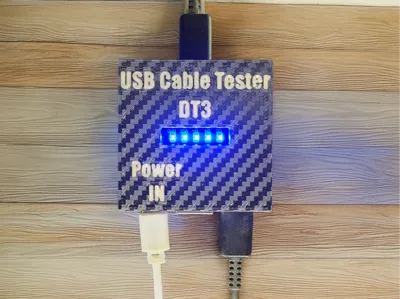

This 3D-printed enclosure is precisely designed for the DT3 USB Cable Tester, providing robust protection for the device's electronics and offering convenient access through cutouts for power ports, LED indicators, and cable mounts. The carbon-fiber style finish improves aesthetic appeal and adds a professional look.
Product Purpose:
The DT3 USB Cable Tester helps quickly check the continuity and functionality of connected USB cables, diagnosing whether both power and data lines are properly wired. The enclosure protects the tester itself and makes lab work easier and more organized.
User Guide:
- Place the DT3 tester inside the enclosure – the cutouts for LEDs and connectors will fit perfectly.
- Plug the input power cable labeled "Power IN" into the appropriate port.
- Connect the USB cable to be tested into the tester’s port.
- Observe the LED indicators to check the continuity of each wire in the cable.
- After finishing the test, detach all cables and store the device safely inside the enclosure.
