Schumacher KC Ball Diff Seal

A diff seal for the ball diff in the Schumacher KC. I found that in the summer a lot of dirt/sand/dust was getting inside the diff and causing less than normal operating times, so designed a simple seal to stop this. It comes in two parts, the most effective one is the inner seal but the outer one helps a little too.

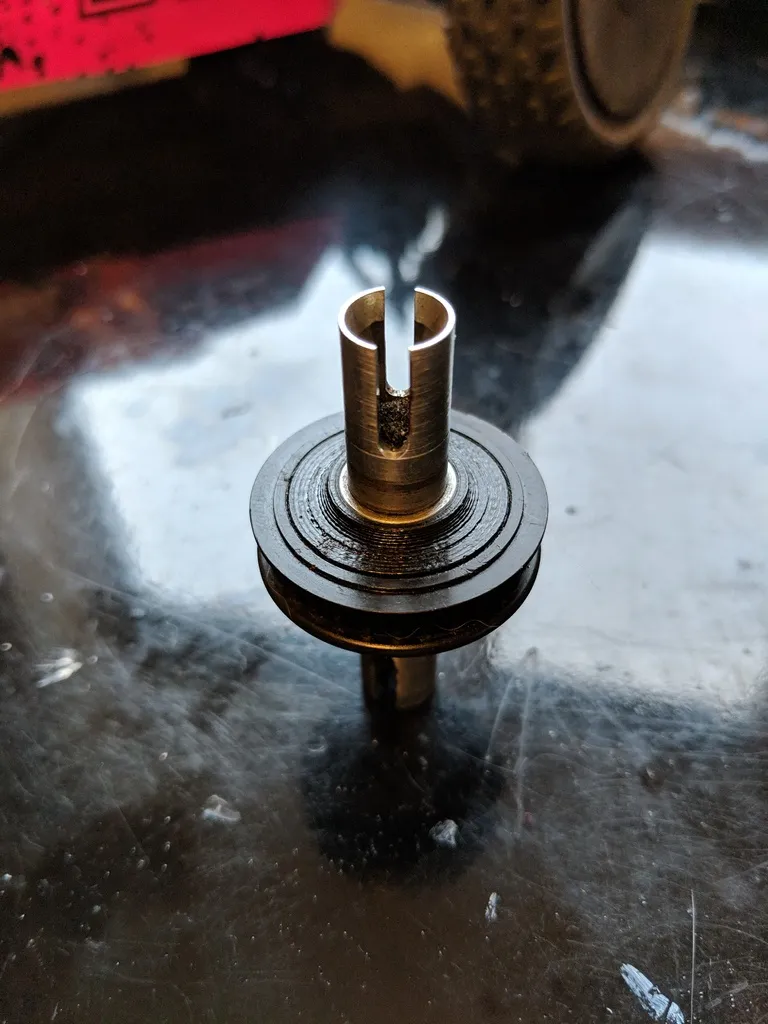

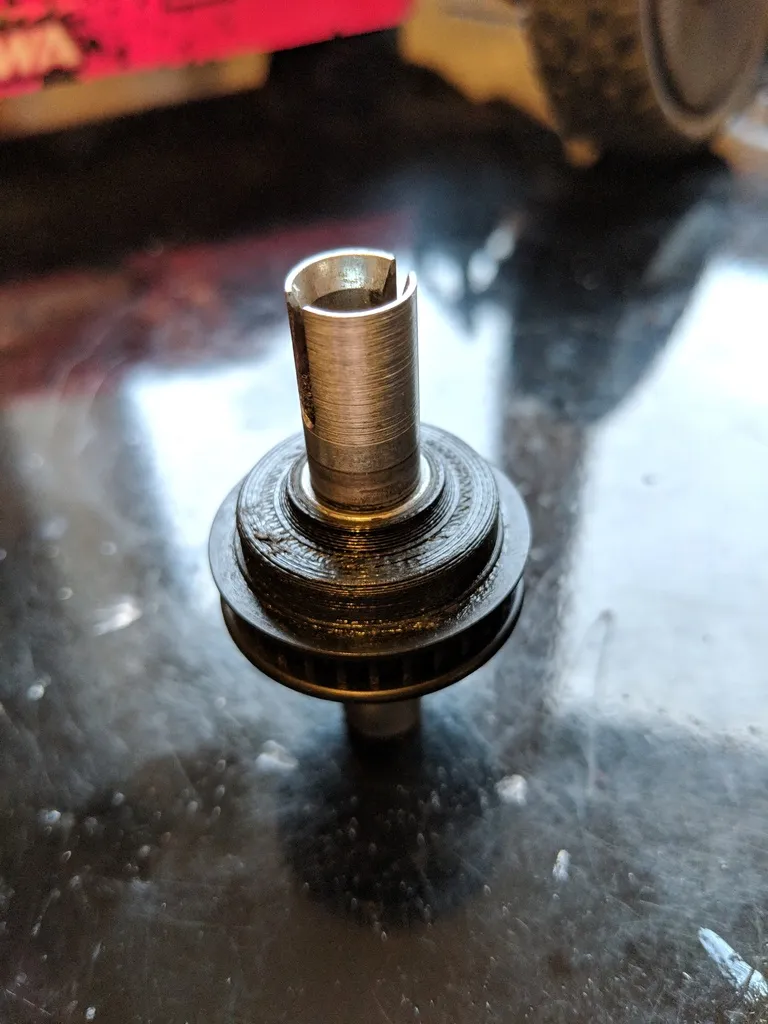

Tested it most of the summer, as well quite a few of my fellow Schumacher drivers, and everyone found it very useful. It just slides one over the outdrives and sits inplace nicely.

Print Settings

Printer Brand:

Wanhao

Printer:

Wanhao Duplicator i3 Plus

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2

Infill:

High

Notes:

ABS or PETG required due to the heat that may build up. High infill required to make it as strong as possible, but also use high wall thickness too (Infill may not actually be used anyway) Supports required for the outer seal but not required for the inner

Category: R/C Vehicles
