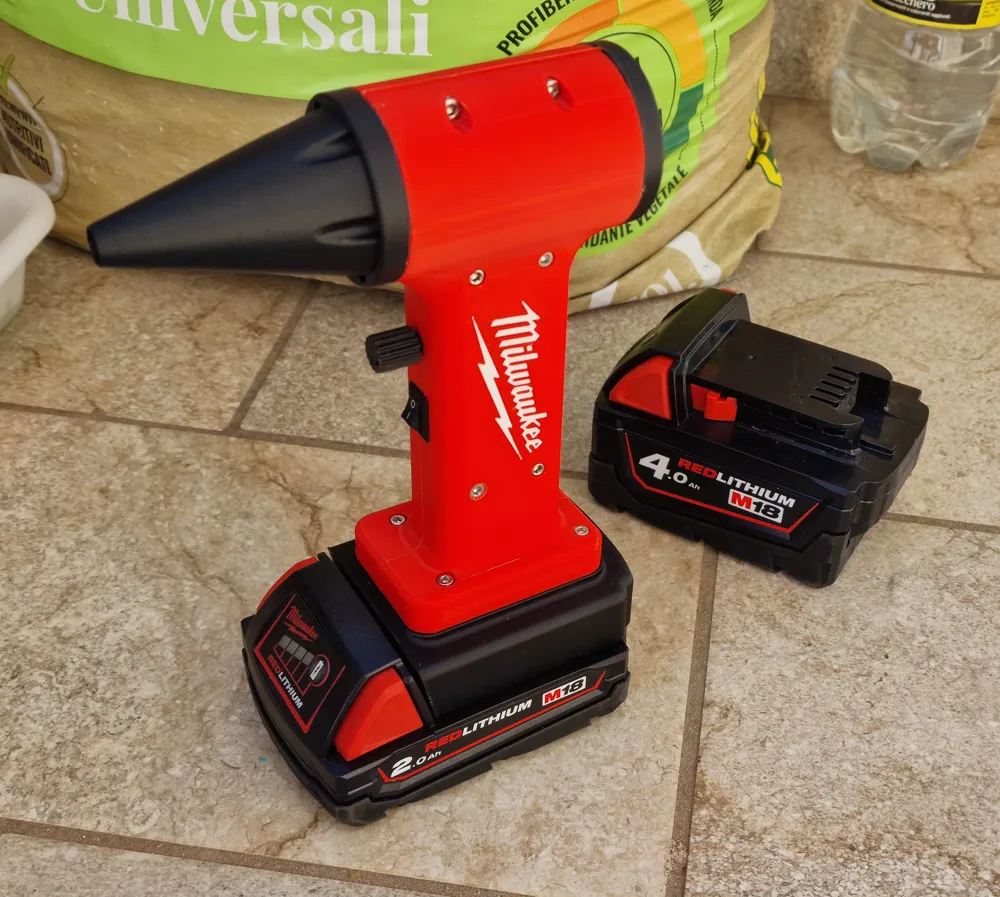

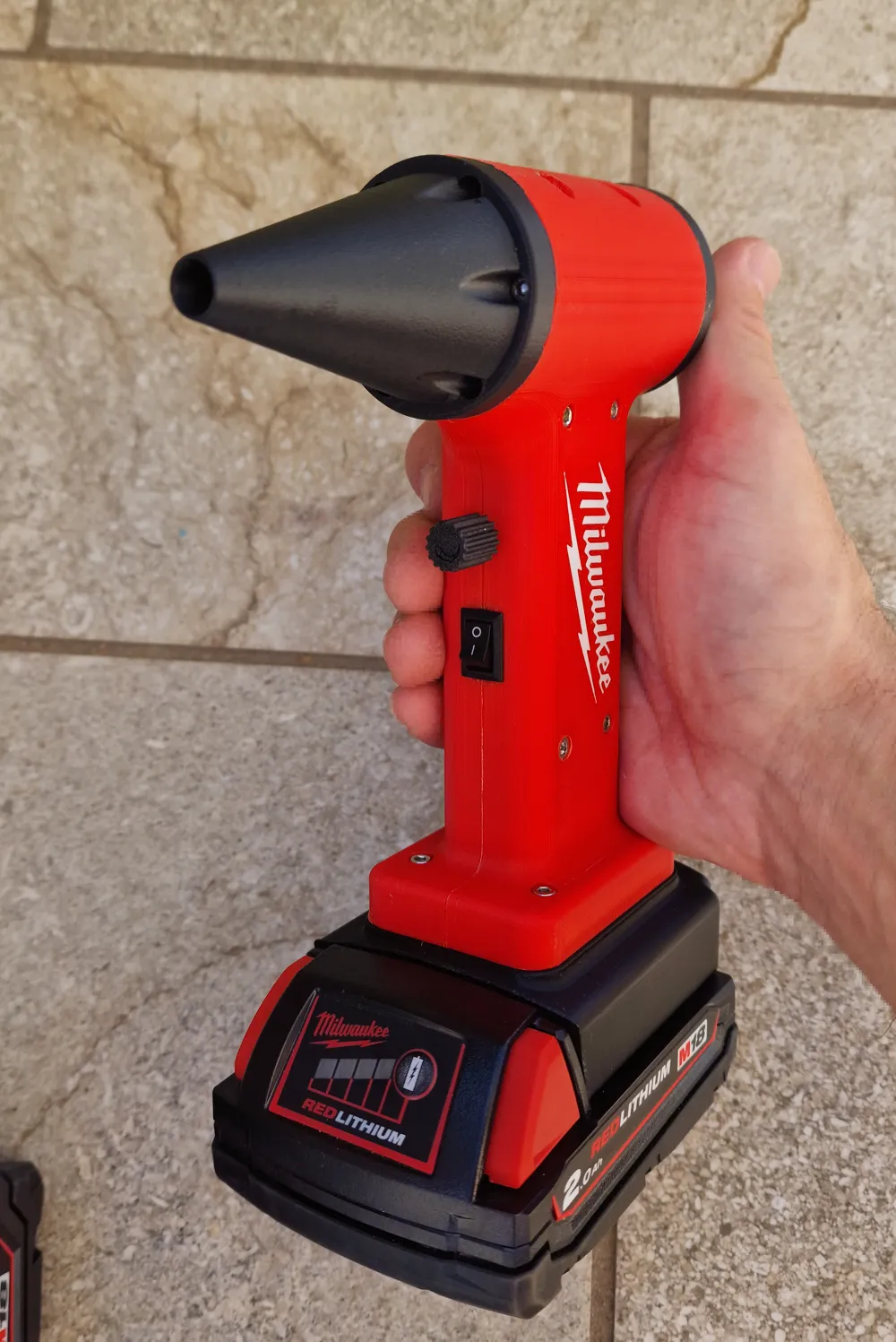

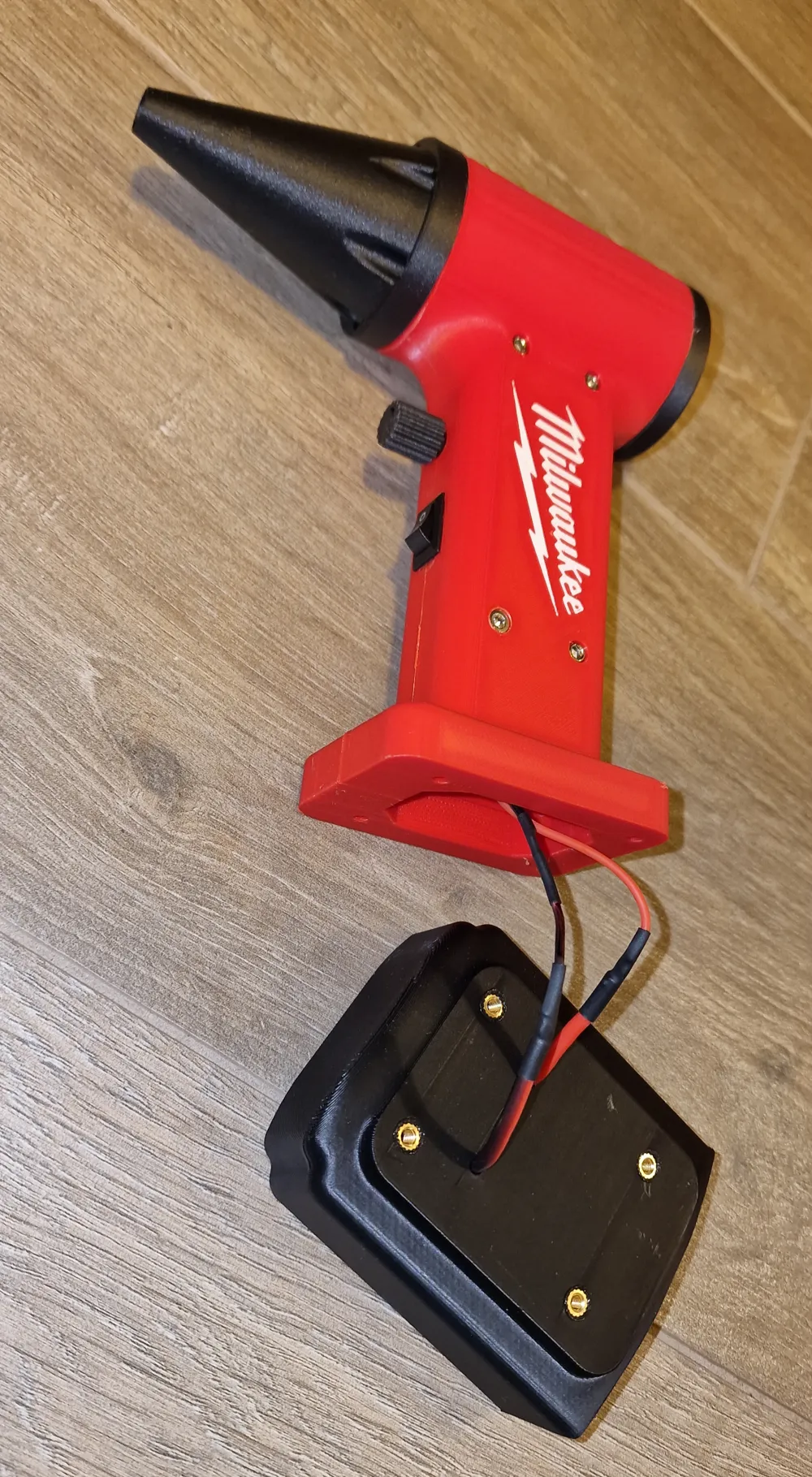

Milwaukee blower 10k RPM turbine battery M18
IP Report
Print Profile(1)
Better adhesion Brim Enforced support Adaptive height layer
Designer
7 h
2 plates
Open in Bambu Studio
Boost
335
1063
35
24
308
144
Released
Description
Blower compatibile con batterie Milwaukee M18 2.0Ah 4.0Ah 5.0Ah 12.0Ah (min 15v max 21v = 18650x5S)
BOM:
- 1x Motor Brushless BLDC 10.000 RPM 3-phase 7-24v with potentiometer
- 1x Switch 10x15 mm
- 22x Brass nuts M3 - OD 5mm - Lunghezza 4-5mm, max 6mm

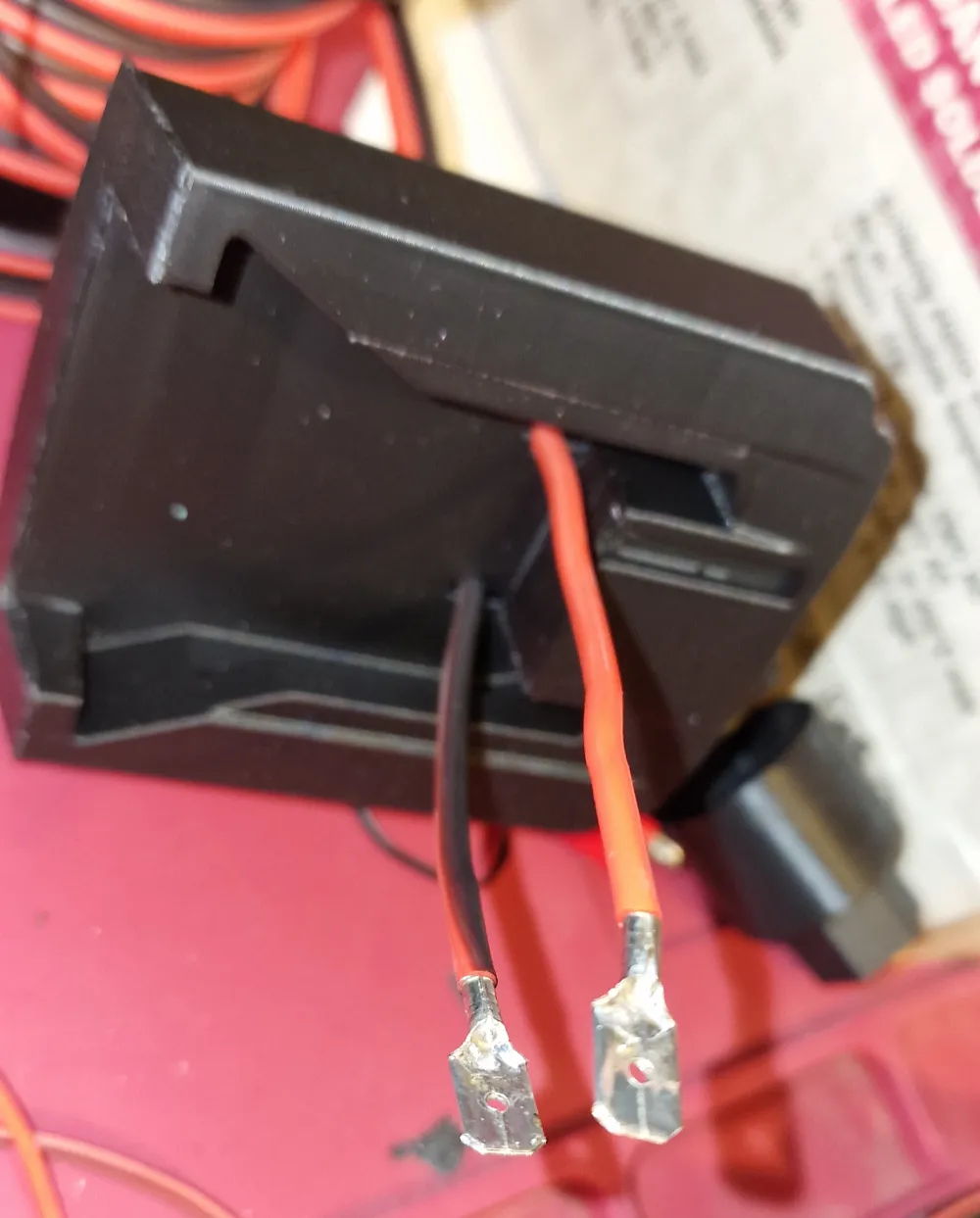

- 2x Faston Male for battery connection large 6.0mm

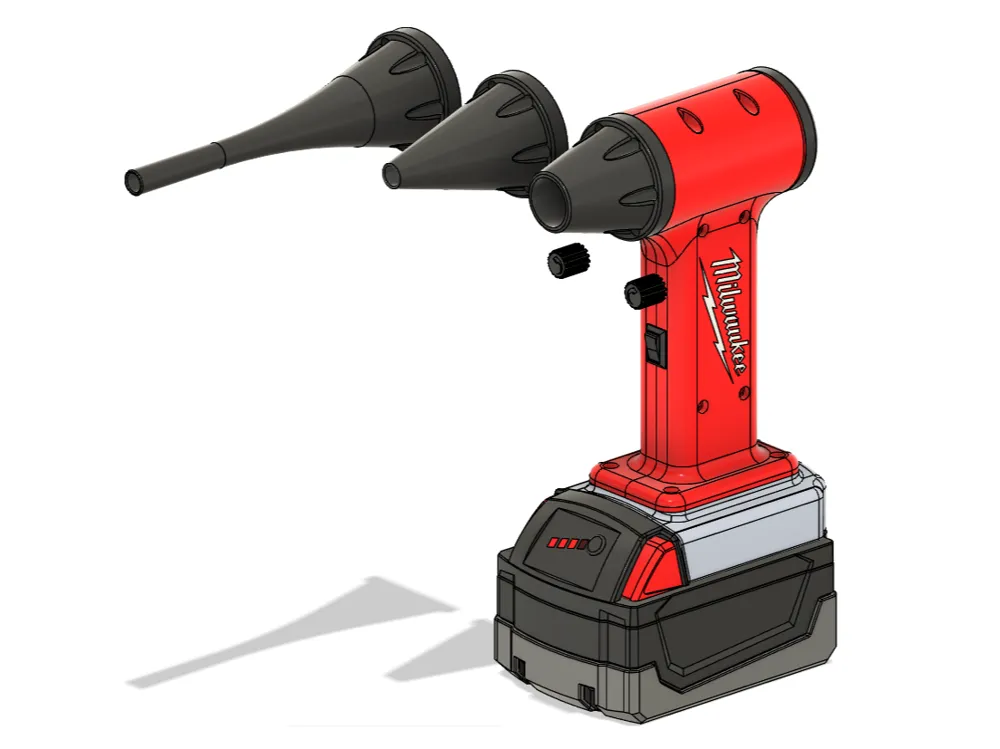

For Cones:
- x4 or max x12 Screws M3x 6-13mm (lenght from 6 to 13mm)
For Top:
- x2 M3x 8-10mm
For Body:
- x4 M3x 14-20mm
For Base:- x4 M3x 5-10mm
(or a total of x22 M3x8mm)
