Description

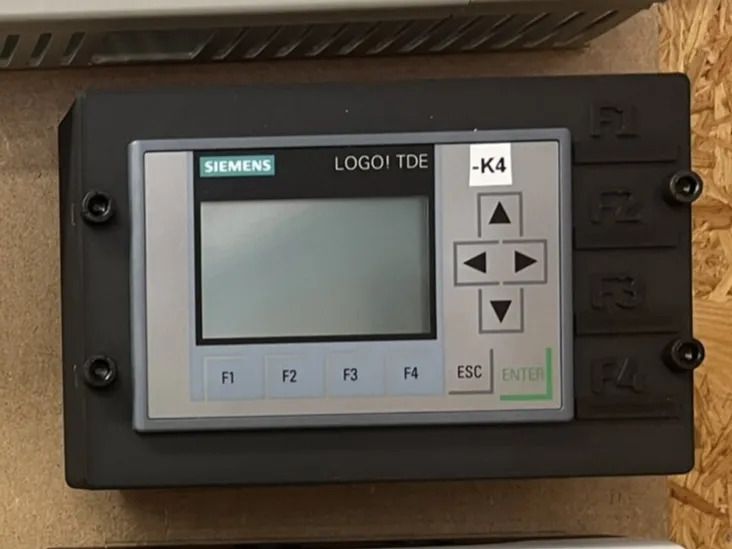

This enclosure was specially developed for the Siemens LOGO! TDE Display. It consists of two parts: a stable base and a precisely fitting lid. The lid is screwed with commercially available M6 screws into M6 nuts that are inserted into the base
The print model is optimized so that a short pause is provided during the printing process to place the nuts directly into the component. This results in a clean, integrated fastening solution that is significantly more stable and durable than simple screw threads in plastic
The design is robust, functional, and designed for practical use — ideal for use in workshops, machine environments, or for secure housing in control cabinets. The enclosure has four designated holes in the bottom to easily screw it onto any surface
Features
- Precisely fitted for Siemens LOGO! TDE (Text Display).
- Two-part: Base + Lid.
- Stable screw connection: M6 screws into M6 nuts.
- Integrated print pause in the profile to insert nuts.
- Robust design for protection and long lifespan.
- Easy to assemble: no gluing or post-processing required
