Anbernic RG34XX Case - Free 3D Print Model

Search models, users, collections, and posts

Gorroth

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

All parts on 3 plates - print ready

Designer

4.6 h

4 plates

5.0(6)

Open in Bambu Studio

Boost

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

M3 Socket Head Cap Machine Screws (SHCS)

Description

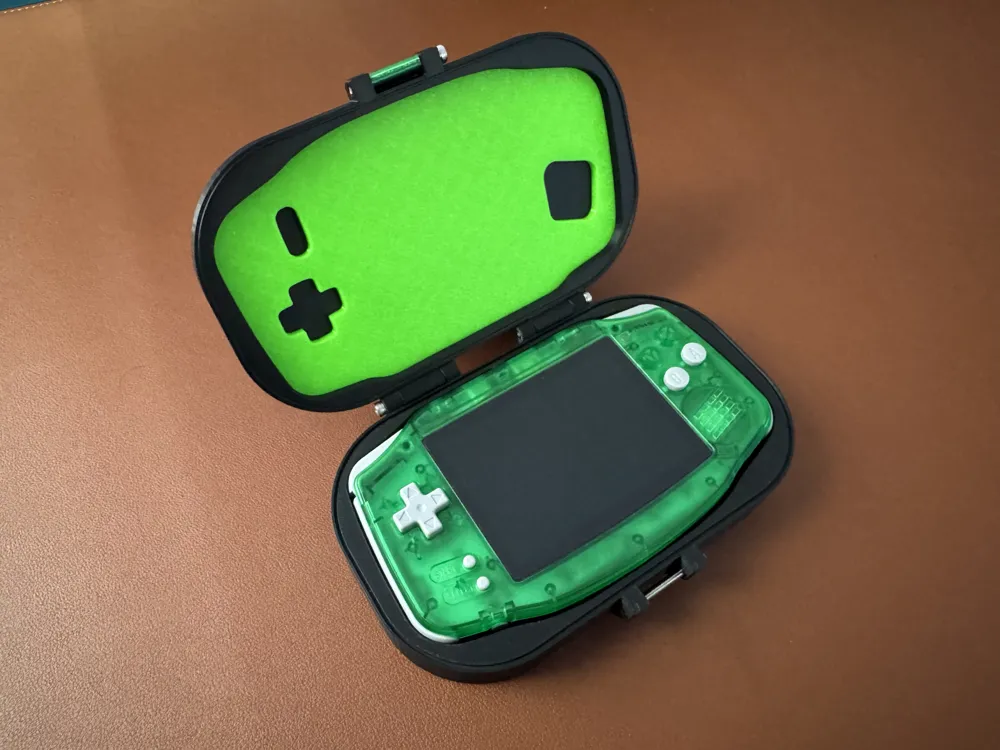

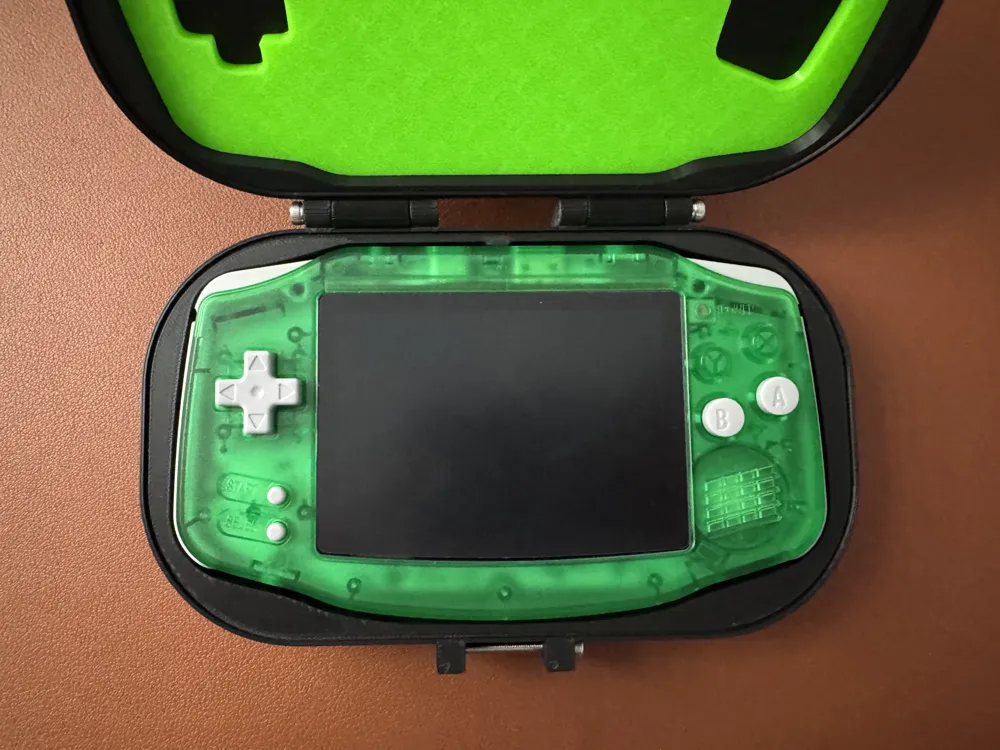

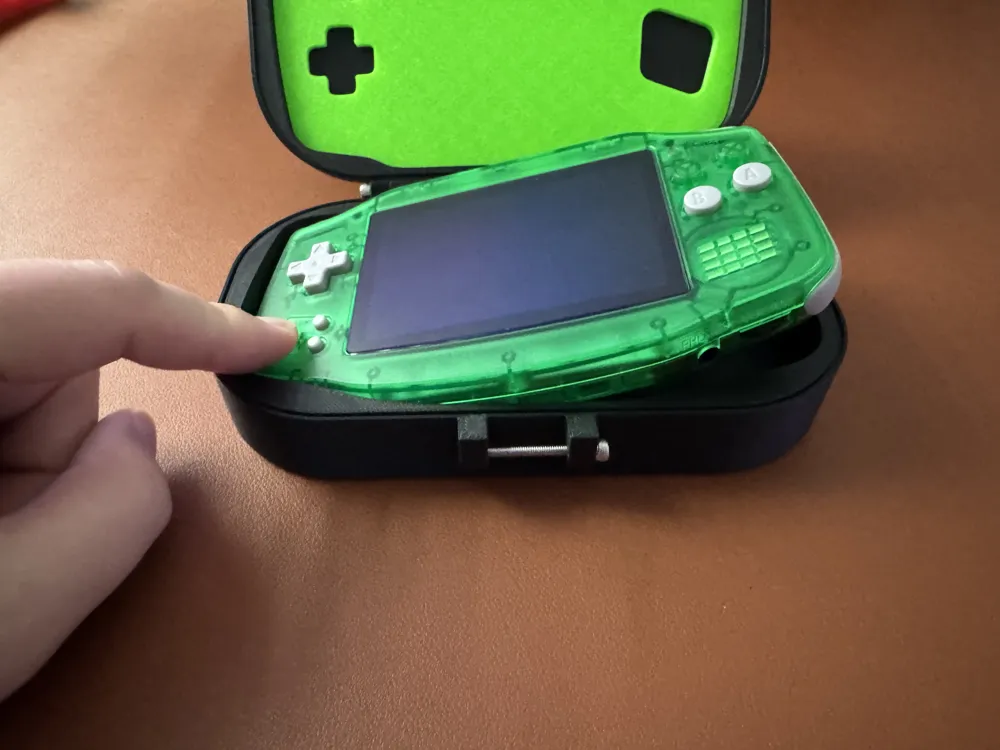

I recently got my hands on an Anbernic RG34XX (which is the same in size as a Nintendo GameBoy Advance / GBA as far as I know). As for all of my handhelds, I wanted to have a case for it, so I can throw it in my backpack without needing to worry about it getting damaged. As this device already seemed very tanky to me, I decided to go for a as slim as possible box, but while keeping my minimal protection standards (completely enclosed, additional protection to the front). And because of the curved back of the device, I kept the box' bottom part flat rather than perfectly fit, so you can tap one side of the device to lift it up and easily get it out of the case.

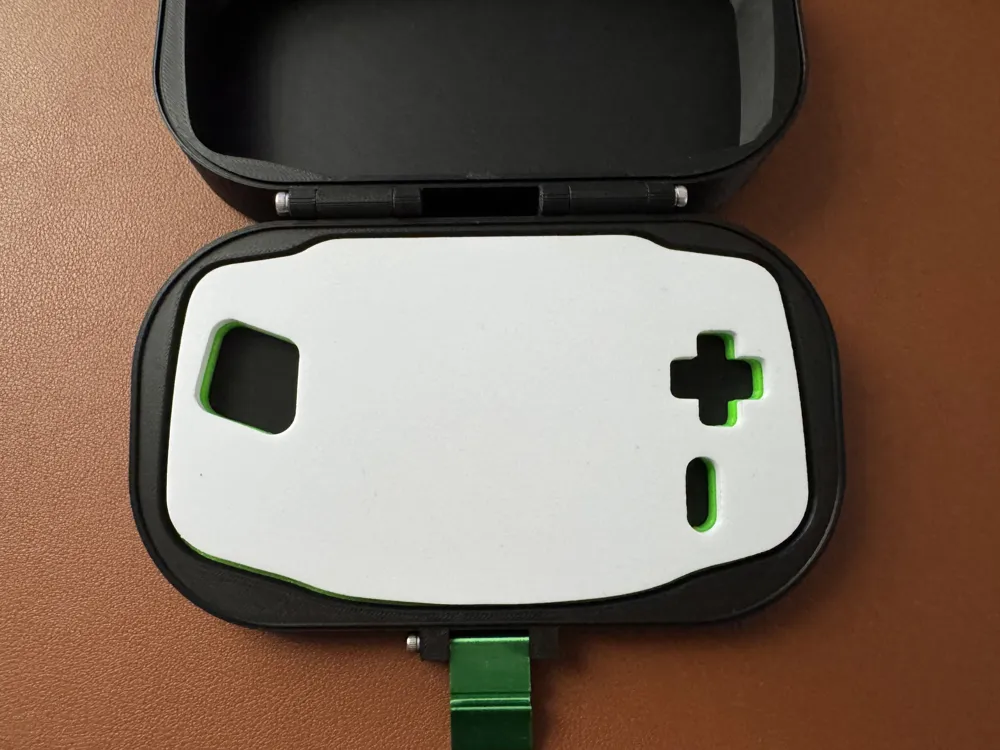

Also I decided to make this usable with the original foam padding that comes with the device for everyone who can't print TPU. So you now got a few options here:

use the original foam padding from the packaging the device came in
print the TPU padding that comes with the print profile (plate 3)
download the scan of the original padding and use it as a stencil to cut a fitting piece yourself (the TPU part and the original piece have a thickness of 3.4mm)

The case itself then gets assembled using 4x 30mm M3 screws and some glue or double sided adhesive tape to glue in the screen protection.

Boost Me (for free)

As always, let me see your makes! And if you really like it, I would be very glad if you give this model a rating or even a boost.
Happy printing (and gaming) everyone :)
