Filament optimized Kallax storage - 10/case
Print Profile(5)
Description
/!\ ATTENTION, THIS IS A EU VERSION /!\
/!\ A US AND UK VERSION ARE ALSO AVAILABLE ON MY PROFILE (WITH EMT ½" TUBE AND 20mm PVC TUBE) /!\
Hello,
Wanting to optimize the storage of my spools, I have a Kallax shelf available, but unfortunately no optimized support existed…

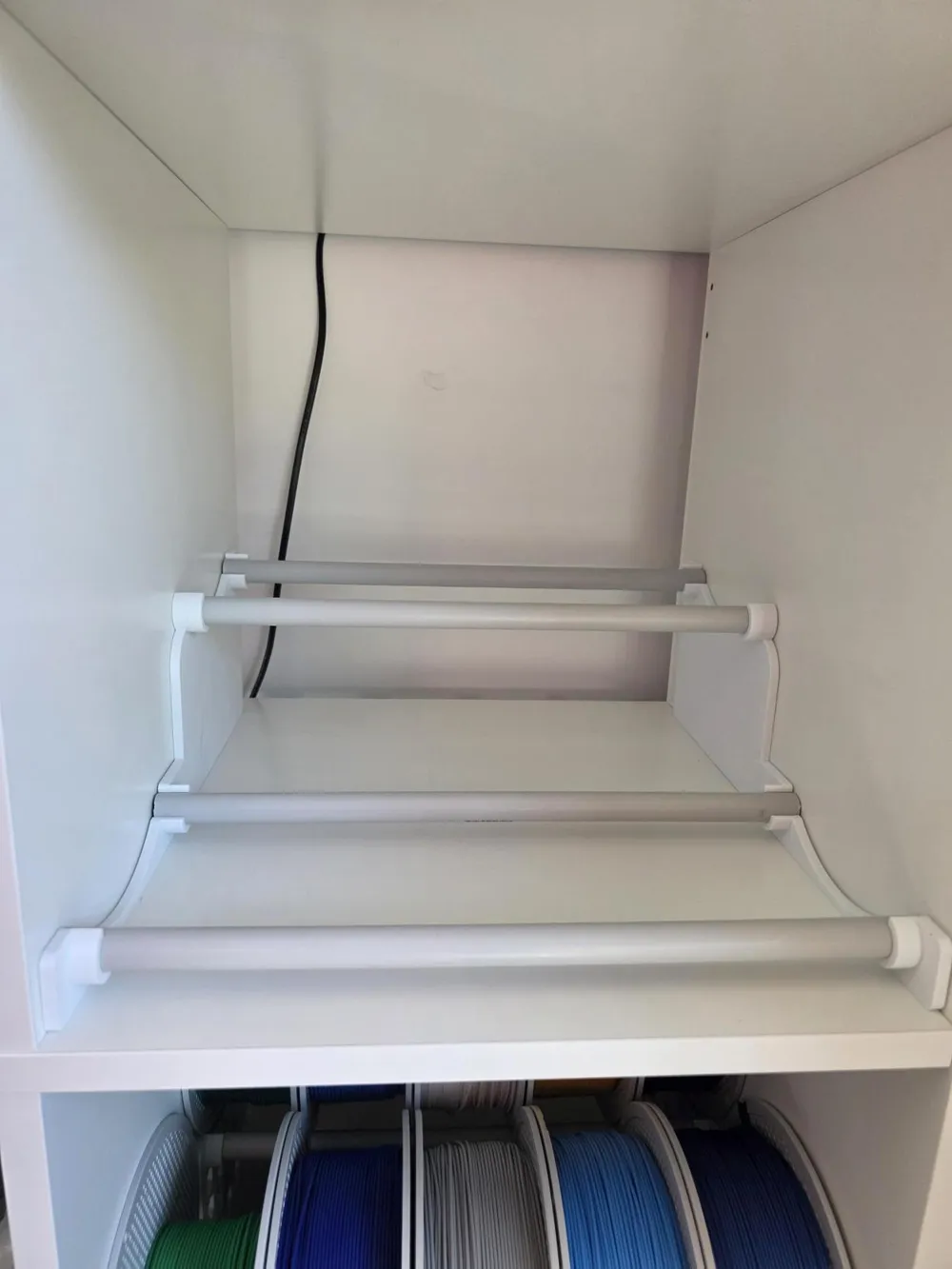

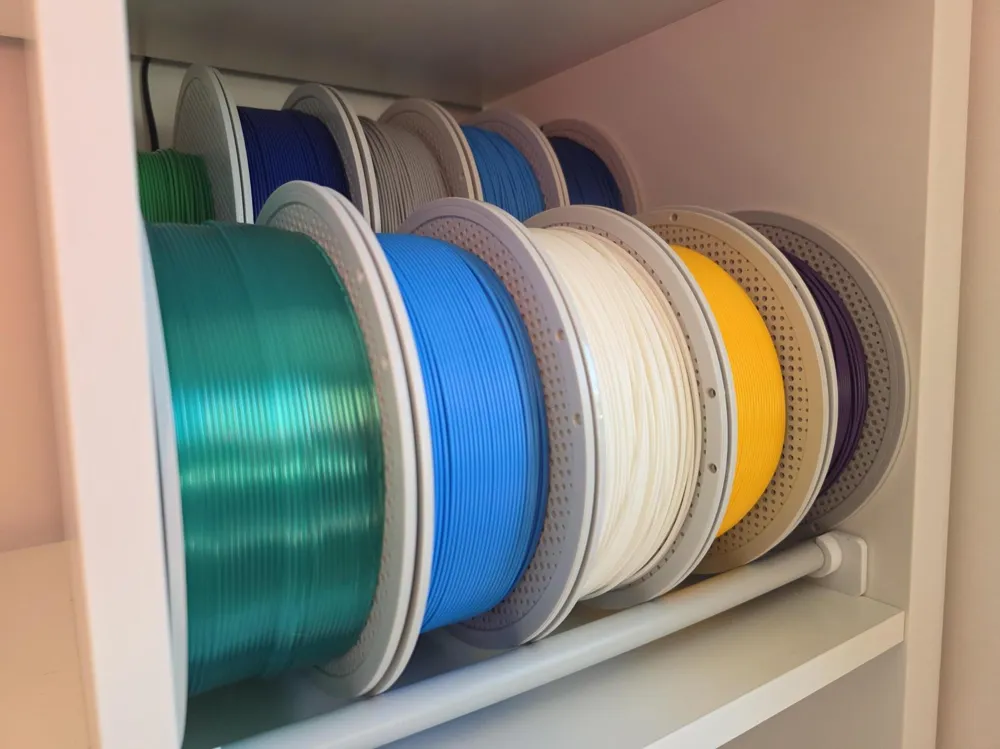

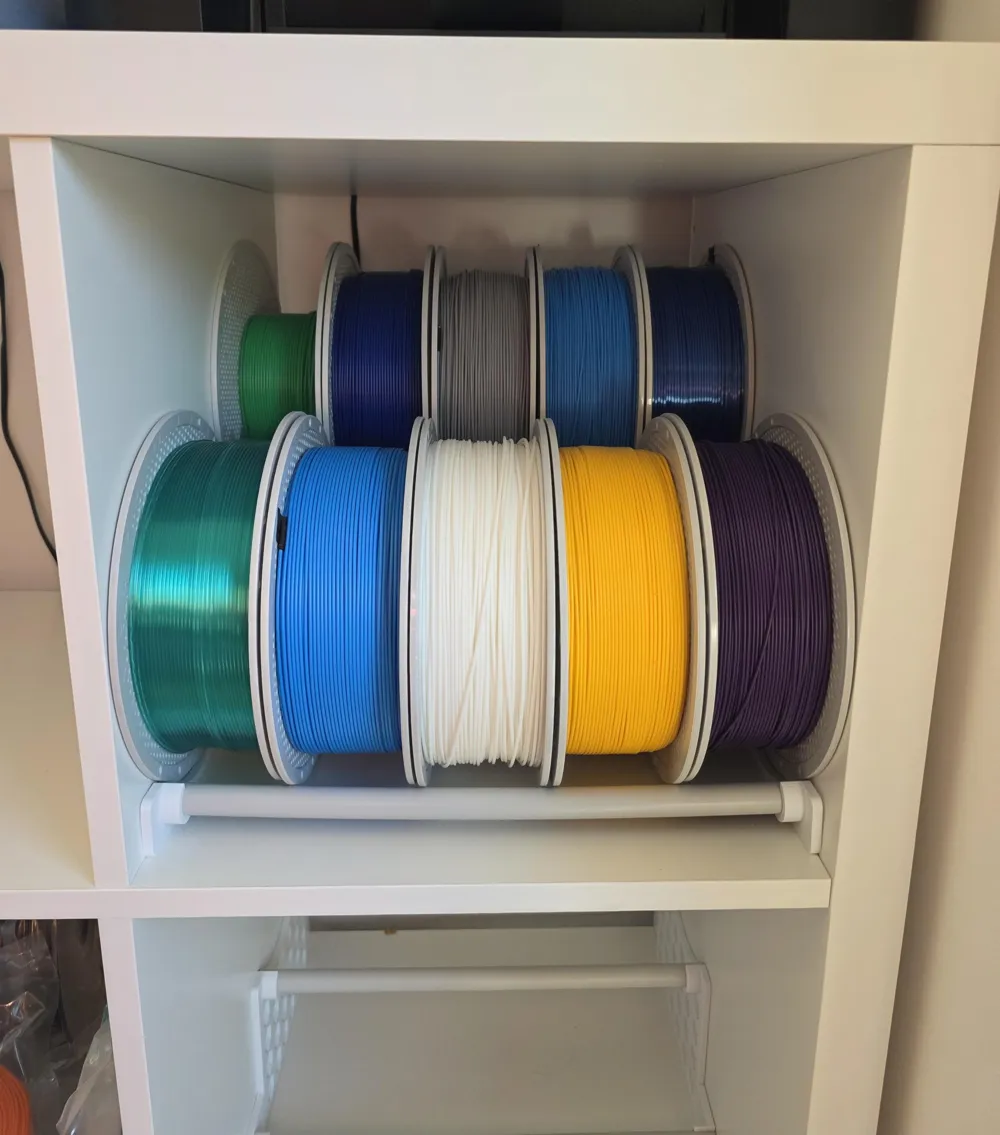

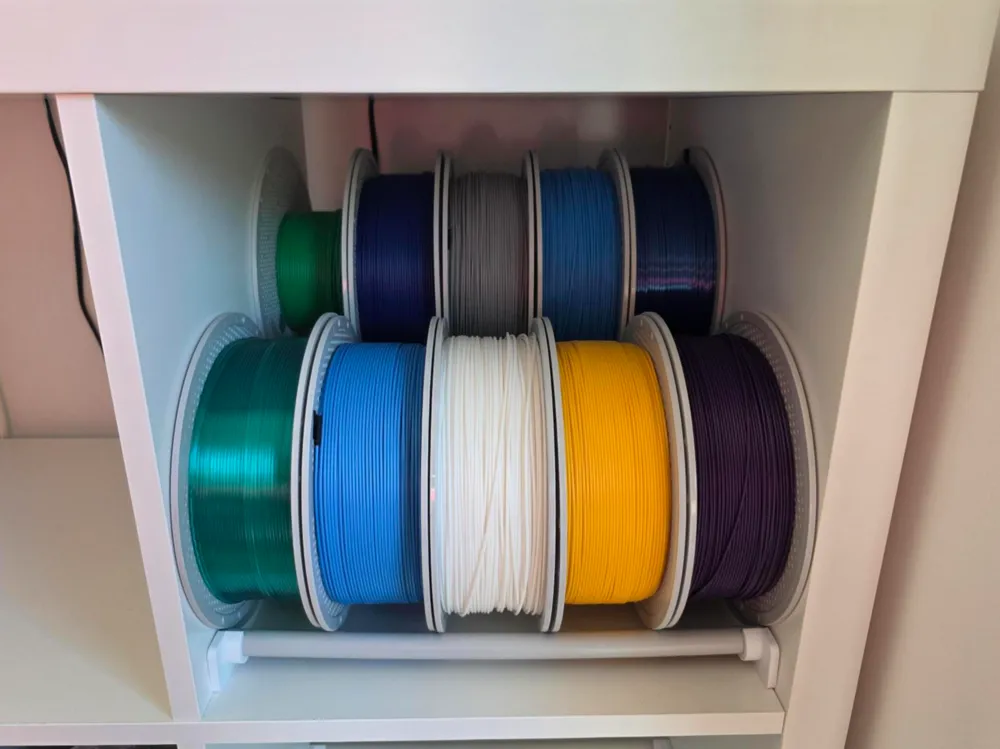

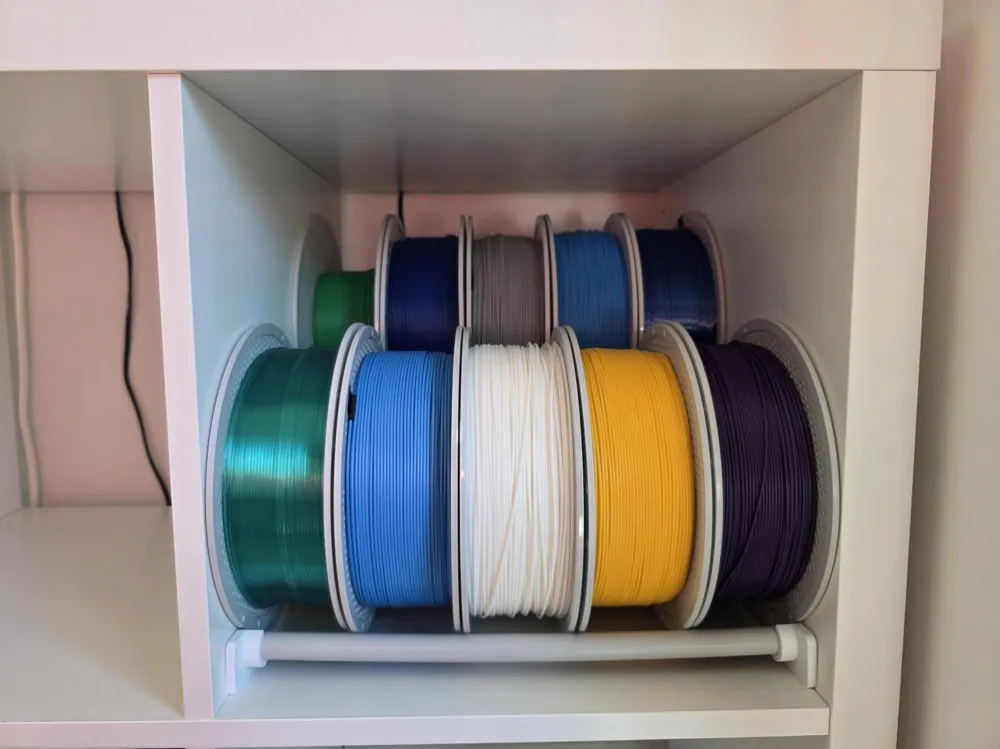

So I created a support that allows storing up to 10 spools per Kallax cube.
(Photos only show Bambu Lab spools)
Advantages:

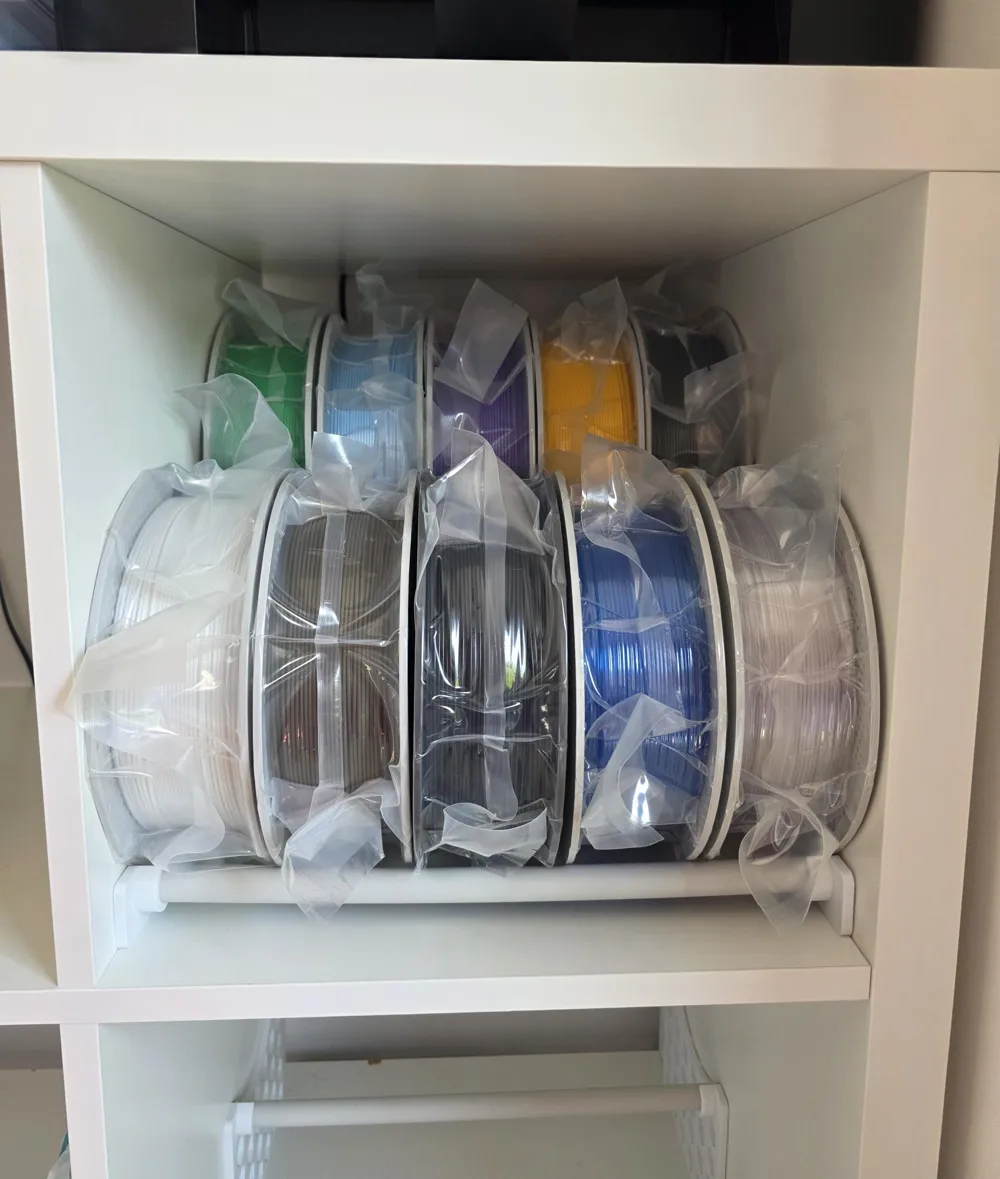

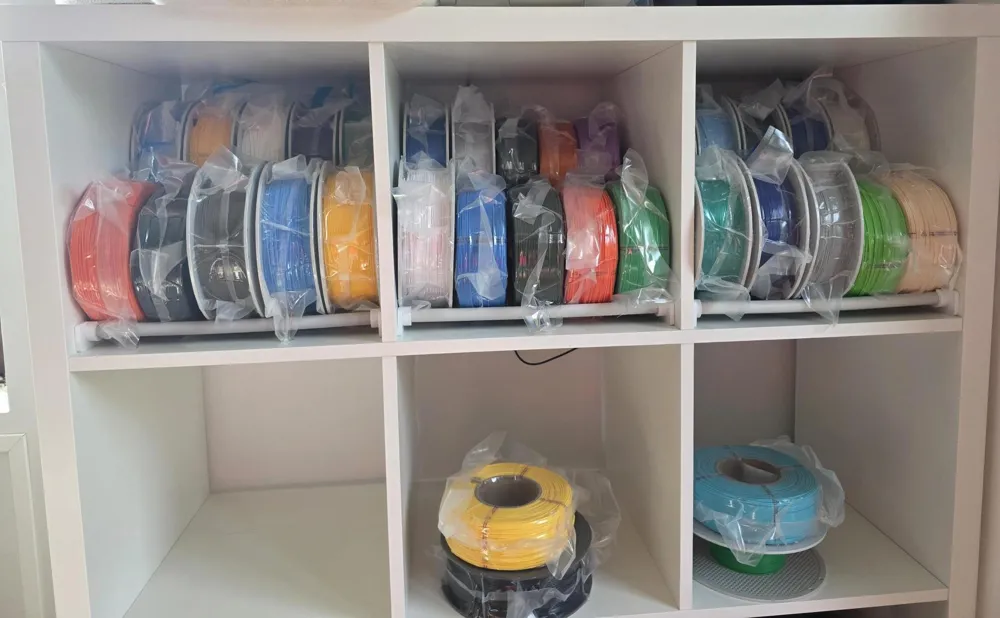

- Compatible with spools in airtight packaging (single-use or reusable) → they stay dry
- Also allows storing refills

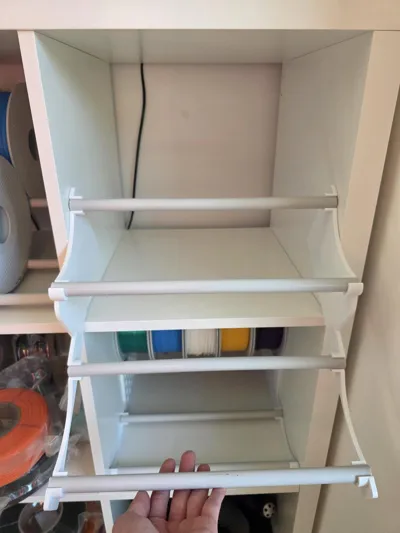

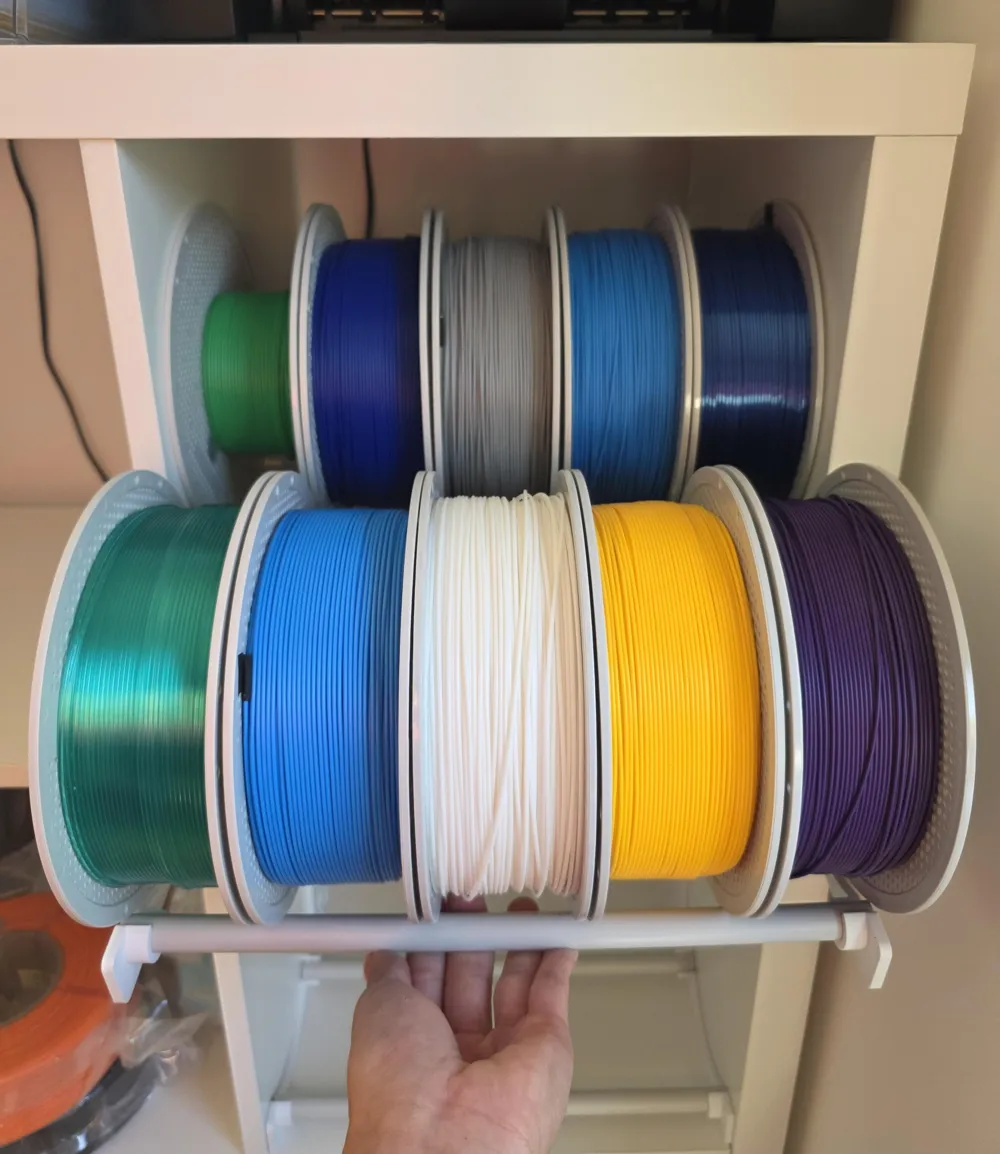

- The support is not fixed to the furniture → it can be pulled out like a drawer to access the spools at the back
- Optimized storage: spools do not protrude from the front or back → possibility to add a back panel or door to the Kallax
Available versions:
- Tray 256 mm³
- Tray A1 mini

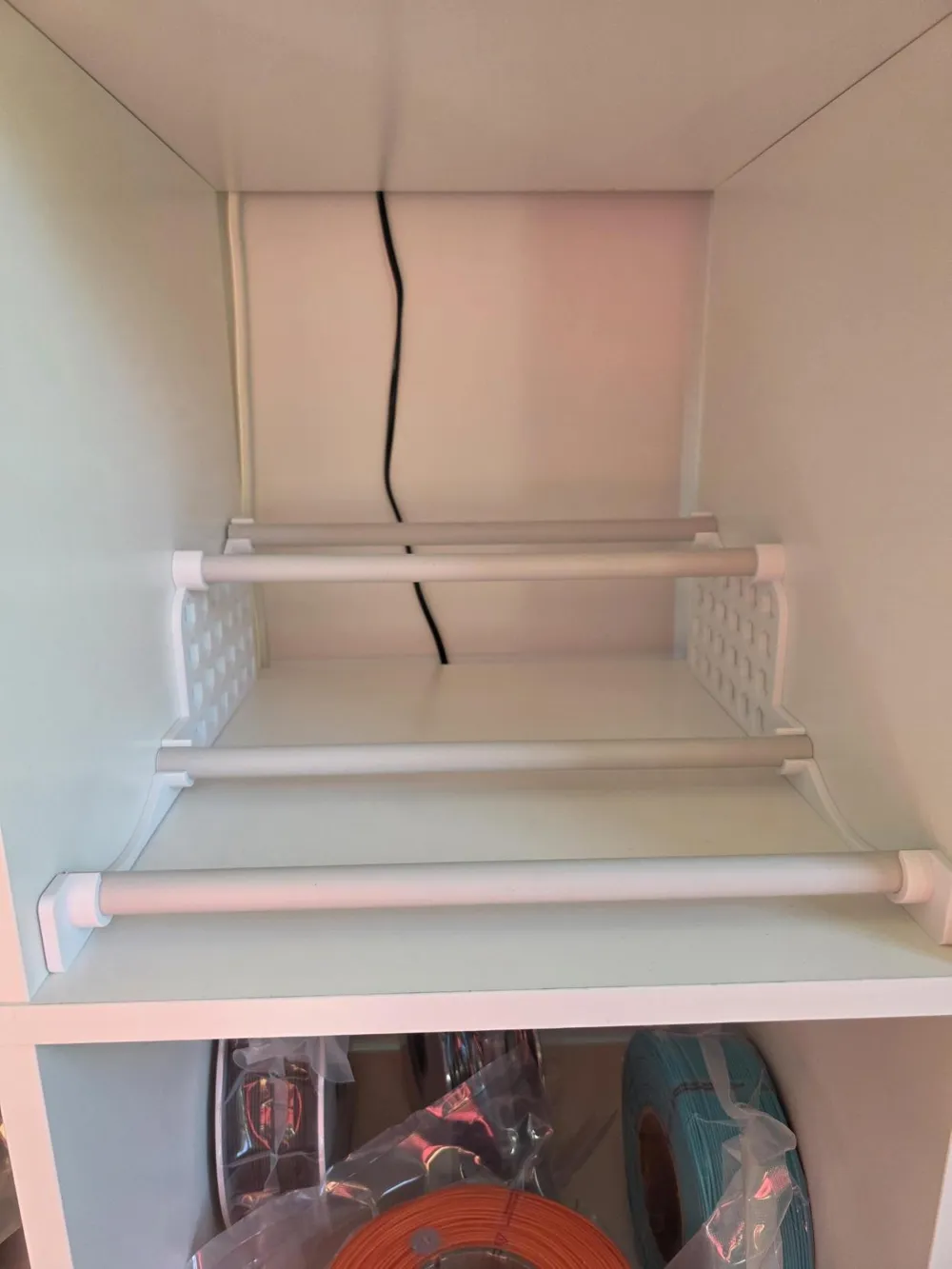

- Perforated version (for more style)

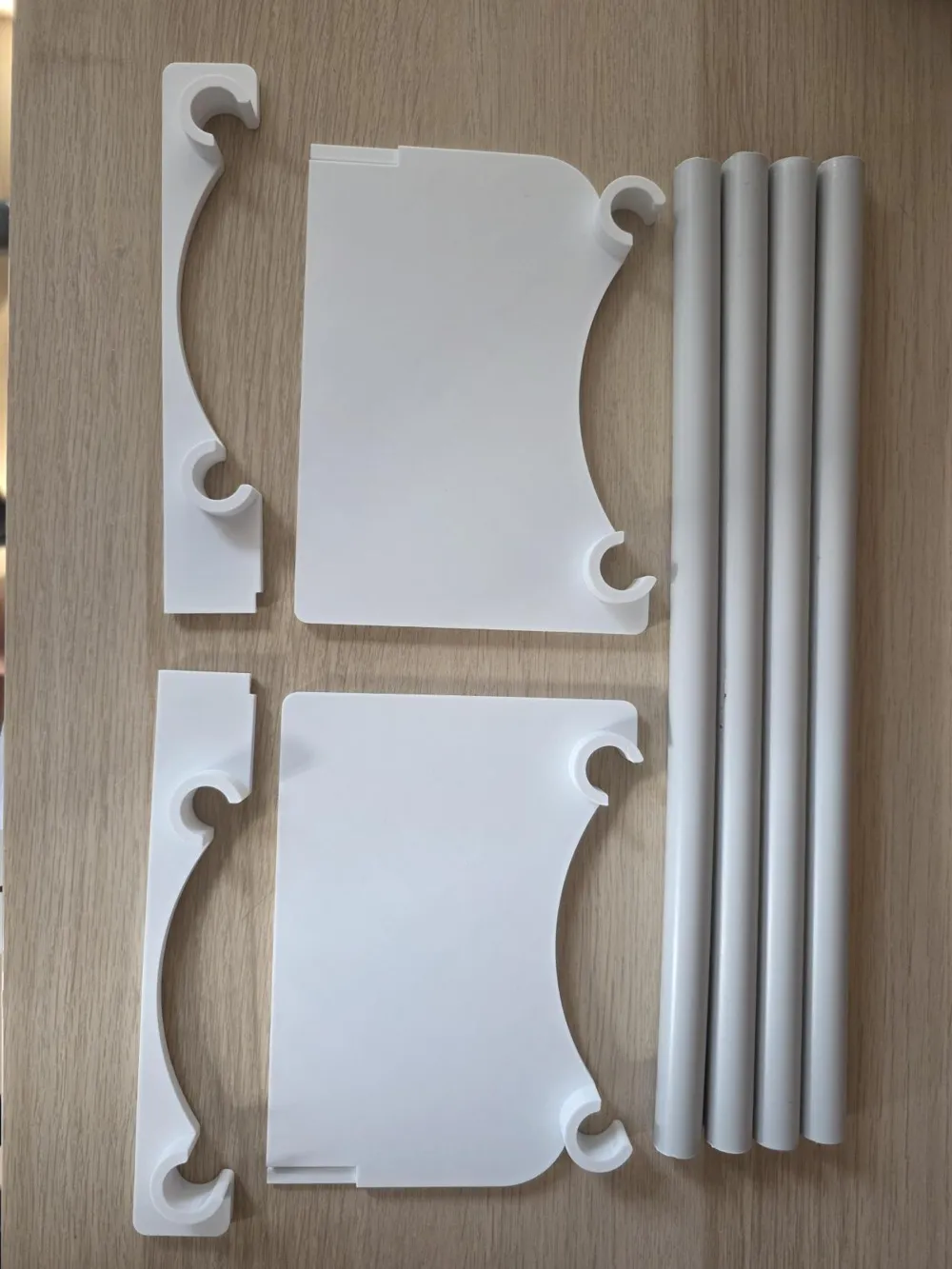

Required material:
- 4 pieces of IRL tube Ø16 mm, length 335 mm
// For Germany, "Stangenrohr EN16" are needed\\

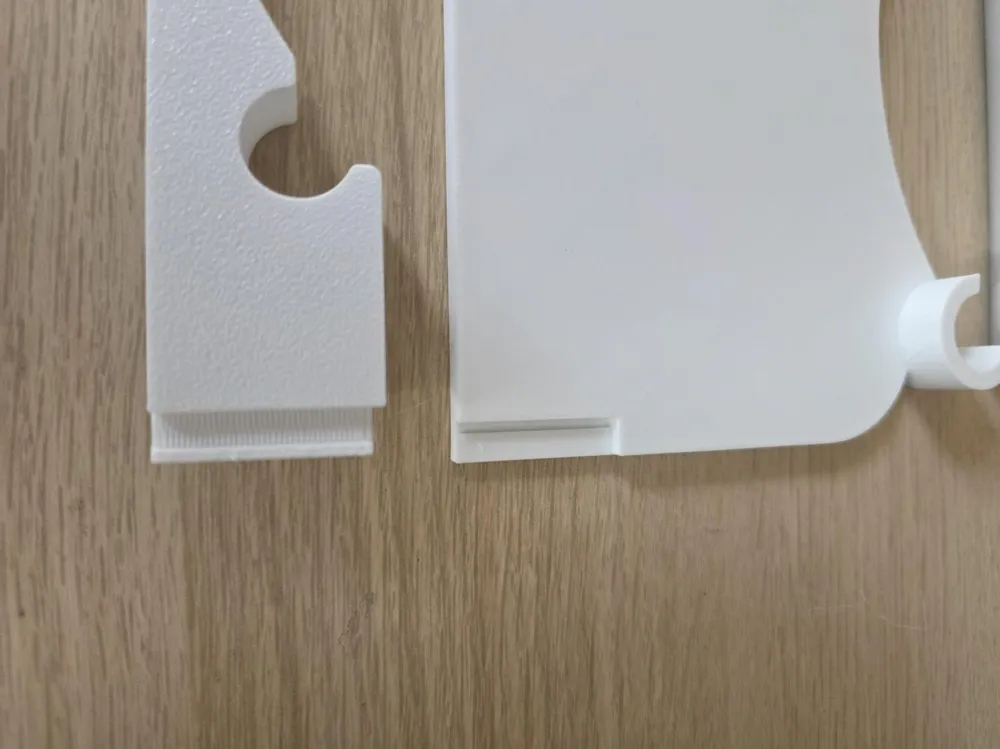

If you plan to pull the support out like a drawer: I recommend gluing the 2 parts (small and large) together.
Otherwise, the interlocking is sufficient
Feel free to comment, boost, and share your feedback to improve the model
Happy printing! 🎉
