Hub PTFE & Cable Bracket [A1 - A1 Mini]
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 15% infill
Designer
51 min
1 plate
0.16mm layer, 2 walls, 10% infill
19 min
1 plate
Open in Bambu Studio
Boost
241
604
100
16
886
690
Released
Description

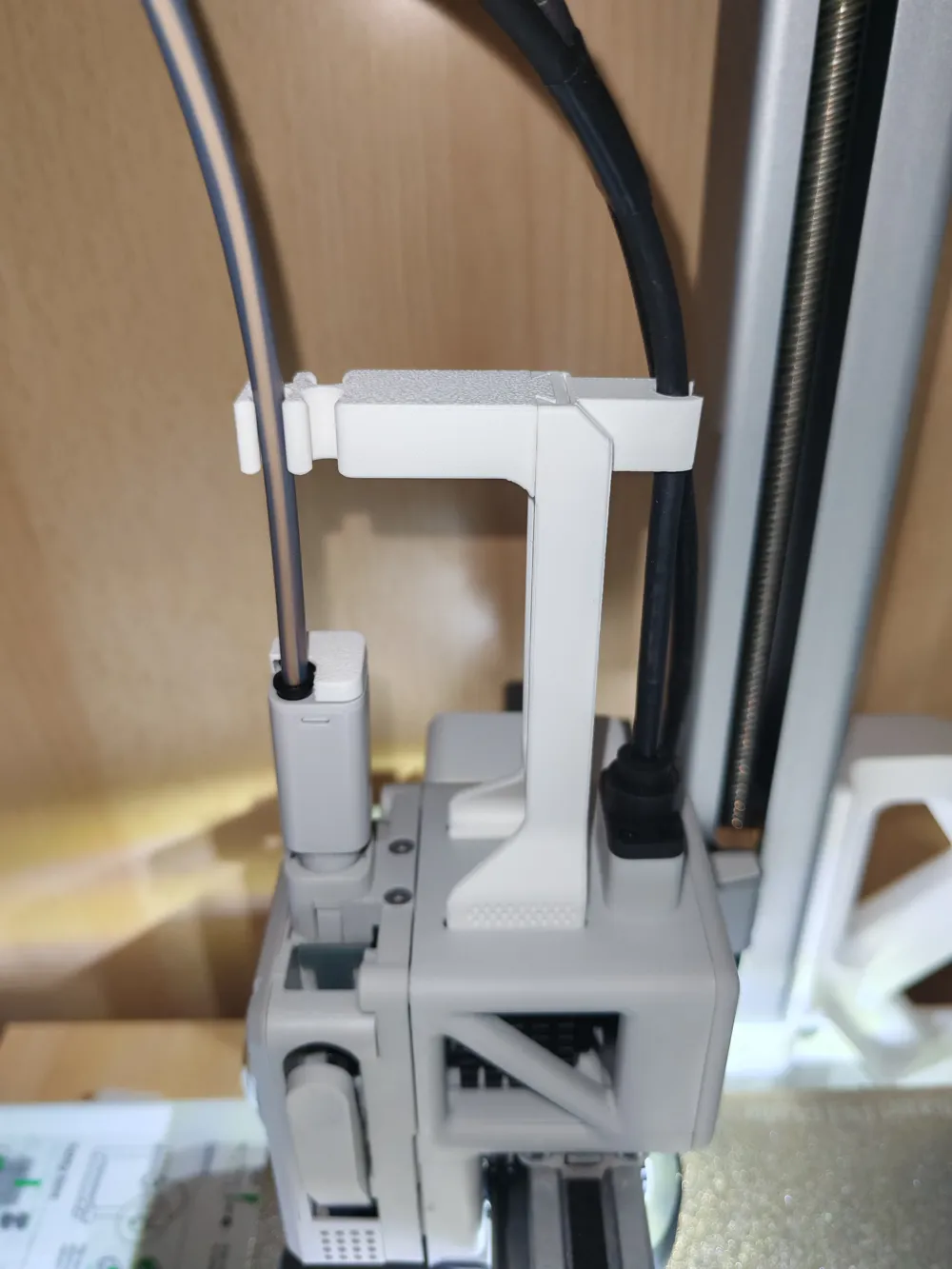

PTFE tube & power cable bracket for A1 and A1 Mini designed to protect your AMS hub from bending and damage

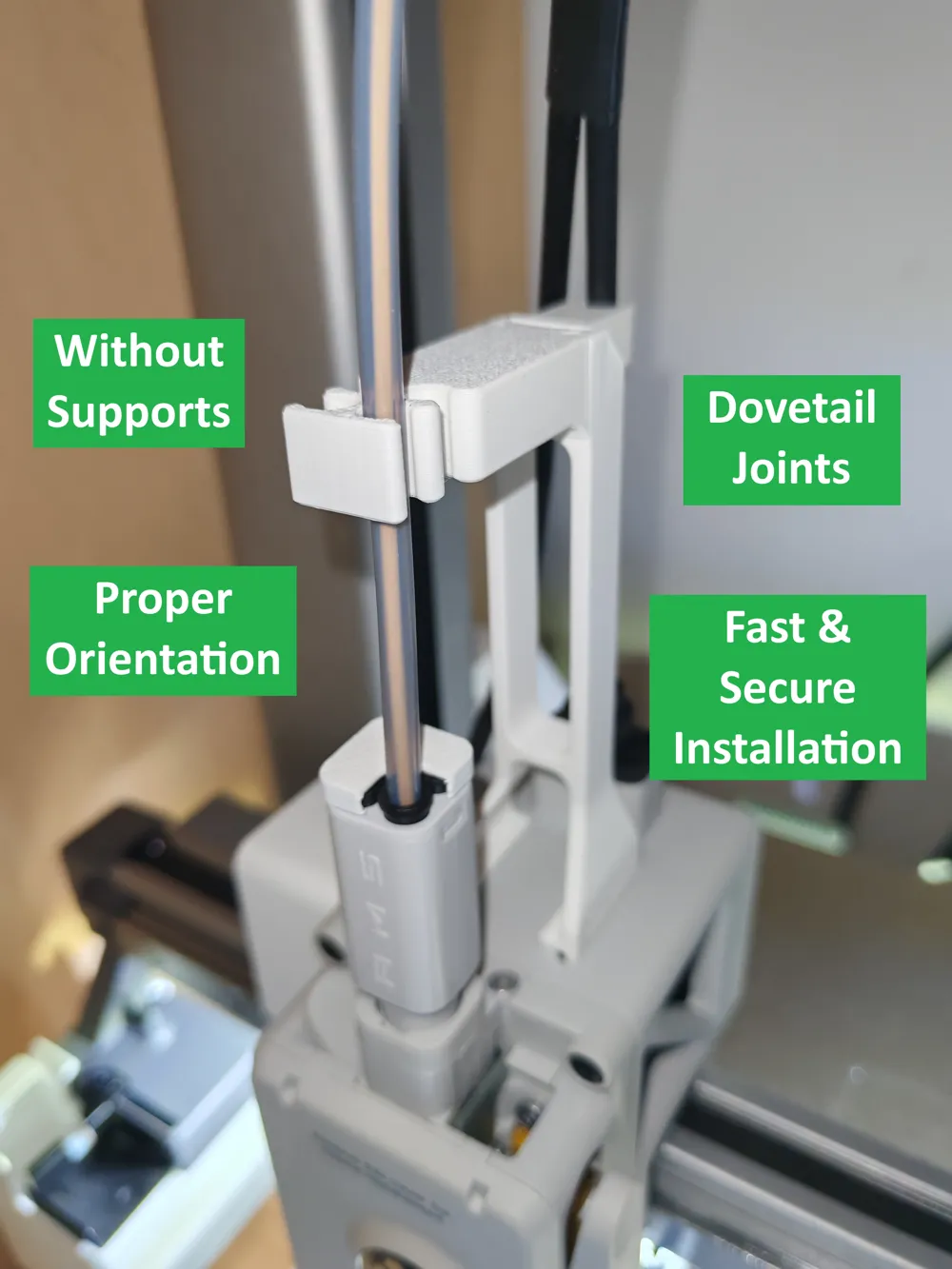

Features
- Compact and lightweight (only 13g)
- Hassle-free design: PTFE tube and power cable snap right in (no need to unload the filament)
- No supports needed
- Smart dovetail joints for optimal part orientation
- Quick one-hand installation and removal
- Textured base for improved grip during installation/removal

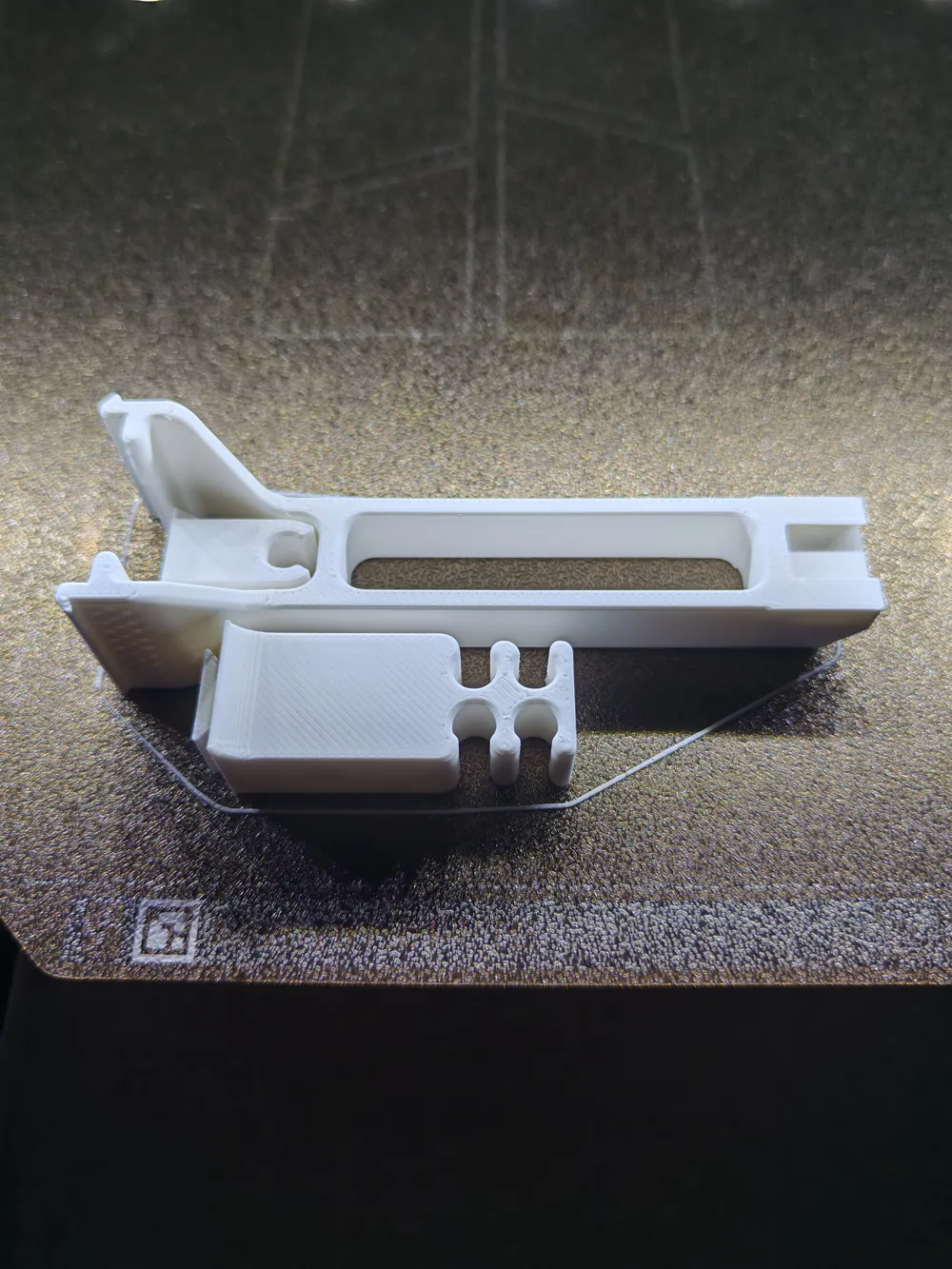

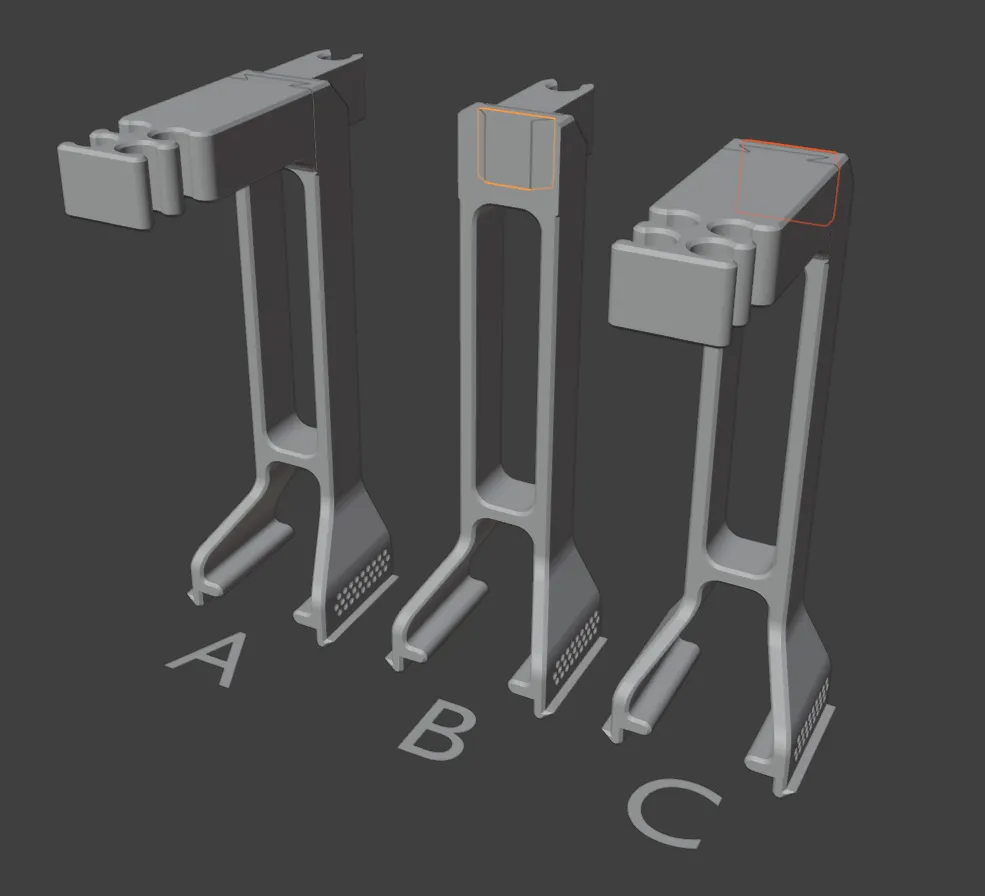

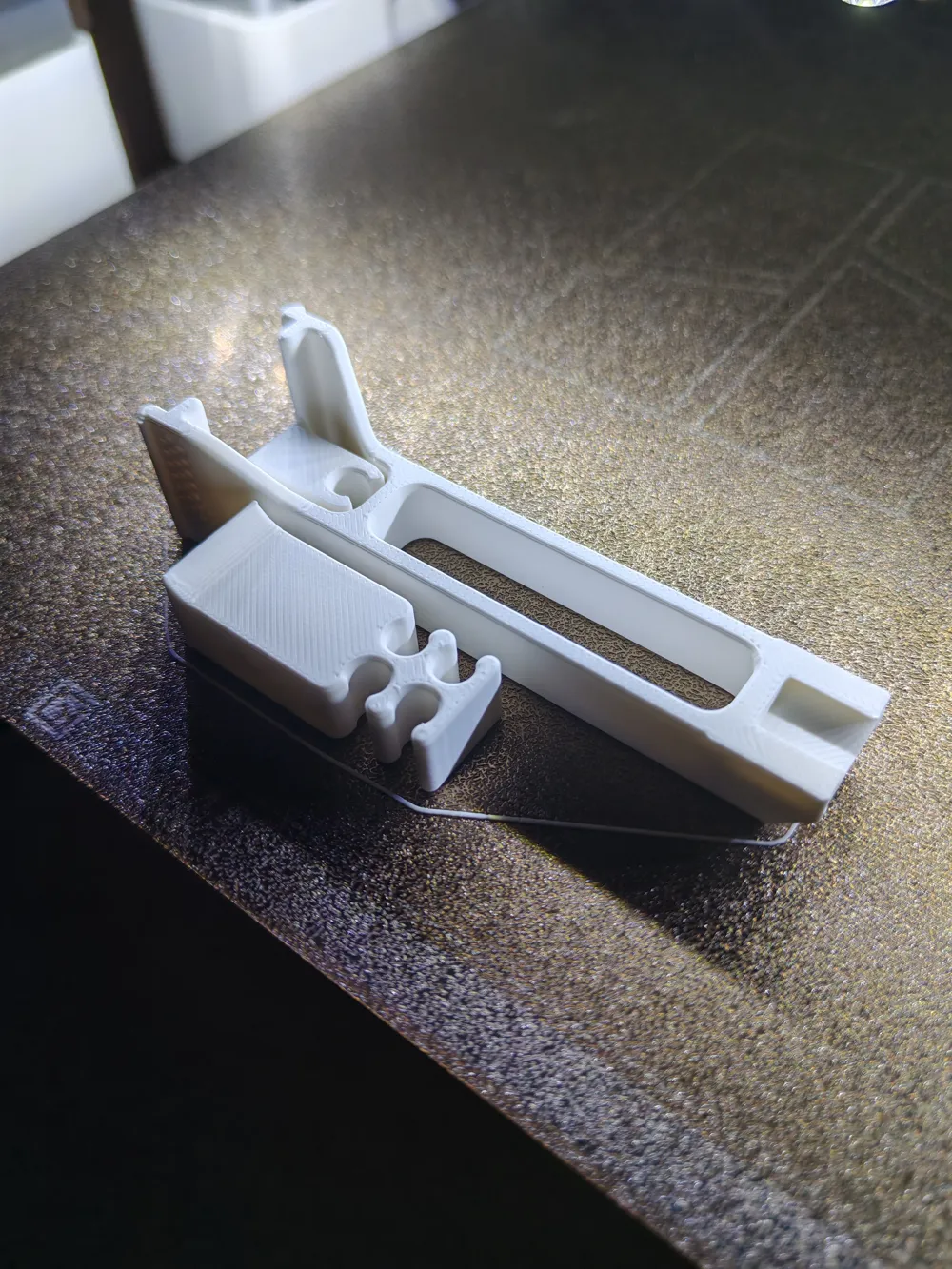

What to print
- 1x Bracket Main.stl
- 1x Bracket Front.stl OR Cap Front.stl
- 1x Bracket Back.stl OR Cap Back.stl
How to install

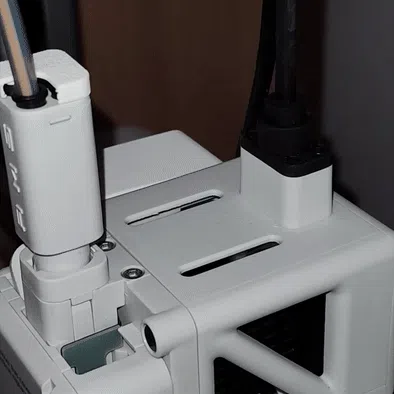

Just snap Bracket Main by tilting it on one side as shown below
- Install the “Front” and “Back” parts
- Snap the Power Cable and the PTFE tube(s)
How to uninstall
- Pinch the Bracket Main at its base (where the dots are) and tilt
