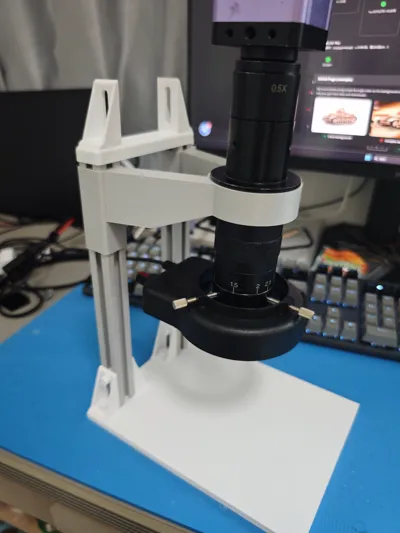

Electronic Microscope Stand Digital Eyepiece Holder
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
18 h
4 plates
Open in Bambu Studio
Boost
9
16
0
0
24
4
Released
Description
Content has been automatically translated.

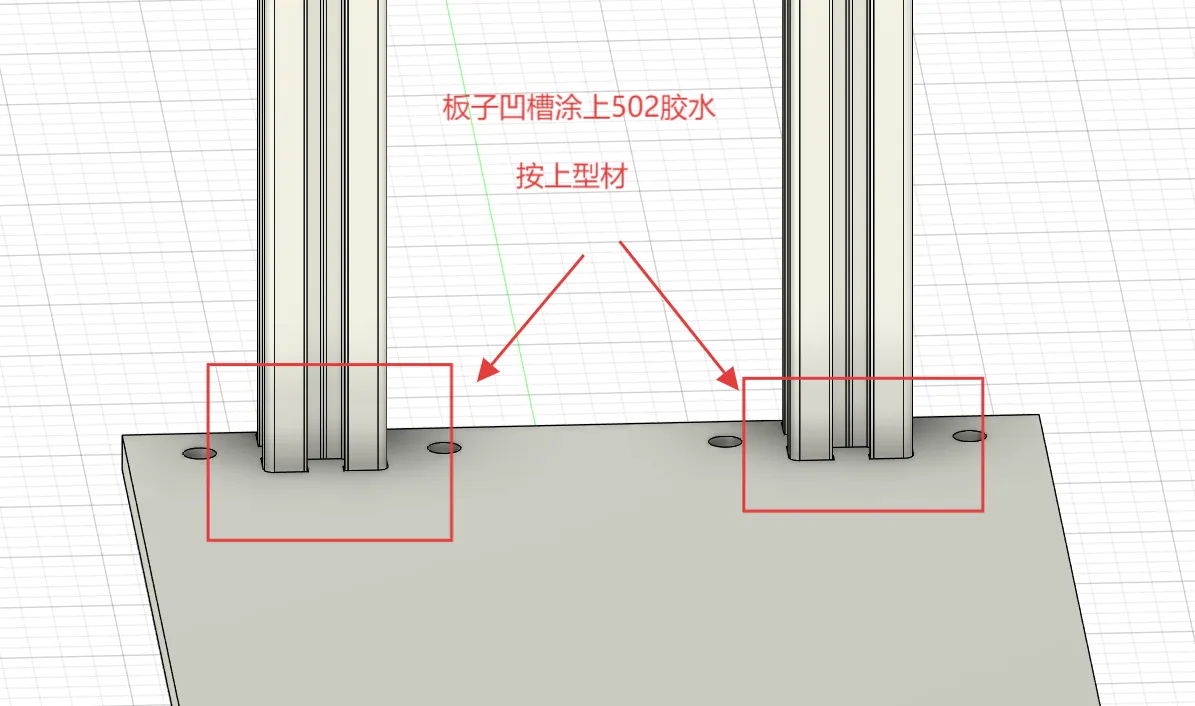

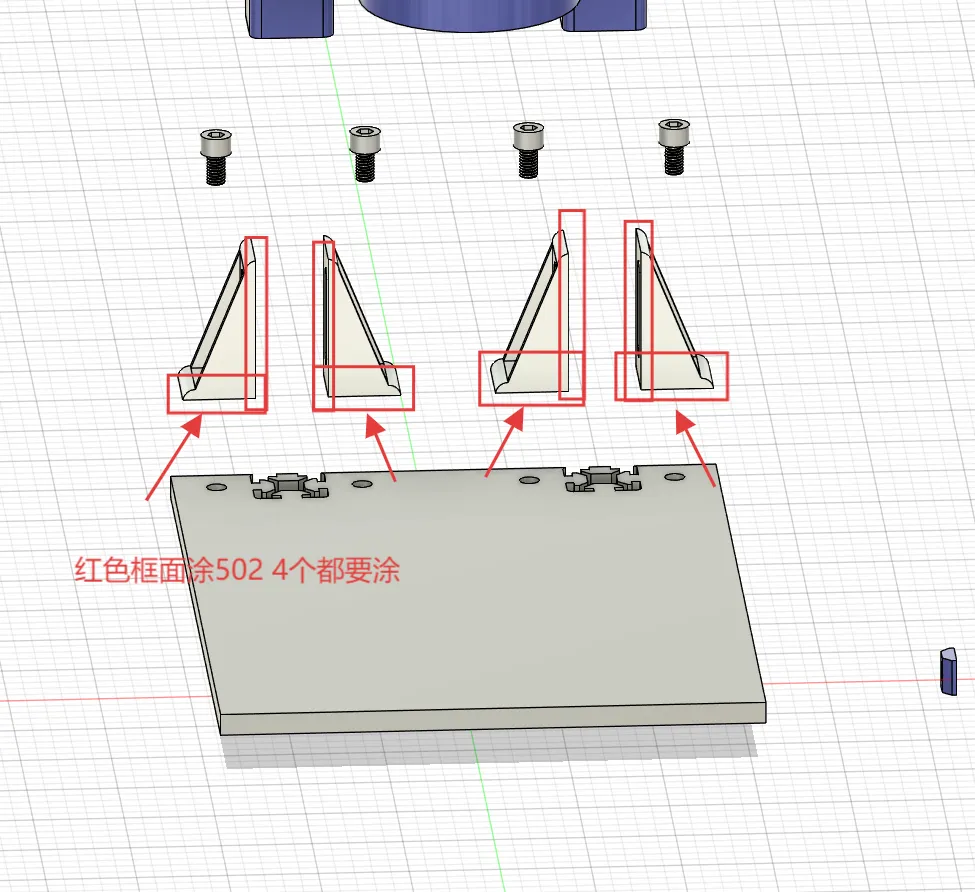

Just print with PETG. Print the 20 profile on its side for higher strength [Supports are easy to remove, make sure to clean them completely. If anything protrudes, use a lighter to burn it off]. Using 502 super glue for adhesion is sufficient for strength. Here's the tutorial...
You can also attach the lens support first...

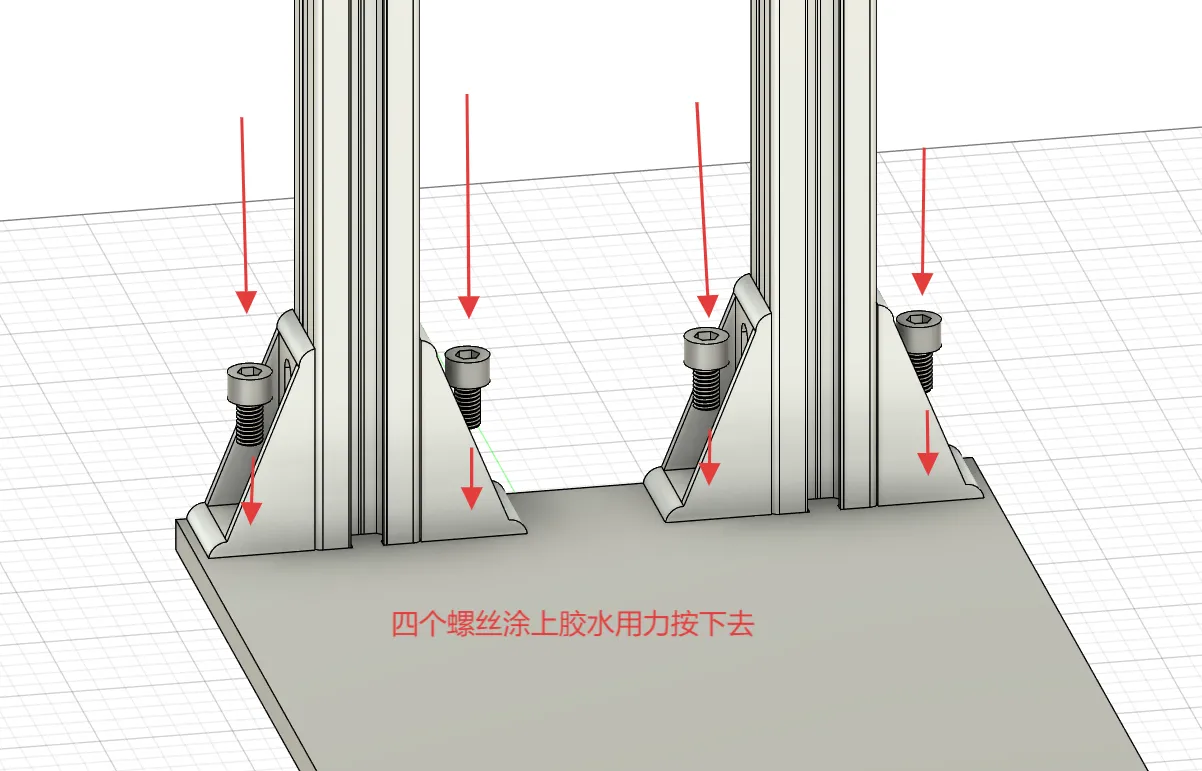

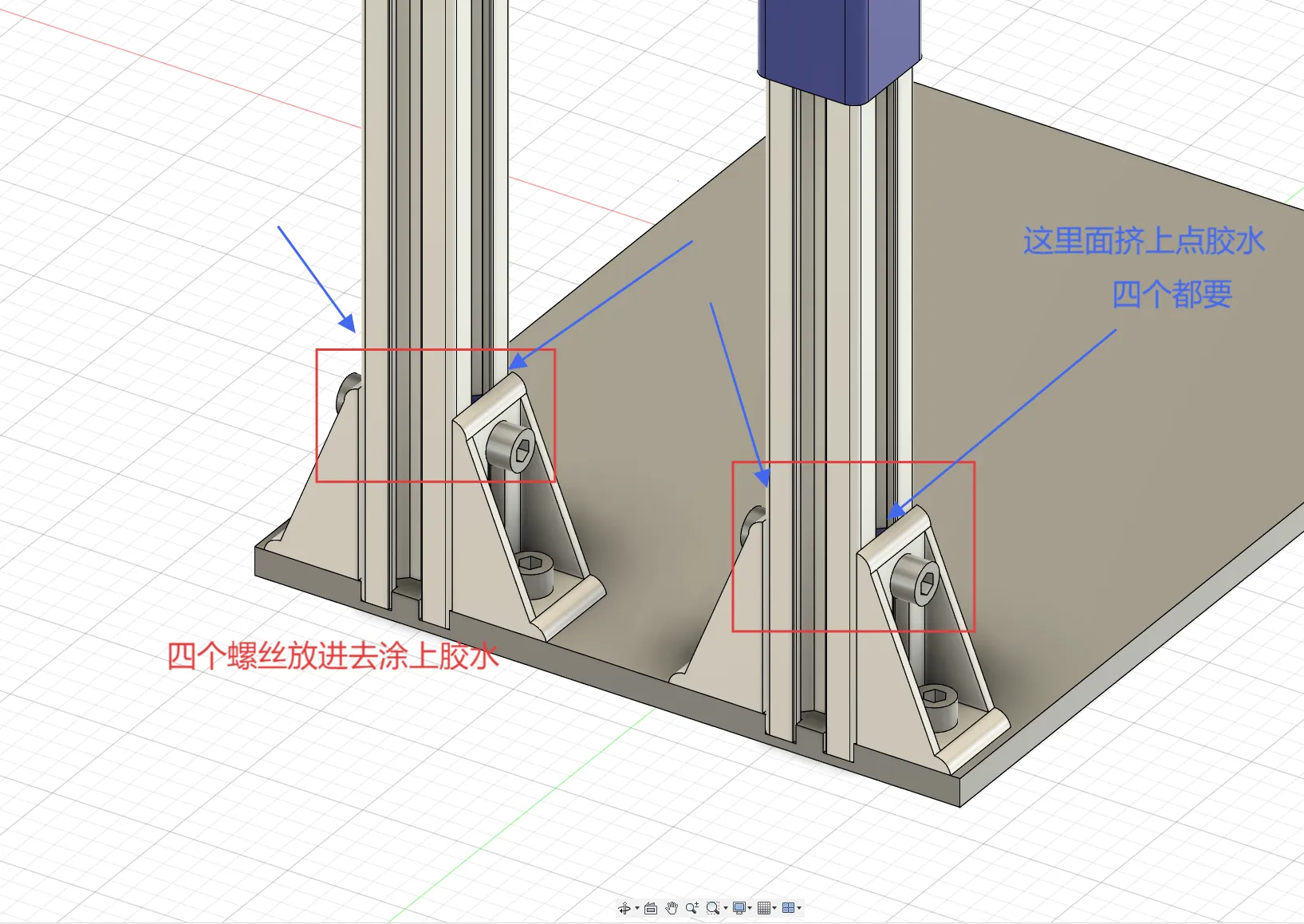

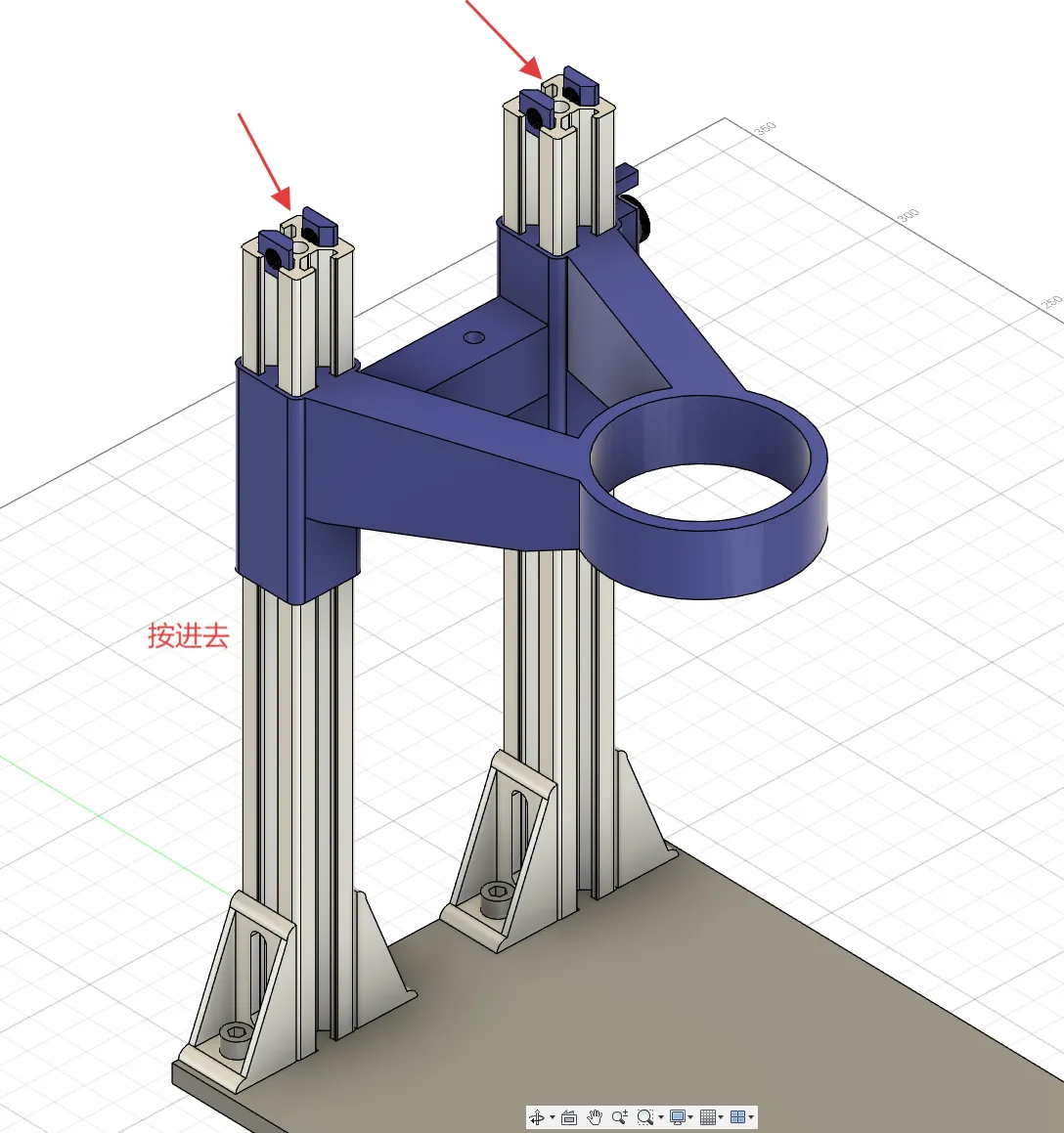

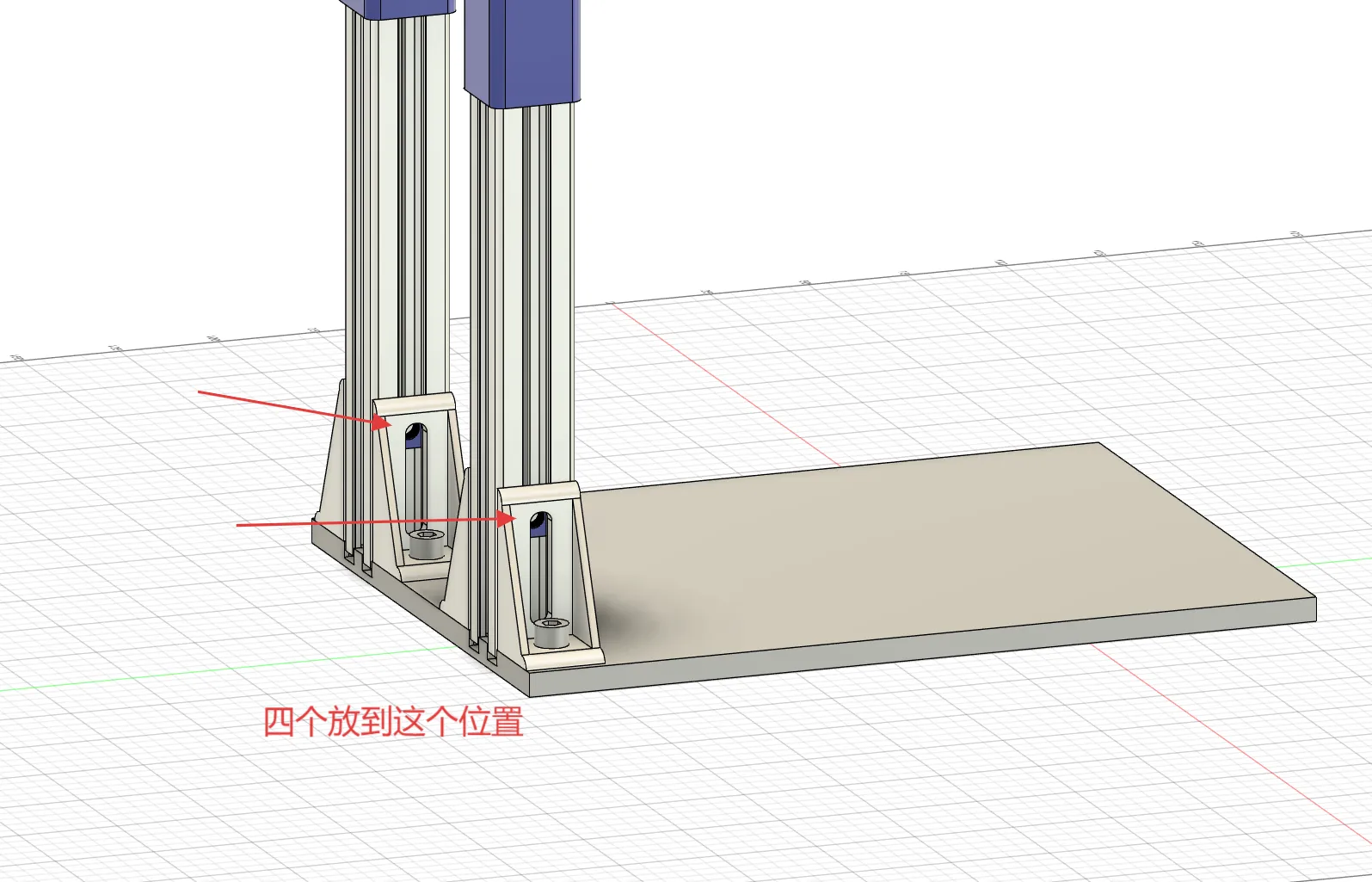

Align the holes. There are holes in the middle of the profile under the plate; insert the two cylinders and apply glue....
I think an aluminum alloy version could be released.

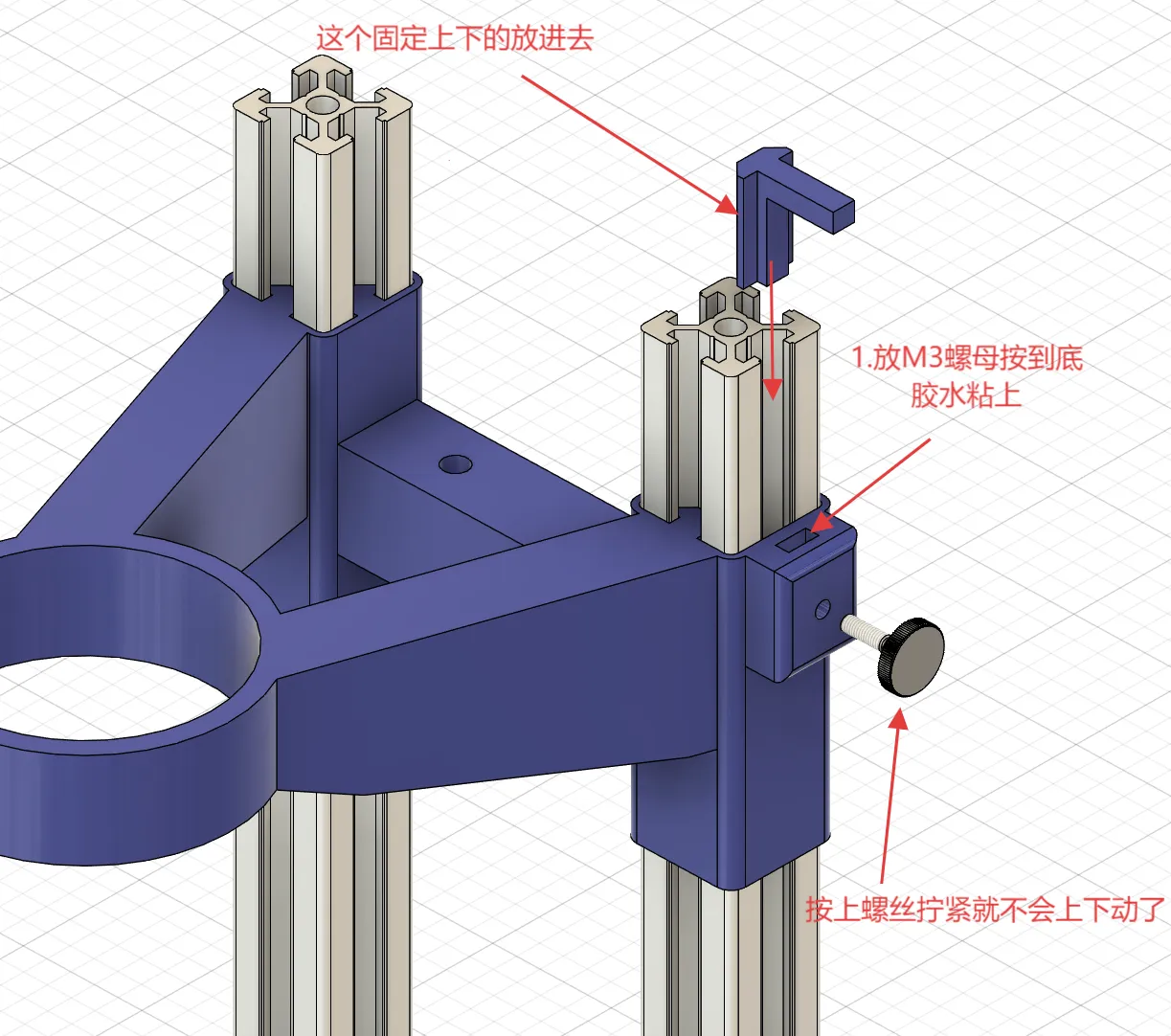

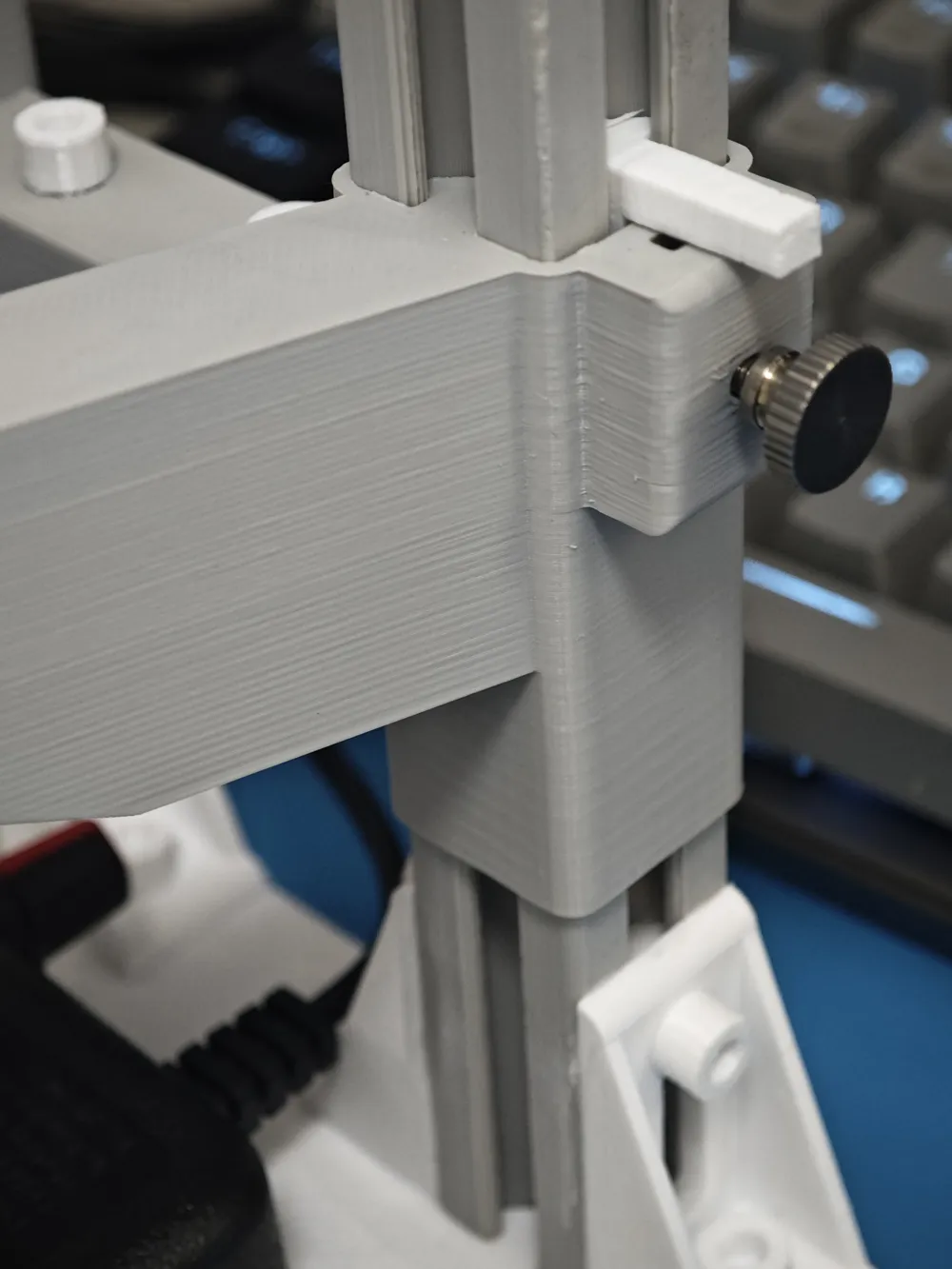

Required
One M3 nut
One knurled screw M3*16
Taobao 88 rolls, a matter of a few cents
Boost Me (for free)
Give me one, thanks
