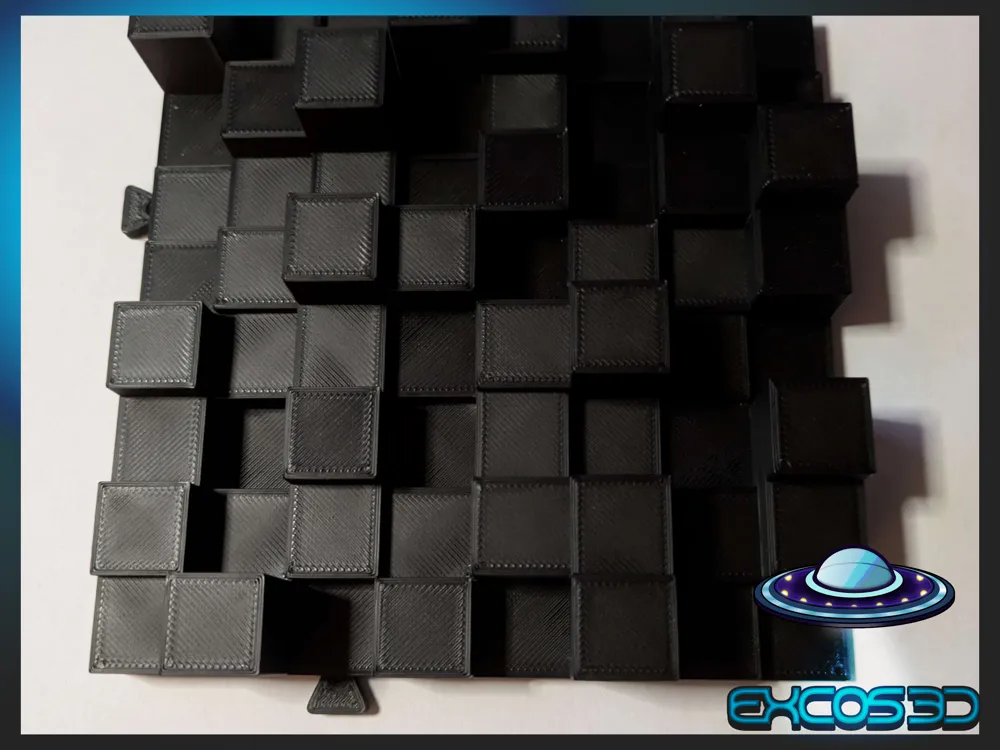

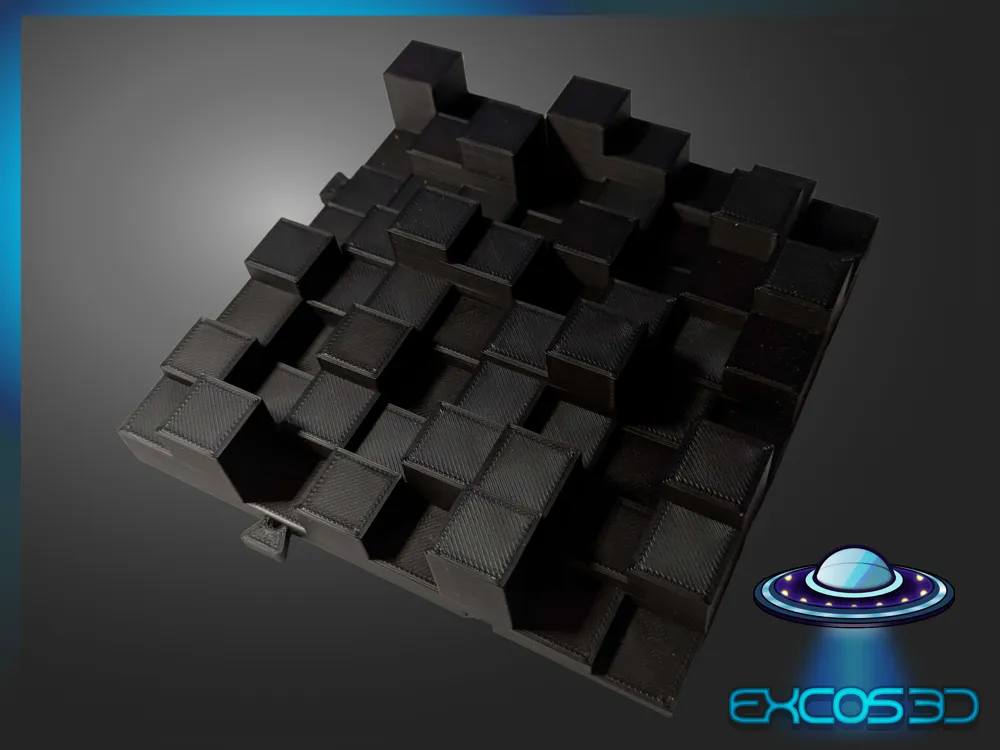

Sound Diffusor Panel

Bring clarity and depth to your home studio, gaming setup, or creative space with these modular sound panels! Designed for makers and musicians alike, these panels are easy to print, endlessly expandable, and engineered for maximum acoustic efficiency with minimal material.

Whether you’re battling feedback on your microphone, tightening up the sound in a recording booth, or just want a cleaner audio experience at your desk — these panels diffuse, break, and scatter sound in style.

Flat walls and empty rooms are a nightmare for acoustics. Echoes bounce, voices ring, and microphones pick up every reflection. But with these puzzle-fit sound panels, you can tame the chaos.

Designed with algorithmic precision, the unique height variations are calculated by a Python script I wrote, to strike the perfect balance between material savings and acoustic diffusion. The result? A modular panel that looks as sharp as it sounds.

Key Features:

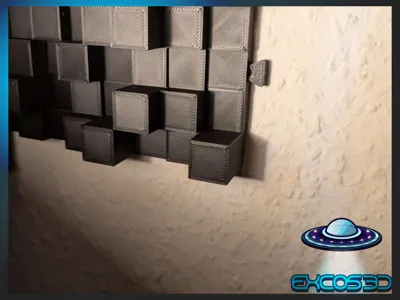

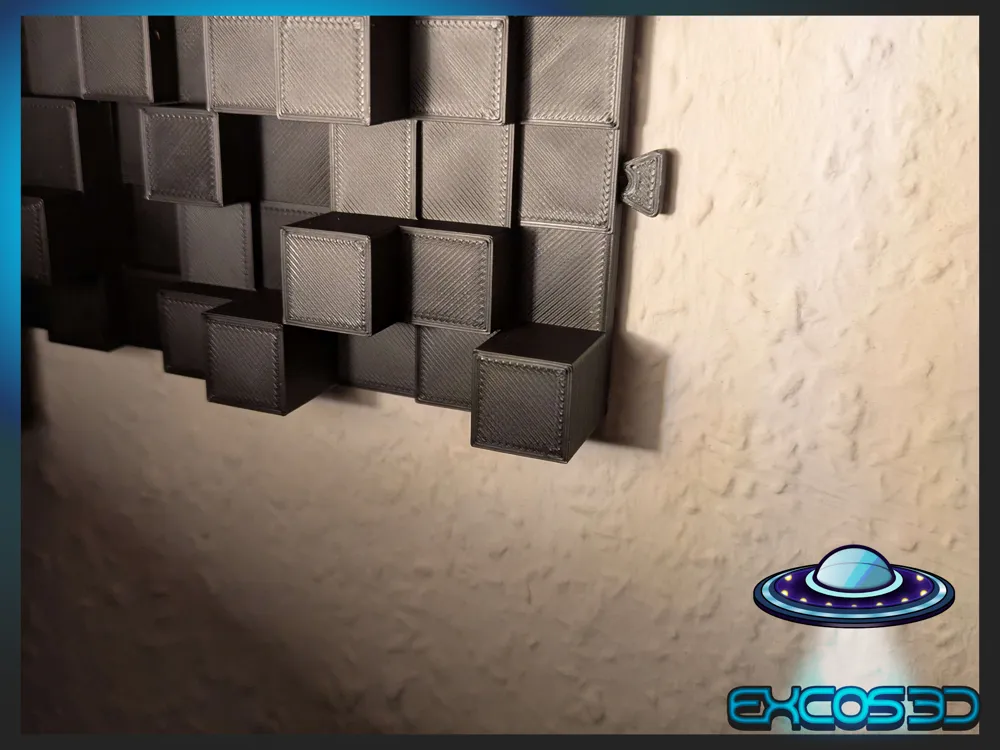

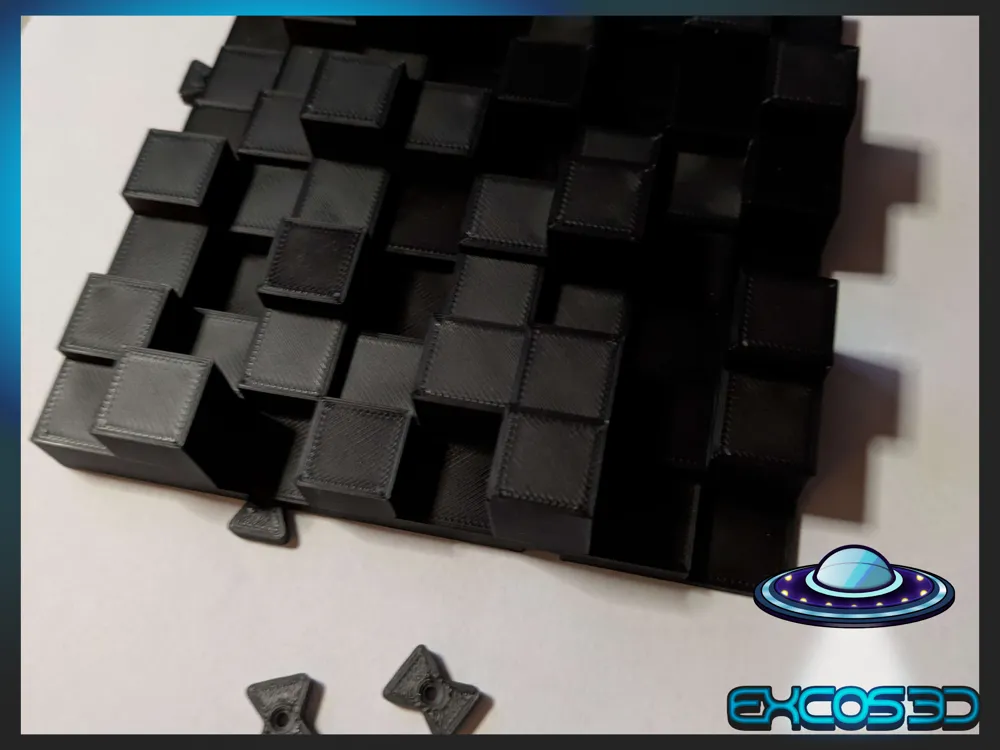

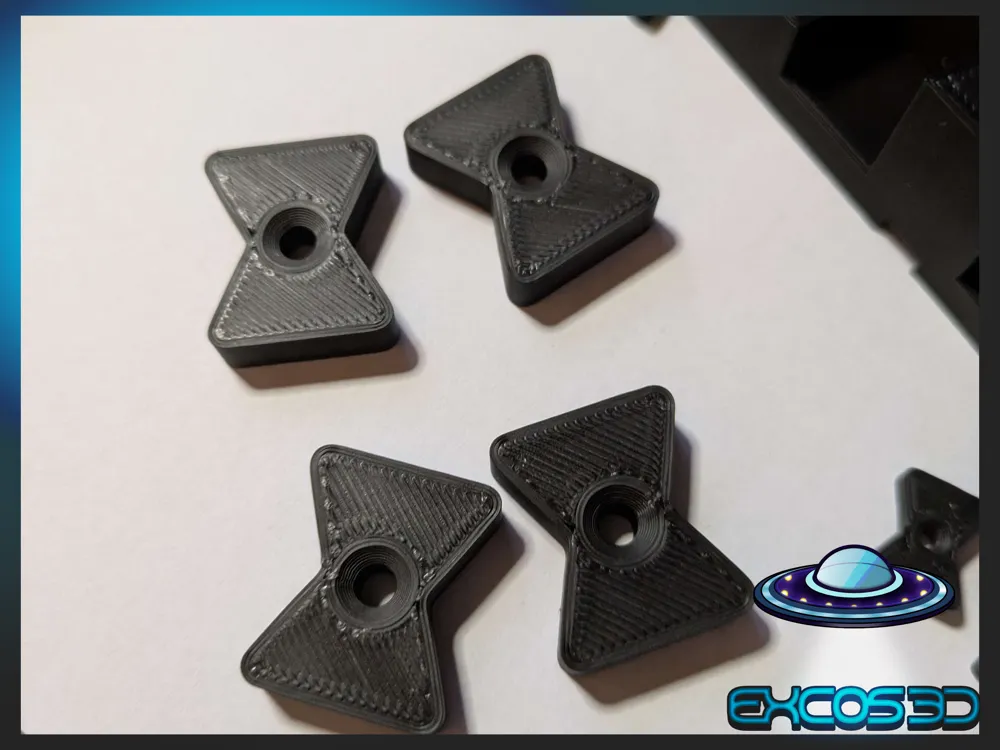

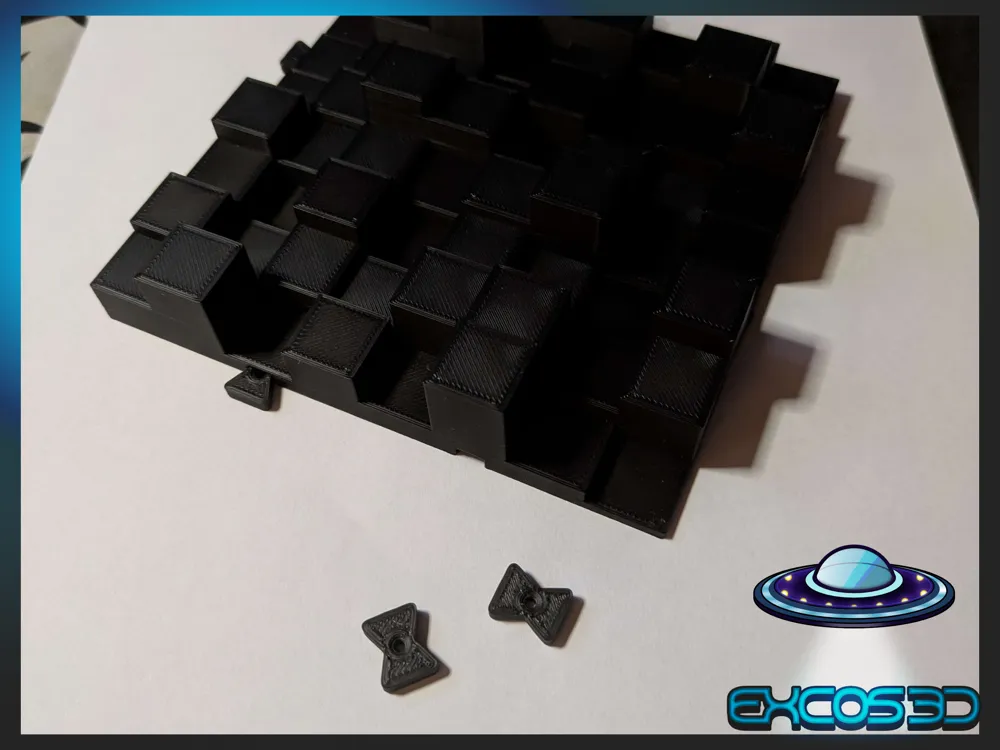

• 🧩 Puzzle Connector with Wall Mount: Each panel clicks together seamlessly and anchors securely to your wall.
  📏 Two Mounting Sizes:
  • Normal Size: Screw hole for solid mounting. Screw hole diameter: 4.2mm.
  • Small Size: Nail hole for lightweight, quick installs. (It's 50% of the Normal Size)
• 🧮 Smart Height Variation: A Python-optimized design ensures minimal waste, maximum efficiency, and optimal sound diffusion.
• ➕ Infinitely Expandable: Build a full acoustic wall or just cover the sweet spots — panels fit together without limits.
• 🎙️ Studio-Ready Acoustics: Breaks up reflections, diffuses sound, and reduces feedback — perfect for microphones, streaming, recording, or gaming.

Printing Instructions
These panels are designed to be simple, modular prints that fit together like a puzzle:

• Material: Standard PLA or PETG works great. Choose a matte filament for a clean, professional look.
• Mounting: Use screws for the normal size, nails for the small size.

• Scaling: Print as many as you need — the design allows seamless expansion.



To make your life easy, I prepared the Print Profiles for each Size. The Profiles are tuned to give the best Result in regard to the needed time & filament.

Just choose your size of the Panel, and hit Print!

I would greatly appreciate your feedback, a like, and especially photos of your finished make.

Happy Printing!
