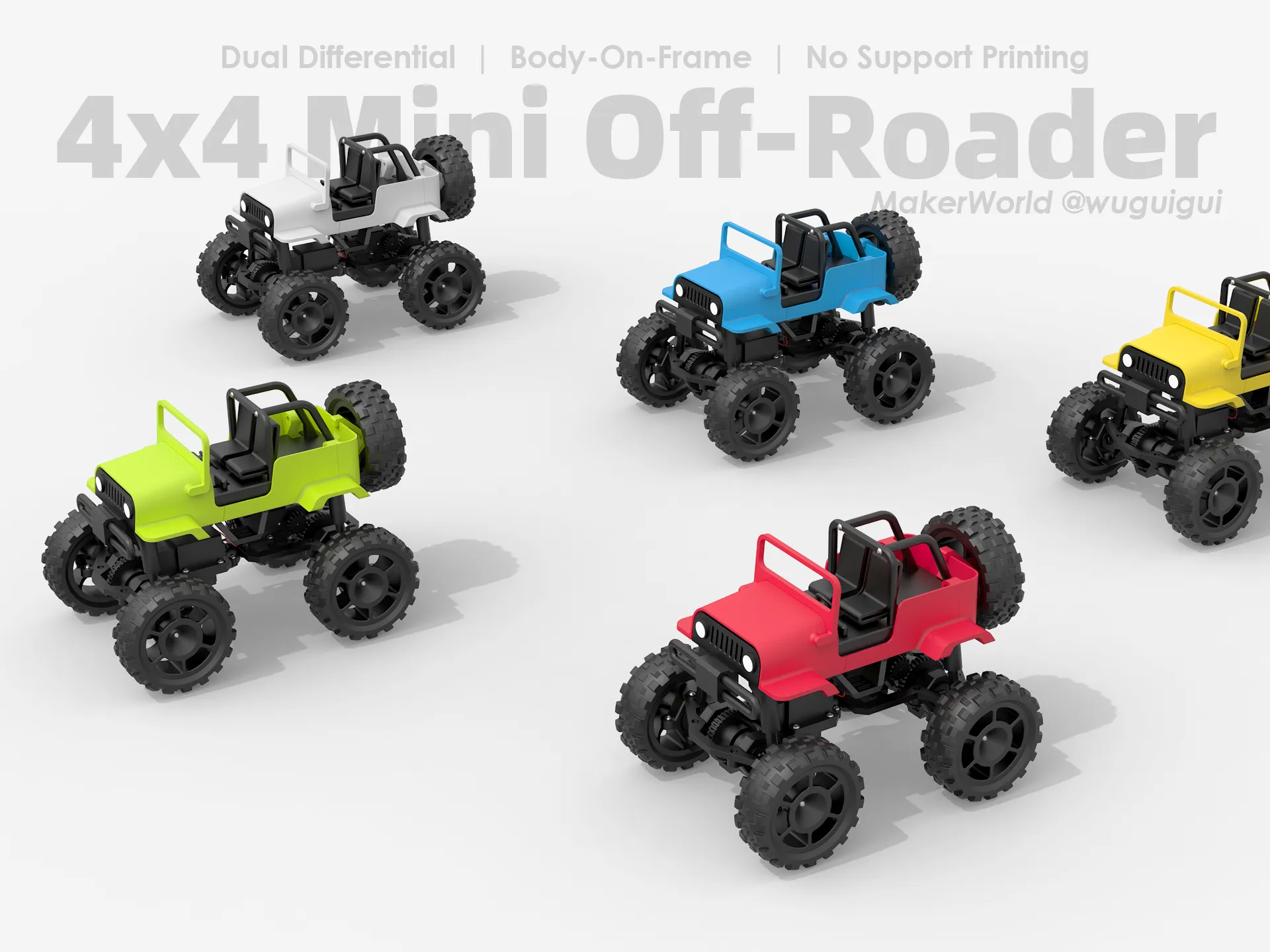

4x4 Mini Off-Roader

My new CyberBrick Project has been published

Updated 20251010

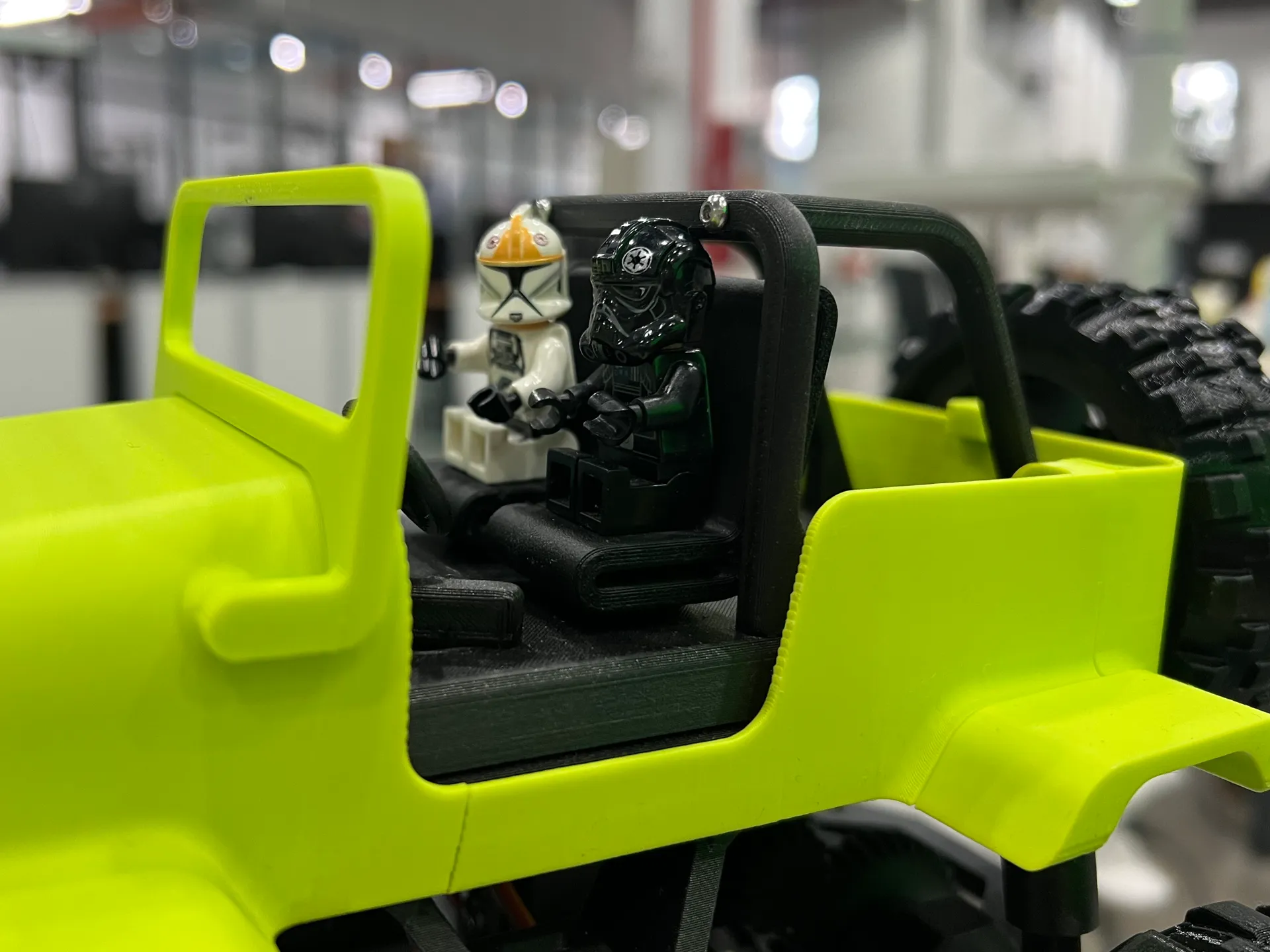

Now you have a driver and a passenger for this car. The most famous toy brick brand, but can't show its name on MW…

Updated 20250920

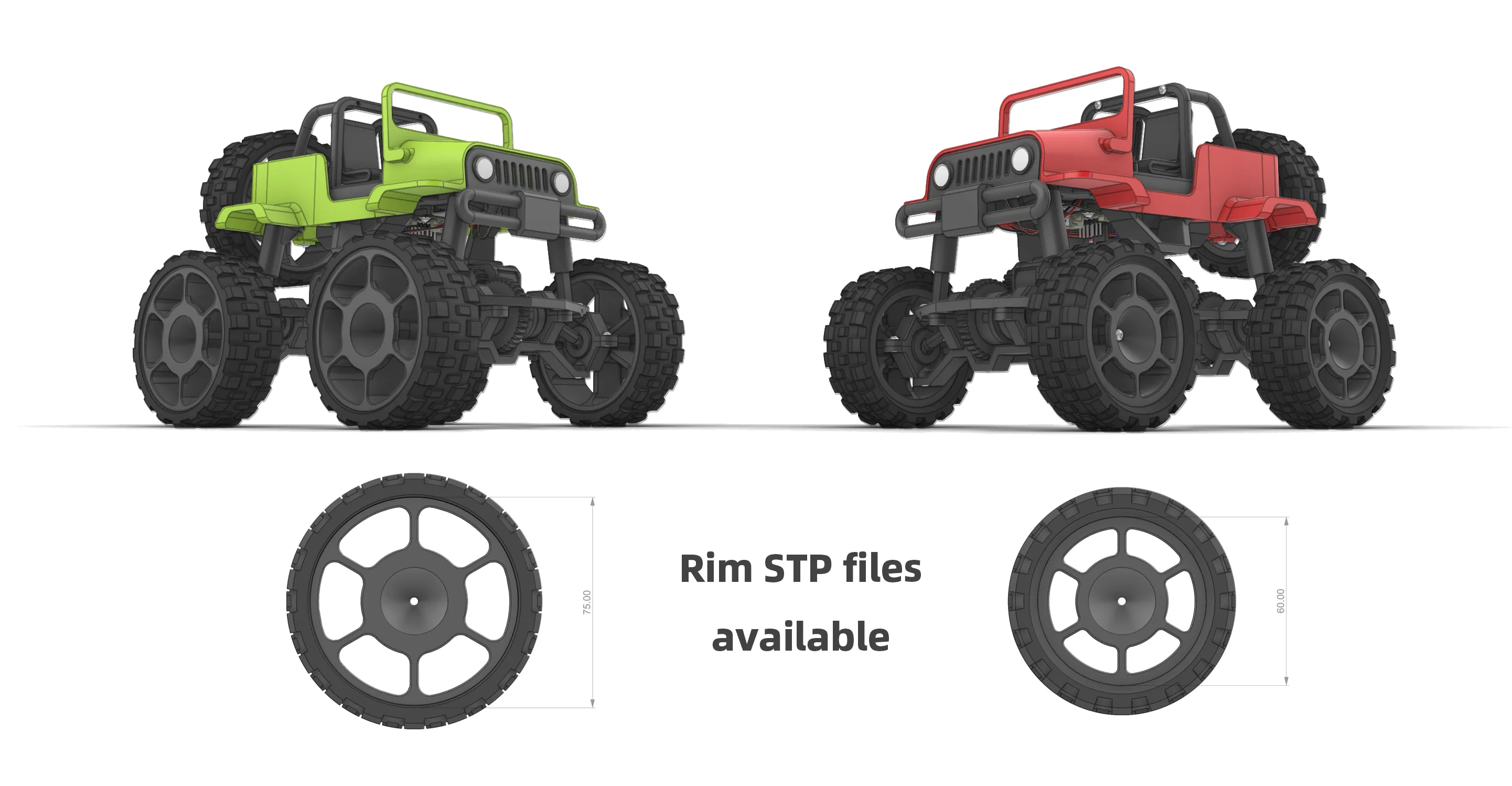

I uploaded a bigger rim and tire with a diameter of 75mm. I also provided the two rim STP files so you can customize the tires yourself.

___________________________________________

I have always wanted to design an RC 4X4 vehicle by myself since I was a kid, but it's too hard to do so before.

Now, with the help of 3D printing and CyberBrick, I made it!

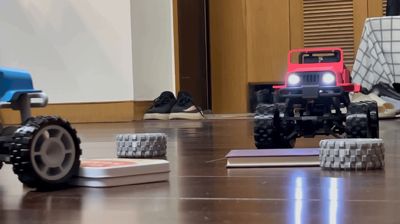

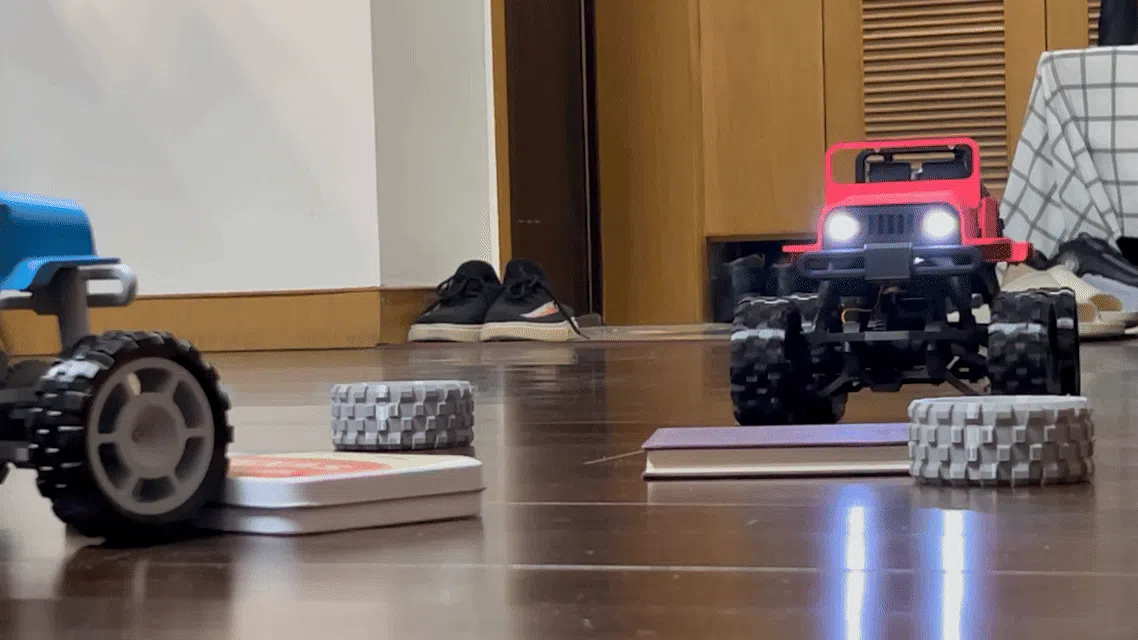

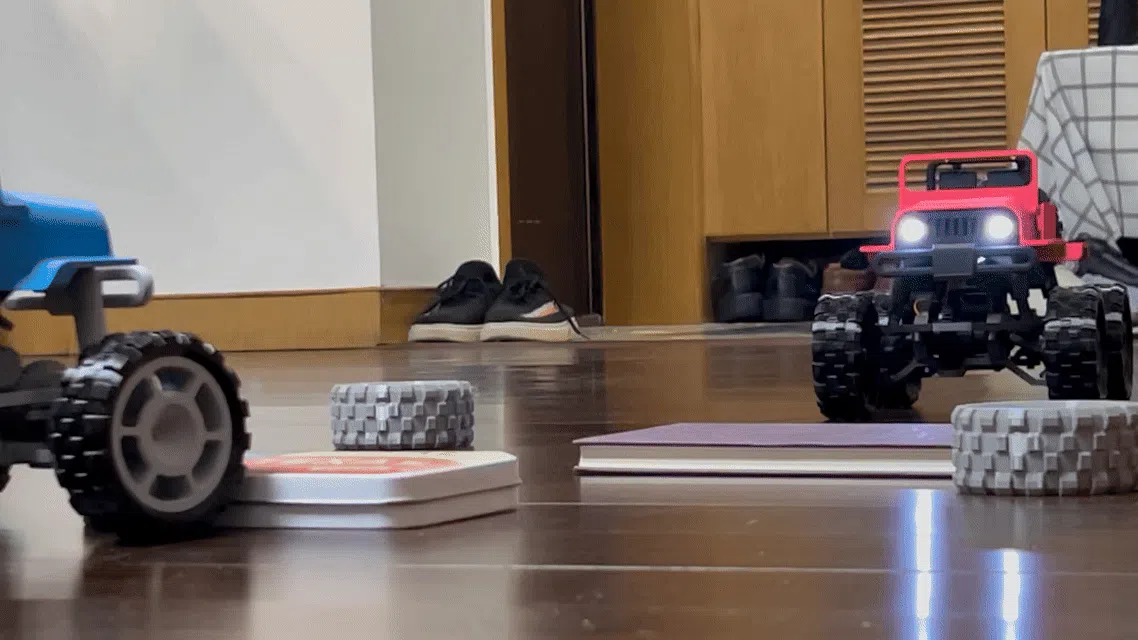

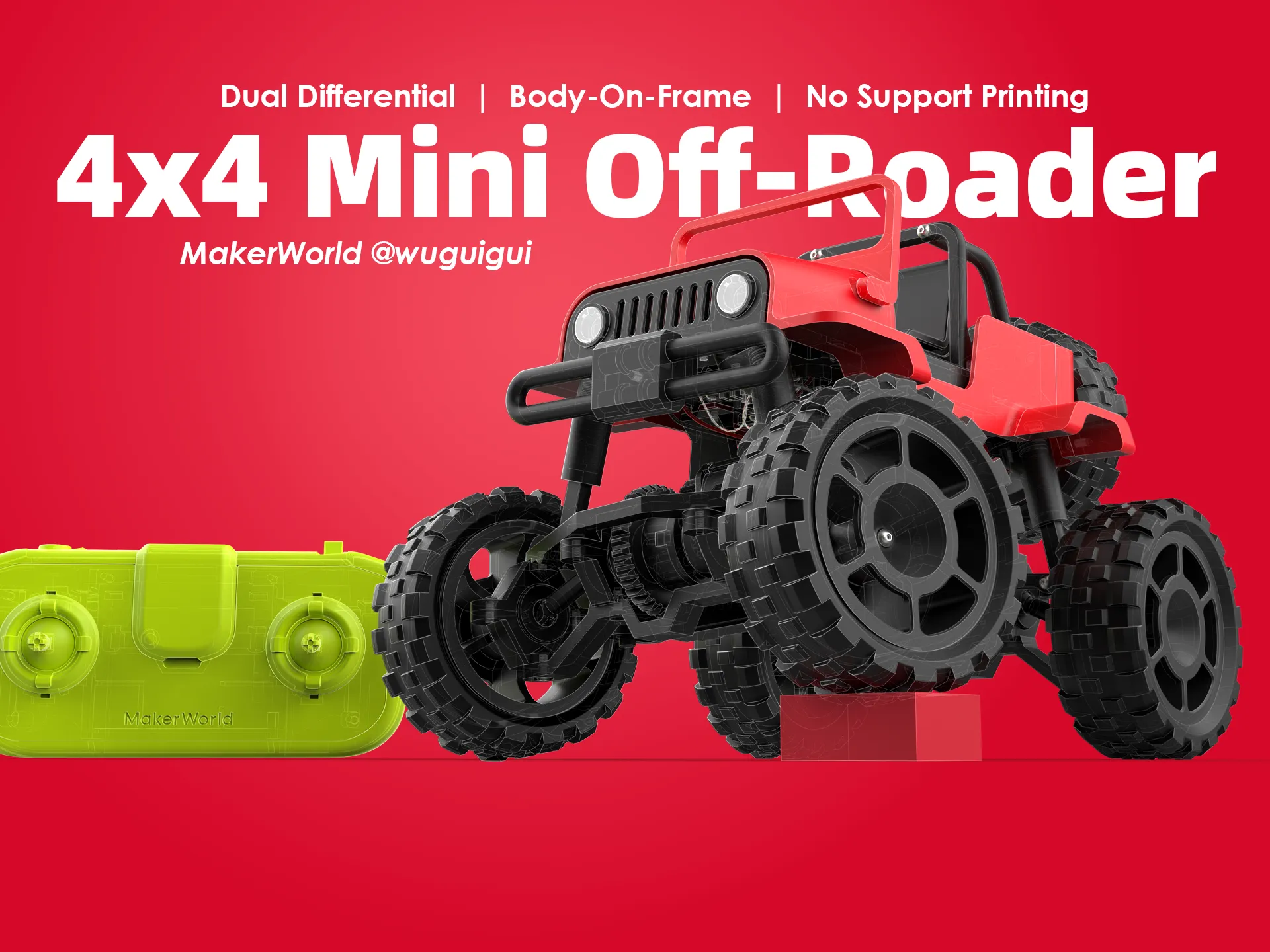

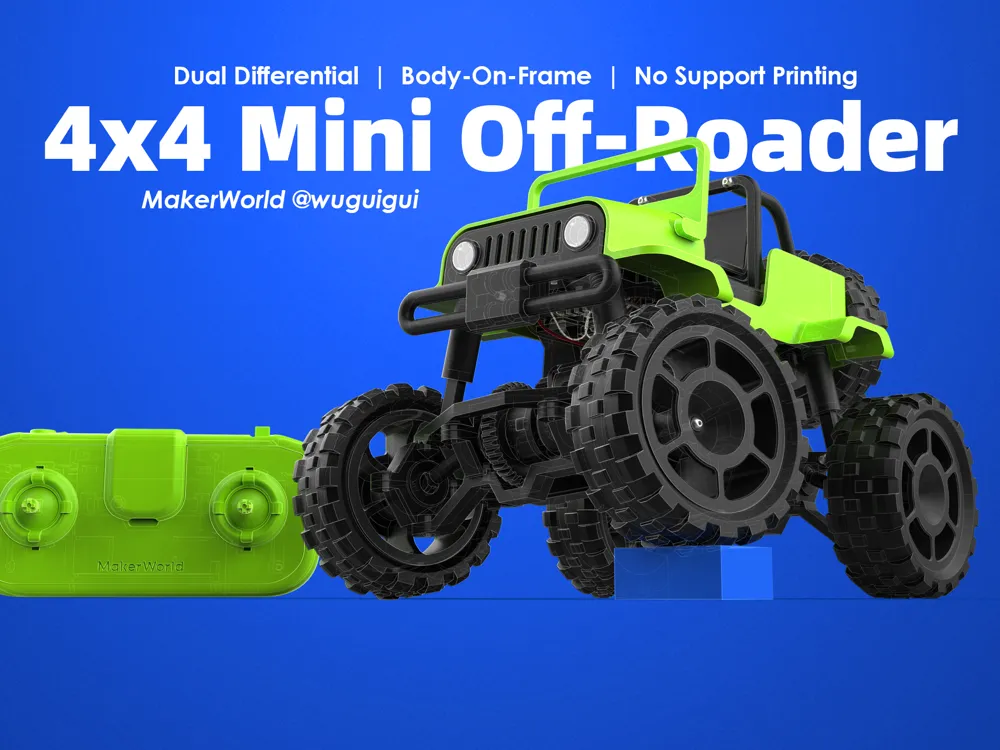

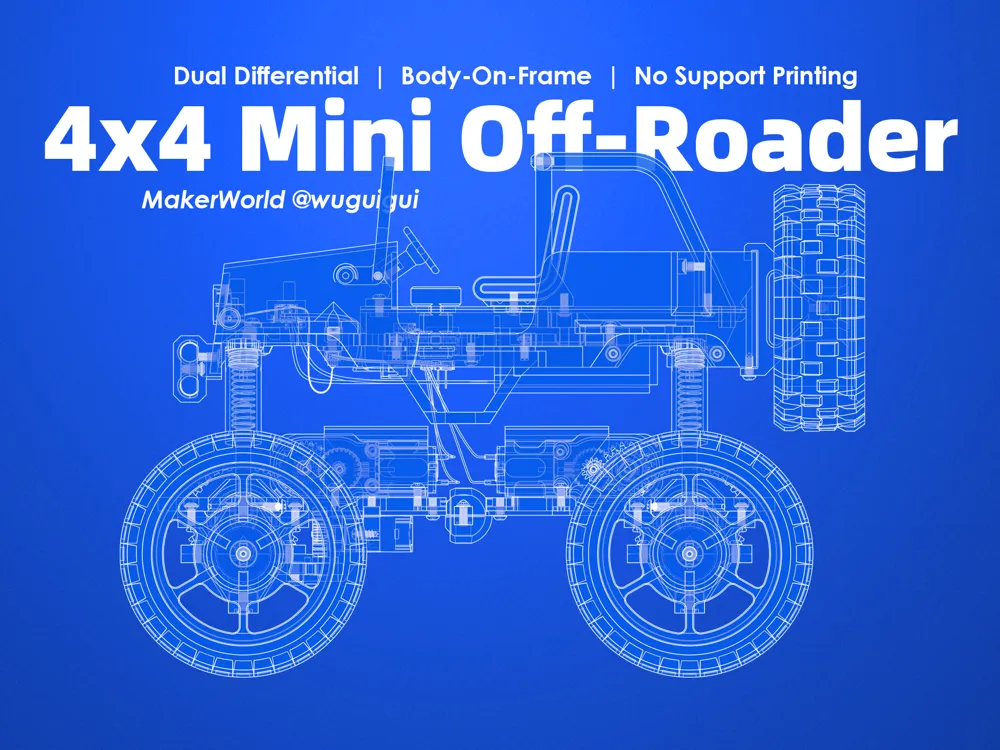

It has dual differential( not the CyberBrick kit version but a printable version) and Body-on-Frame, which can achieve 4WD off-road running. It can bring a lot of fun to you and your family.

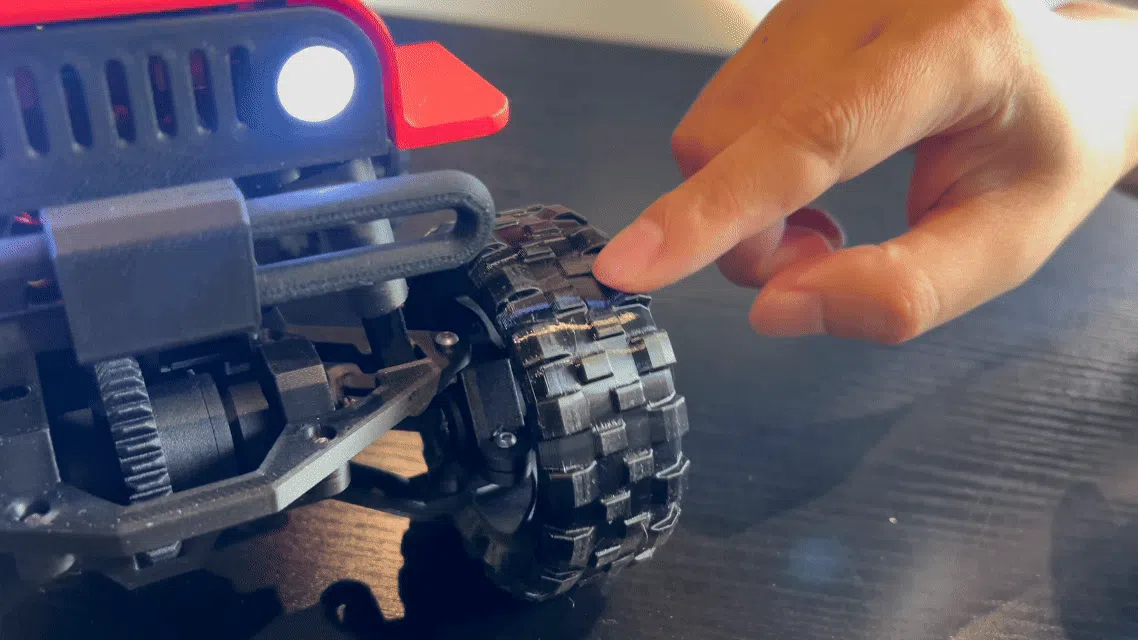

Recommend printing the Tires with TPU 90A, it's soft and better grip but more tricky to print than TPU95A. TPU95A is acceptable, but the grip is inferior to TPU90A.

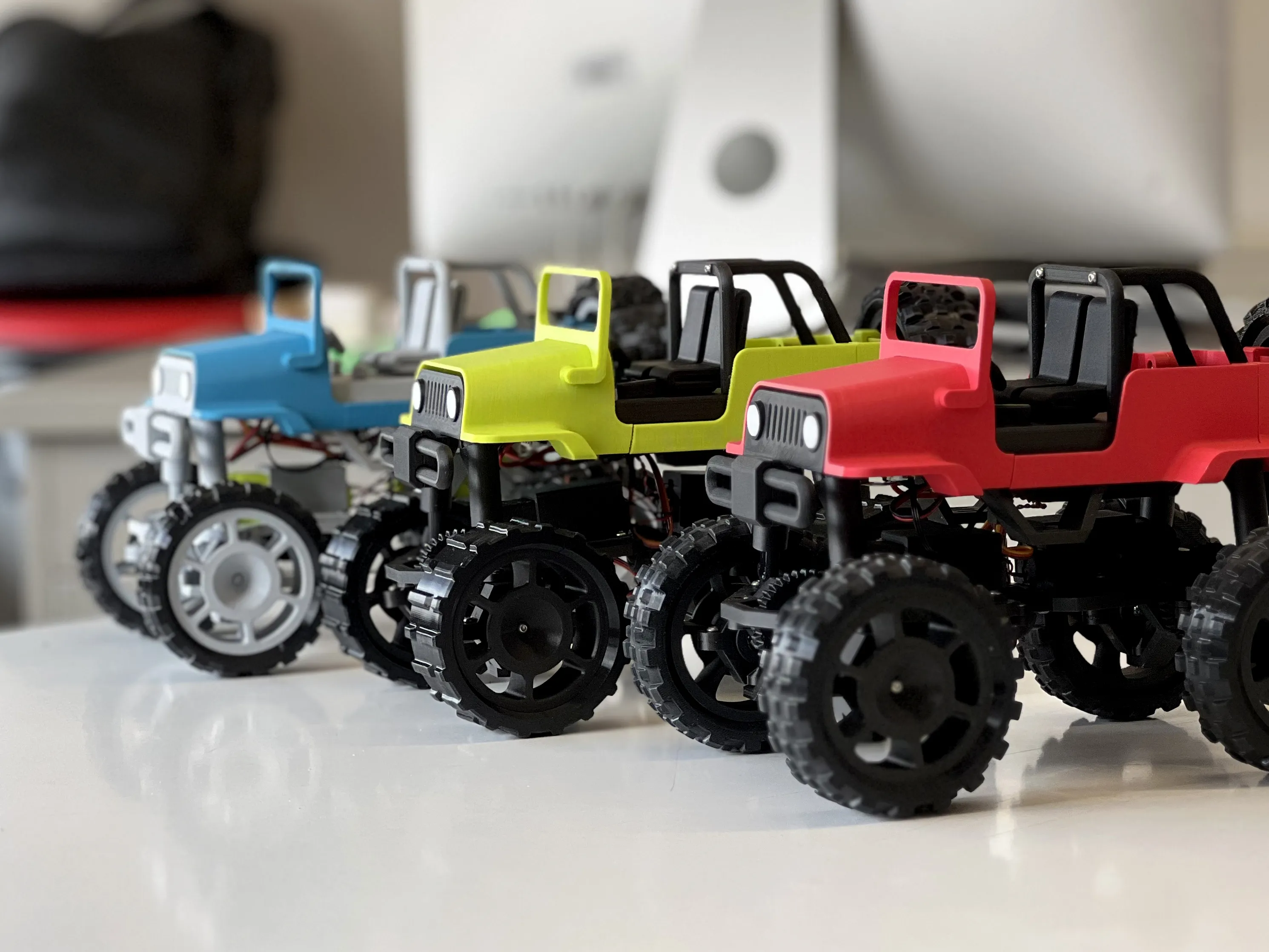

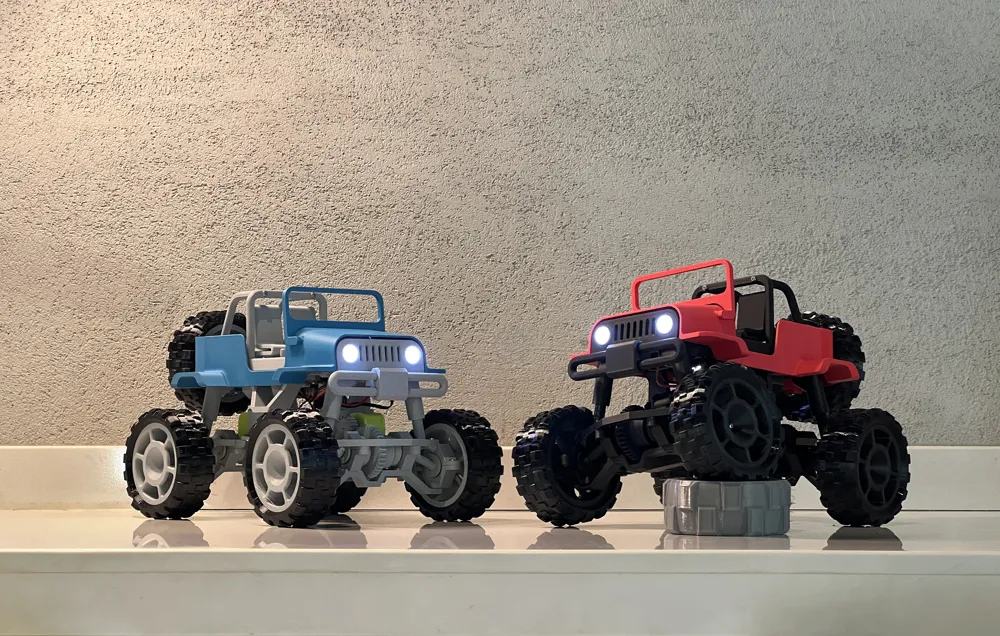

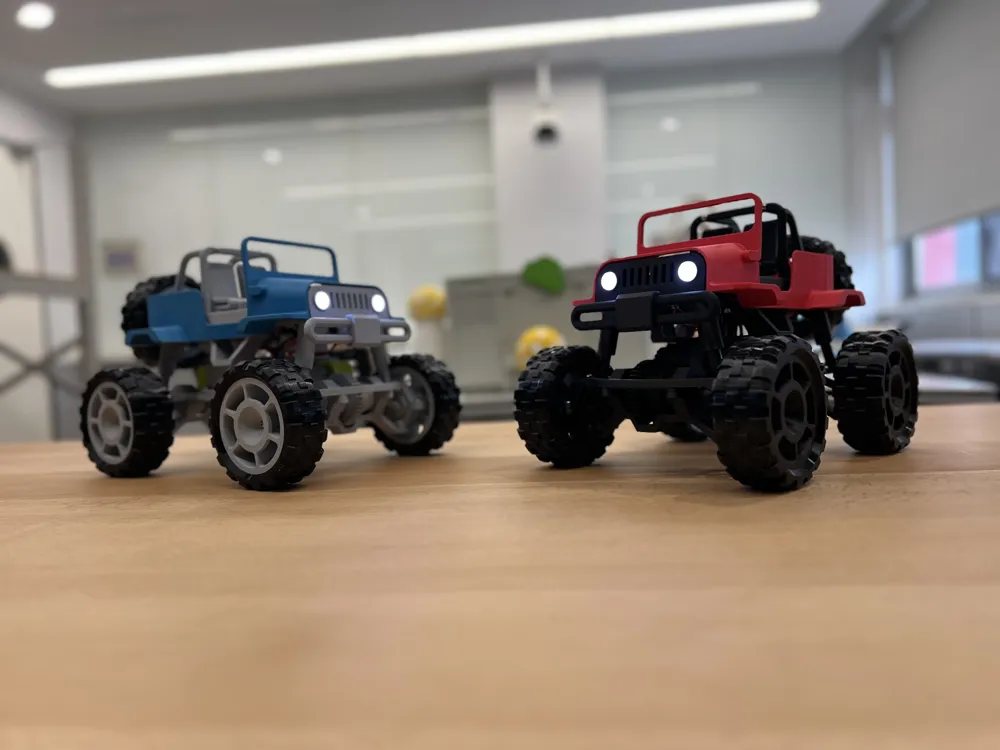

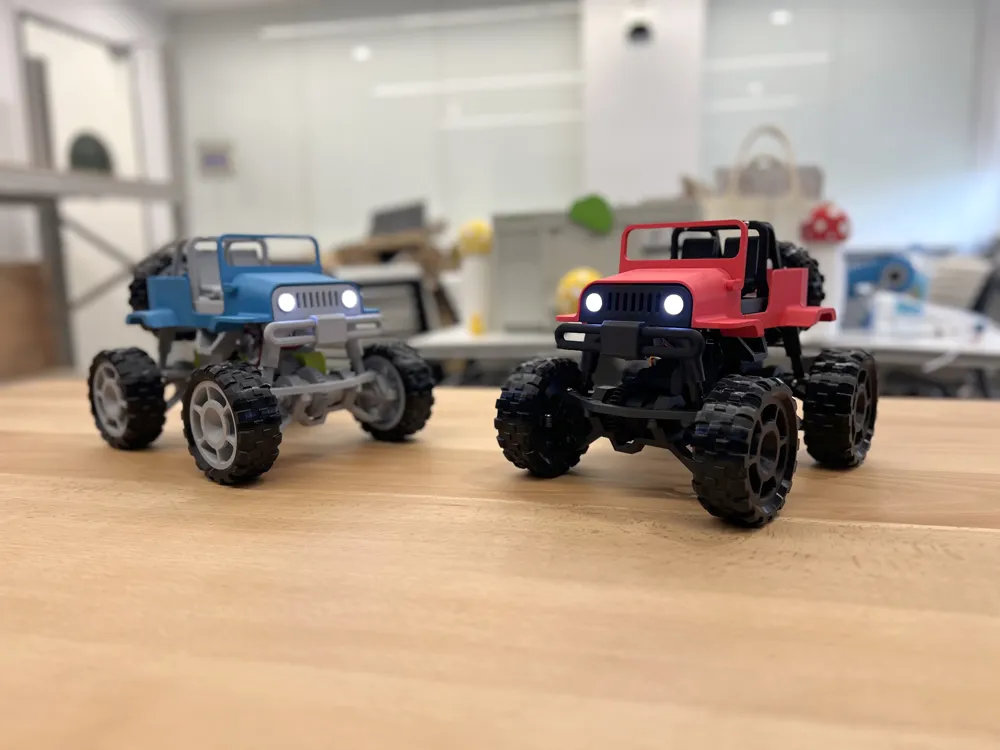

Recommend printing the structure parts with PLA-CF or other high-strength filaments; you can print the body with any filament you prefer. The blue one in my images is using IPCON PLA-CF(Grayish White and Imperial Cenrulean, not available overseas so far).

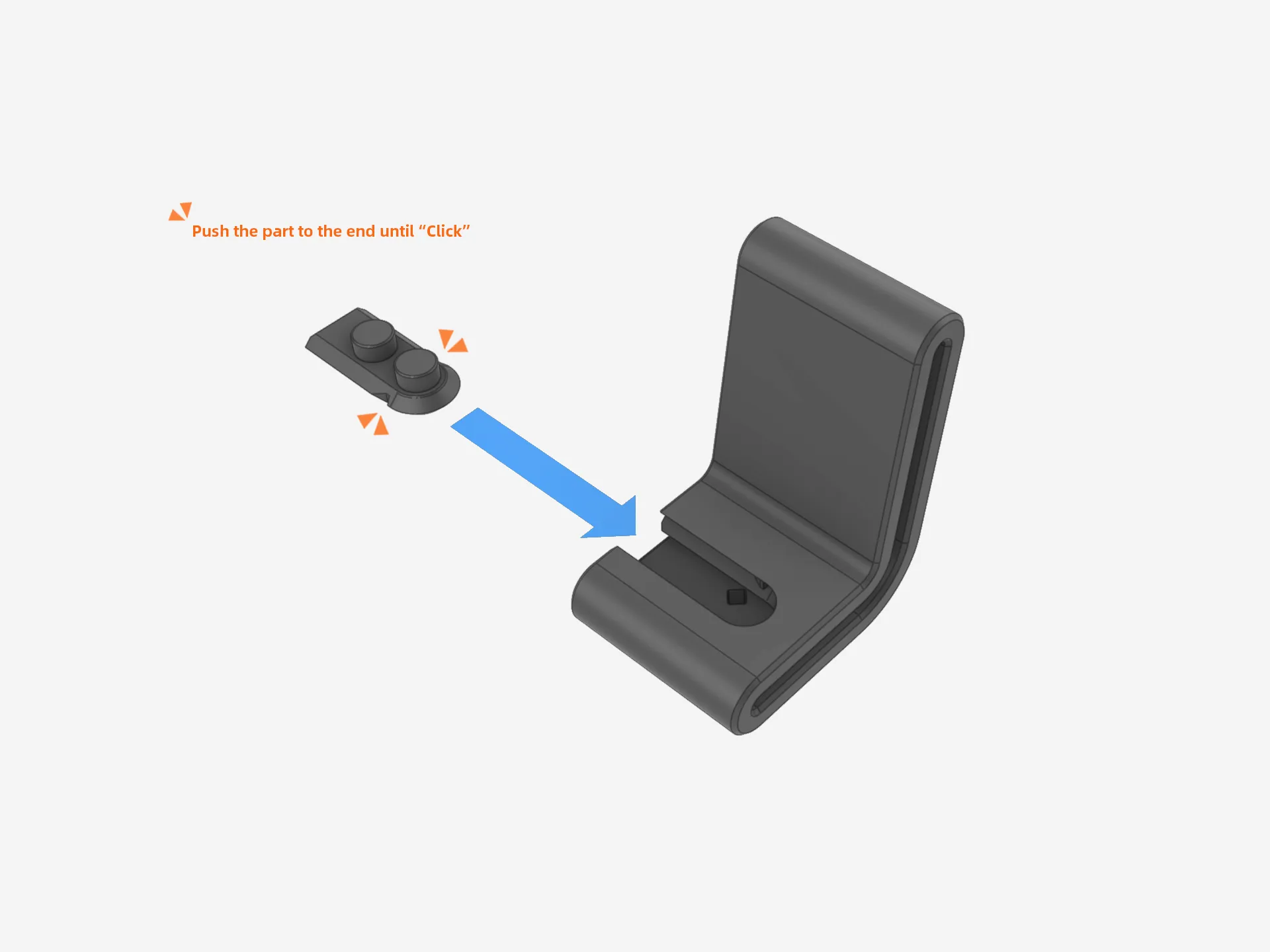

The Assembly Guide is still my style. If you have any questions during assembly, please comment on this page, and I will respond as soon as possible.

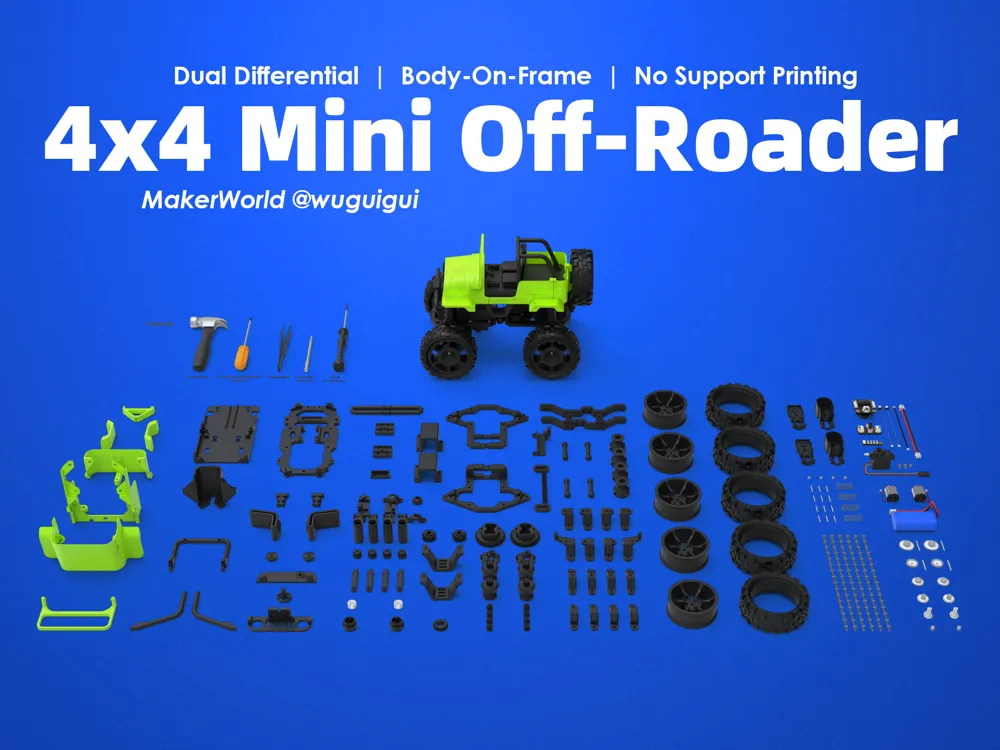

Basically, you can build 1 car and 1 remote controller with the CyberBrick Beginner Hardware Kit-ZK004 and 2x12 mm Stainless Steel Dowel Pins(20PCS)-DA009(For building differentials and connecting the Chassis and the Suspension Rods). Still, if you have already built other CyberBrick models or a remote controller before, the remaining screws are likely to be insufficient( 95 screws in total). So you need to buy some additional M2.5x6 BHCS Machine Screw -AA013.  Additionally, if you have the Ultimate Kit-ZK003 but it only includes 1 180° 9g Servo Motor, you will need to purchase an additional 180° 9g Servo Motor-PG001 and a 0.6x8x20 mm Helical Compression Spring-BB016 to assemble 2 cars.

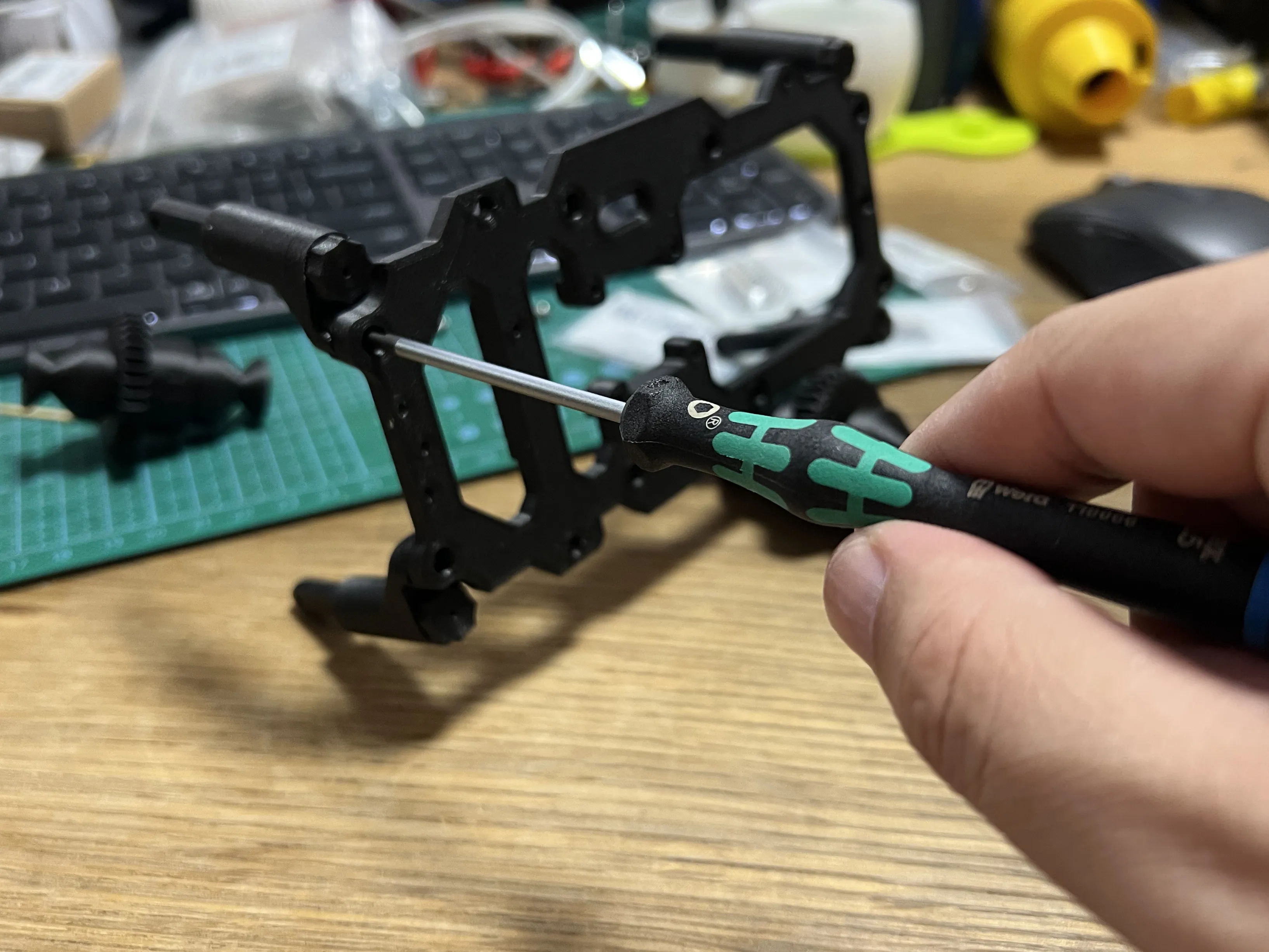

There are 95 M2.5 screws in this model. I recommend using a high-quality Hex Screwdriver to do the job.

Yes, you need time to assemble this model, but trust me, it's worth it.

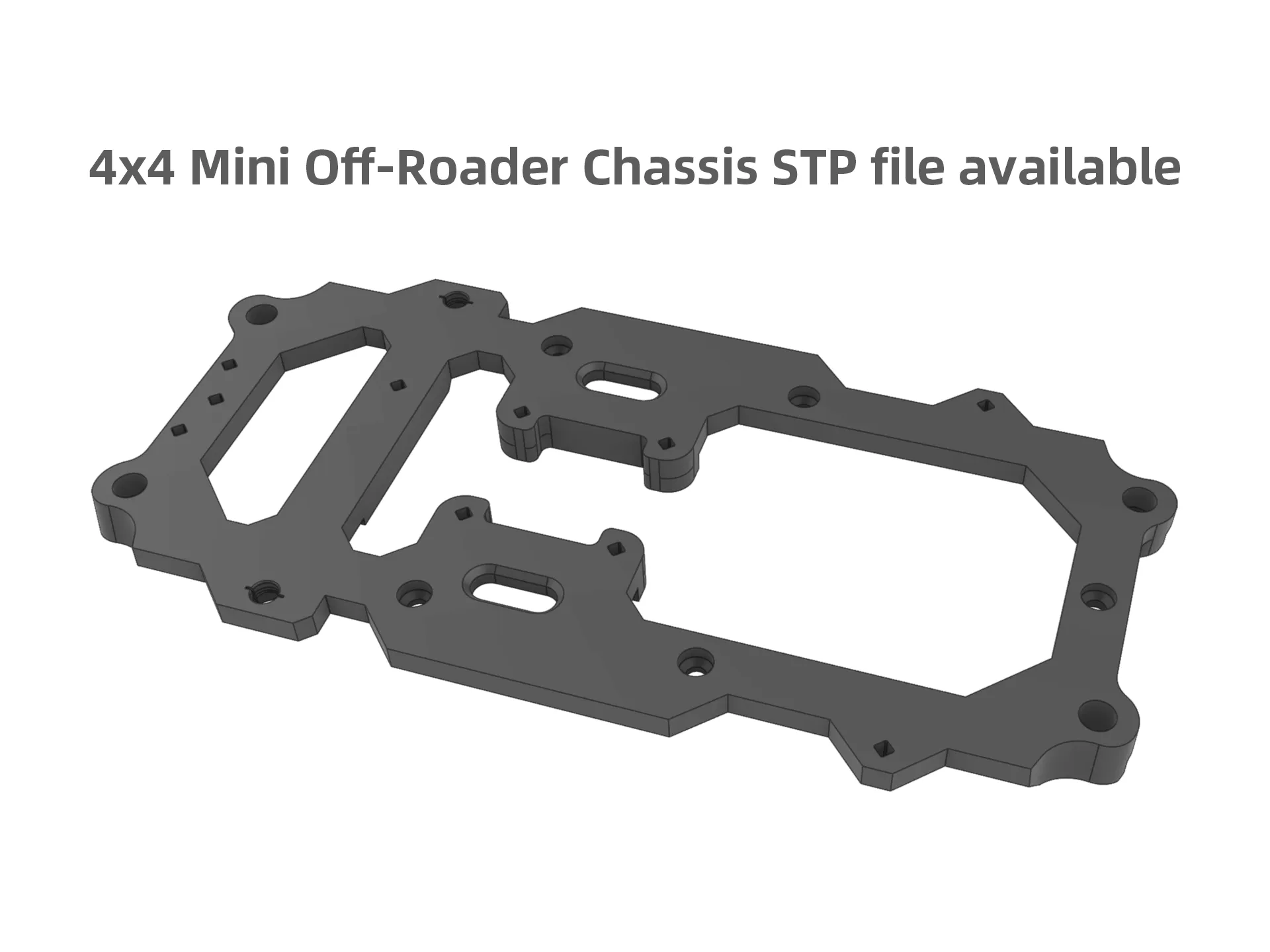

I also uploaded the Chassis STP file, so you can design your own car based on it.

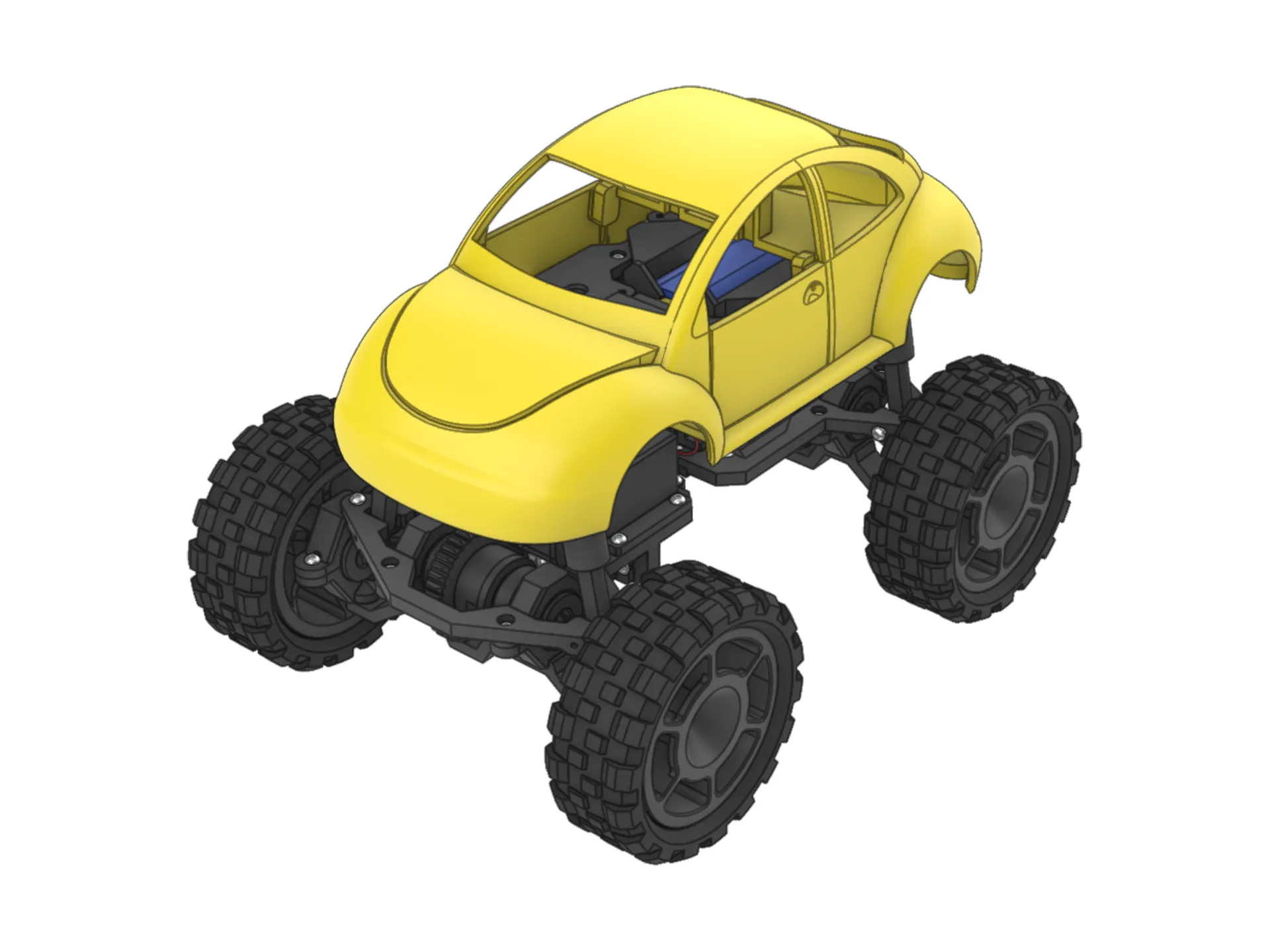

This Beetle is not included in this model, just shows the possibility.

There is another fun CyberBrick model  CyberBrick Tank

Follow me and support me by Boost, it will inspire me to create more nice projects.

Have fun!

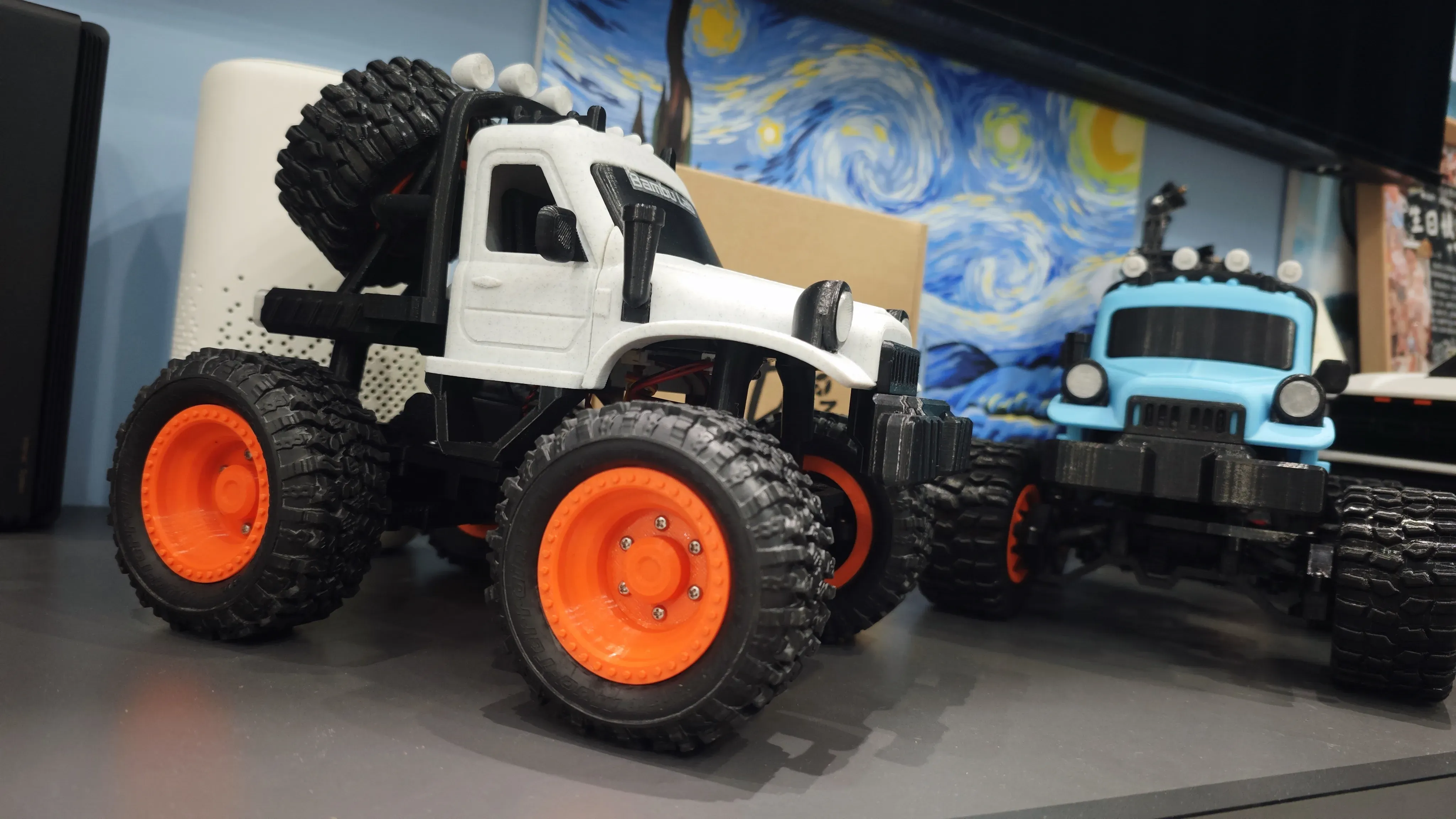

Now there is a new car based on this Jeep by 瘋子般の小白. You can click the image below to download it.

Thank you for the great design!
