Clamper power strip support

Cabinet Door Holder – Dishcloth Holder

Project developed to offer a practical, discreet, and functional solution for daily kitchen use. This holder is ideal for hanging dishcloths directly on the cabinet door, without the need for drilling or permanent installation.

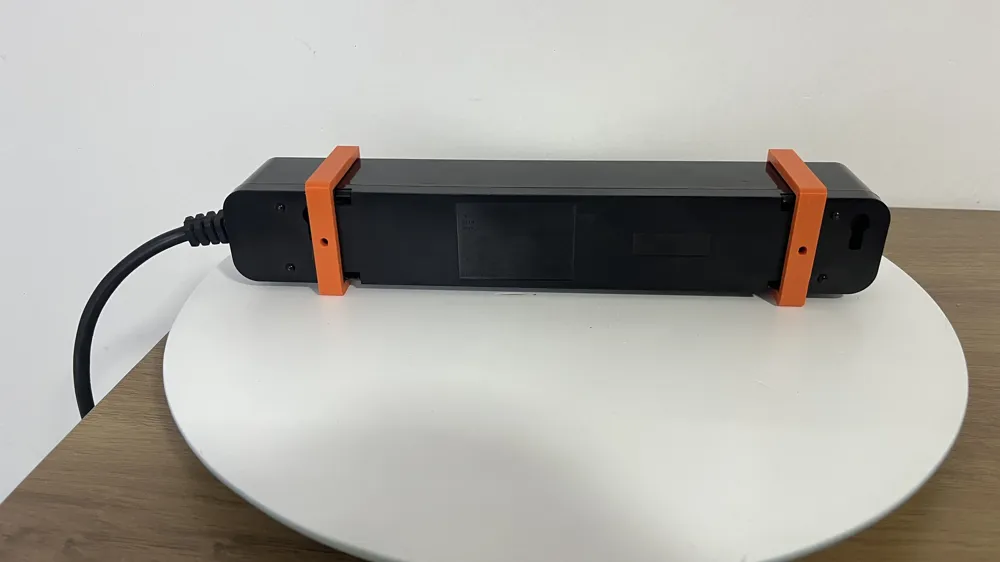

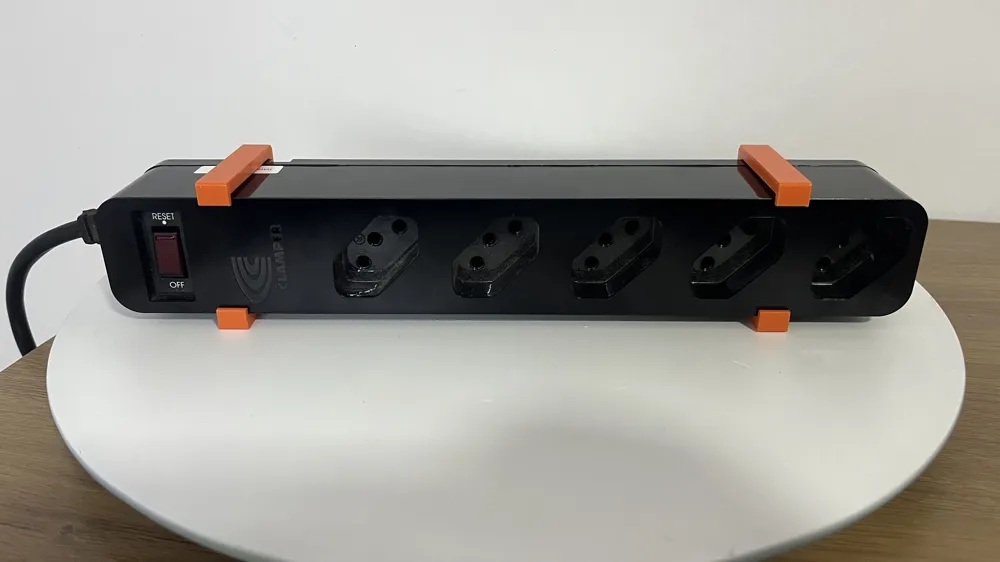

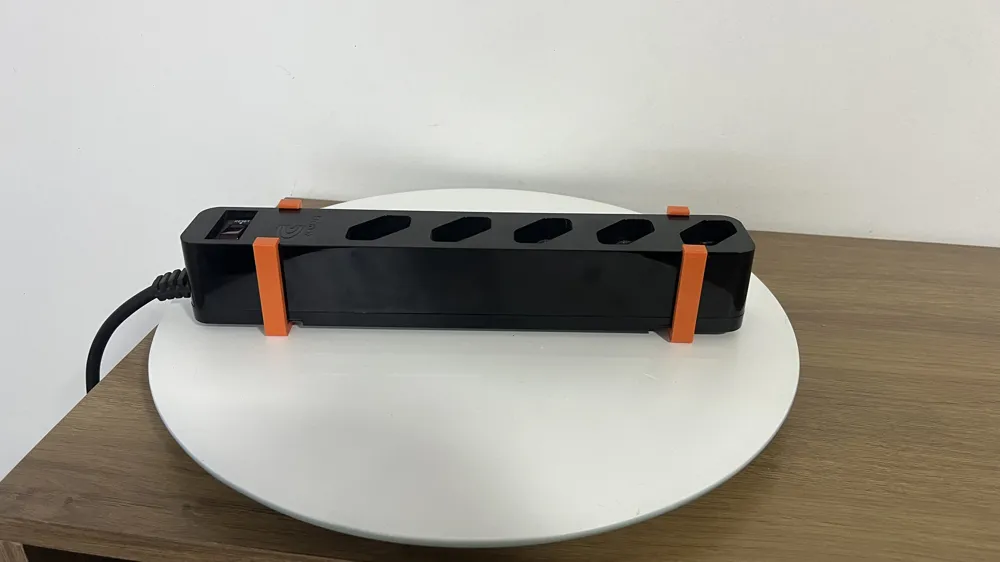

Project Description – IClamper 10A Power Strip Support

This project was developed to create a practical and resistant support for the IClamper 10A power strip. The goal is to securely attach the power strip to surfaces such as desks, countertops, or walls, preventing it from lying loose on the floor or on the table, bringing more organization and safety to the environment.

Support Features

• Model designed in CAD and prepared for printing in Bambu Studio.
• Firm attachment via the "C" shape, ensuring the power strip does not move.
• Includes screw holes (Ø 3.5 mm), allowing permanent fixation.
• Optimized dimensions for the Clamper 10A power strip (53 x 51 mm internal).
• Prints without the need for supports, easy to produce.

Printing Recommendations

• Model orientation as per .3mf file.
• Suggested material: PLA, ABS or PETG, depending on mechanical/thermal resistance requirements.
• Infill: 20% to 30% is sufficient for standard use.
• Layer: 0.2 mm for a good balance between quality and print time.

Applications

• Cable and outlet organization in home offices, workshops, or gaming setups.
• Securing the power strip to desks, IT racks, or technical benches.
• Prevents drops and increases equipment lifespan.

👉 File available in .3mf format, ready to slice and print in Bambu Studio.

🔧 About the project:

• Model fully designed by me
• Simple, robust, and efficient design
• Direct fit on the cabinet door
• Reinforced structure with triangular side supports for greater strength
• Ideal for home use or even professional environments

📏 Standard model dimensions:

• Total length: 225 mm (~22.5 cm)
• Internal usable area: 204 mm
• Height: ~46 mm
• Fit thickness: ~21.5 mm
• Support base: 33 mm

📐 New version available:
Responding to community requests, I have also added a larger 45 cm version, ideal for those who need more space or use larger doors.

Standard model dimensions:

• Total length: 450 mm (~45 cm)
• Internal usable area: 204 mm
• Height: ~46 mm
• Fit thickness: ~21.5 mm
• Support base: 33 mm
