Pen Adapter V3

The Pen Adapters support pens between 9 and 10.5mm in diameter to be used with the Bambu H2D Pen Module.

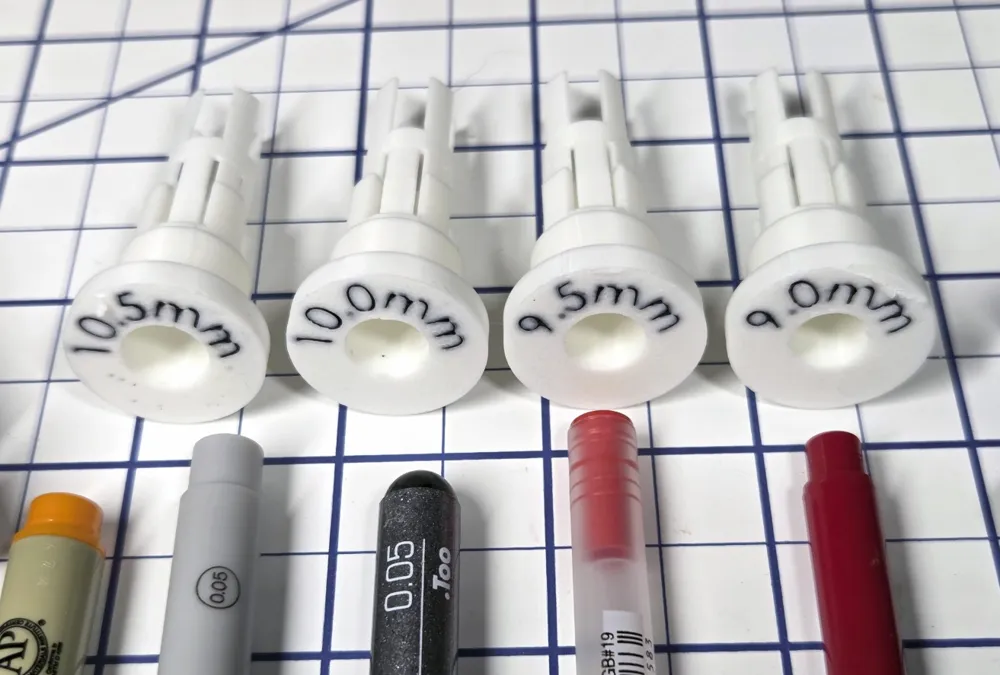

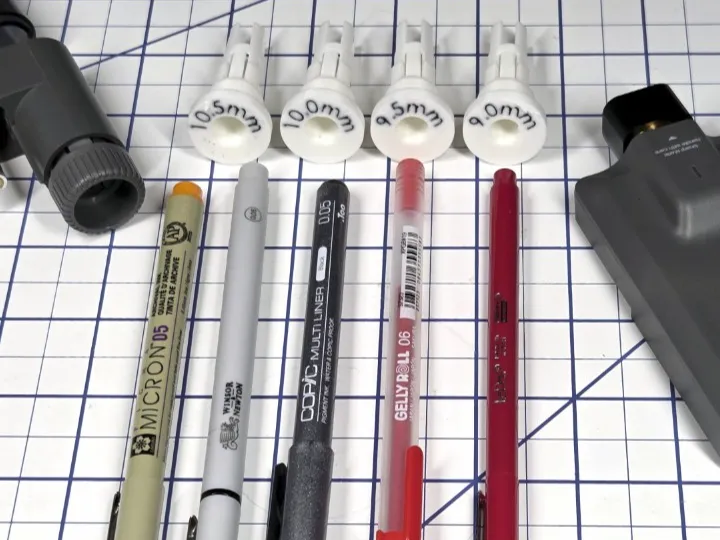

Pens Supported

10.5mm - Copic, Pigma Micron, and Windsor & Newton

10.0mm - Included for completeness

9.5mm - Sakura Gelly Roll

9.0mm - Uchida Le Pen

The adapters print without supports and holds pens solidly.

The plates in the 3MF are configued for 2 color printing so the size labels are easier to read, or 1 color for faster printing.

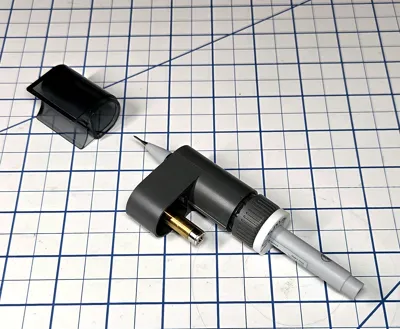

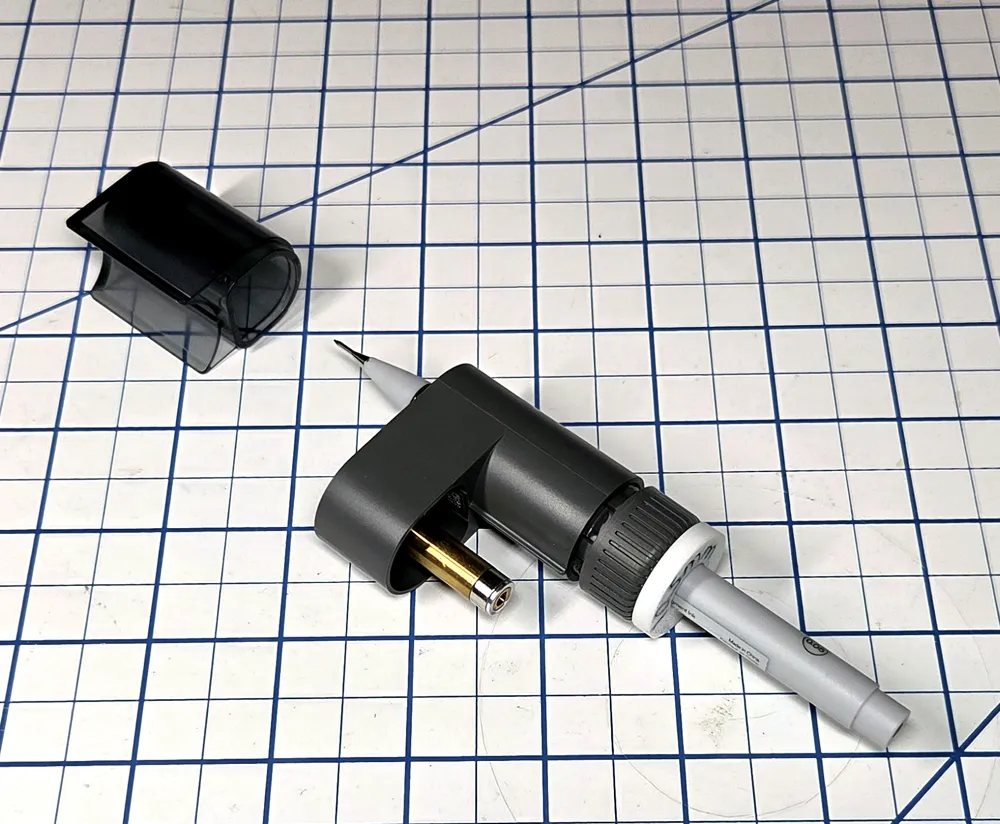

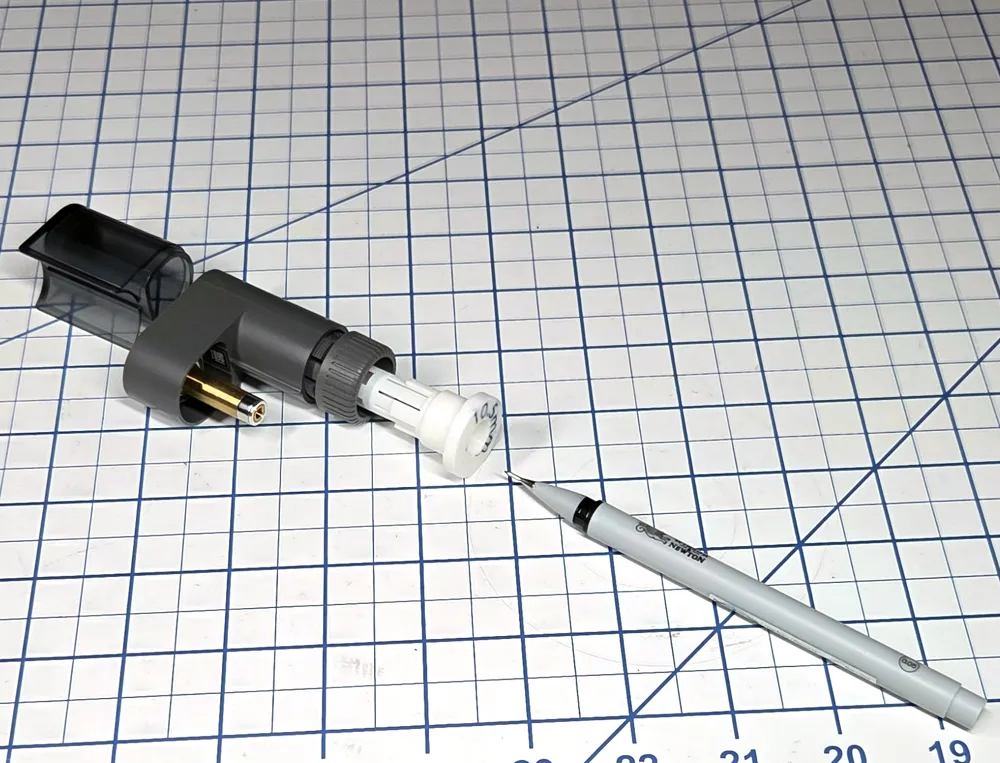

An Adapter slips into the Pen Fixture, the pen is slid into it, the depth is positioned correctly using the Height Calibrator, then clamped by twisting the Pen Fixture into the Pen Holder.  You may need to rotate an Adapter when you insert it into the pen fixture so that it aligns with the Pen Fixture's internal tabs.

Note, Choose the smallest Adapter that will work with a pen. The pen should slip through an Adapter with a minimum of wobble. Don't force a pen into an adapter.

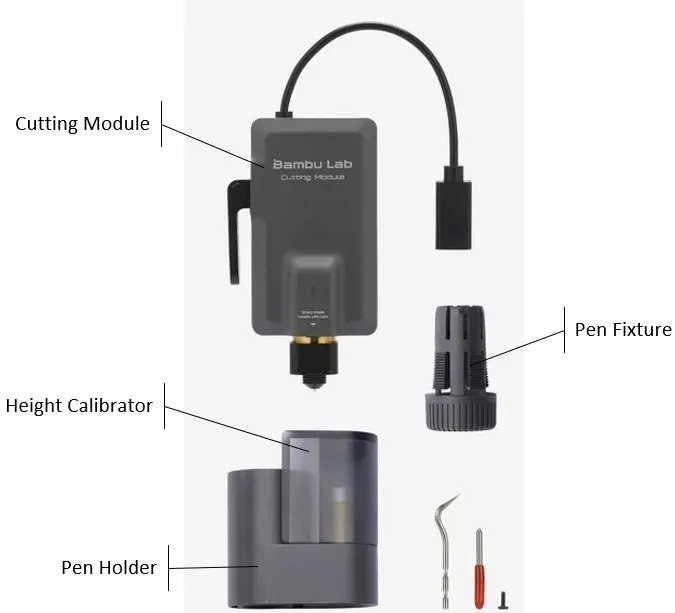

The body of pens are made with a ‘draft’, where one end of the pen body is smaller in diameter than the other.  The top of a pen may be inserted into an Adapter from the bottom. But it may be neccessary to take the cap off a pen to slip it into an adapter from the top. Loosening the Pen Fixture is in the Pen ModuleIf will make it easier to insert an Adapter into the Pen Fixture or a pen into an Adapter. Below is a breakdown of the Pen related components:

And here is a Gridfinity Bin designed to hold these and other Cutter Module parts:

https://makerworld.com/en/models/1737071-h2d-cutting-module-4x2-4x3-gridfinity-bins?from=search#profileId-1921583

Here are the instructions for installing the Cutting Module and the Pen Holder.

https://wiki.bambulab.com/en/h2/manual/cutting-module-installation-guide

V1 - Initial release, with 10.5 and 10.0 mm adapters.

V2 - Added 9.5 and 9.0 mm adapters.

V3 - Added a second plate where the Size labels on the parts are simply recessed text, i.e., a single color print.
