What started as a small idea has gradually turned into a passion. More and more often, I receive requests from users asking if I can design containers for other models too – and yes, I'd love to! Feel free to support me with a boost for the test prints. Thank you very much!

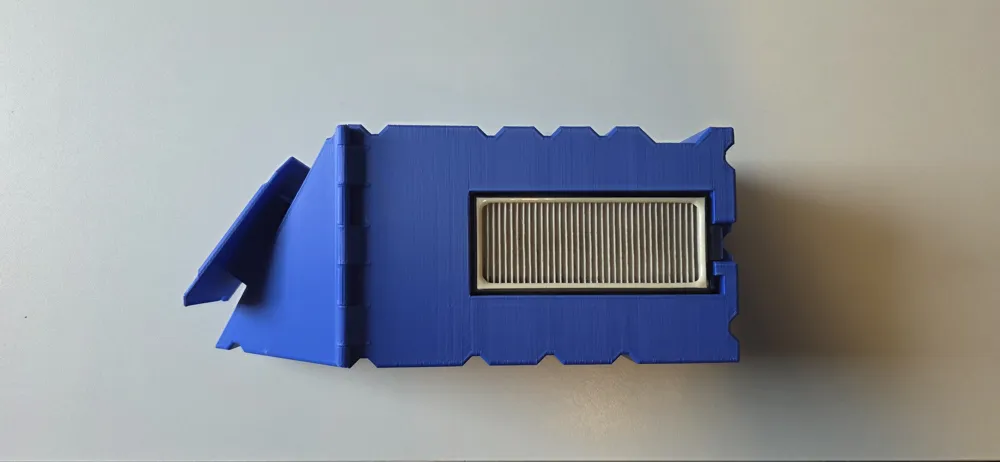

Dustbin for the Roborock Saros [Z70] [10R]
This reusable dustbin replaces disposable filter bags and allows for easy emptying.
- The two halves are connected with a 1.75 mm piece of filament that serves as a hinge.
- Two clips securely close the container and allow for easy opening and emptying.
- The seal is glued into the designated recess.
- The filter used corresponds to that of the robot's original dustbin.
- The container has been optimized and tested for easy use.
- Note: The support on the small part must be removed very carefully to avoid damaging the clip's bridge.
- The filter fits extremely precisely – when replacing it, it should be removed gently to avoid damage.
Material recommendation:
- Printed from PLA, which in my experience is completely sufficient. (The seal is made of TPU.)
‼️ Important Note: To make removal easier, one of the clips can be opened. Additionally, a handle has been added to the adapter piece to safely remove the container.
⚠️ Disclaimer: The use of this dustbin is at your own risk. I assume no warranty or liability for damages that may arise from its use.
Important: The filter of the Z70 (QRevo Slim / Master) must still be used!
Unfortunately, the filter of the 10R cannot be clipped in
The Saros 10, however, has a different station and is not compatible.
👉 See also my Dustbin
❤️ A big thank you to rafaeltheone !
He has agreed to help me provide the measurements and test the model with test prints.
