Holder for Gardena Grass Shears L/R - Ø 6.5 mm

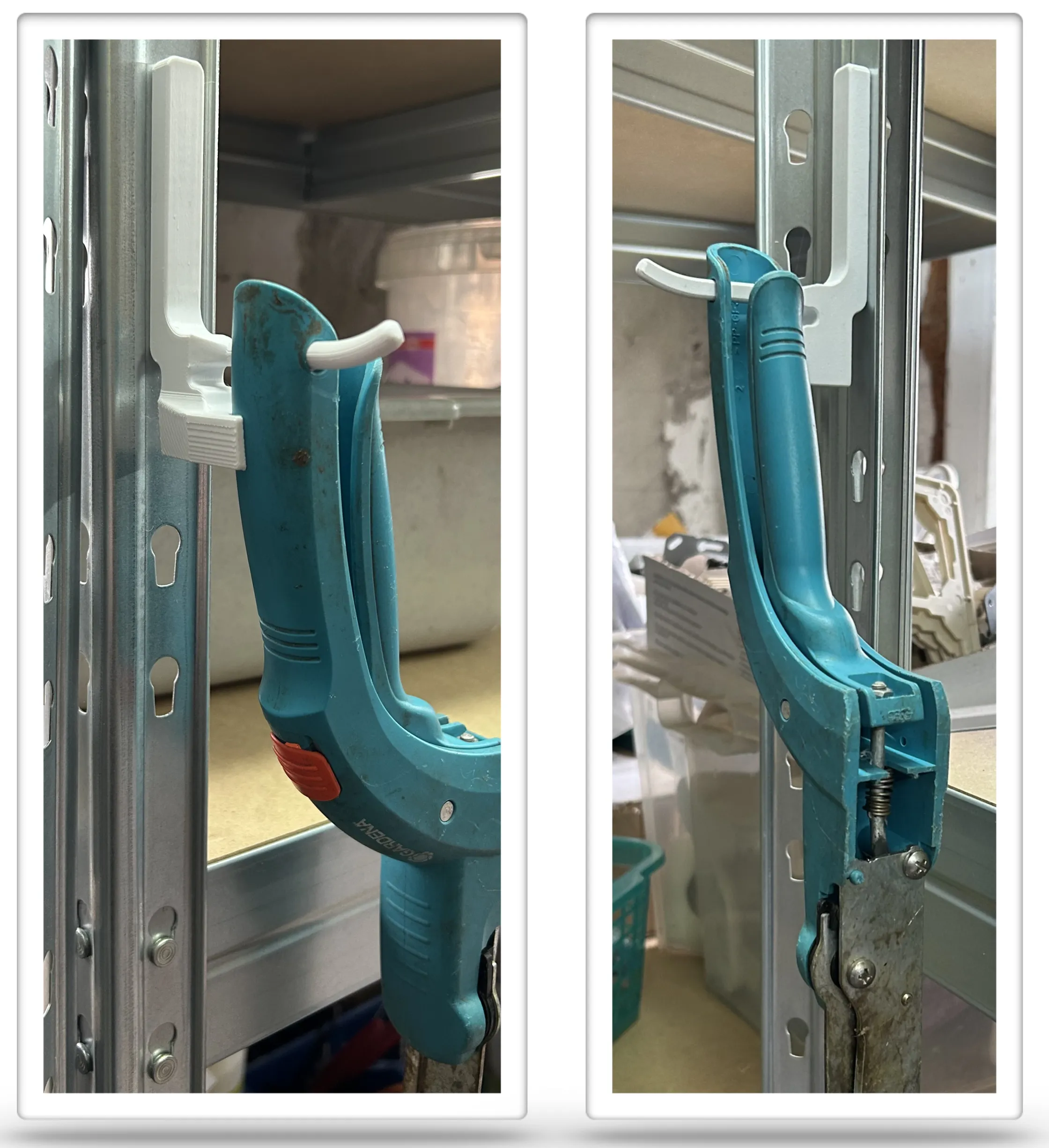

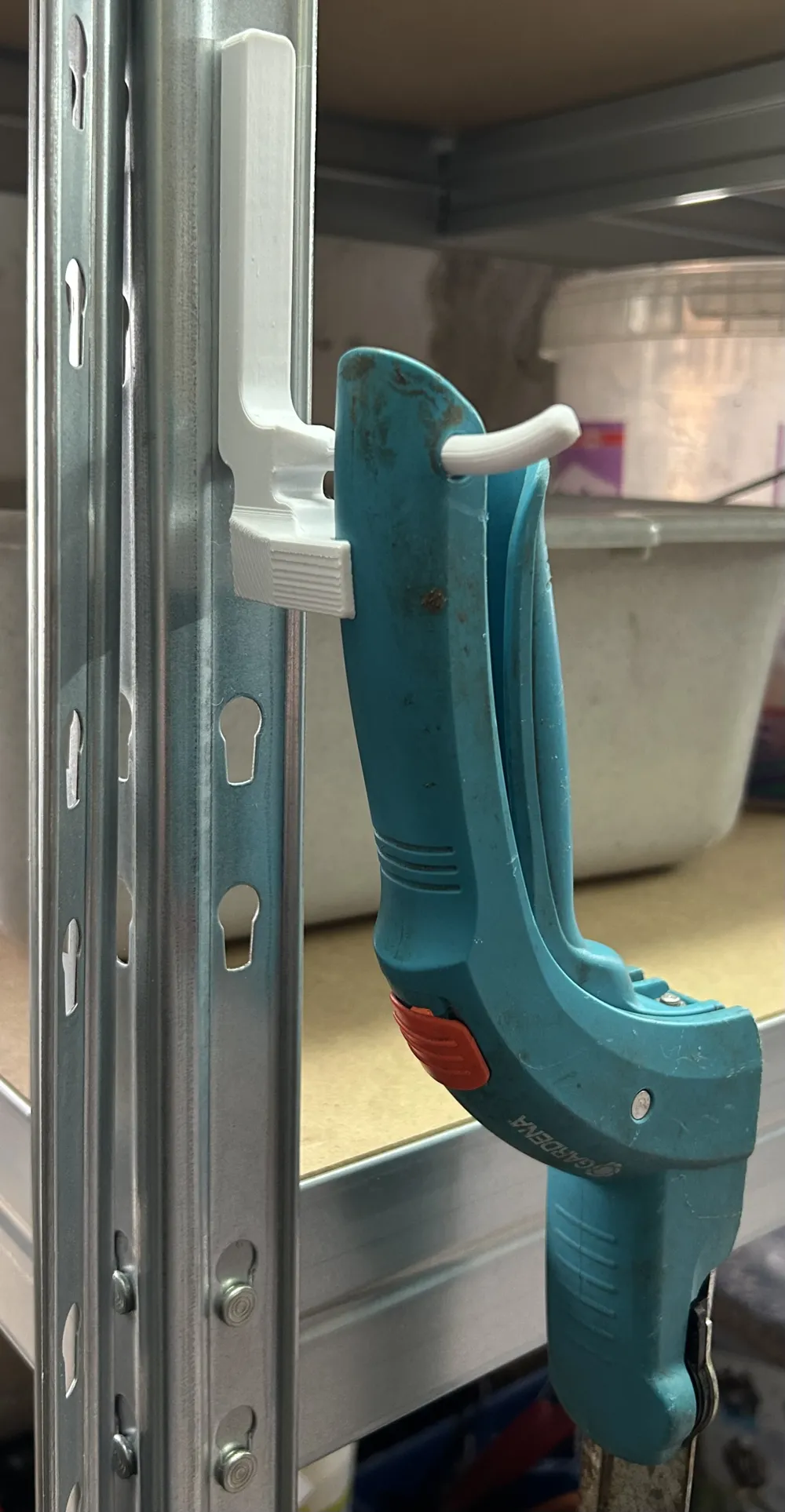

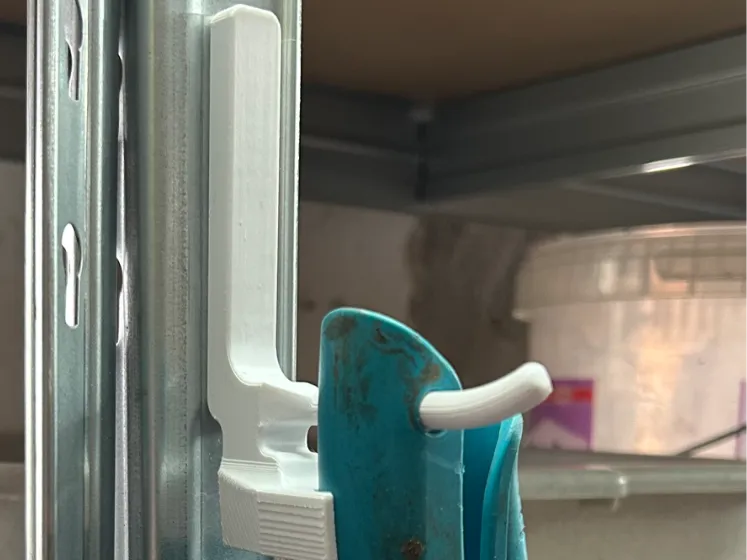

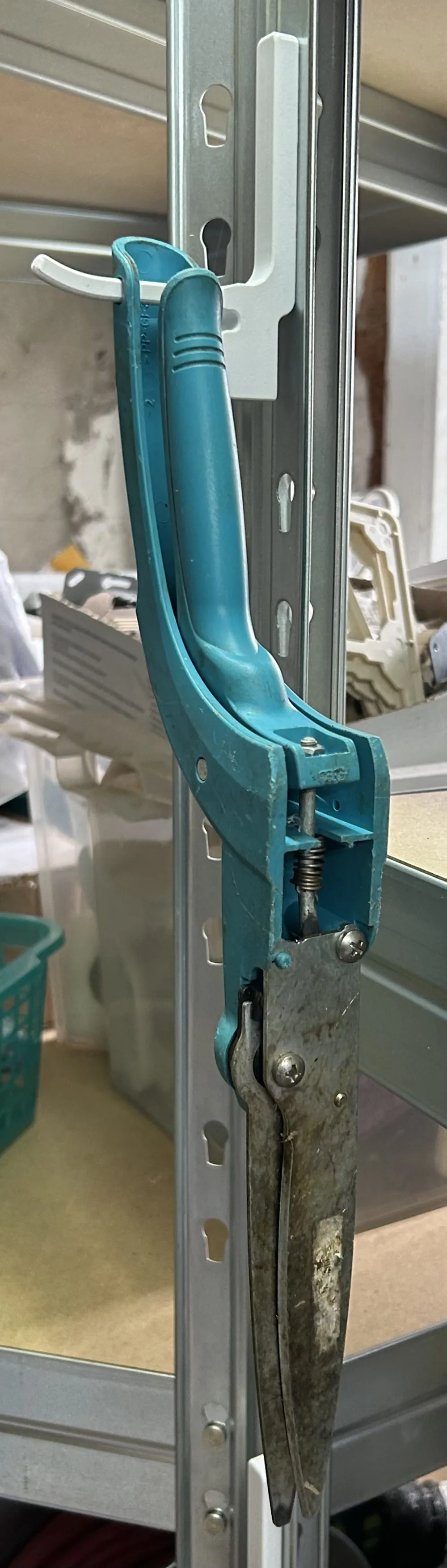

Holder for Gardena Grass Shears L/R - Ø 6.5 mm on a heavy-duty shelf

I needed it for the Gardena grass shears to keep them neatly organized without the shears being able to move freely.

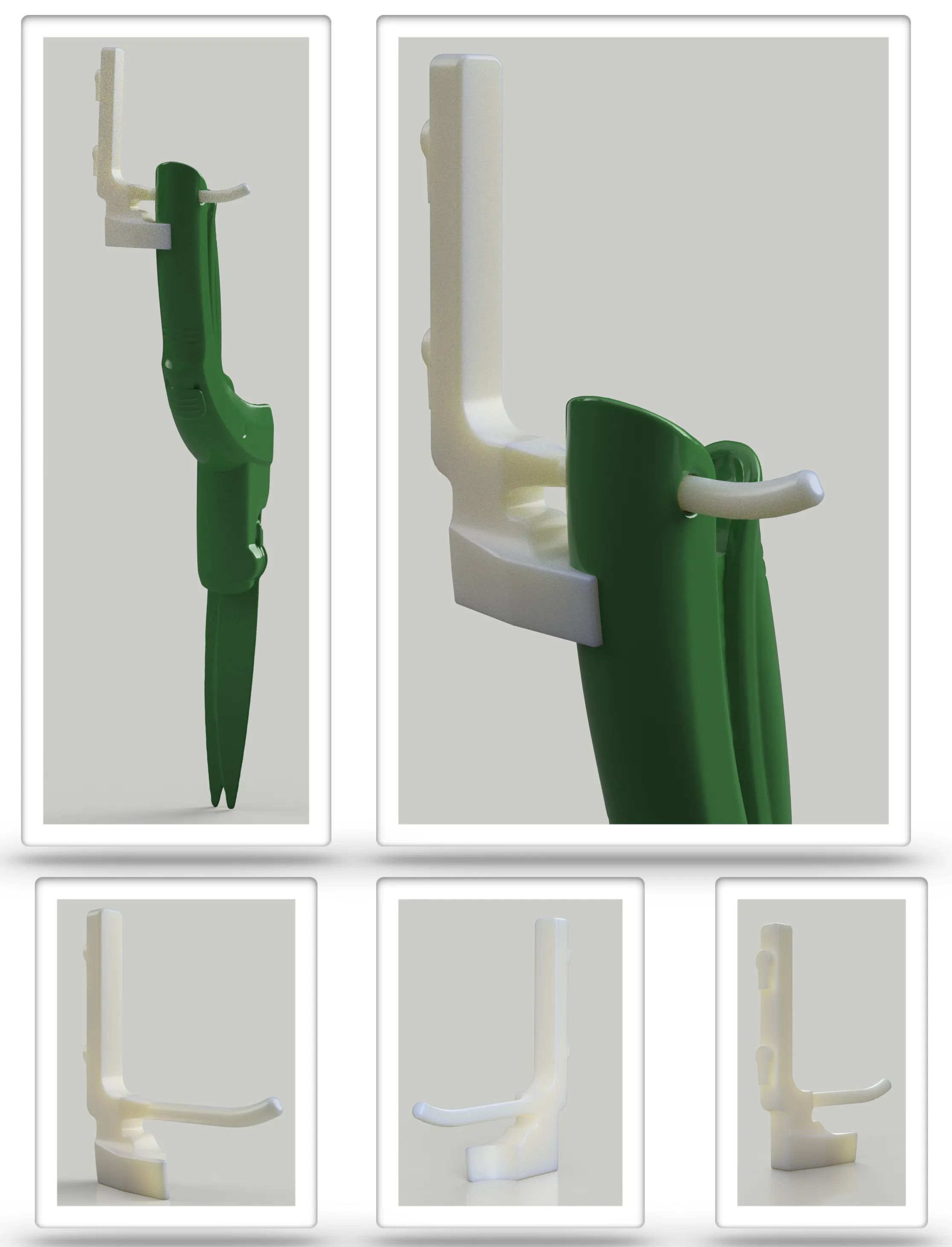

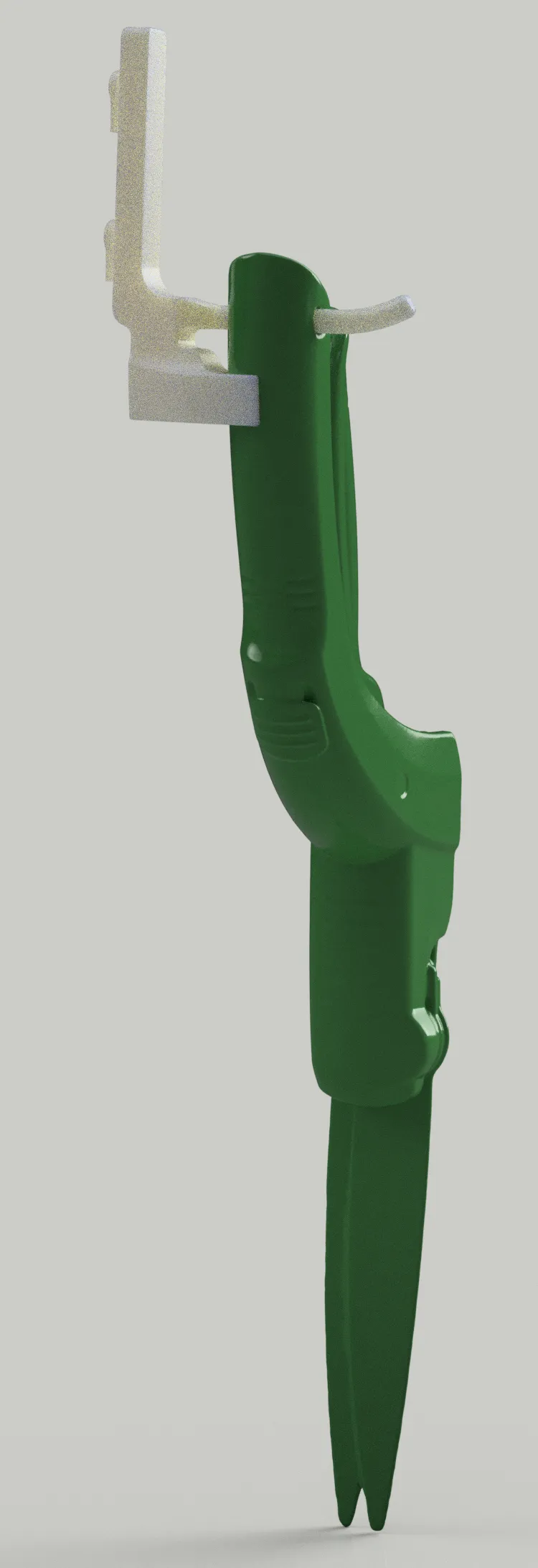

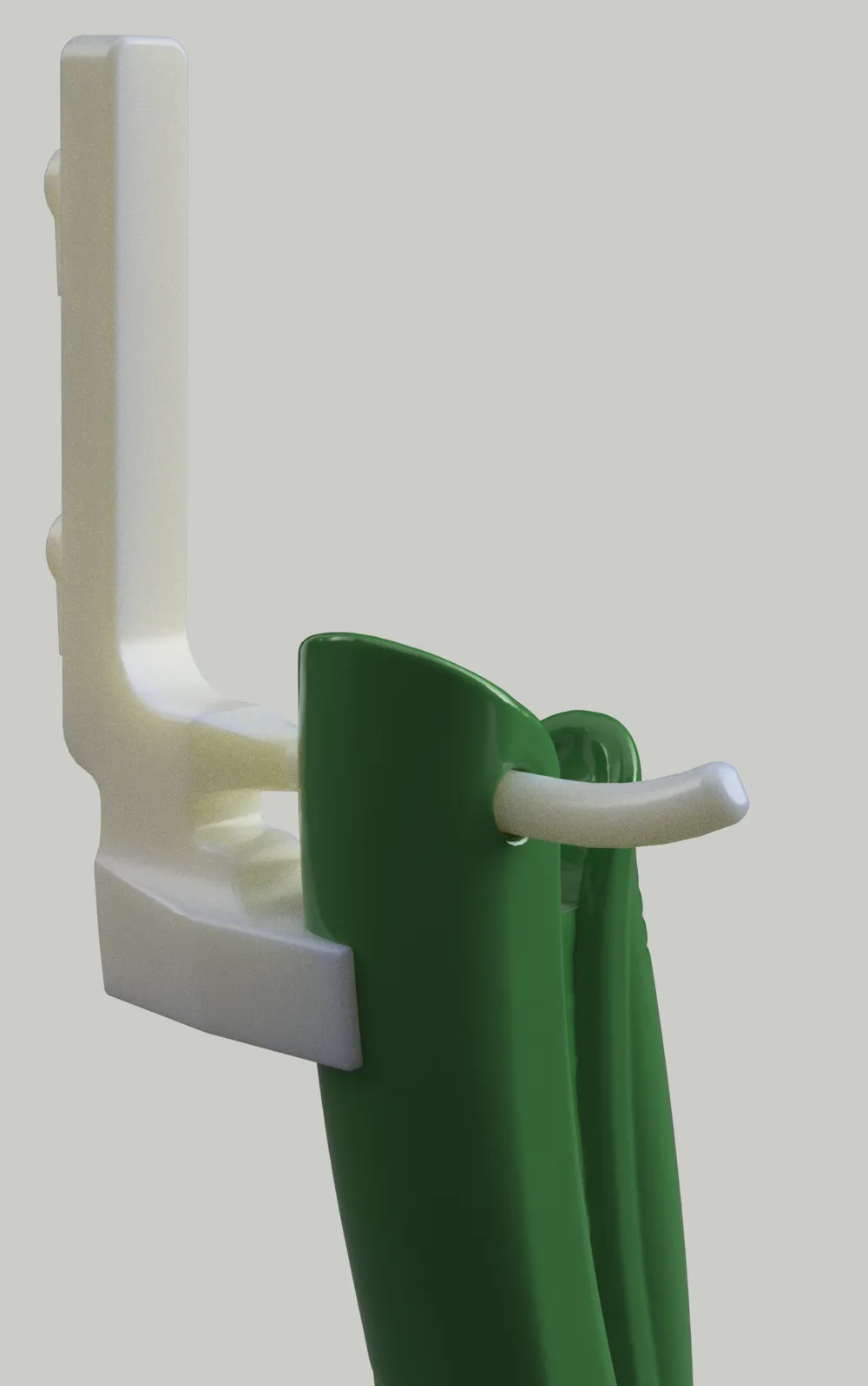

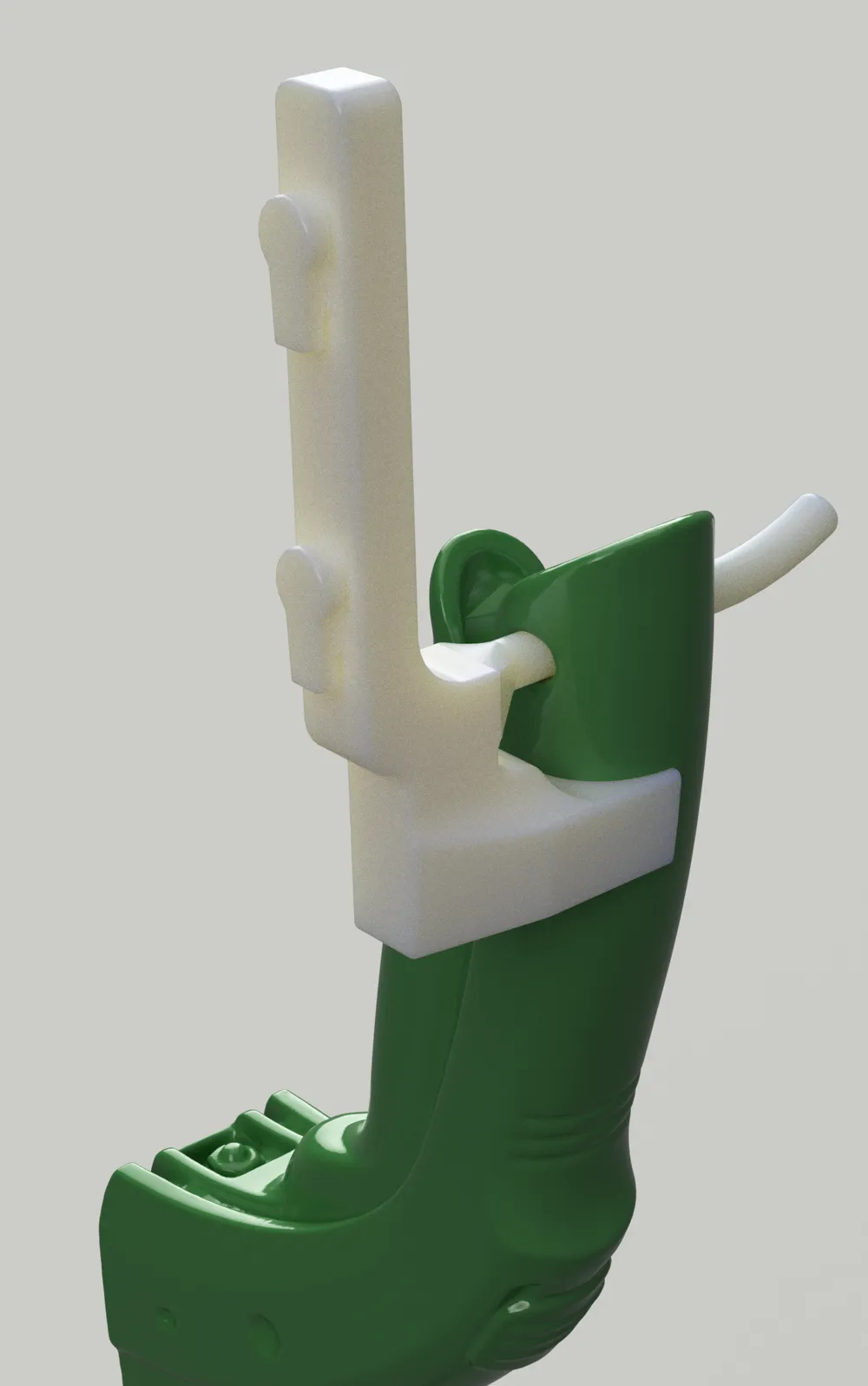

The grass shears are held in position by a contact surface.

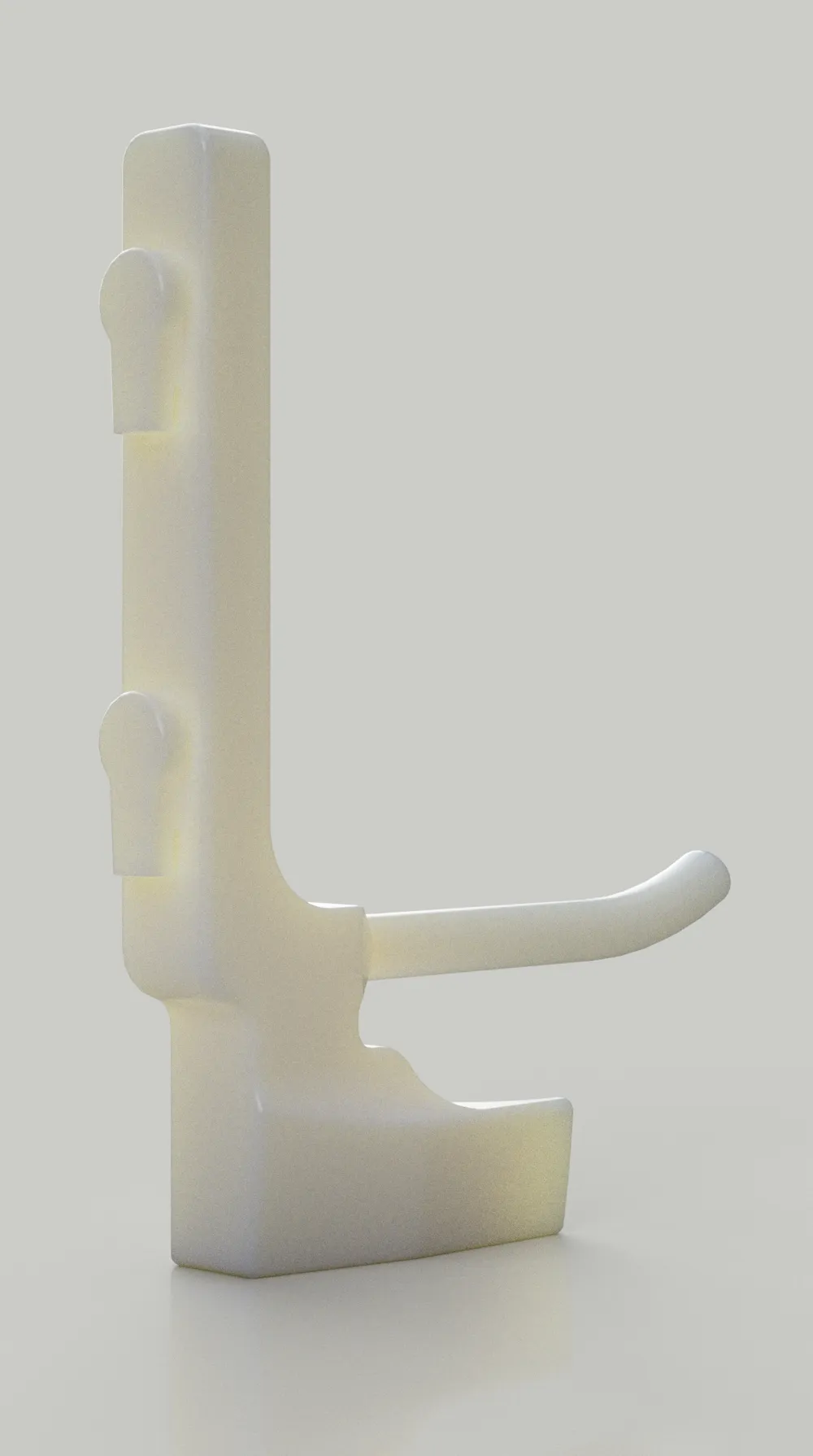

This is a hook for a heavy-duty shelf with a hole spacing of 40mm.

It locks into the holes of the heavy-duty shelf and is thus held very securely.

Dimensions: 105 mm x 89 mm x 16 mm

Note: The sheet metal thickness of the shelf is 1 mm. The support width of the bolt is 30 mm.

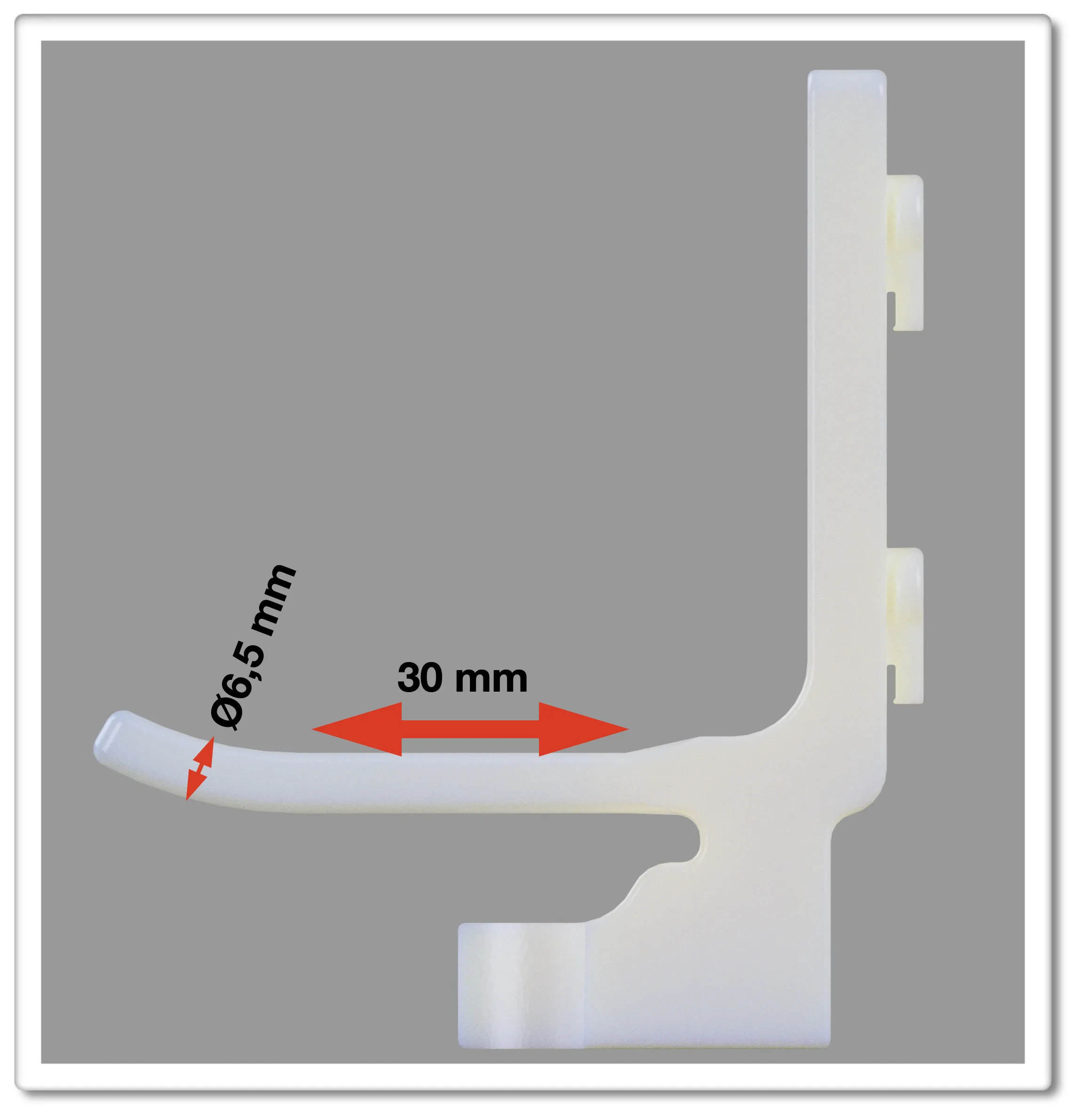

(The diameter of the bolt for holding the garden tools is Ø6.5 mm and a contact surface for the Gardena grass shears)

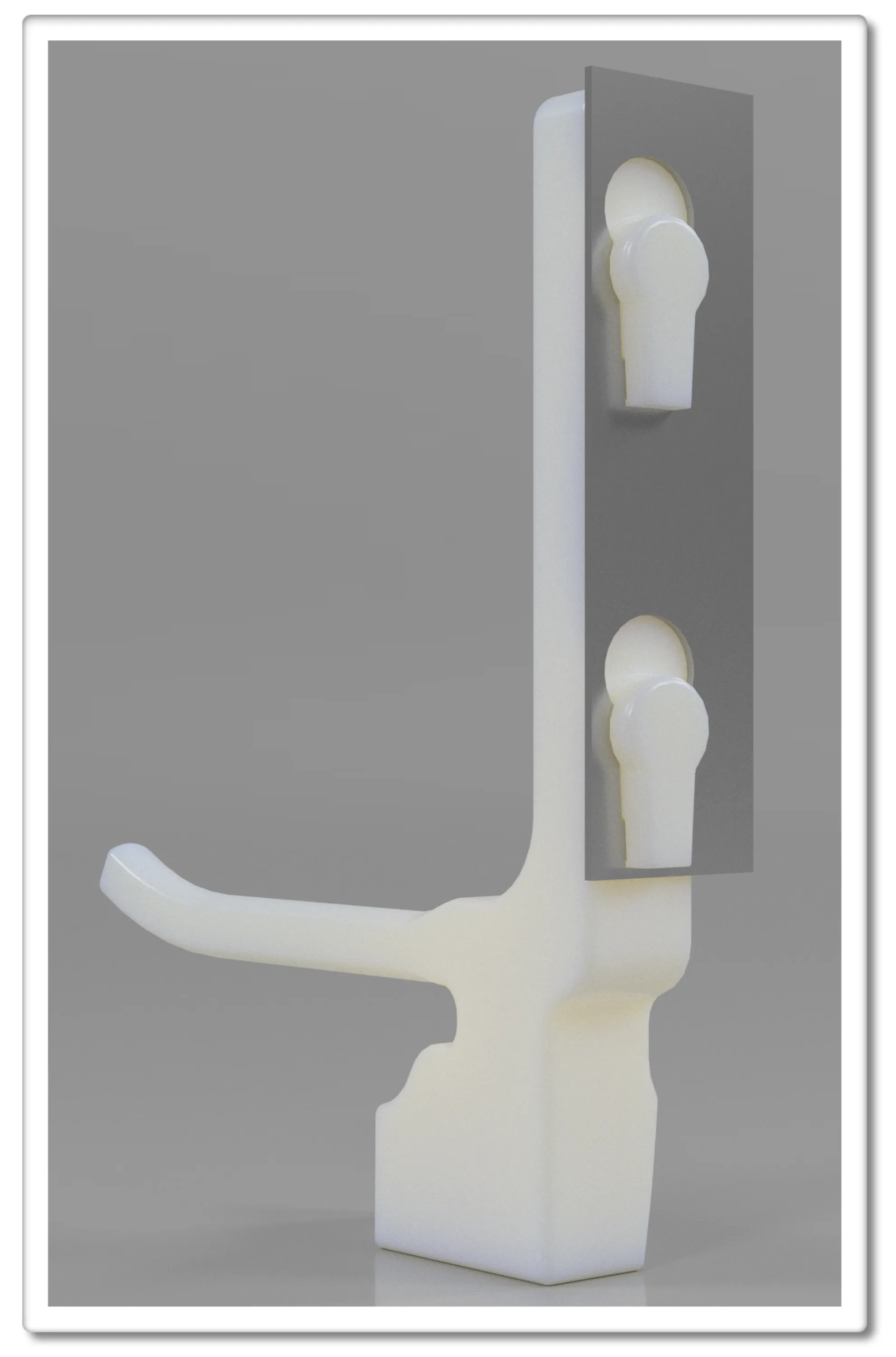

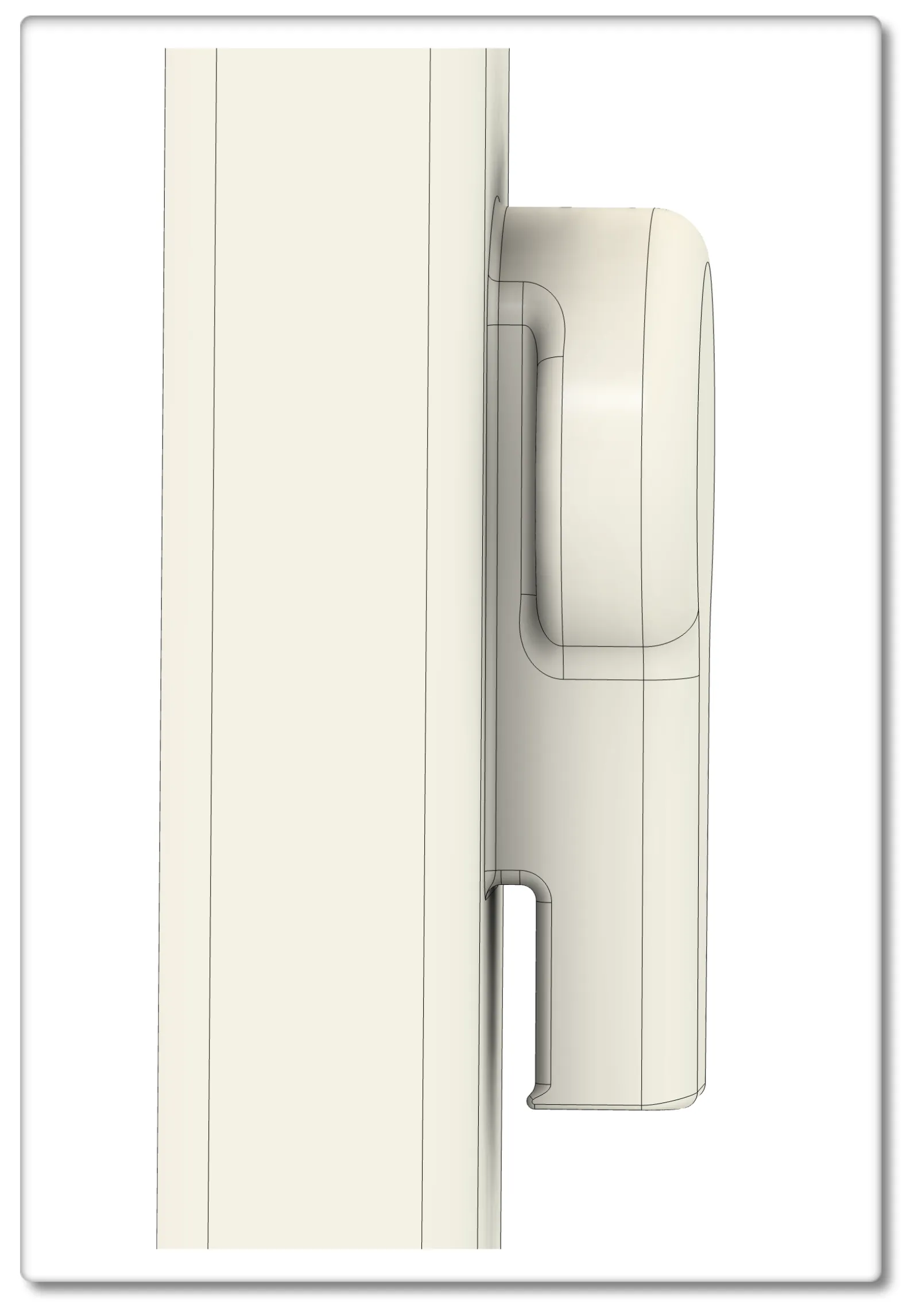

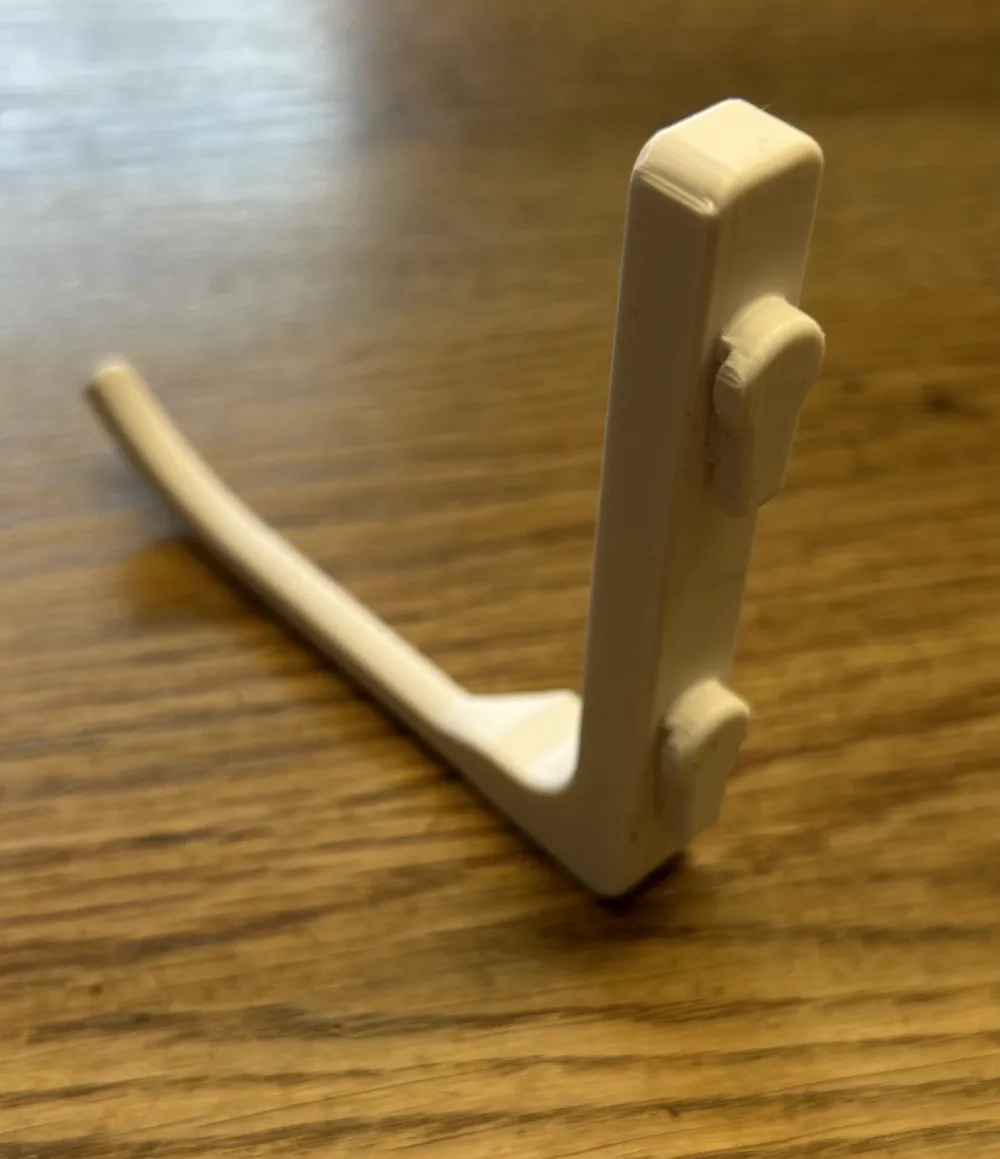

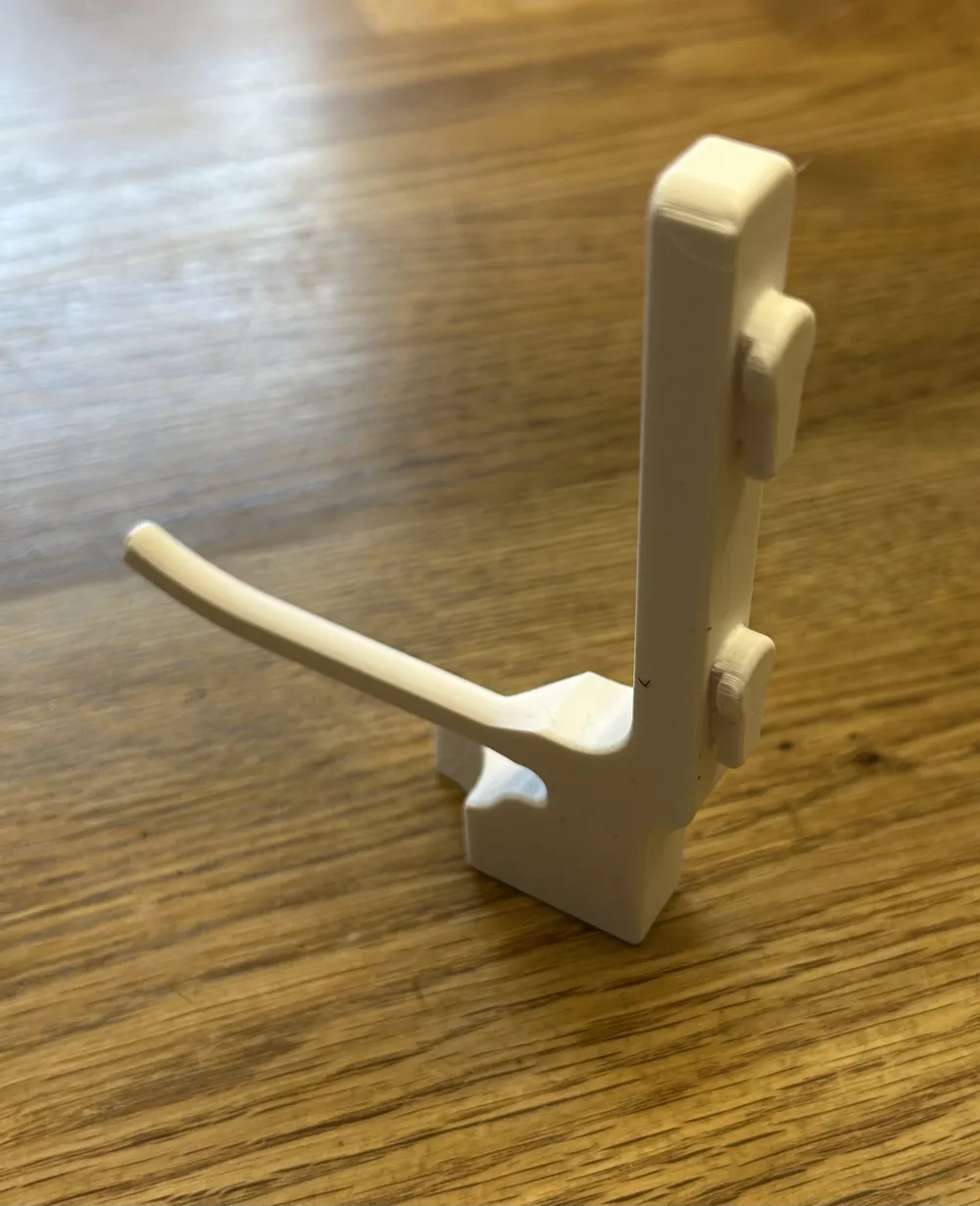

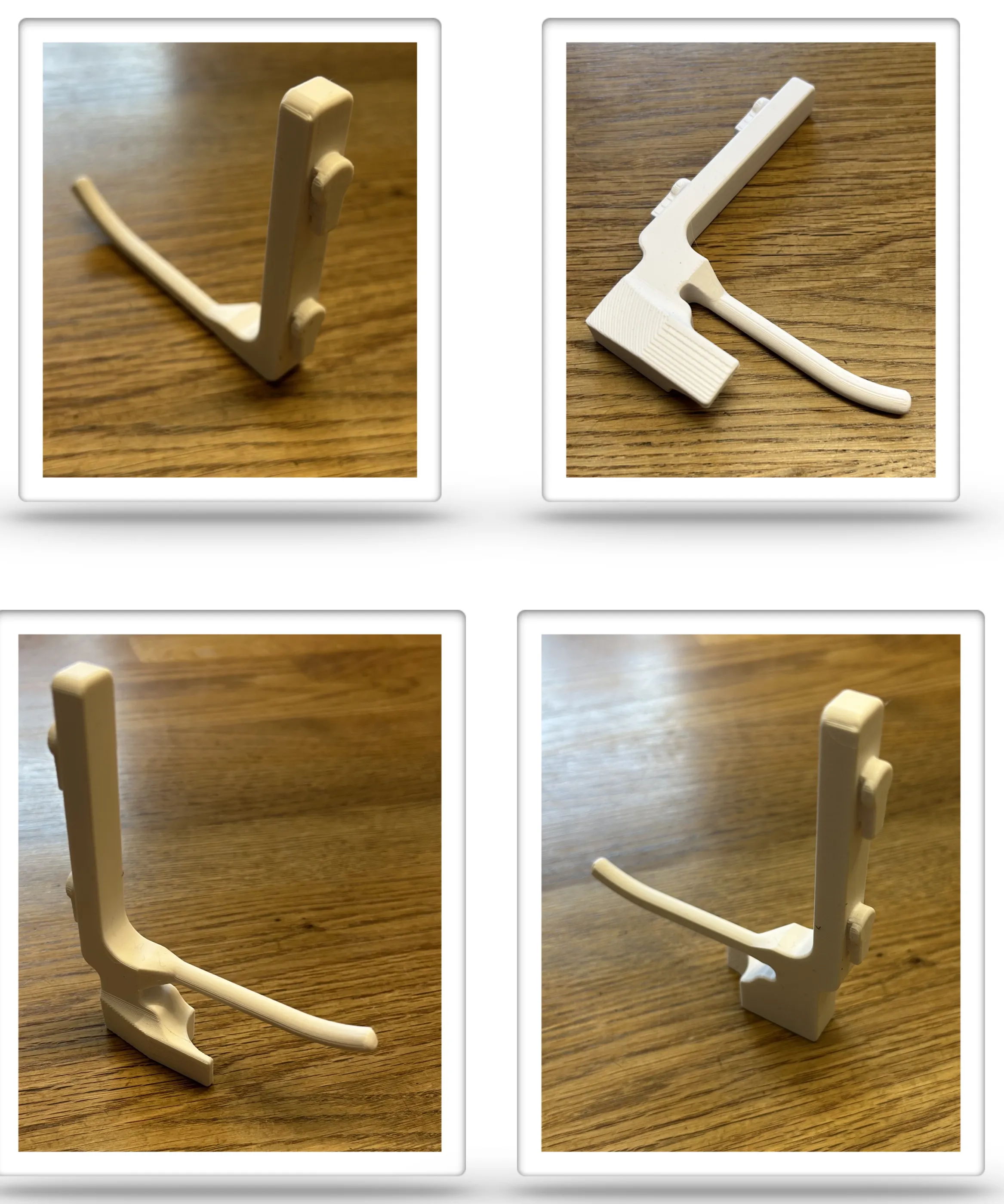

The Locking Mechanism:

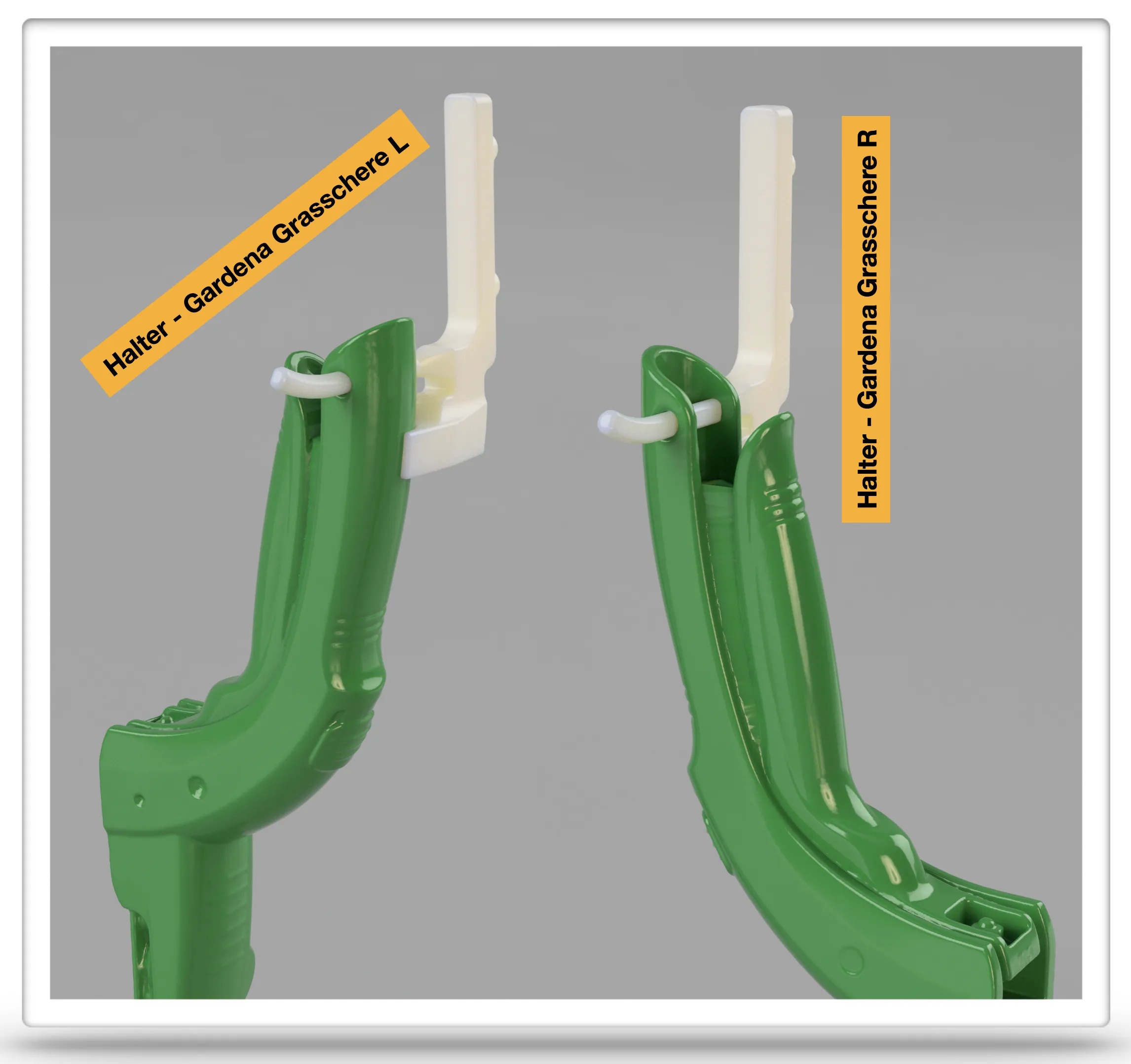

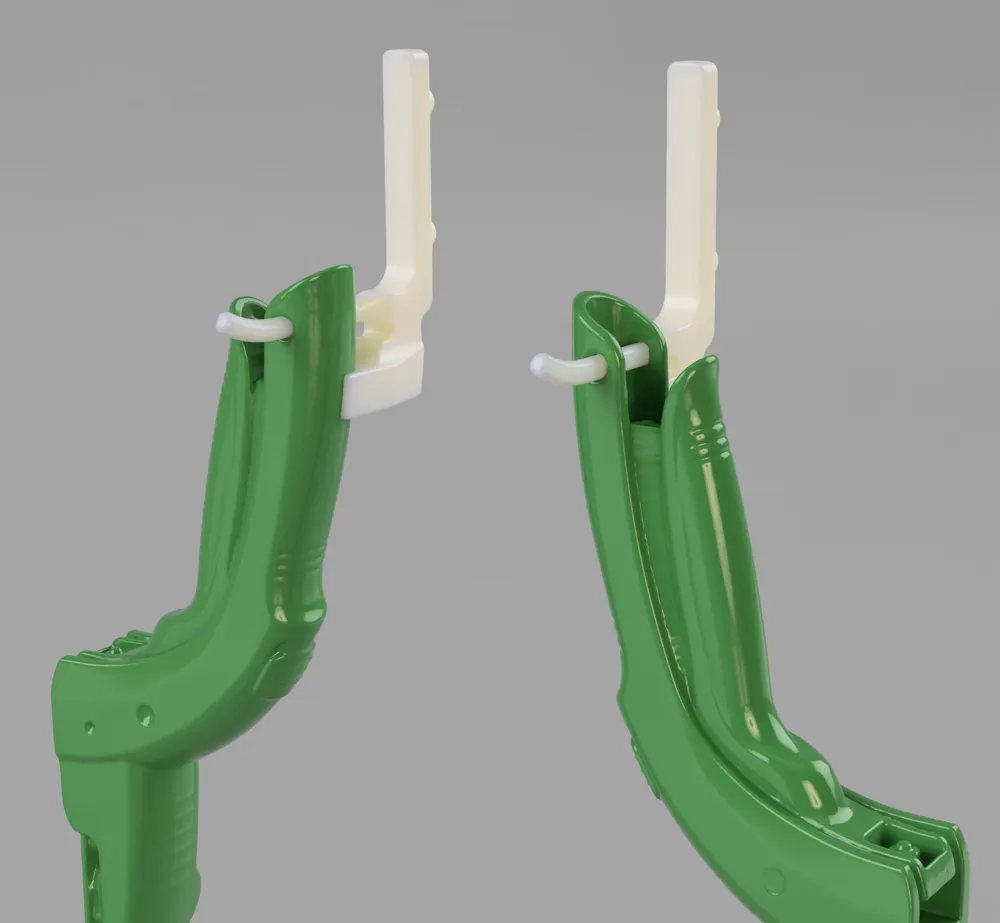

Two Variants - Shears Holder Version "L“ and Version „R“

Two versions of the model are available. One version where the grass shears are oriented to the left and one version where the shears are on the right side, where the grass shears are oriented to the right.

Select the appropriate model to achieve the desired position of the grass shears according to your circumstances.

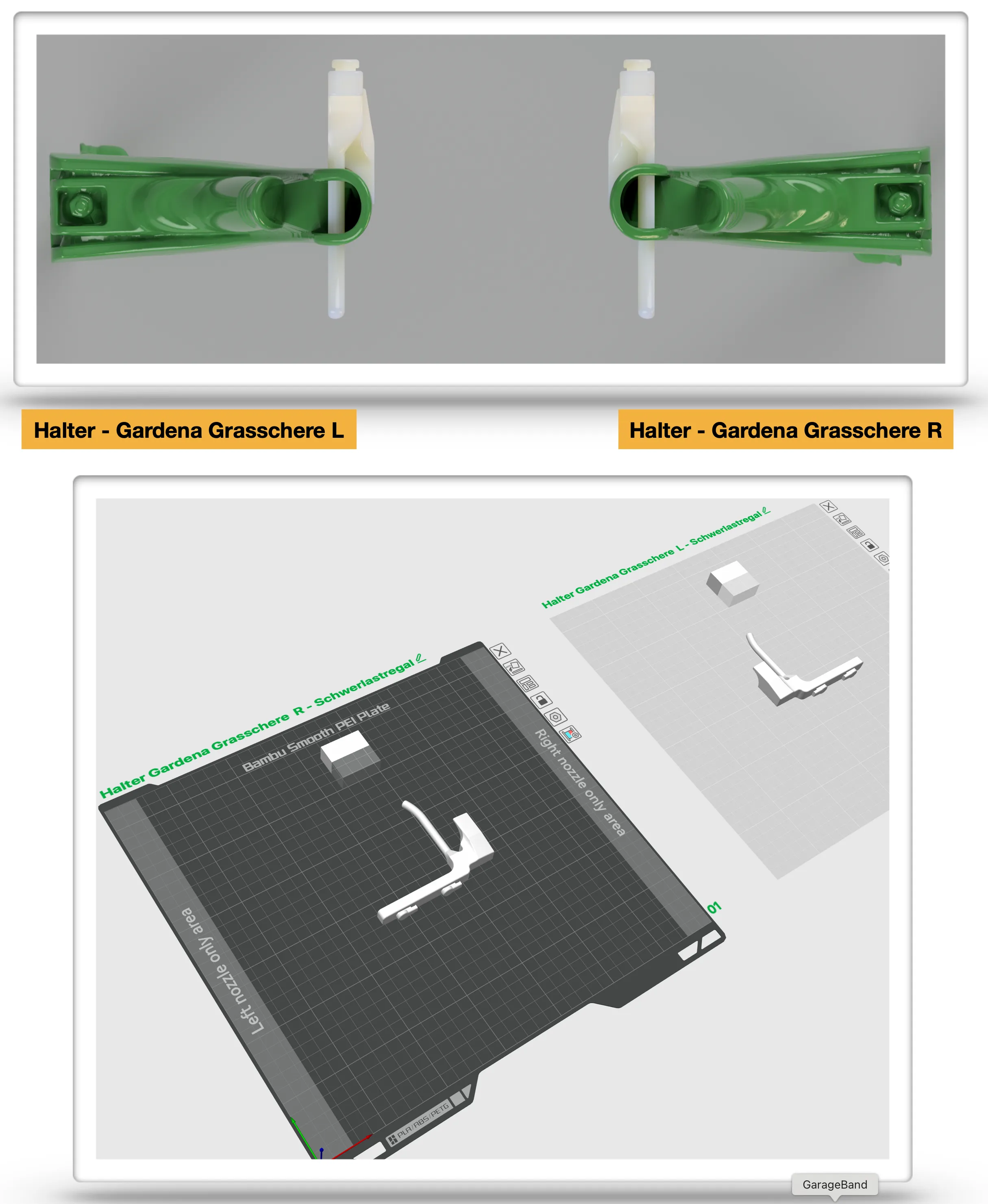

The two variants / Top view

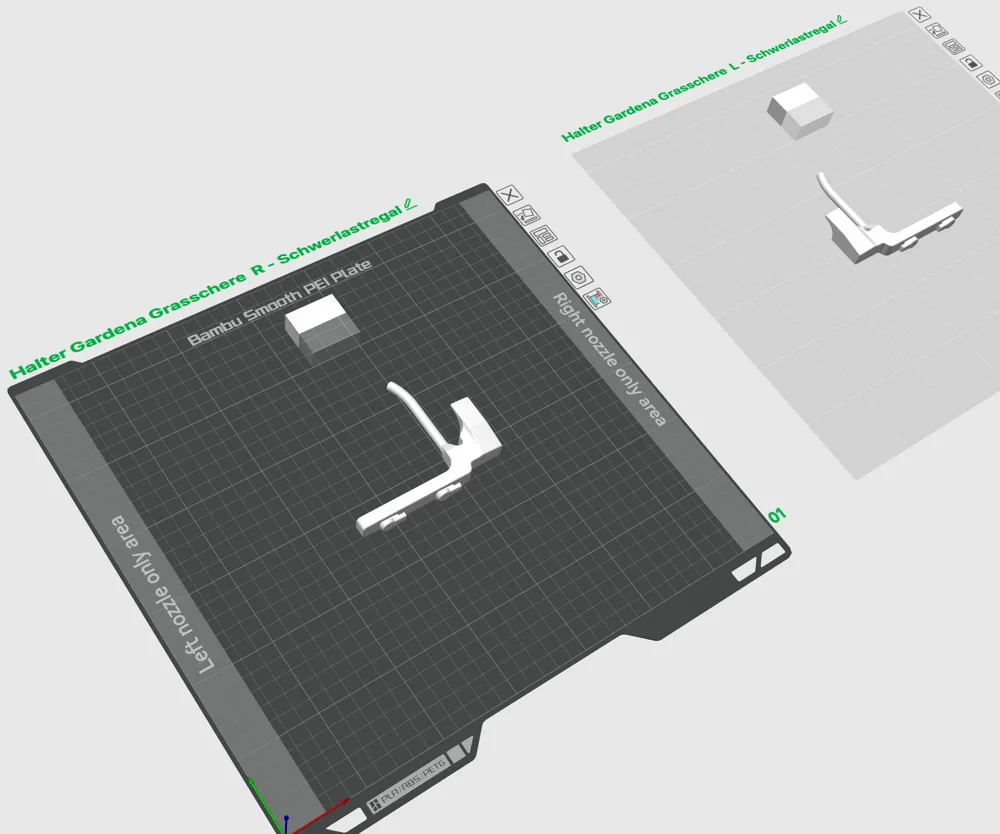

Printing Information - Material and Build Plates

• Filament: PETG HF



• Build Plate: SMOOTH PEI - Plate or also called, the High Temperature Plate

- The two STL - files are also available.

Print Settings with PETG:

Wall lines: 6

Detect thin walls: Yes

Layer height: 0.16mm

Infill / Infill pattern: 30% / GYROID

Ironing Type: ALL SURFACES

Ironing Pattern: RECTILINEAR

Seam Position: ALIGNED

Wall Generator: CLASSIC

Support Type: TREE AUTO

Support Style: STANDARD

At the interfaces of the supports, I used Bambulab's Sup.PLA.

This allows the supports to be removed very cleanly and easily.

All other values remain at default.

Happy Printing !!!
