Soldering tip holder for Weller WEP 70

General

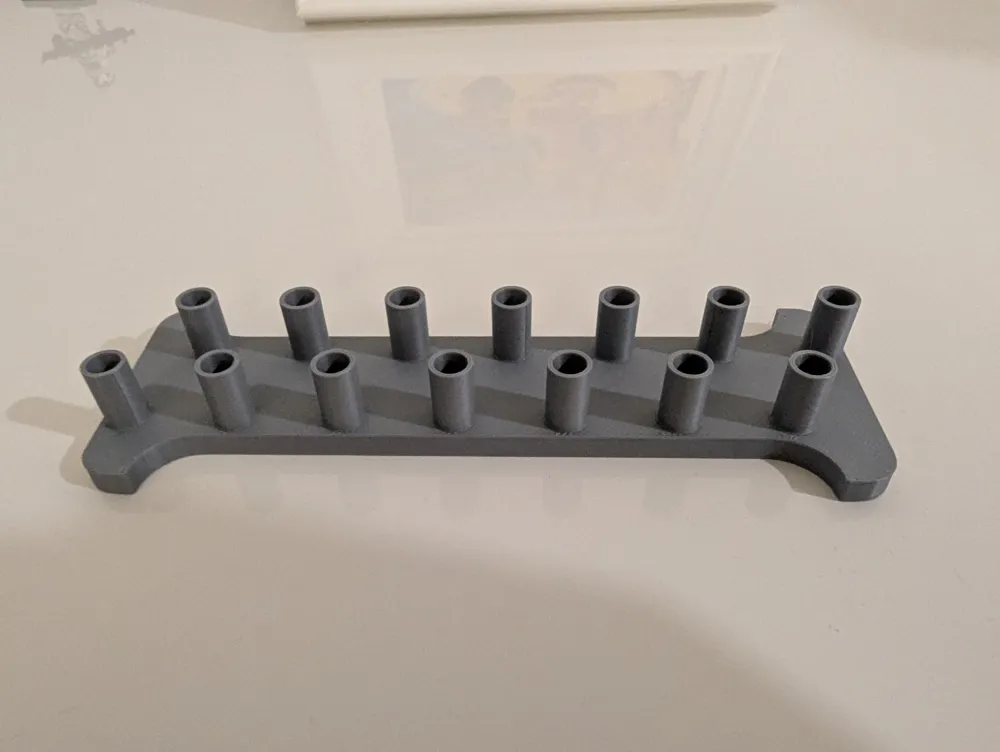

This is a simple soldering tip holder for tips that go on the WEP 70 soldering iron. I made the standing cylinders so that it is easy to grab the tips with two fingers.

There are 14 slots because I personally needed at least 13 to accommodate a new set of 12 tips from Amazon and my existing 2 Weller tips.

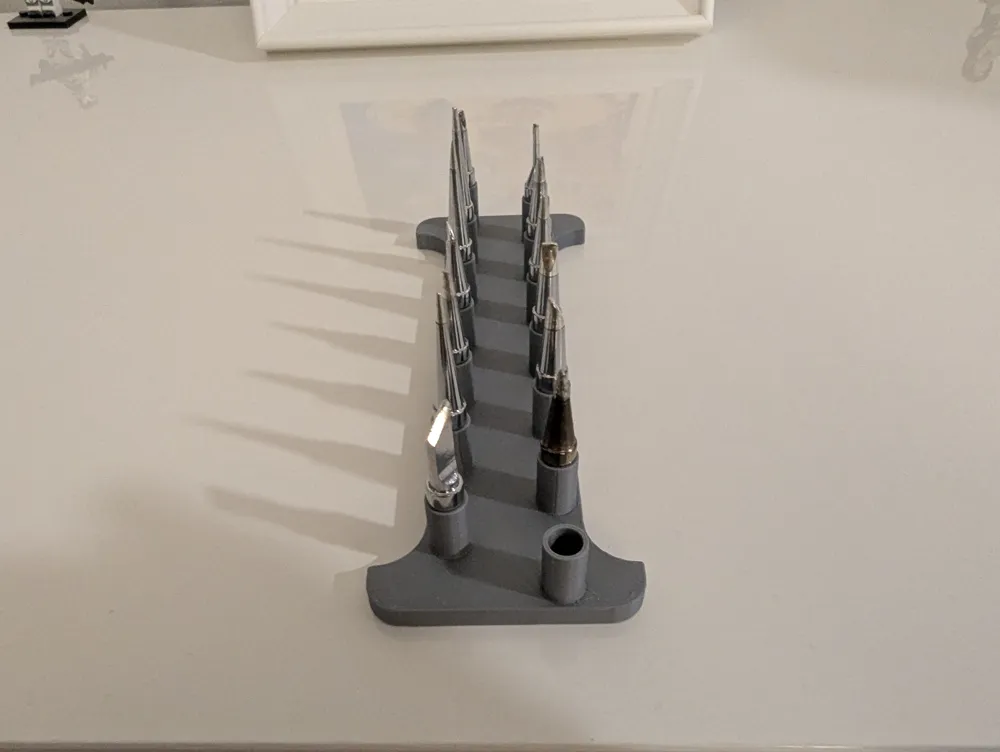

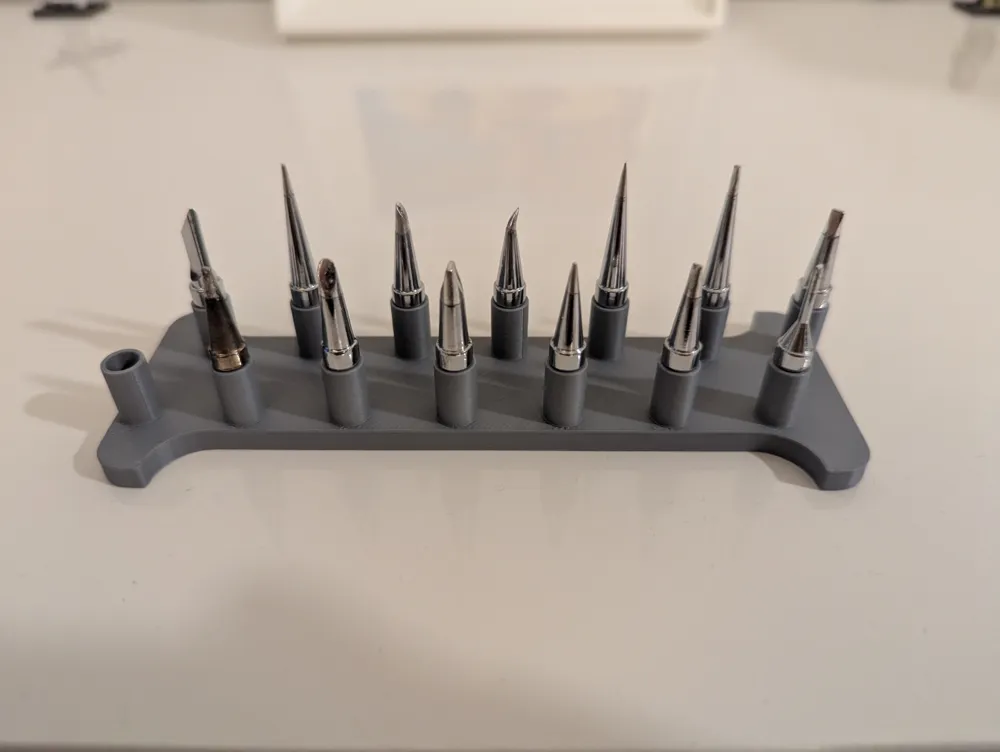

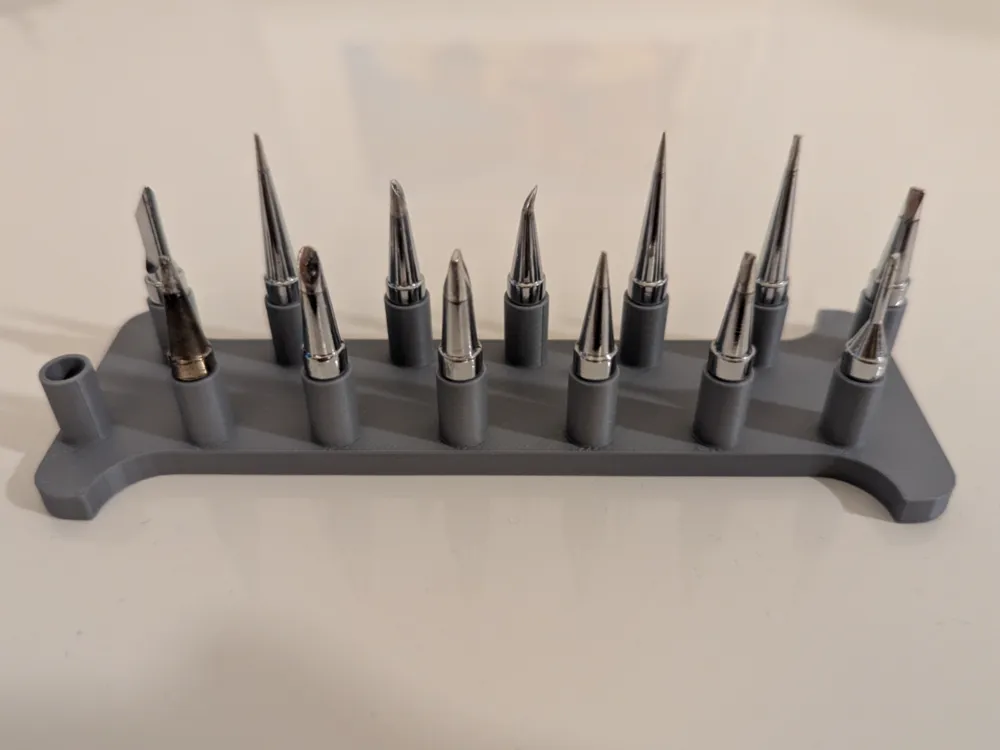

The tips in the picture have a diameter of approximately ~5.3 mm (they vary wildly and I have measured one at 5.25 mm and another at 5.44 mm) at the shaft and about ~6.5 mm at the collar (again they vary by more than 0.1 mm). I wish I could've made the slots even smaller for a tighter fit but the loose tolerances of the tips makes this impractical.

Holes are 5.80 mm in diameter to account for this.

Printing

You might want to add liquid glue and / or a brim to prevent any warping.
