An upload of the Eyelash Sofle keyboard case, tweaked so that it can be printed in solid Transparent PETG (like in the photo).



2 print profiles uploaded:

A Transparent PETG model, which uses the ‘transparentPETG’ profile to print solid, & very slow! But has lovely light transparency

A normal PETG model with 3 walls - Suitable for most applications.

Each is uploaded with an A1 Mini version

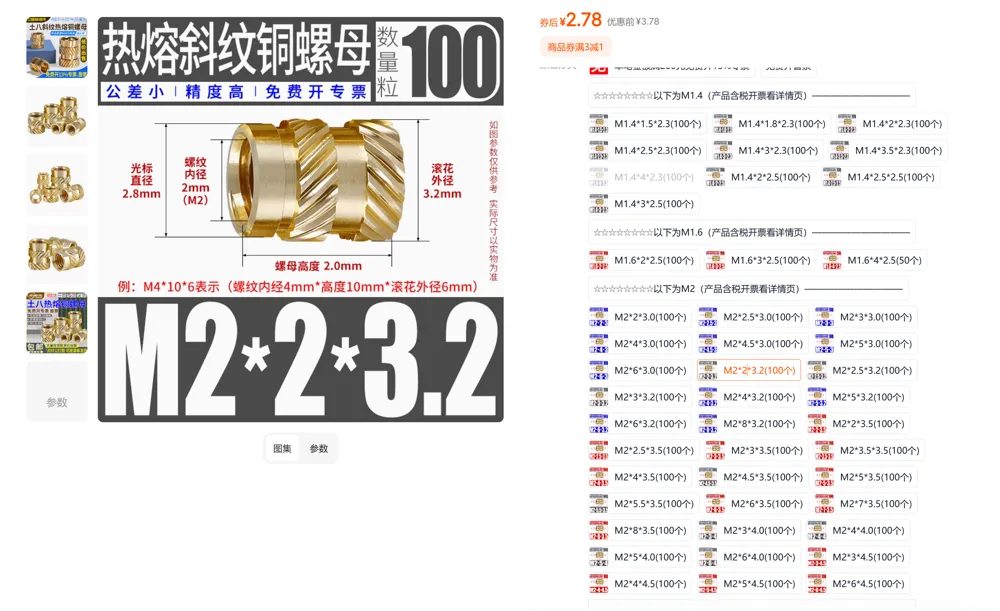

For the case, you will likely need some M2 heat inserts for the upper case (where the PCB screws into). (See photo for exact measurements)
And optionally some heat inserts for the wrist rest uppers. Although M3s can work here in a pinch.

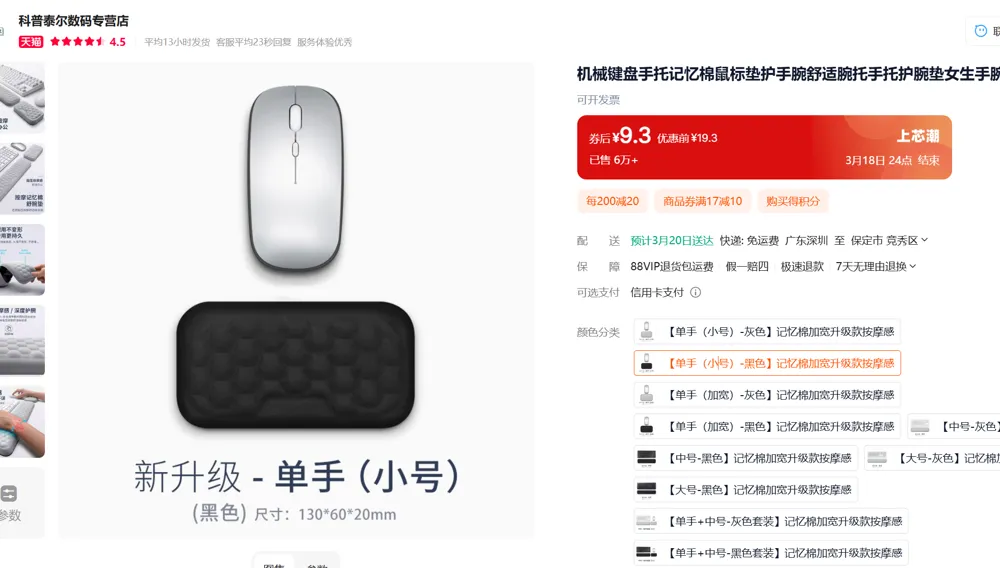

For the wrist rest, you need the 130x60x20mm ones like in the photo. I was able to pick these up on AliExpress for ~£1.50 each
