P2S - H - A1 PTFE Filament Guide Spool Holder
Print Profile(4)
Description

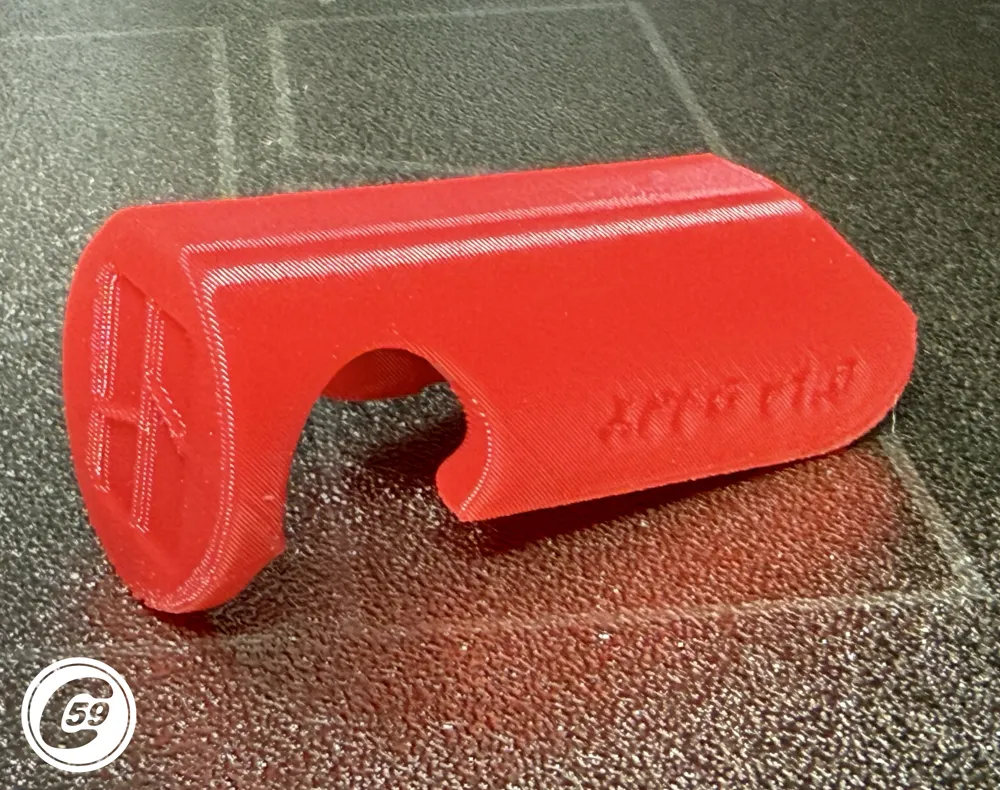

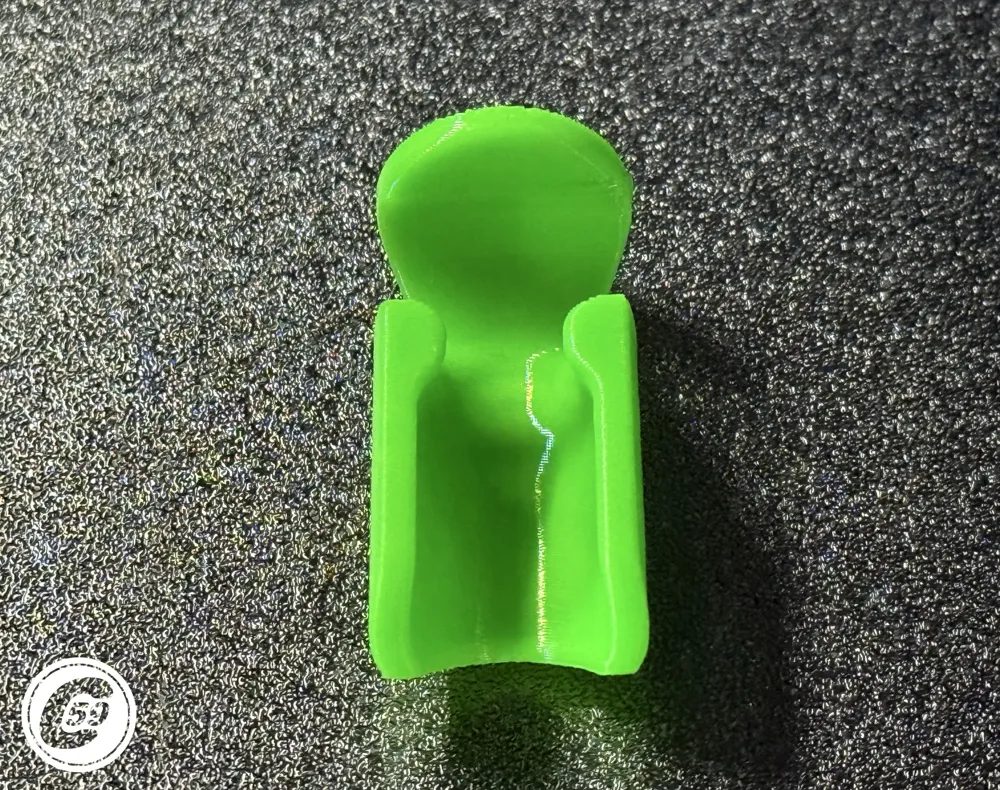

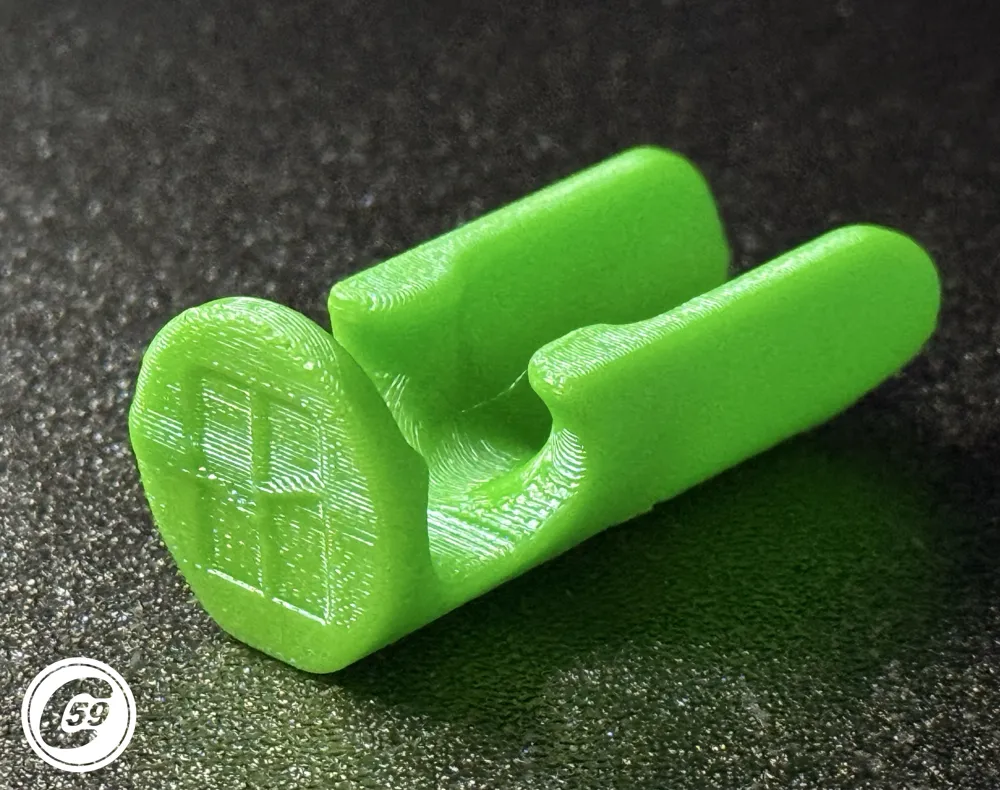

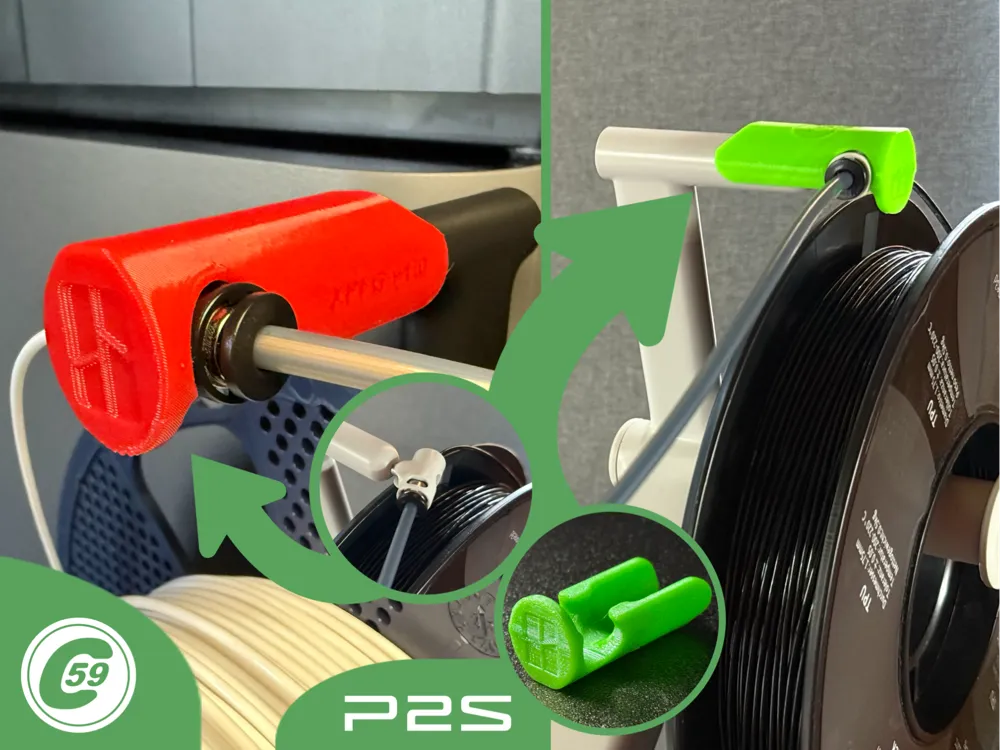

PTFE Filament Guide (ASFG - XPFG - H2FG)

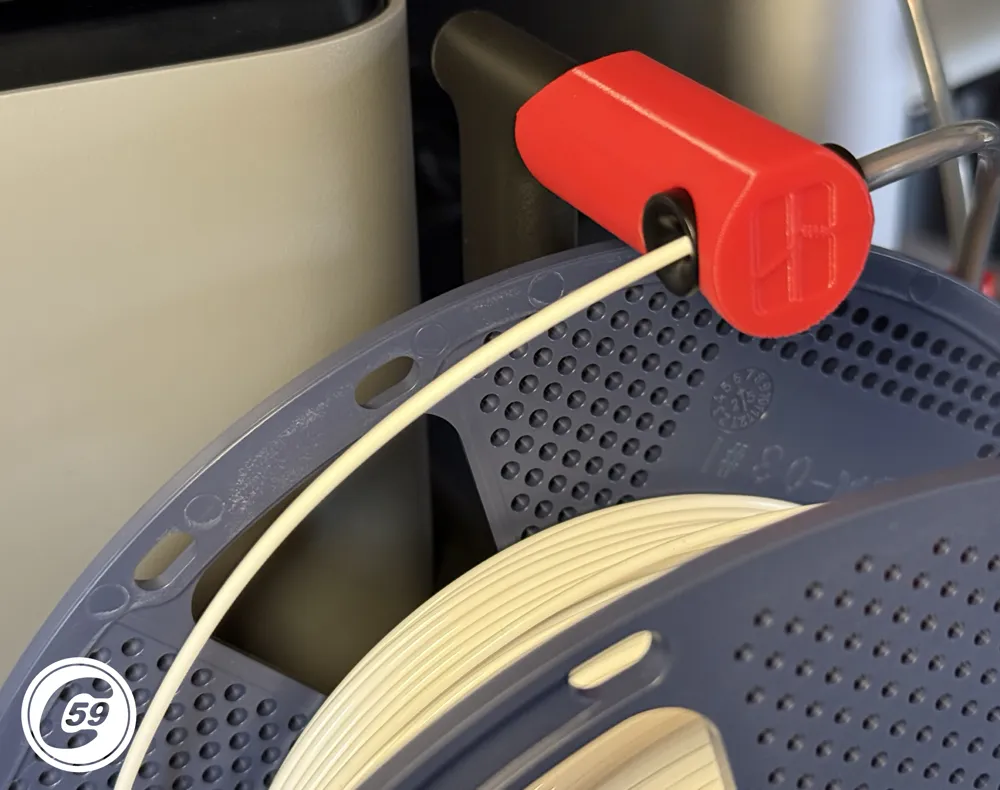

Keep your filament straight, prevent unwanted unwinding, and enjoy quieter spooling. The guide ensures your filament unwinds in a straight path instead of pulling from random angles.
Installation takes just seconds, no screws required. Simply snap it into place!
Compatible with P2S and A1 (Not Mini) printers.
Features

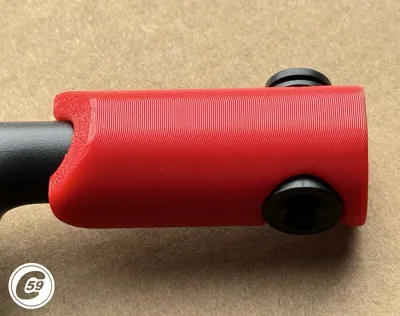

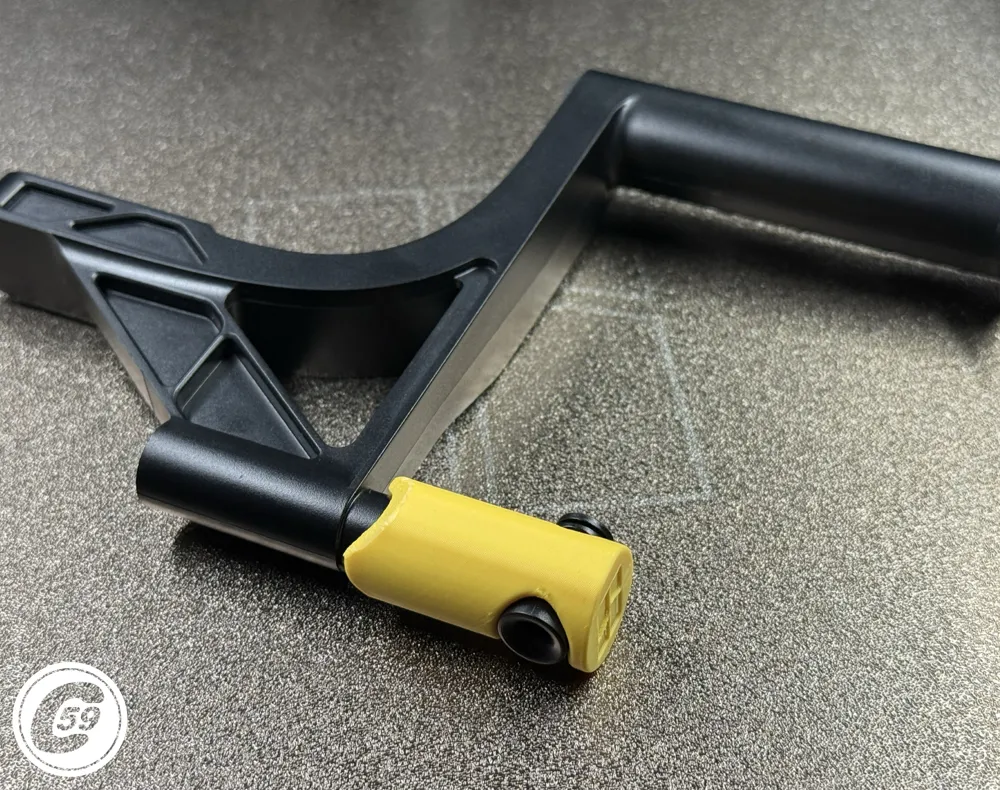

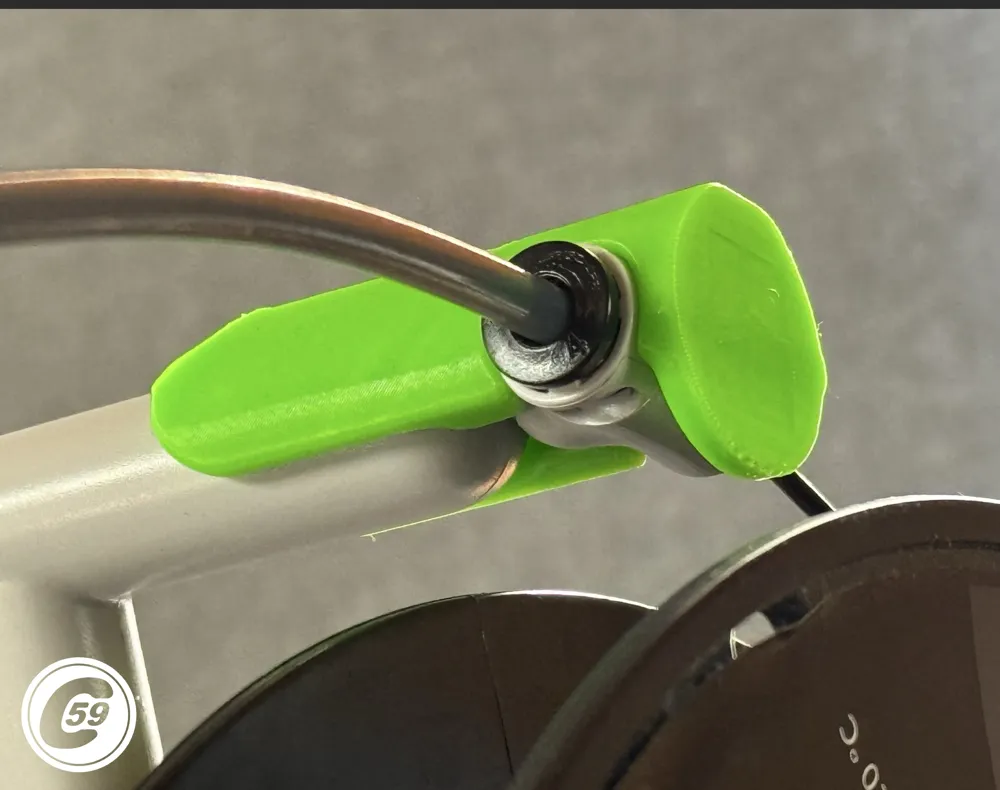

- Keeps the PTFE tube aligned with the spool on the P2S, A1’s original spool holder and H2 Series.
- Quick installation and removal for easy maintenance.
- Designed specifically for the P2S/ A1.
Helps keep A1 and P2s PTFE organized with PTFE × cable clip (for single-PTFE & cable or dual PTFE).
Installation Instructions

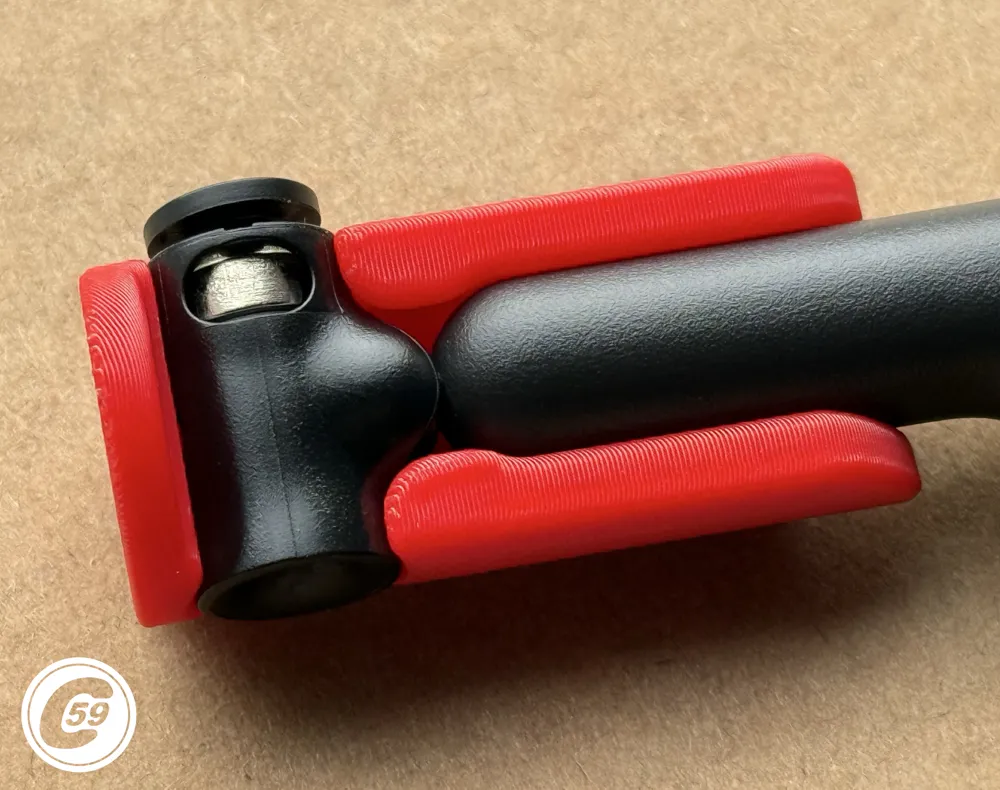

- Position the guide centered over the PTFE connector and spool holder.
- Press firmly with your thumb and fingers until it snaps into place.
Installation shorts: Clap Snap Installs
Removal Instructions
To remove, simply pull the guide in the opposite direction of installation. It should come off easily.
v1.0 Specifications (A1 Version)
Material: PETG, PLA as Preferred
Printer Settings:
- Profile: Standard
- Layer Height: 0.20 mm
- Mode: Standard
- Infill: 20%
- Walls: 4
- Bottom Layers: 3
- Top Layers: 5
Printing Details:
- Supports: Not required but Brim recommended.
- Print Time:
- Standard Mode: 38m16s
- Filament Usage: 0.21 oz
- Estimated Cost: ~$0.18 (based on $26 PETG spool)
Boost Me (for free)
🚀 Boost Your Project! 🚀
If you love what I'm working on, hit the Boost button! Your support helps me continue to create, improve, and share even more exciting designs. Thank you for being part of this journey!
Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!
"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
Current ver.1.0_01/16/2026
© 2026 C59 Design Lab. All rights reserved.
