Folding Fan - fits in ervery bag
Print Profile(1)
Description
🌬️ Folding Hand Fan – 3D Printed & Pocket-Ready
Stay cool anywhere with this stylish and functional 3D printed folding hand fan.
Perfect for hot summer days, festivals, or just a quick breeze at your desk.
✨ Features
- Multi-part design – easy to print, easy to replace parts
- Smooth folding – thanks to the pivot mechanism

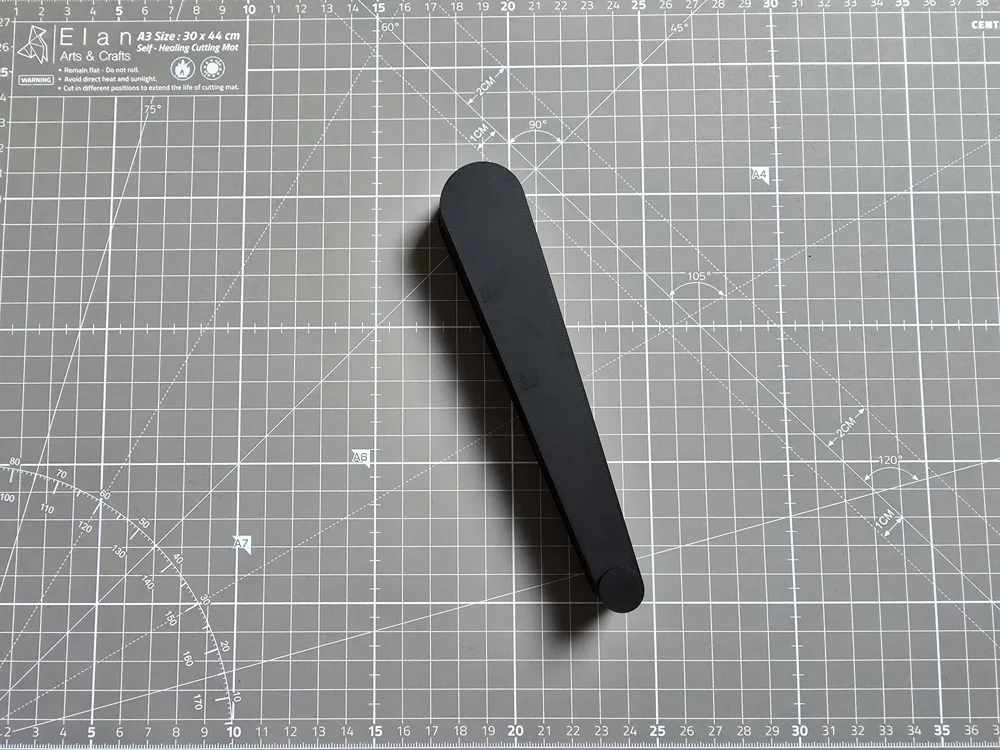

- Pocket-sized – folds down for easy transport
- Customisable – choose your own colours and materials
🛠 Parts List
- 10 × Middle Blades – the main fan elements
- 1 × Base Piece – holds the screw thread and serves as the pivot bottom
- 1 × Top Piece – covers the pivot on the top side
- 1 × Screw – secures all parts together
🔧 Assembly Instructions
1. Prepare all parts – Make sure all pieces are printed and free of stringing.
2. Stack the blades – Place the base at the bottom, then stack all 10 middle blades on top, aligning the pivot holes.
3. Add the top piece – Position it above the stack, keeping all holes aligned.
4. Insert the screw – Thread it through the top piece, blades, and into the base.
5. Tighten carefully – The blades should move smoothly but stay securely in place.

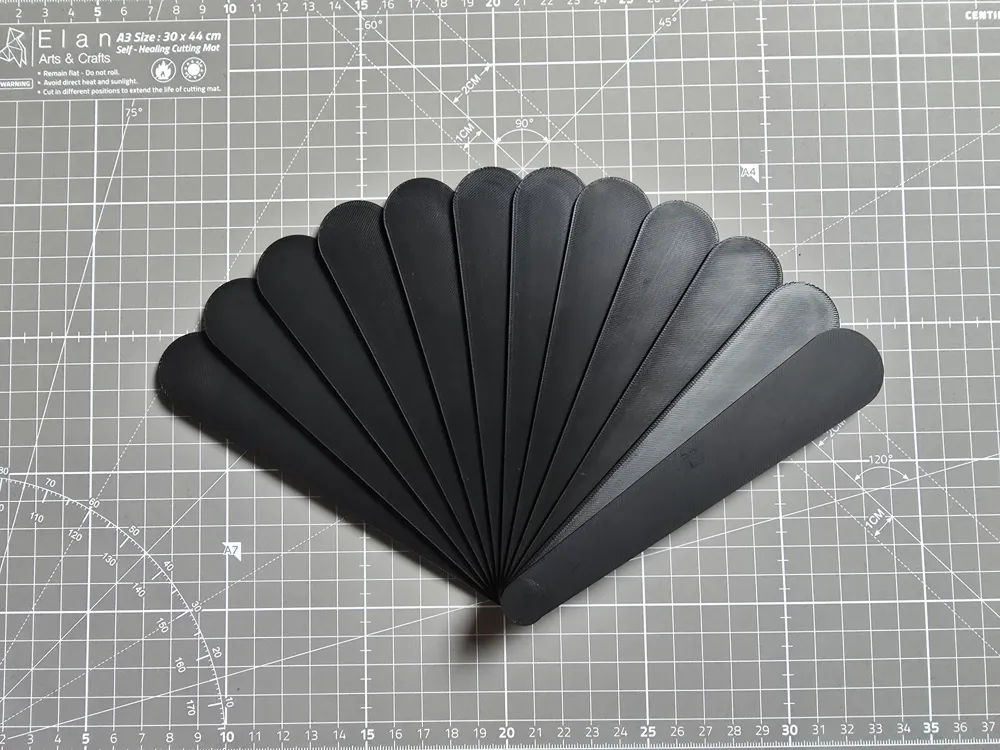

6. Cool yourself down – Fan it out and enjoy a refreshing breeze wherever you are.
💡 Printing Tips
- Layer Height: 0.2 mm for a balance of speed and detail
- Material: PLA for light weight, PETG for more durability and heat resistance
- No supports needed – all parts are flat and print-friendly
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
