Lab599 TX-500 / DIY500 BA-500 and PA-500 Clamp
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 75% infill
Designer
1.4 h
2 plates
Open in Bambu Studio
Boost
3
6
0
0
8
3
Released
Bill of Materials
List other parts
- Knurled screws M4 x 2: https://www.amazon.de/dp/B0DGL5127R?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Melt-in thread M4 short x 2: https://www.amazon.de/dp/B09MTTC7S9?ref=ppx_yo2ov_dt_b_fed_asin_title
Description

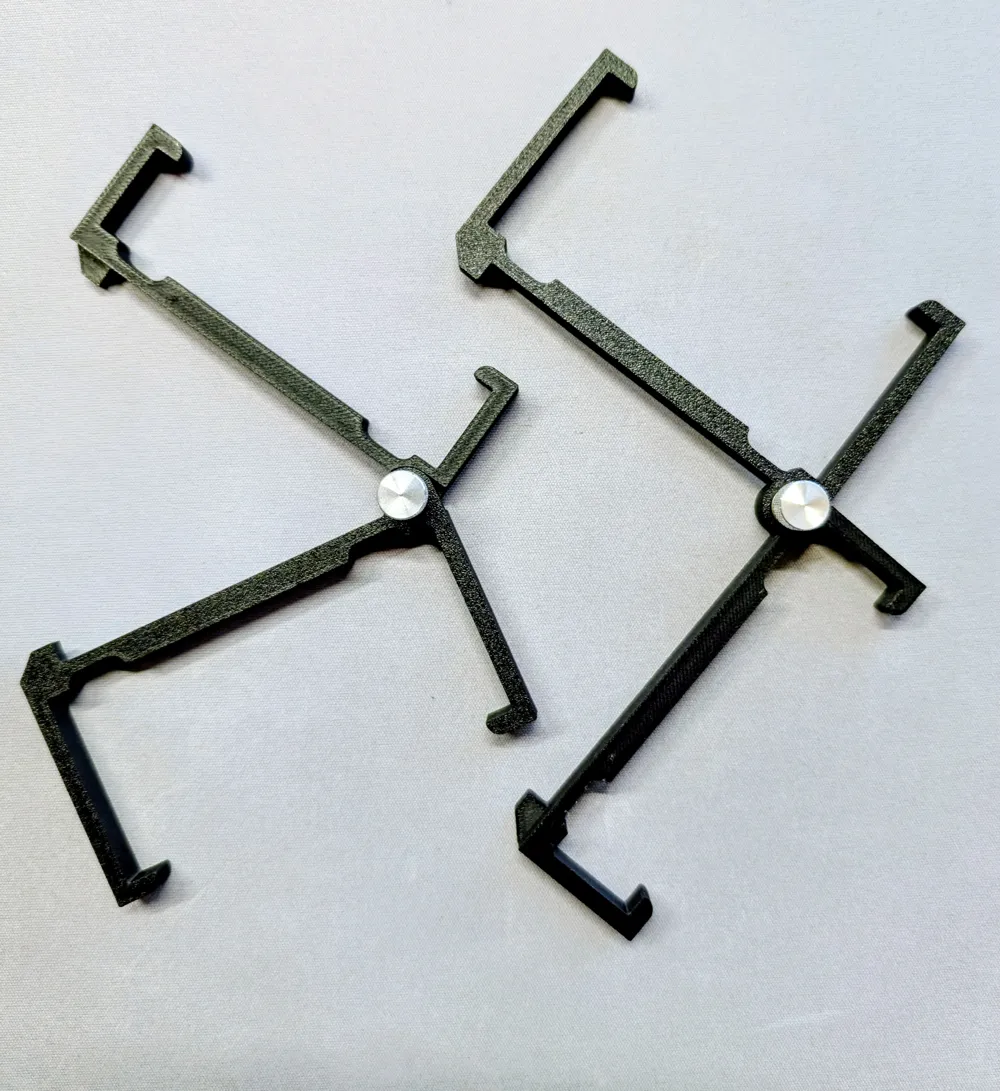

Inspired by other models, I created my own optimised version.
The focus is on weight and stability.

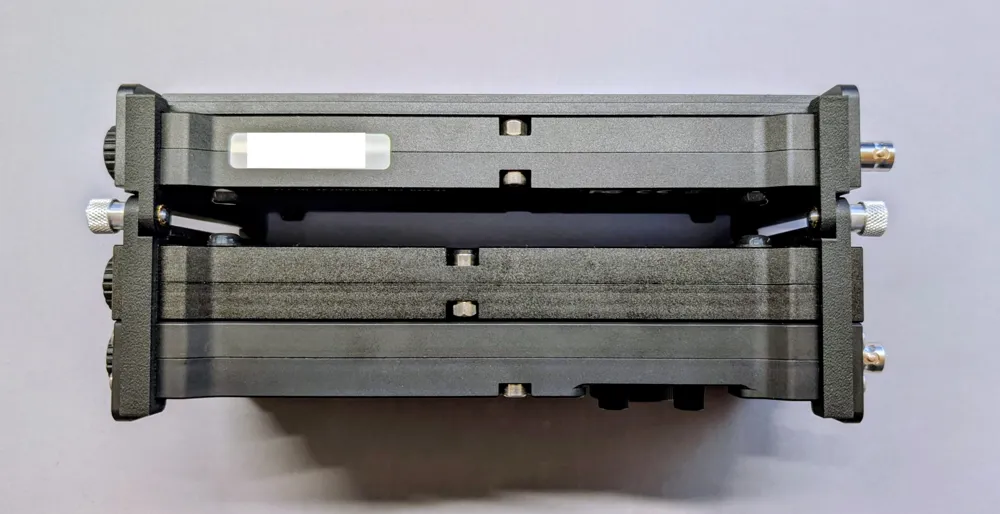

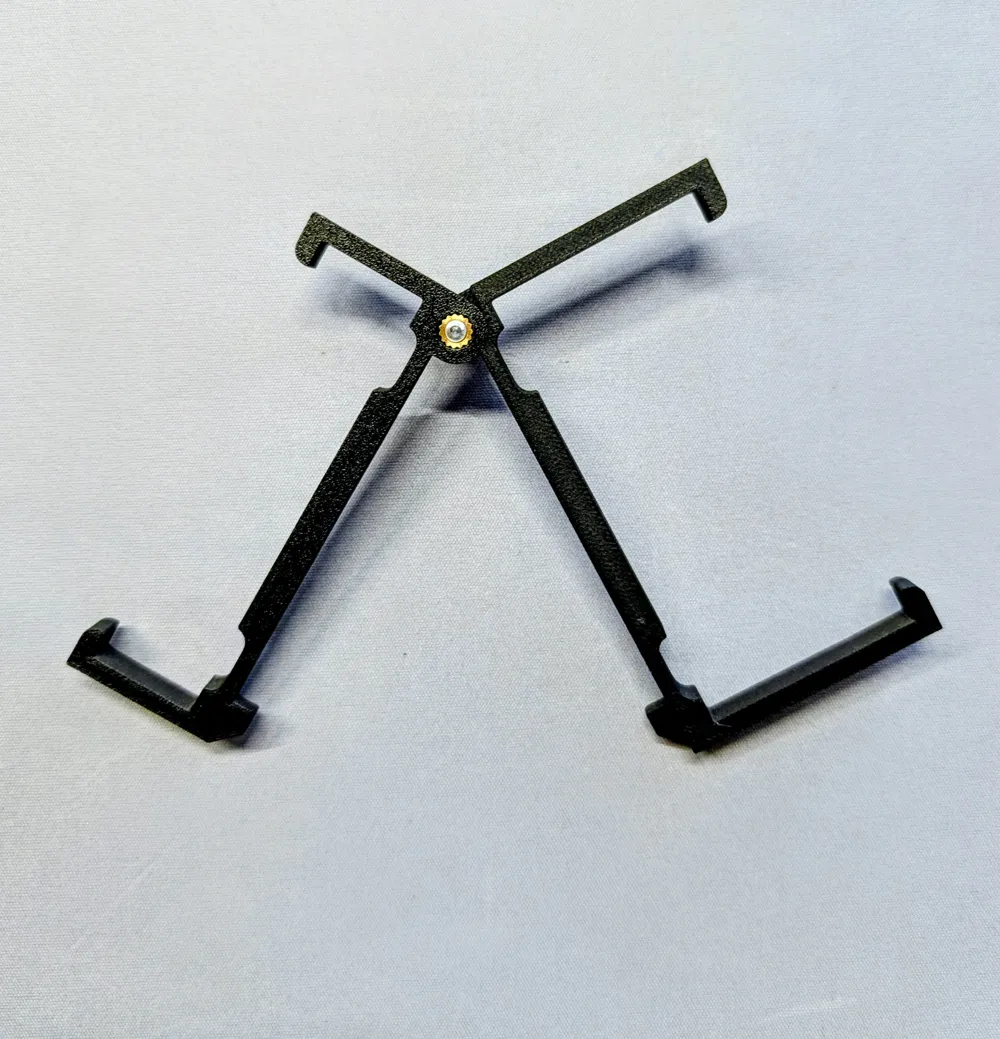

It holds the transceiver (TX-500) and the battery (BA-500) together and allows the amplifier (PA-500) to be folded away during operation.

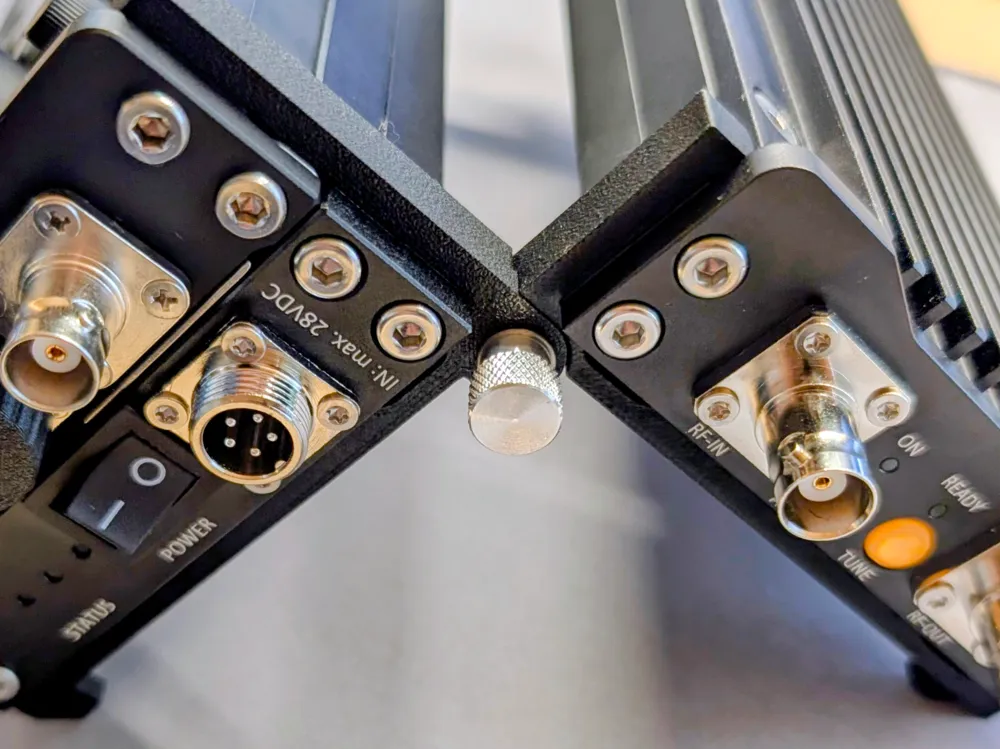

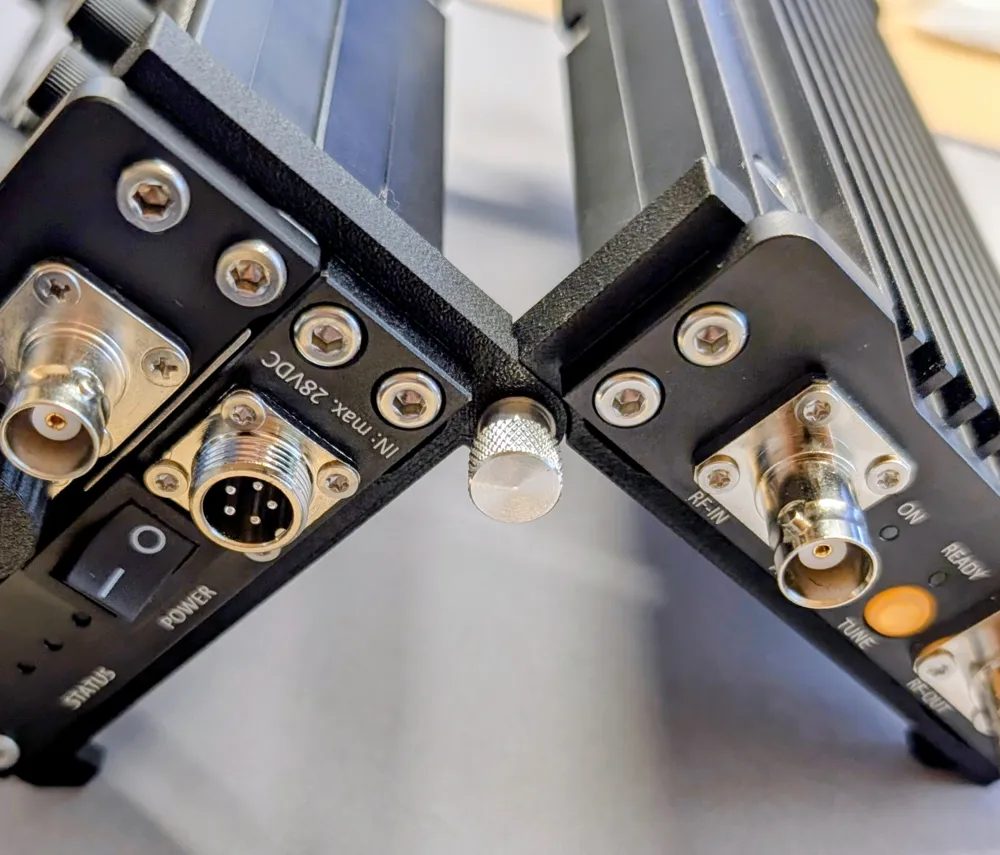

This creates a comfortable position for operation.

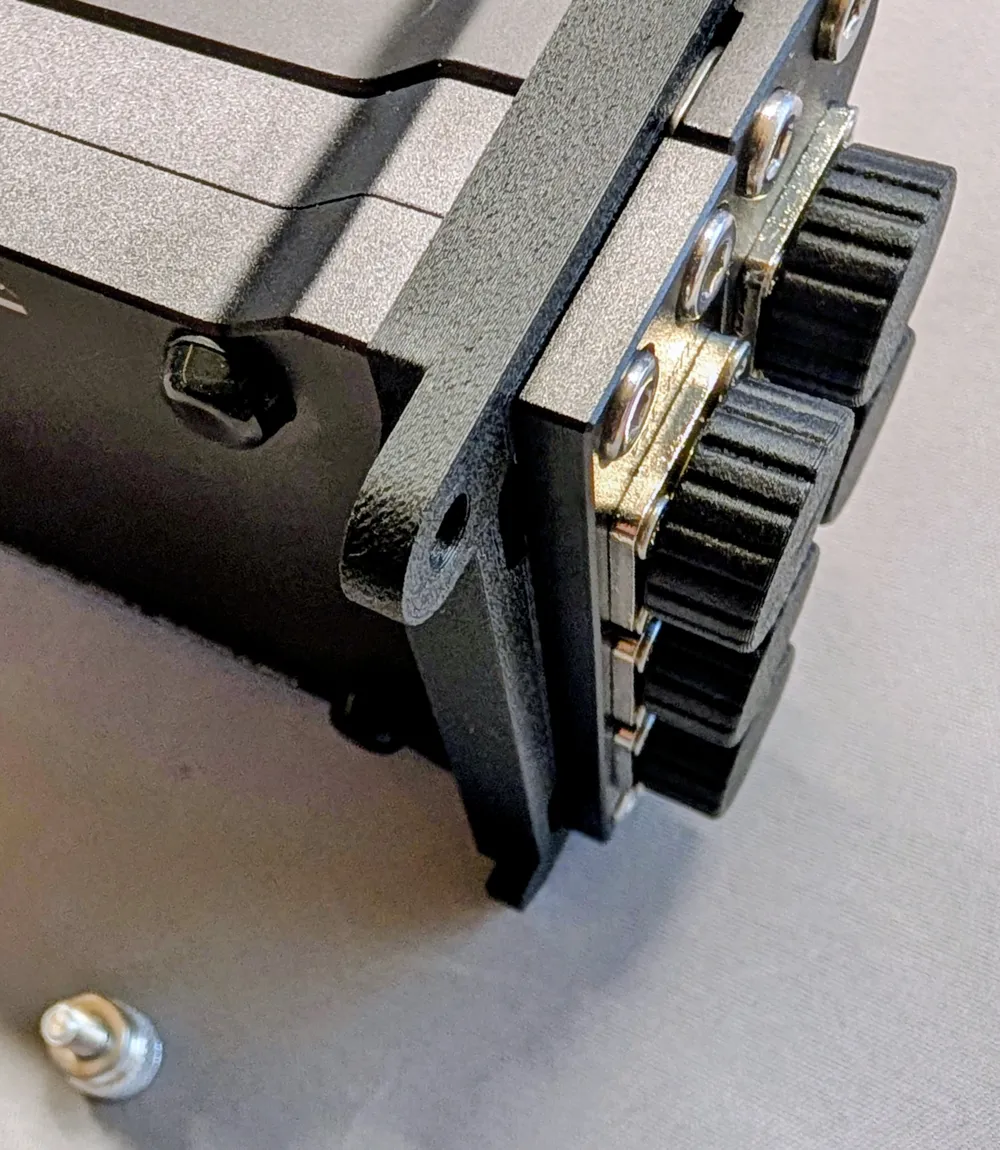

The two knurled screws and the melt-in thread allow you to quickly remove the PA for QRP operation.
