Lamp canopy (lamp shade, cover) various
Print Profile(4)
Description

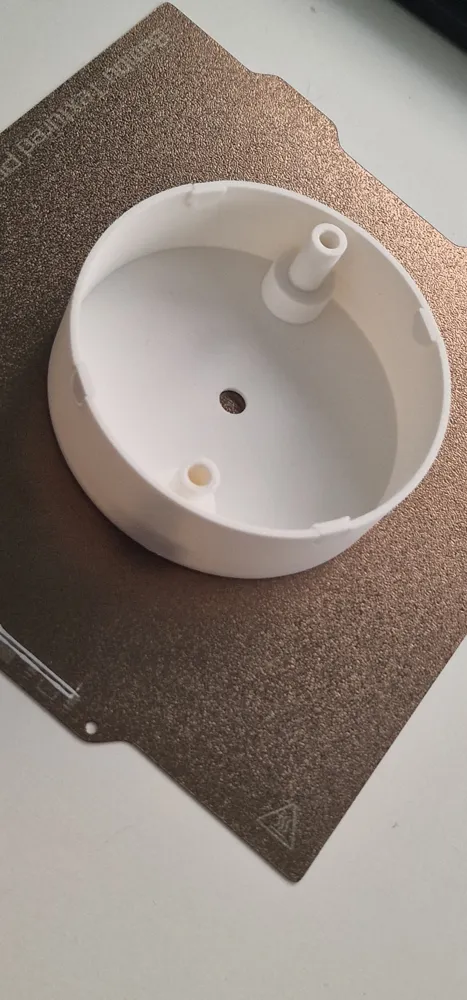

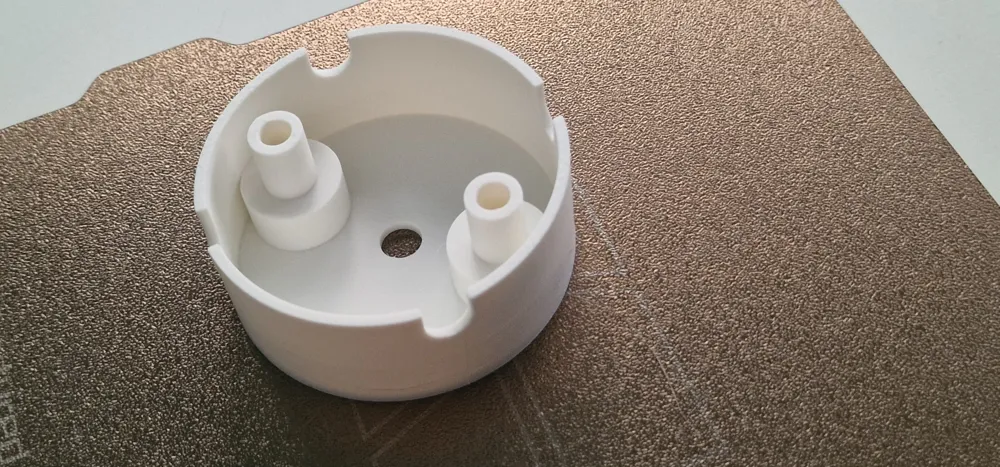

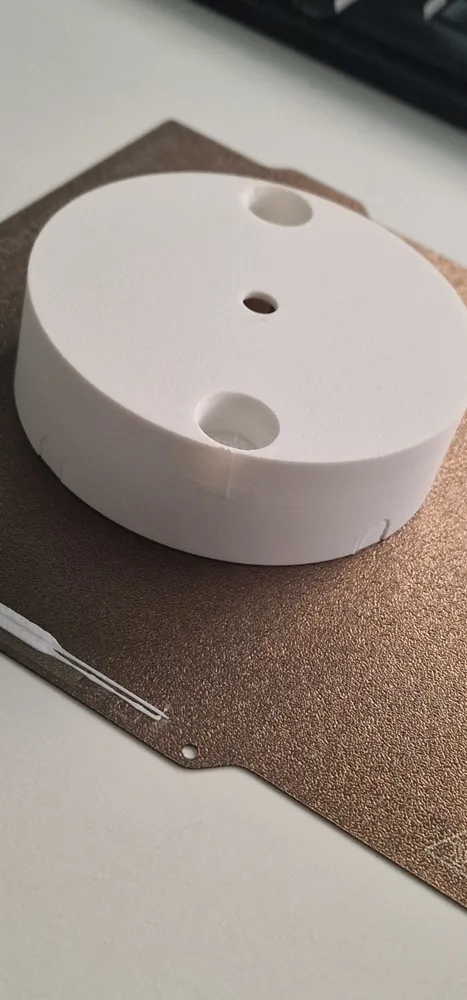

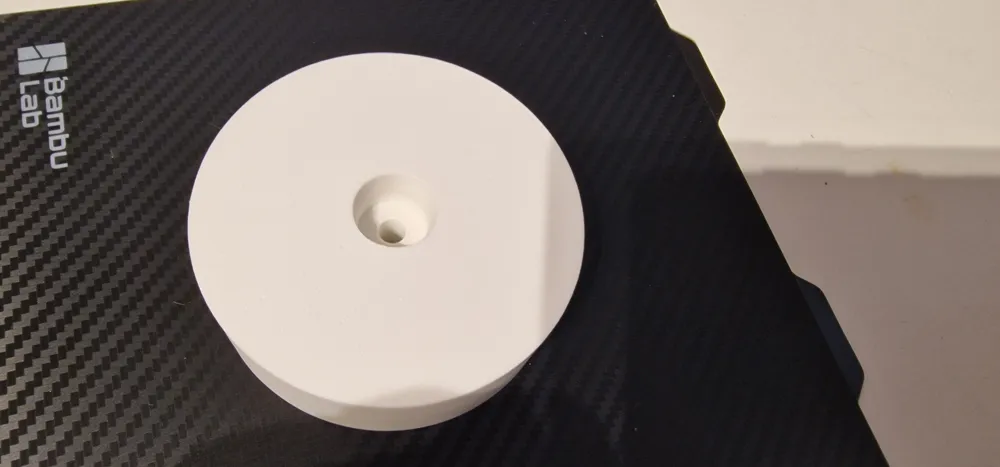

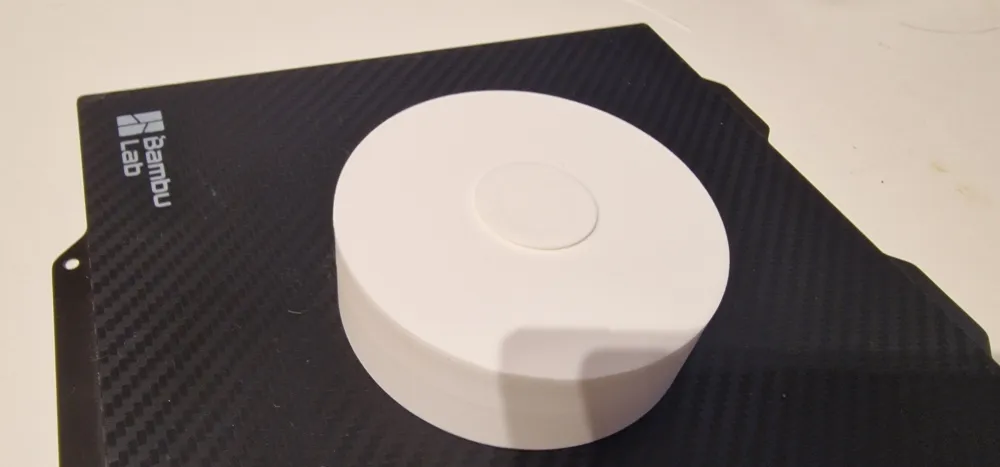

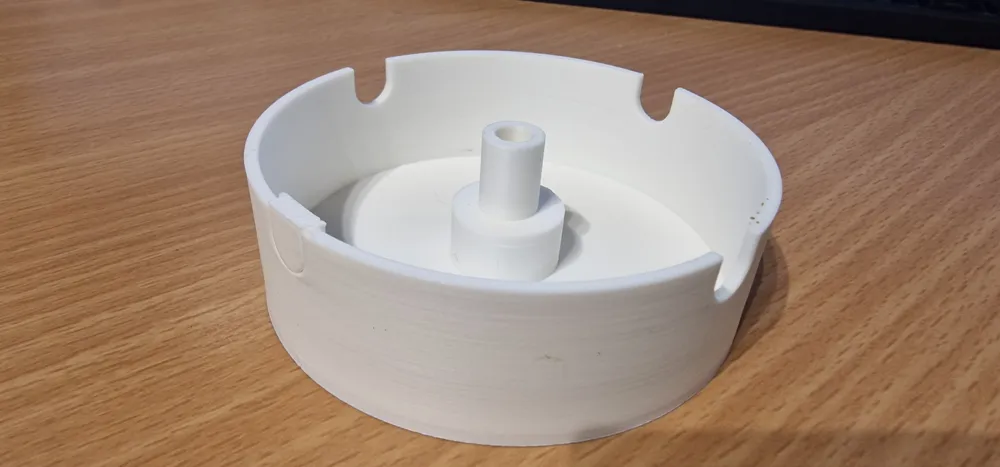

Here is a simple canopy available in variants as a simple cover cap or as a lamp canopy, each without and with (4) side cable entries
For the variant with cable entries (for flexibility in cable routing), the unused entries can be easily and almost invisibly closed using the blanking plugs
I have various sizes in this profile - if you need other dimensions, feel free to ask me
- 65mm x 25mm
65mm x 30mm
- 80mm x 25mm
80mm x 30mm
- 100mm x 25mm
100mm x 30mm
- 120mm x 25mm
- 120mm x 30mm
- 120mm x 50mm

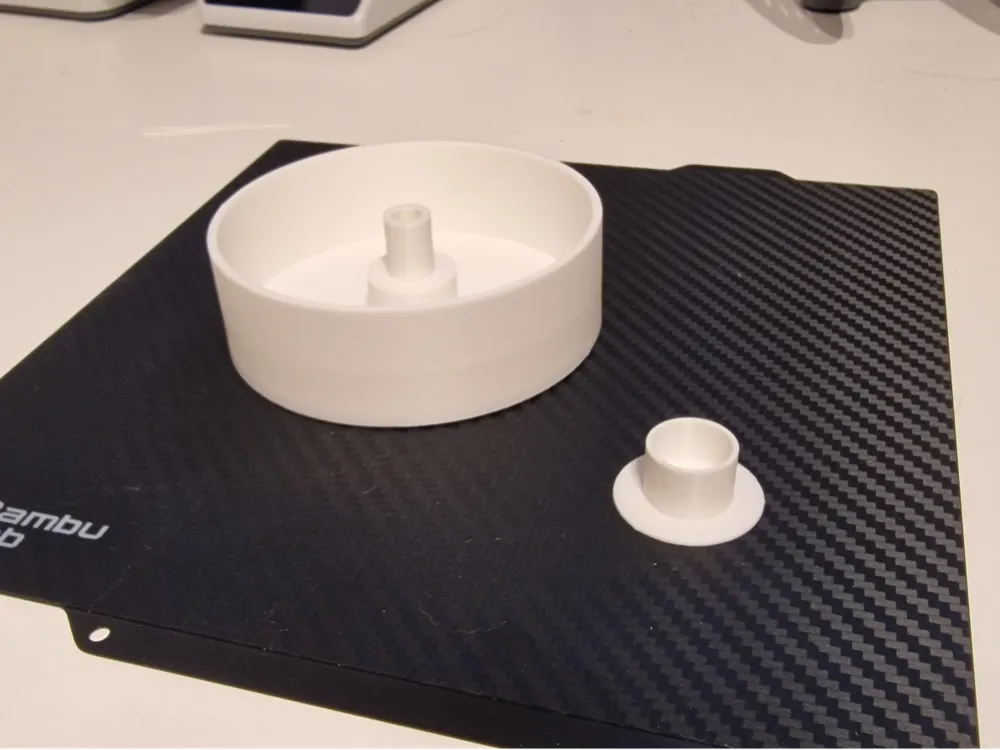

The blanking plug can be easily inserted and relatively easily removed again thanks to the slight chamfer on its head
As always, you are welcome to create a copy of the OnShape Design if needed and adapt it for yourselves, or contact me if you need help with it or have ideas for a variant
