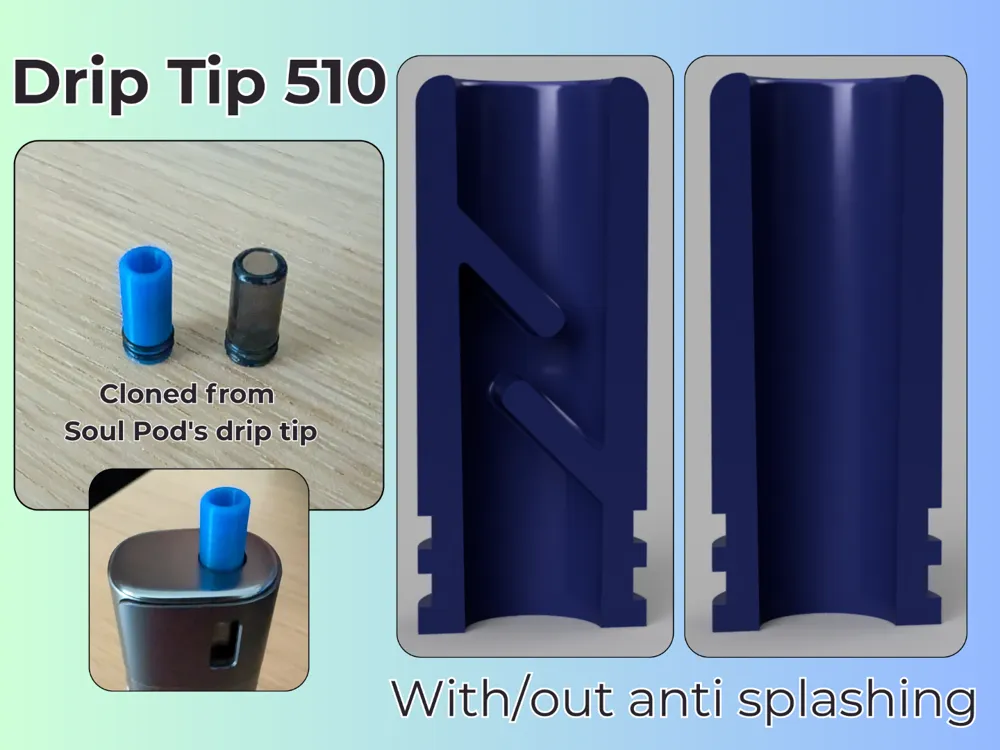

Drip Tip 510 (soul pod)

This 510 drip tip is a perfect clone designed to fit the Soul Pod Drip Tip (GeekVape Soul or Soul2). It's the ideal solution if you need a replacement or simply want to customize your device.

There are two versions available:

• One with an integrated anti-splashing system for a cleaner vape without liquid splatter.
• A standard version for those who prefer a simpler, more linear design.
• Filament: Make sure to use a well-dried filament to get a more precise surface and better quality prints.

You can find both profiles to download and print the one you prefer.

Printing Instructions

• Material: To ensure resistance to high temperatures and durability, the use of filaments like PETG or ABS is highly recommended.
• Adhesion: The profiles are optimized for use with a supertack plate and do not include a brim. If the print detaches, we recommend manually adding a brim before printing for better bed adhesion.

Assembly

For a secure fit, you will need two 510 drip tip o-rings. You can either purchase these separately or reuse the ones from an old drip tip.

Credits

Thanks to Jan Štech for the ispiration of antisplashing system 510 Drip Tip

Disclaimer

The use of 3D-printed parts for vaping carries certain risks. Although this model is optimized for high-quality printing, bacteria can proliferate between the layers. Additionally, the heat from the vapor could potentially release microplastics or harmful substances from the filaments.

It is recommended to properly treat the surface with resin to seal the layers before use.
Using this 3D-printed object is at your own risk
