Description
Content has been automatically translated.

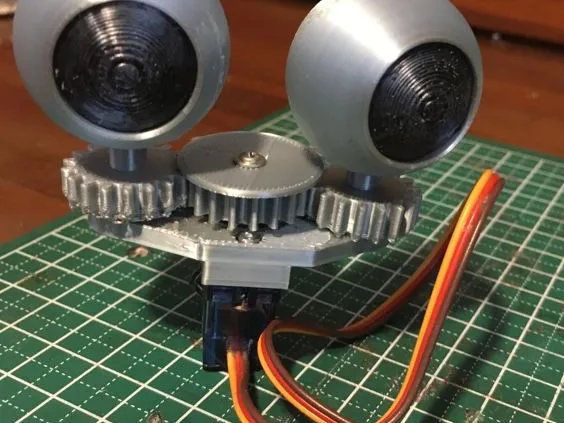

The robot's eyeballs move simultaneously left-right and up-down using two SG servos

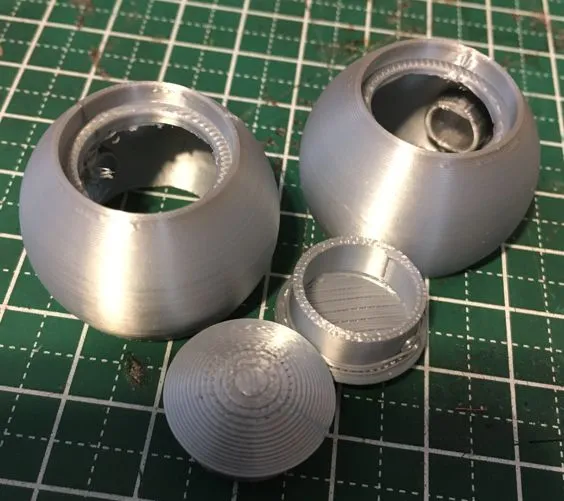

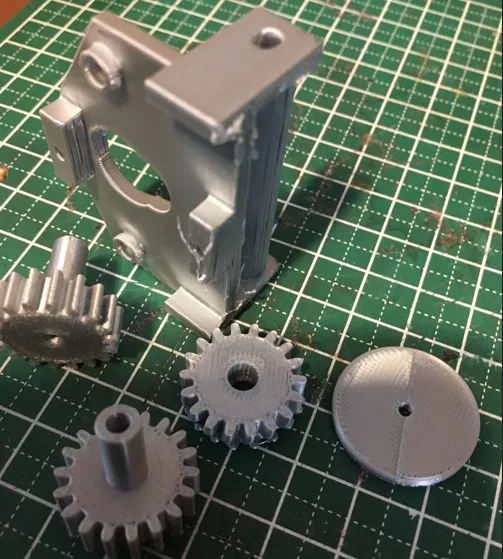

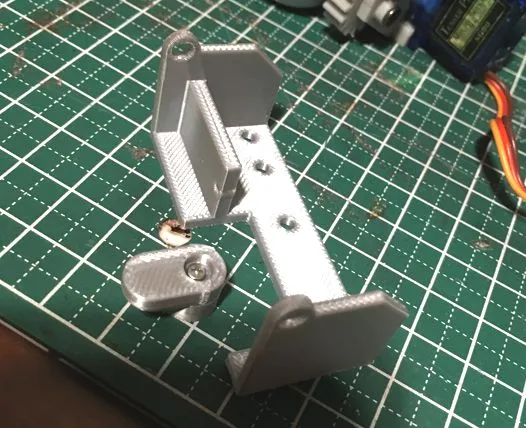

The parts are divided into three sections 5 for the X-base 2 for the Y-axis and 4 for the eyeball set with a size of 70x70x50mm

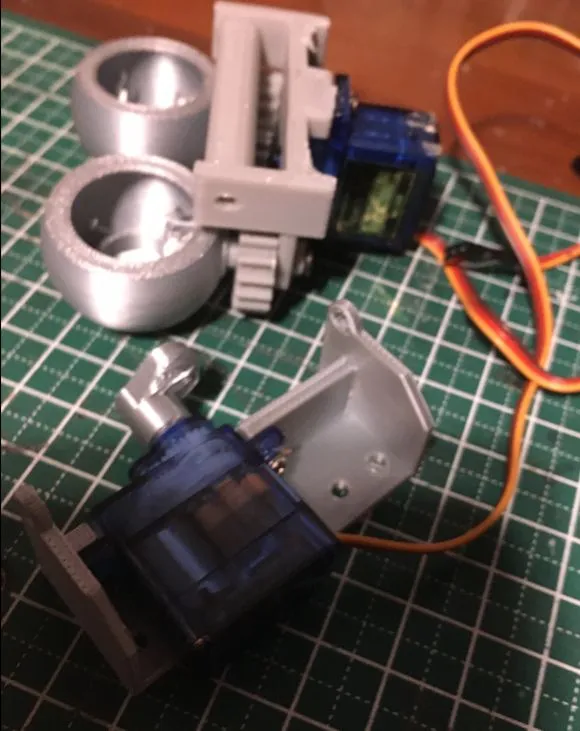

During assembly the servo horn insertion is stiff so please be careful along the shaft

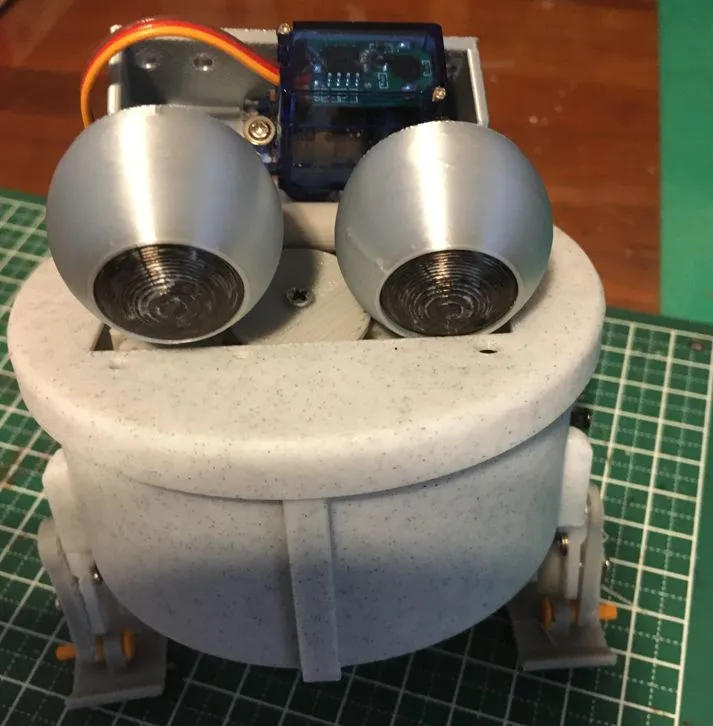

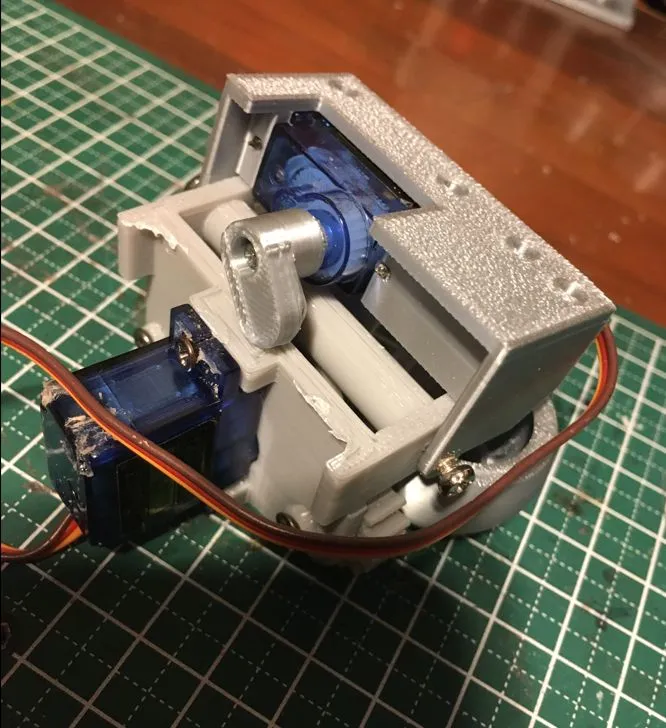

The robot body attaches to the Y-base but I think it can also be used with only X-axis movement
