Headrest Hook with Rotating Latch for Cars & Automobiles
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 30% infill
Designer
2.1 h
3 plates
Open in Bambu Studio
Boost
367
1047
148
34
1.3 k
1.1 k
Released
Description

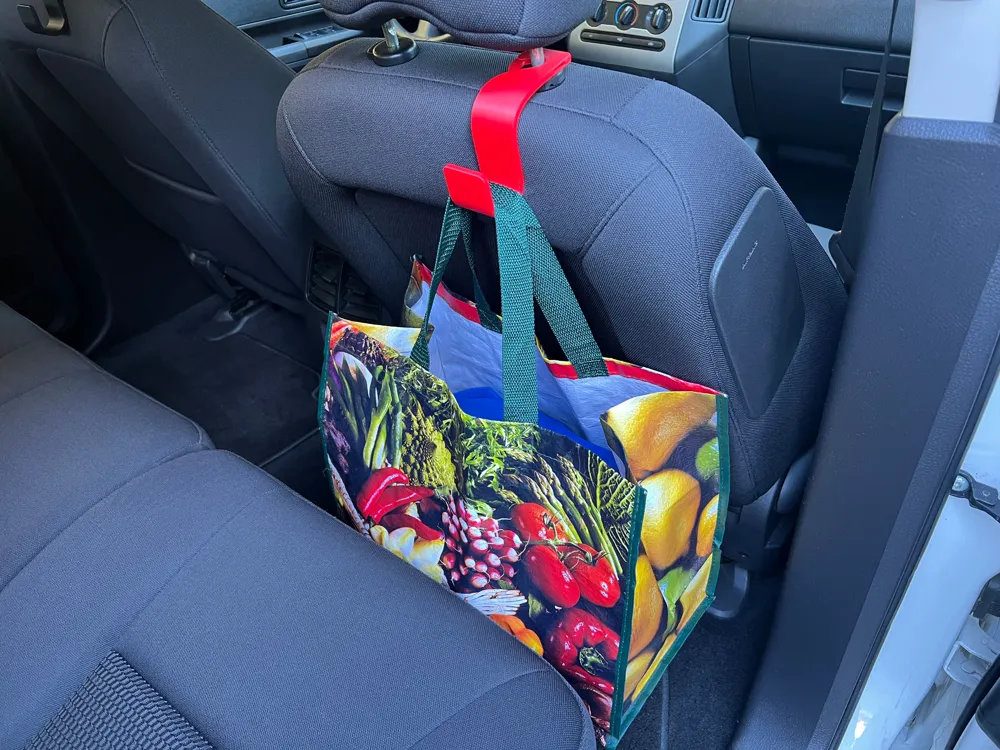

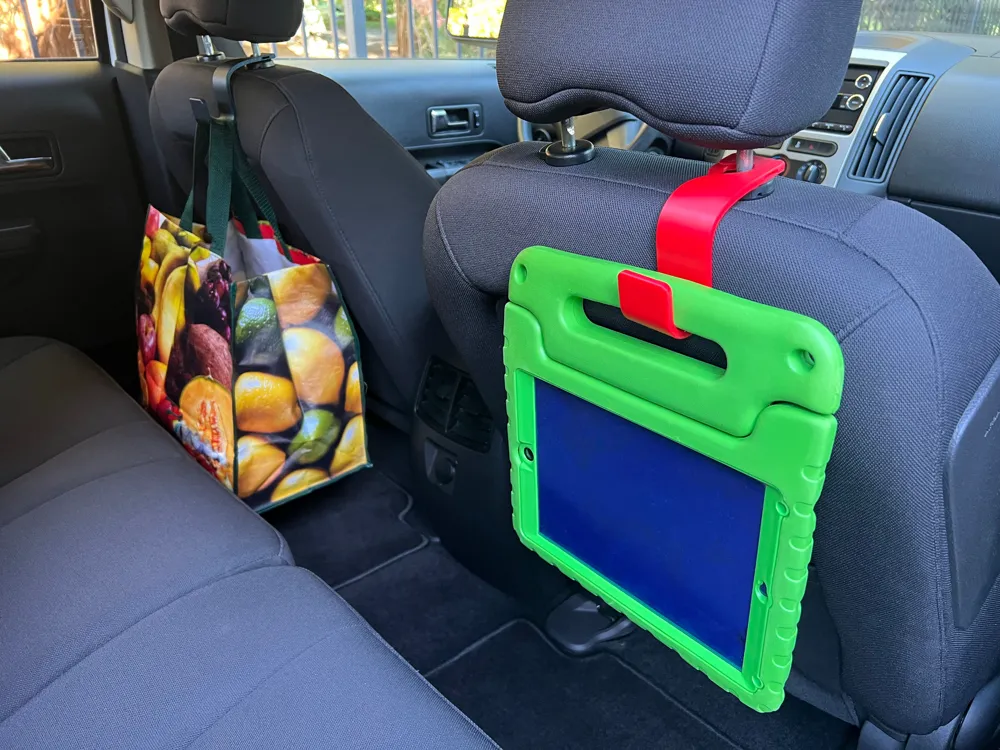

A heavy duty headrest hook to keep your groceries, shopping bags, iPad, purse, and more secure in your car or automobile.
Features:
- Heavy duty hook.
- Rotating latch to avoid accidently knocking the hook from the headrest bar.
Instructions:
- Print the headrest hook and latch.
- Note there is a third model with no latch. If you prefer this model then you do not need to print the latch.

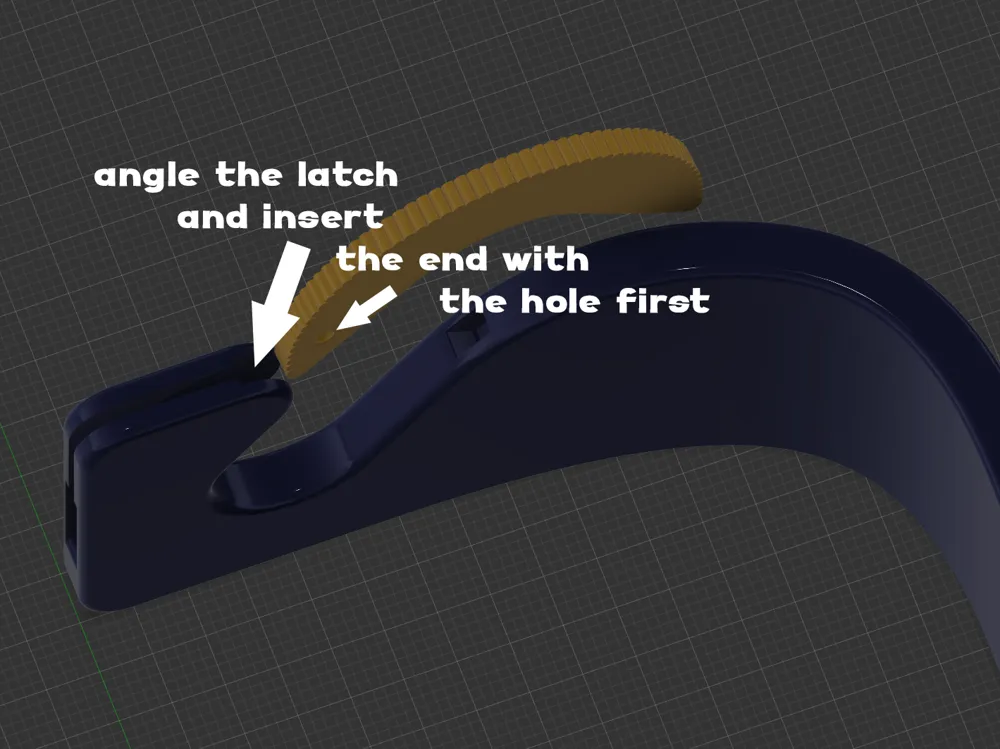

- When inserting the latch, angle it flush to the hook and slide in the end with the hole first through the larger gap at the top section of the hook (see attached image).
- Once inserted, rotate the latch back and forth several times to work out any stiffness.

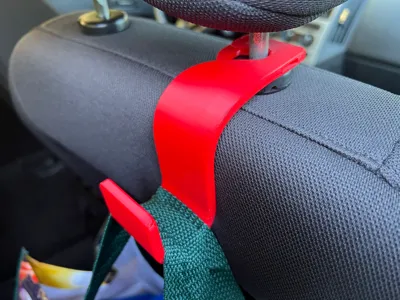

- Attach the hook to your vehicle's headrest bar and rotate the latch to close the hook.
Notes:
- Shown as printed with a 0.4mm nozzle, 0.2mm layer height, 30% gyroid infill, no brim or supports on a textured PEI plate.

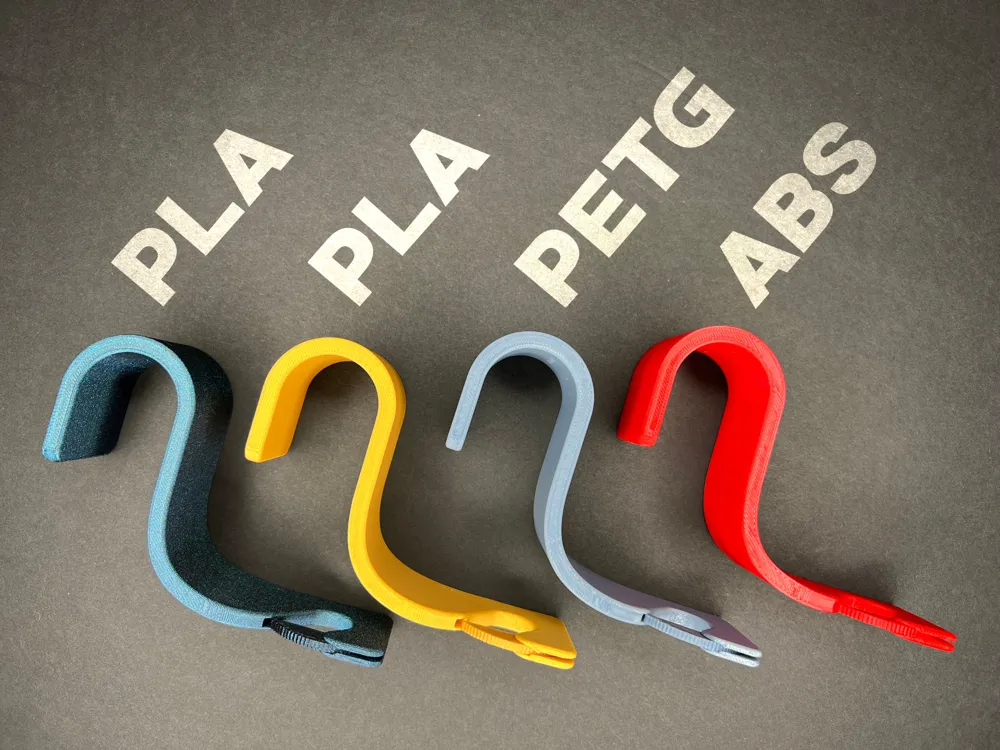

- This model has been tested with PLA, PETG, and ABS.
- This product may also be known as a headrest hanger.
