📟 VoCore 4" Simrig Dash
A clean and compact dash housing for the VoCore 4.3" USB display, designed specifically for use in a simrig 🏎️. The model is split into multiple parts for easy printing .
✨ Features
- Drop-in fit for the VoCore 4" display.

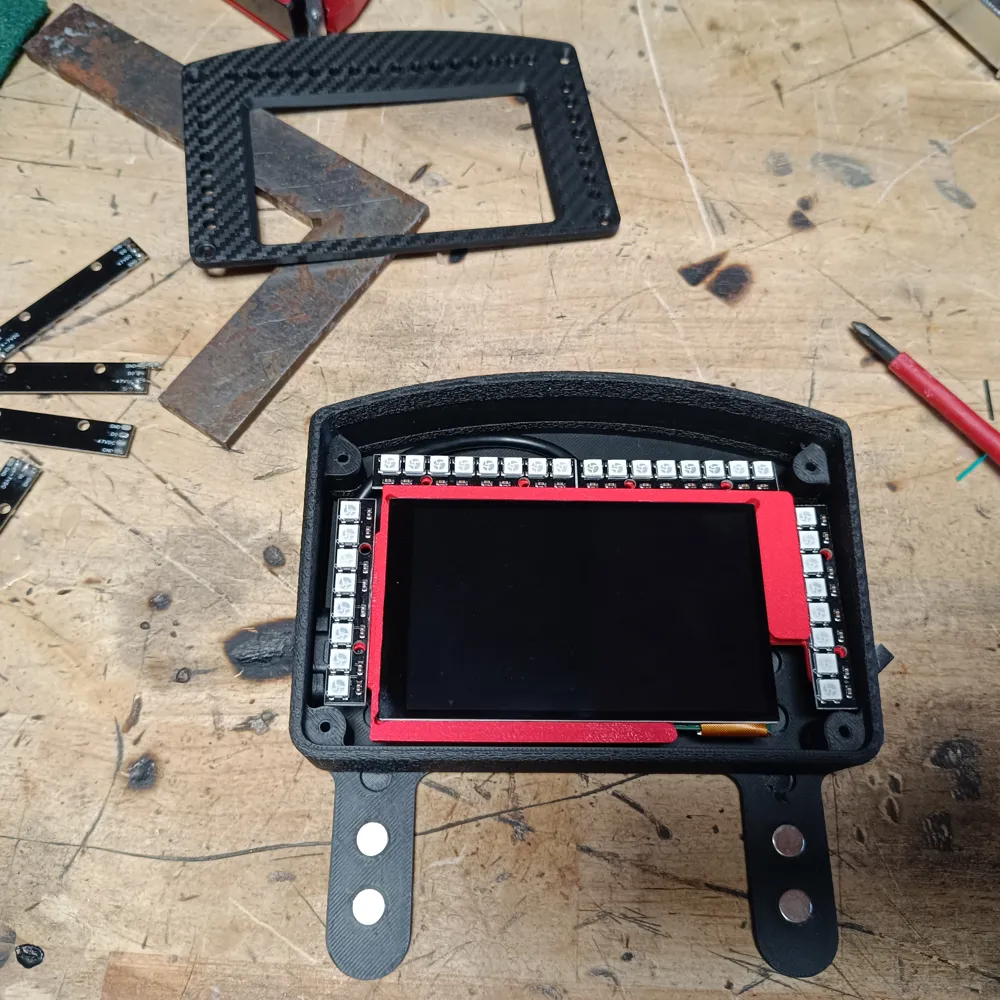

- mounting for 4 x 8 led boards so you cabn use it in simhub (daniel newman 8/16/8 profile)
- Fast & easy to print:fuzzy skin for the case

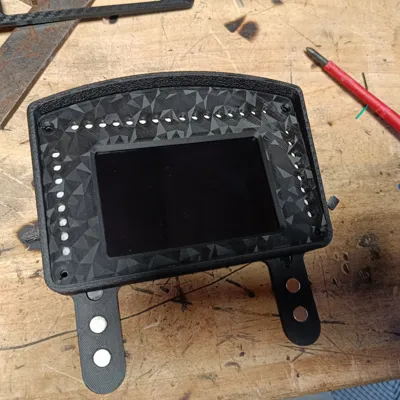

- Rig-friendly design: 2 diffrent munting options 1magnetic or a 1 with a slot
📐 Dimensions
- Main body: approx. 140 × 99 × 31 mm (W × H × D )..
🖨️ Print Settings (recommended)
- Material: PETG (best for heat & strength); PLA also possible.
- Nozzle / Layer height: 0.4 mm / 0.20 or 0.24 mm.
- Walls / Infill: 3 perimeters, 15–25% infill.
- Supports: needed on the screen holder.
- fuzzy skin on the frame
🔌 Assembly
- Test-fit the VoCore 4" into the front cut-out.
- M3 inserts + bolts if you want screw-mounting.
- M4 selftapping screws

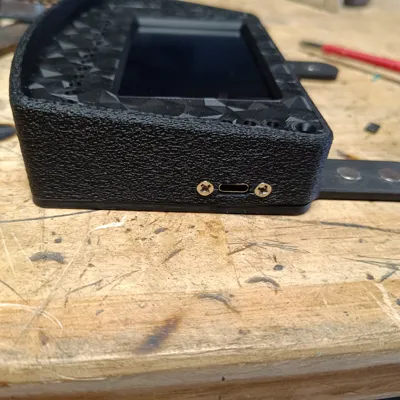

- mount the angle usbC extension panelmount
- Leds can be connected to a gx12 plug on the back
- Mount to your rig:
- On aluminum profile 4020/8040) using T-slot nuts + bolts.
- On a wheelbase plate using screws or magnets
also available in a 4.3 inch
