Low profile gpu support bracket
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
57
116
28
1
612
422
Released
Description
Simple graphics card anti-sag bracket perfect for mATX and mini ITX cases
- low profile- only 29.4mm (no locking nut)

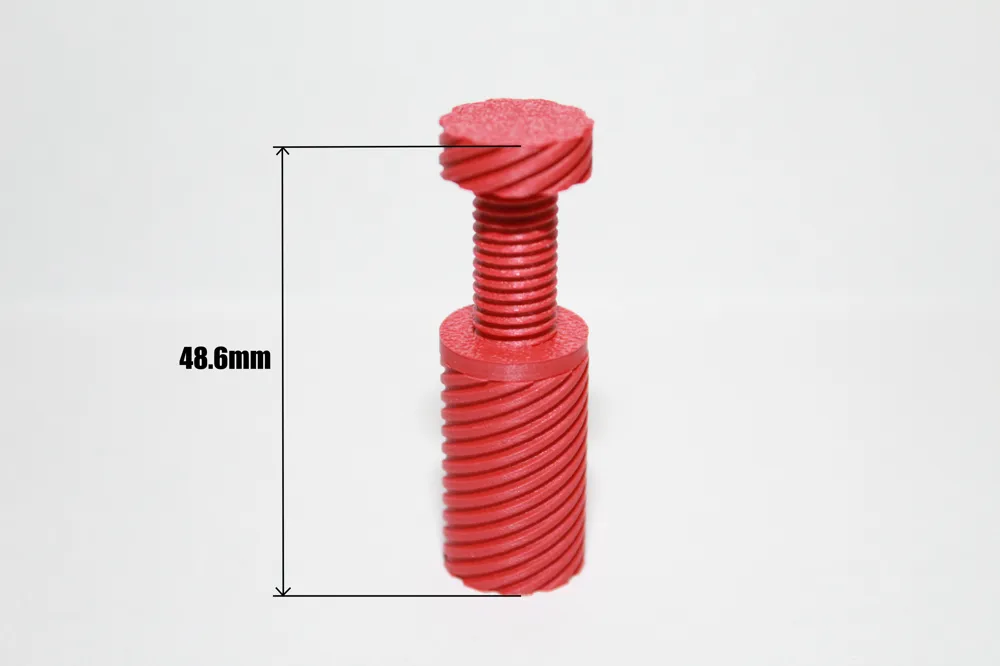

- maximum height of 48.6mm

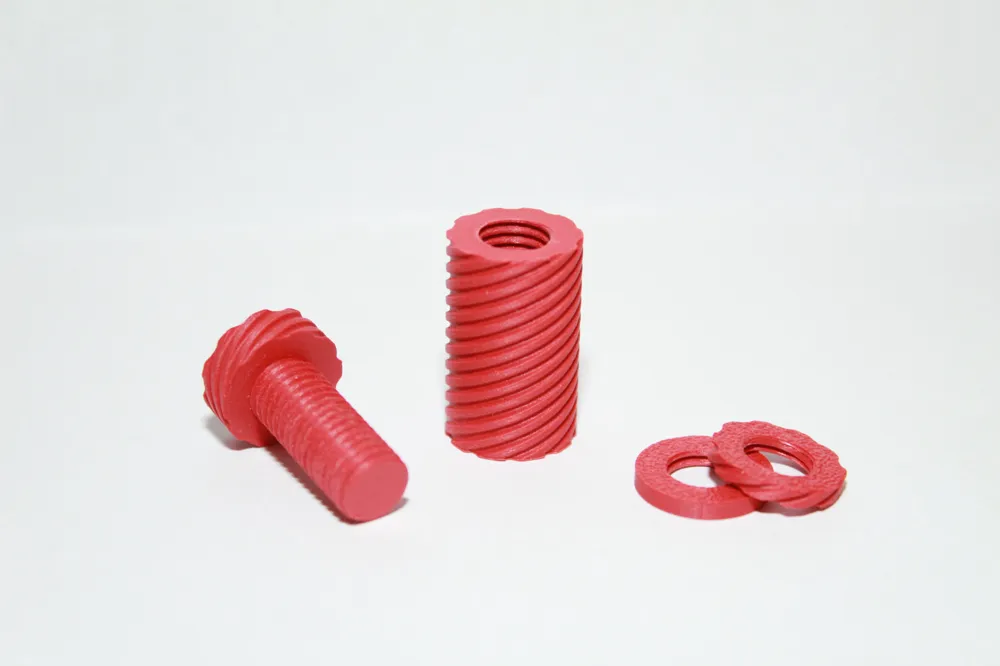

- file includes 2 designs of the locking nut, a smooth one and a half-knurled one like the rest of the design
- the height of the locking nuts is 2mm
Assembly:
- put the locking nut onto the male part of the screw mechanism
- The nut will go on very stiff, make sure you are putting it on straight to avoid damaging the threads. The stiffness of the nut is intentional so it will be a tight fit and the screw won't come loose on it's own.
- screw the male part of the mechanism into the female part it should screw in really easelly.

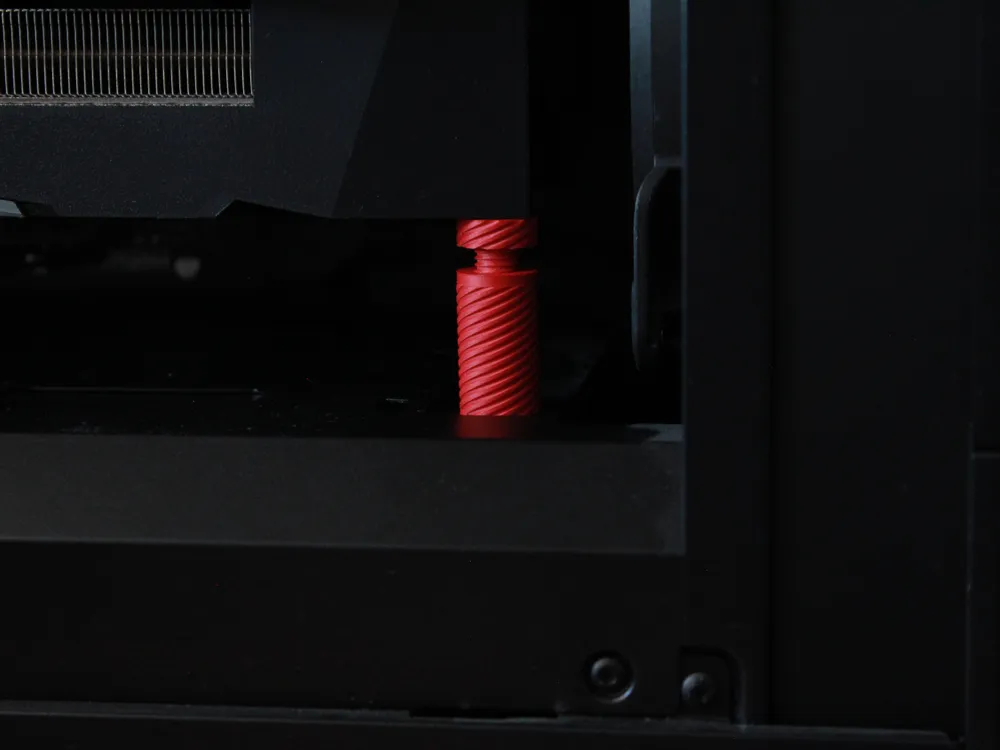

- fit the bracket under your gpu and set the height of the male part
- if your height is set tighten the locking nut snugly to the female part
If you find any problems with my desing, feel free to let me know in the comments and I'll try to resolve them asap.
