Model Y Juniper 13 pin trailer plug spacer
IP Report
Print Profile(2)
M5 NUTS WITH PAUSE - 0.2mm layer, 4 walls, 20% infill
Designer
5.5 h
1 plate
M5 BRASS INSERTS - 0.2mm layer, 4 walls, 20% infill
Designer
5.1 h
1 plate
Open in Bambu Studio
Boost
28
112
6
1
80
25
Released
Description
NB!!! If printing first profile, the print pauses when it's time to insert 3x M5 nuts. Press resume print after that.

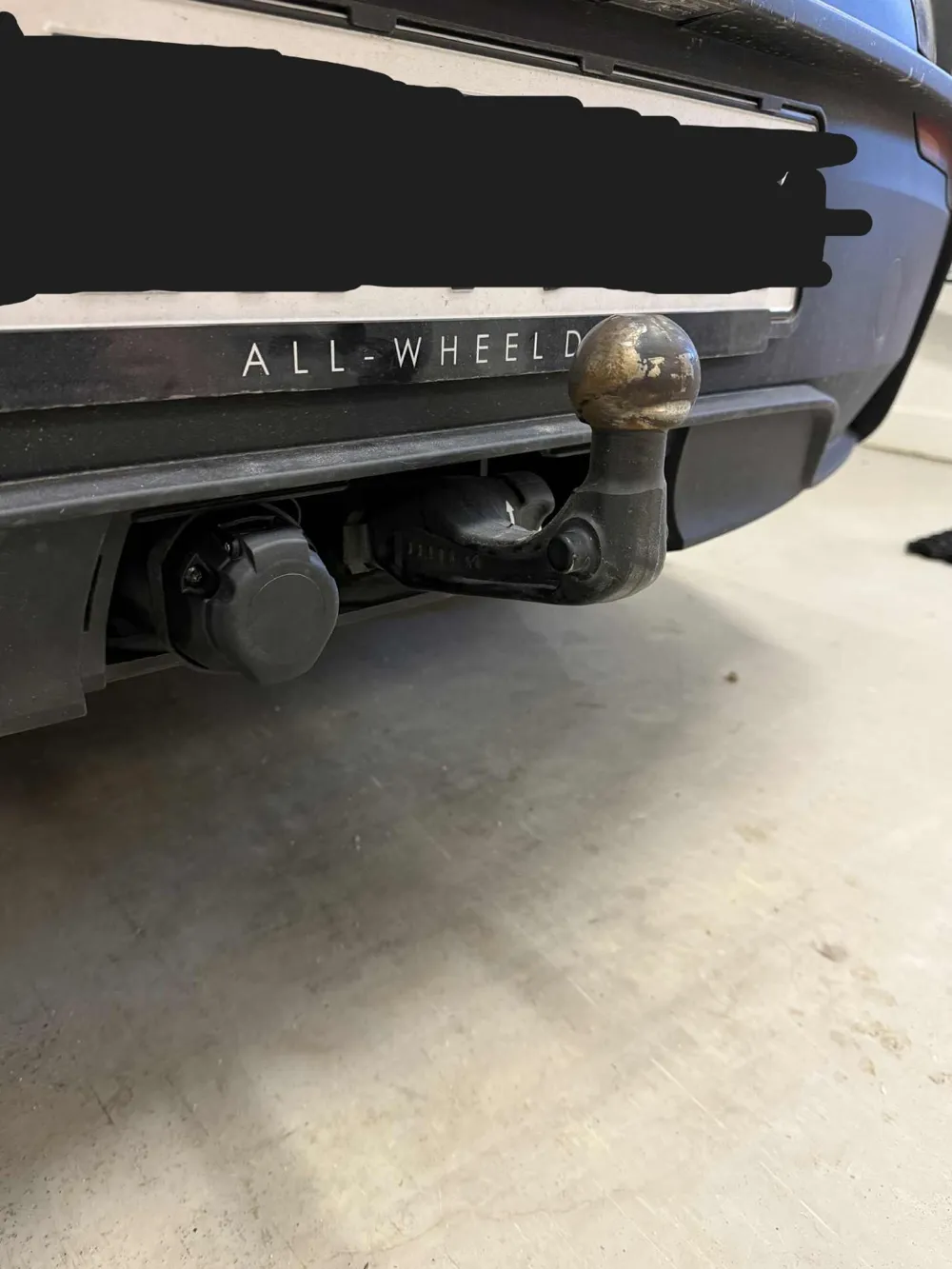

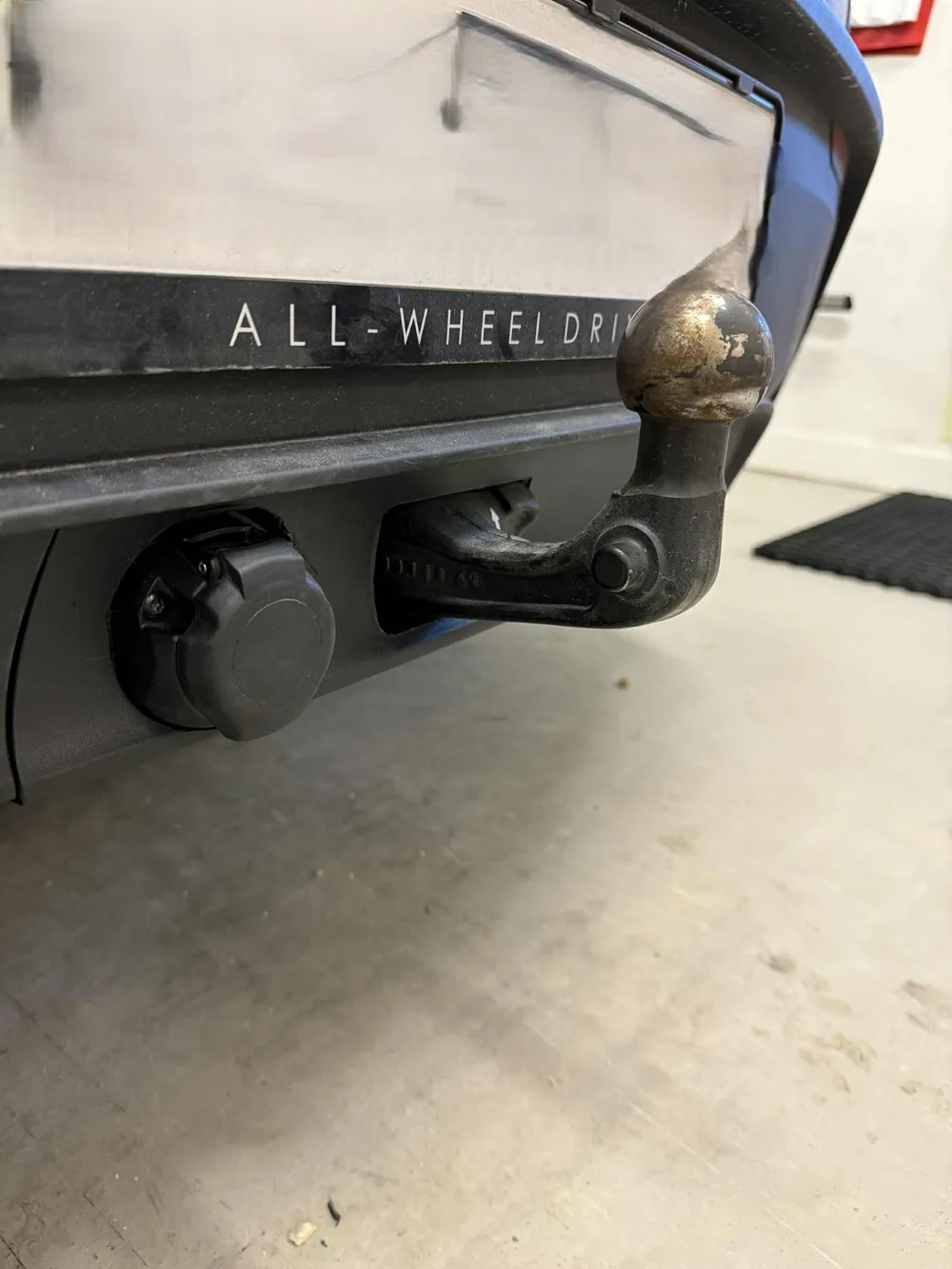

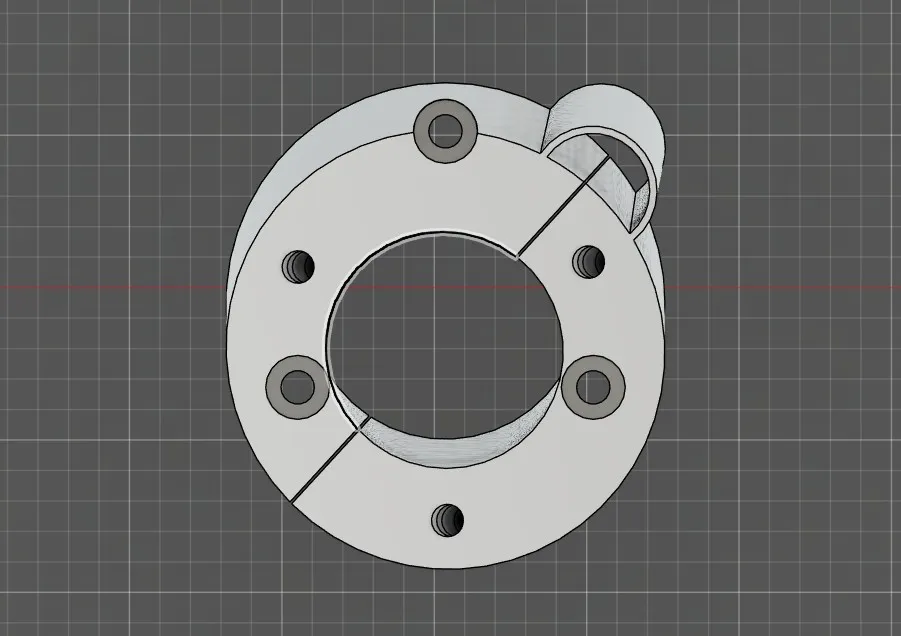

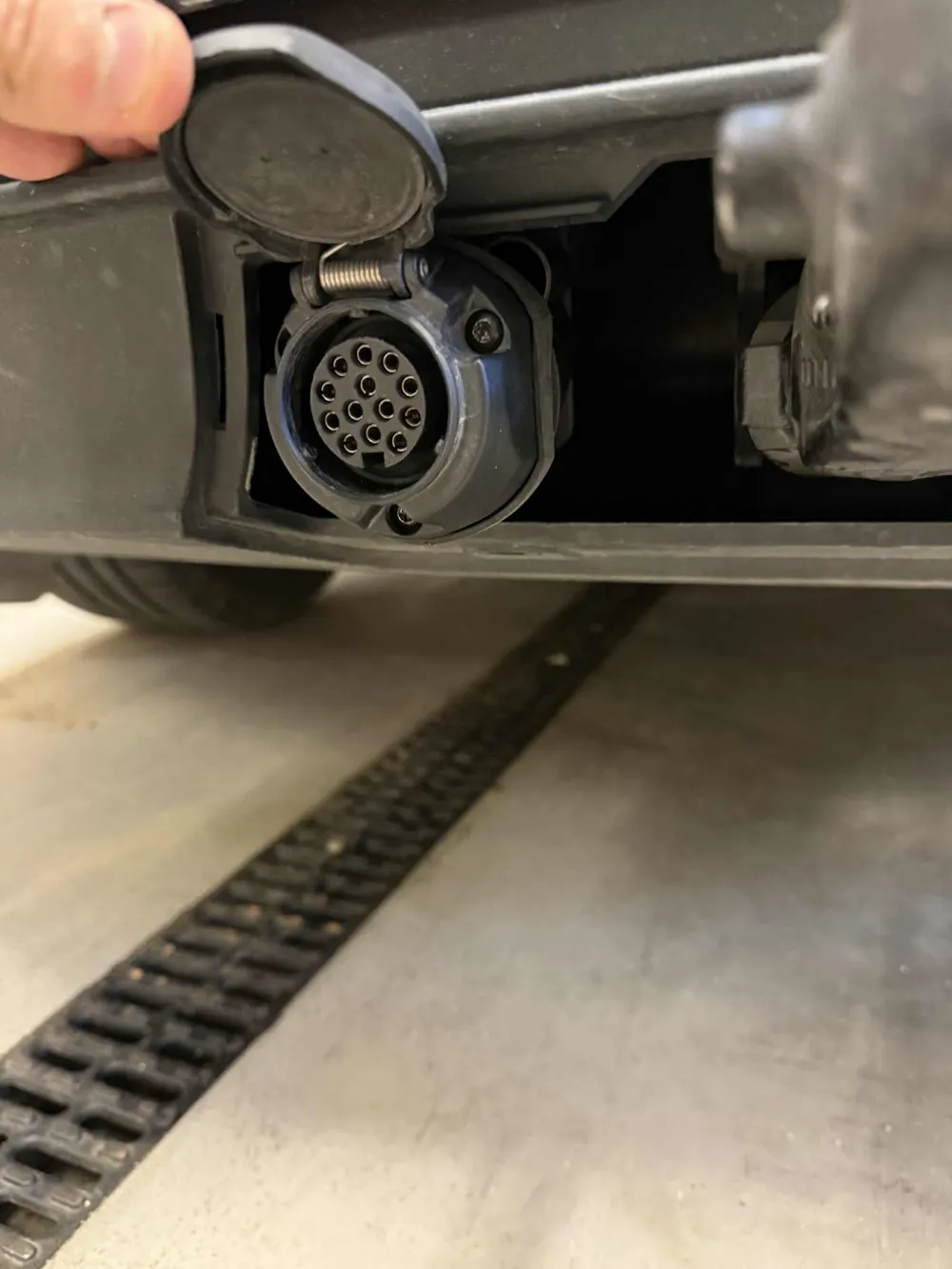

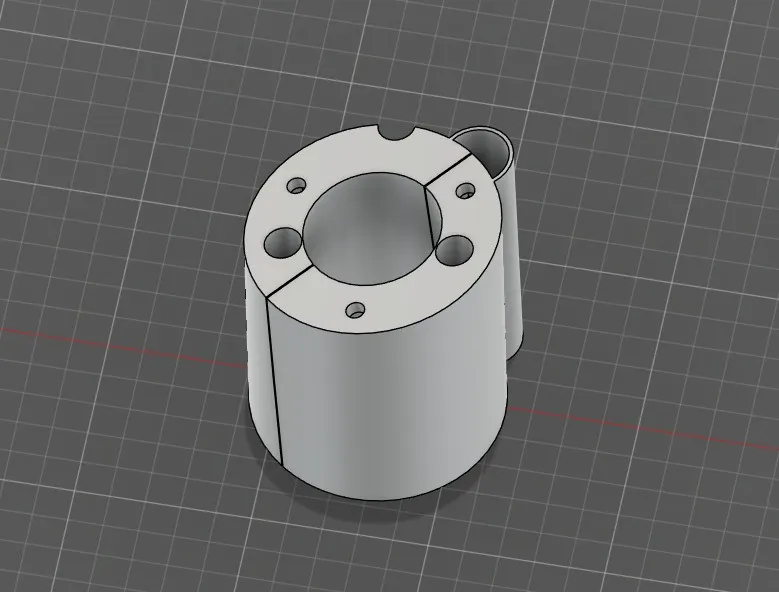

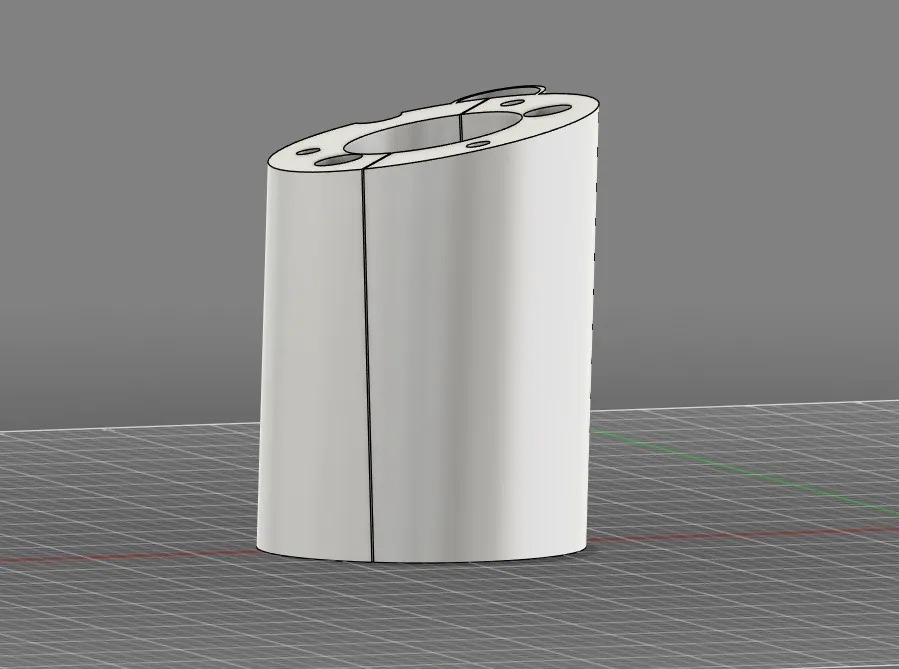

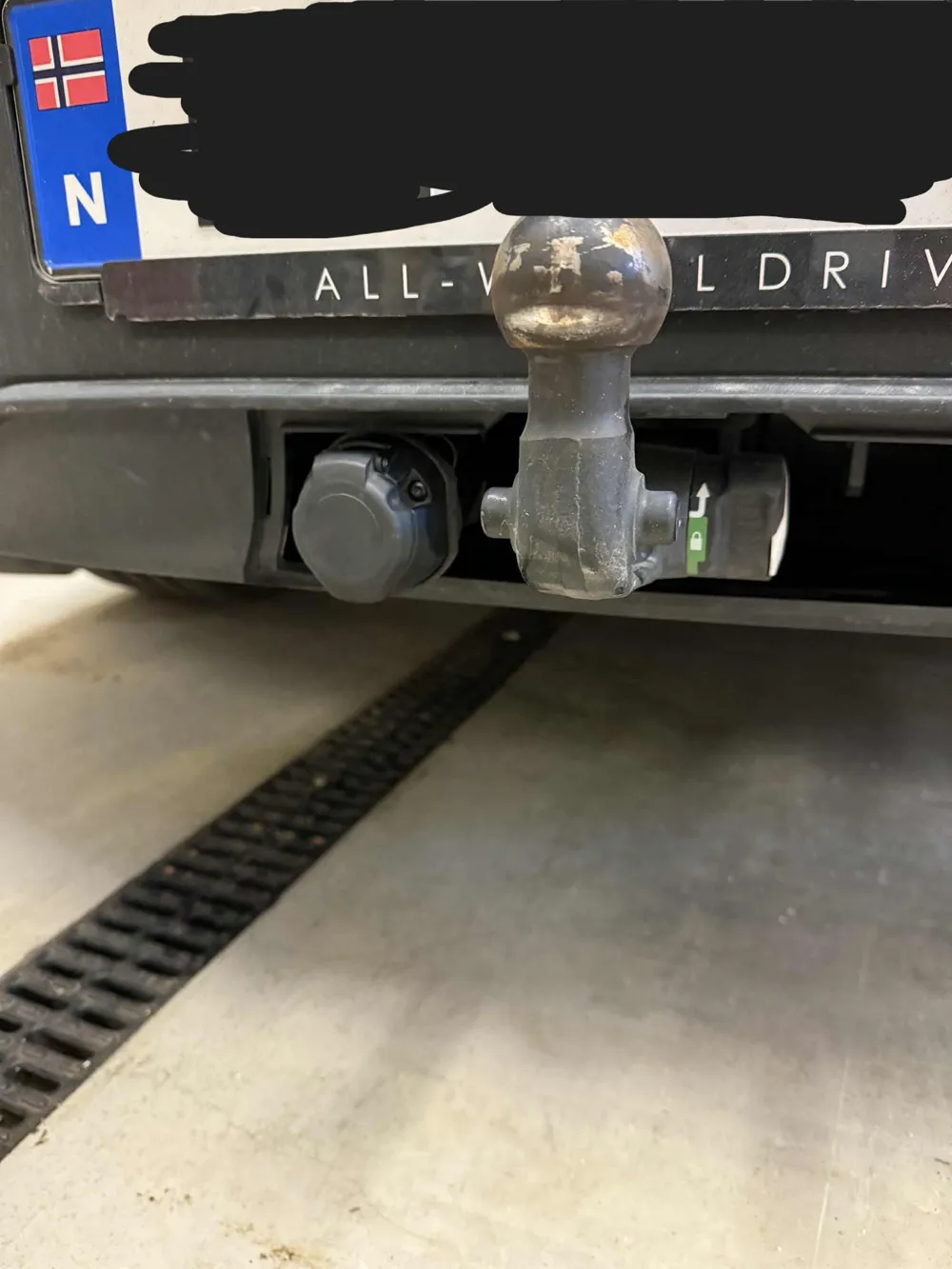

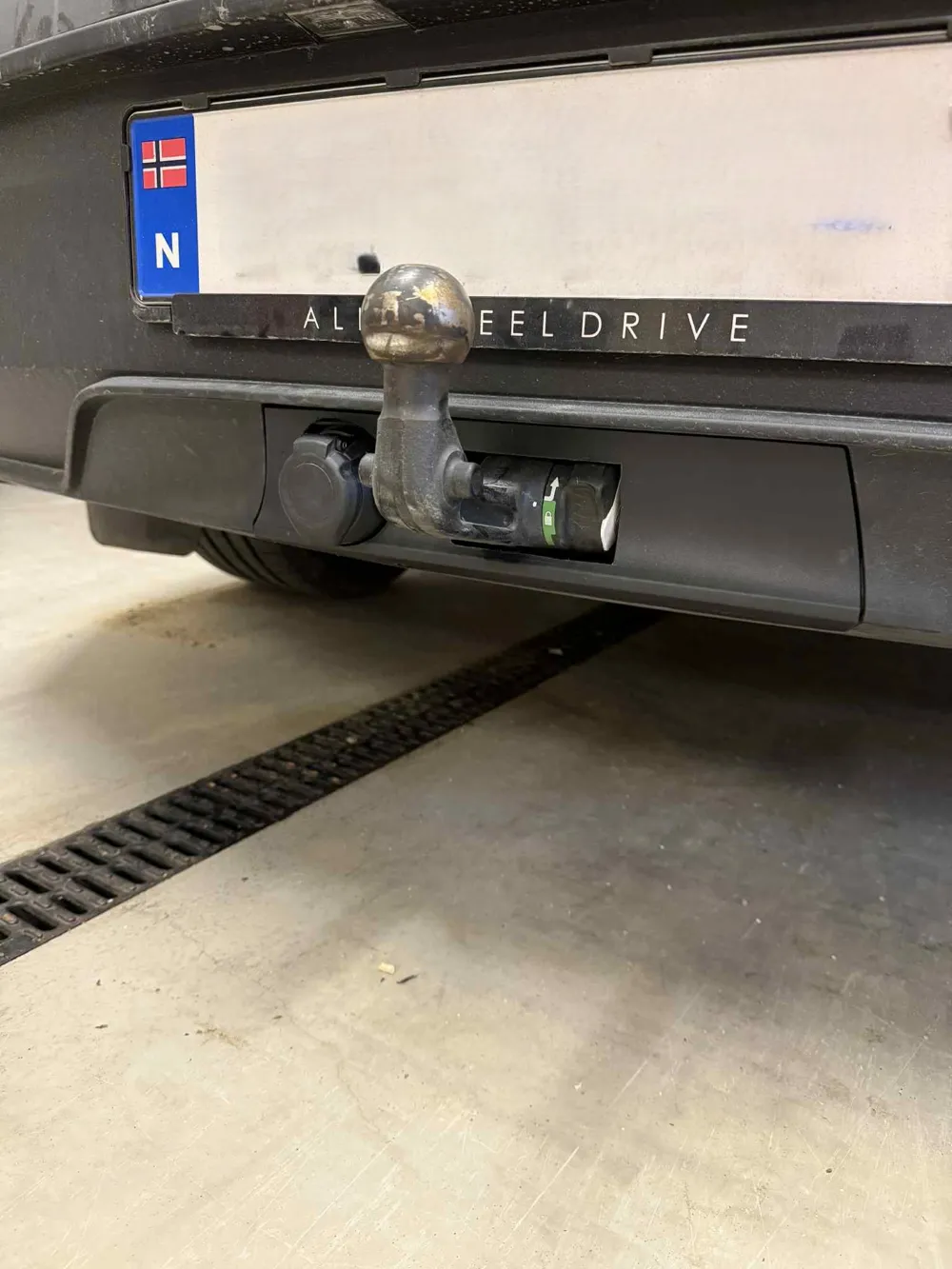

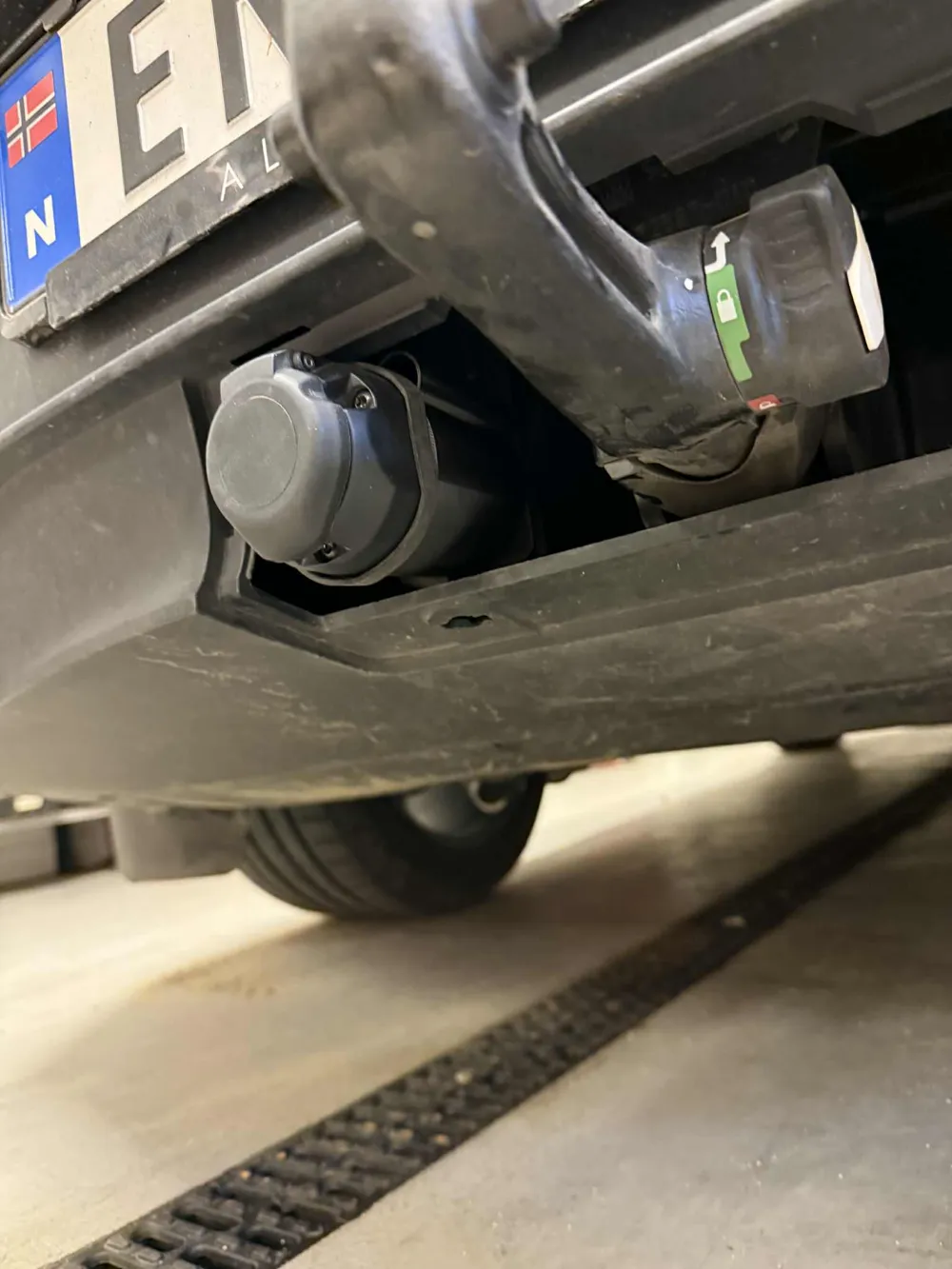

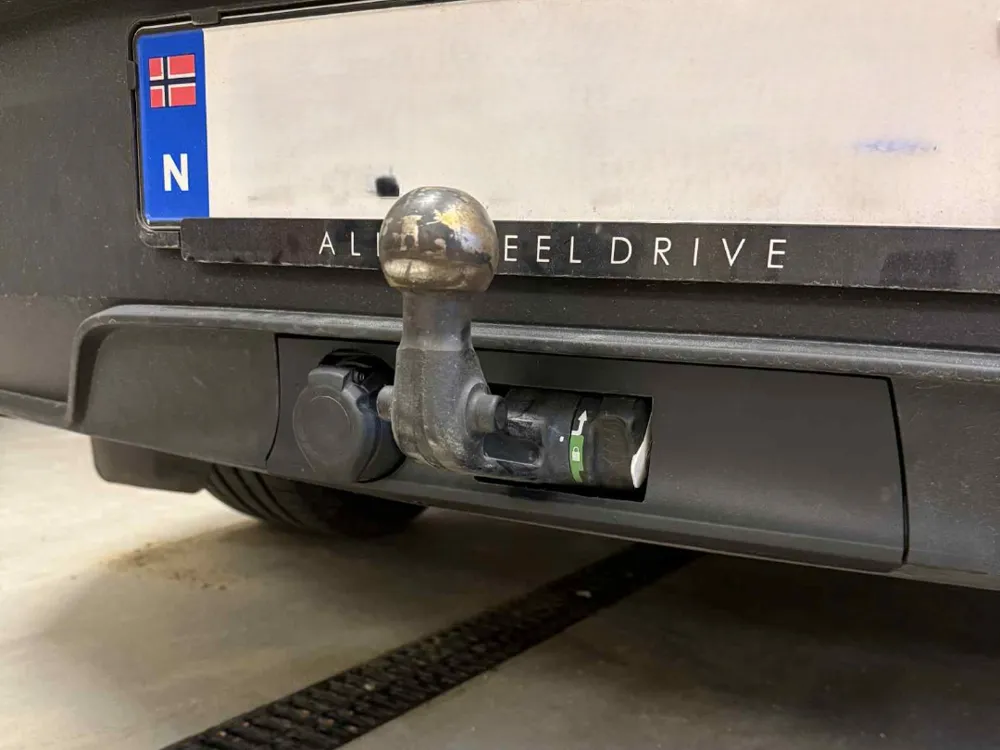

EU 13 pin trailer plug spacer that fits the new Model Y Juniper. It also rotates the plug by 180° so it's the correct way, so water has less chance to come in. Also added an angle to it so it sits straight.
You need following:
- 3x 20mm M5 bolt. Can be longer, but not shorter than 20mm.
- 3x M5 nuts OR 3x M5 brass inserts. Depending which print profile you want to use.
Installation:

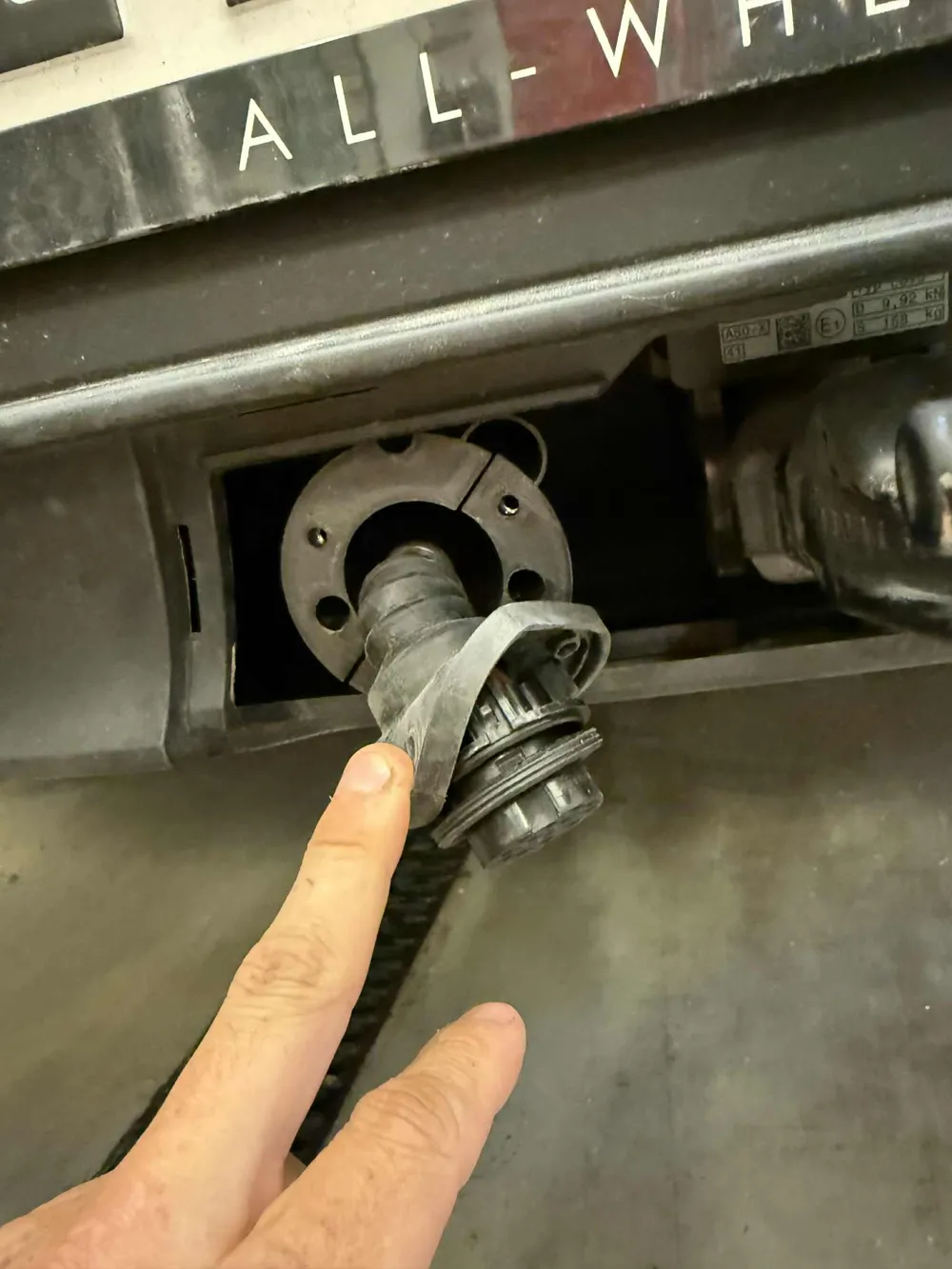

Unscrew the 3x M5 bolts thats on the 13 pin plug

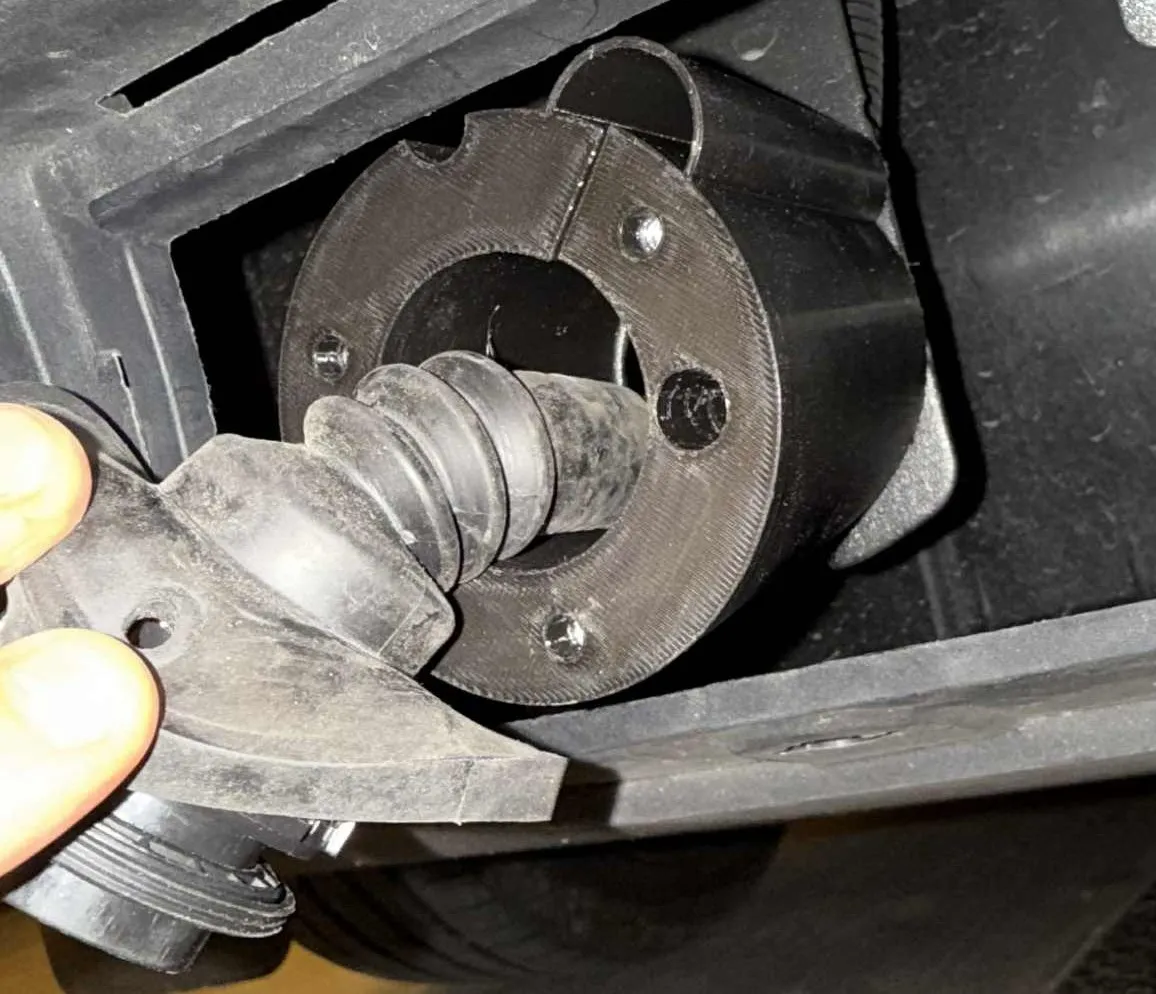

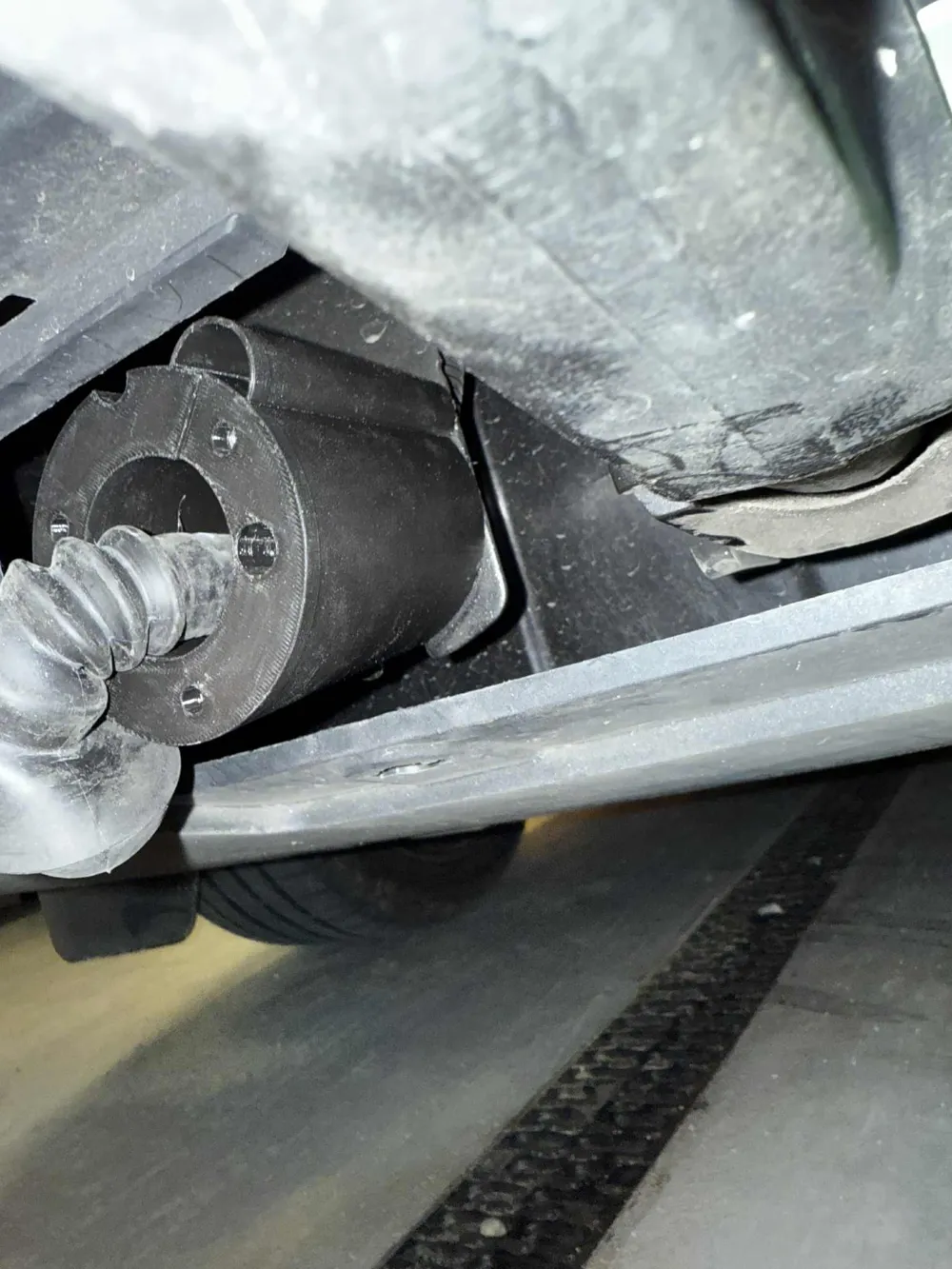

Fasten the spacer with the 3x 20mm M5 bolts.
Rotate the 13 pin plug and fasten it with the original torx M5 bolts to the spacer.
