Zhengdian Yuanzi T90 Storage Box A1mini Printable

2025.09.03: profile uploaded, adapted for 245 tip (4.5mm diameter), corrected soldering iron body hole position

2025.08.26: redesigning the top liner, suitable for 245 tip

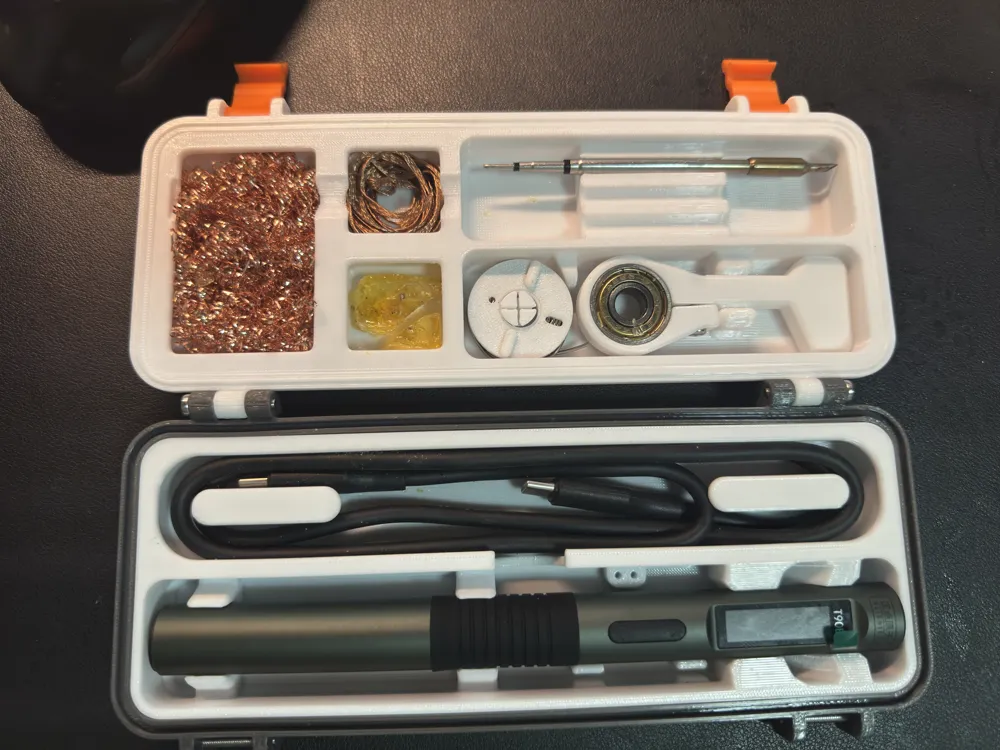

Zhengdian Atom T90 storage box, mainly for storing cables and two soldering iron tips, modified from https://www.printables.com/model/345083-rugged-multipart-pinecilts100ts80-case-v2, as both top and bottom parts are partially cut to accommodate the T90, pay attention to the placement direction of the top and bottom liners corresponding to the cut positions

Main improvements:

1. Adapted for T90 size

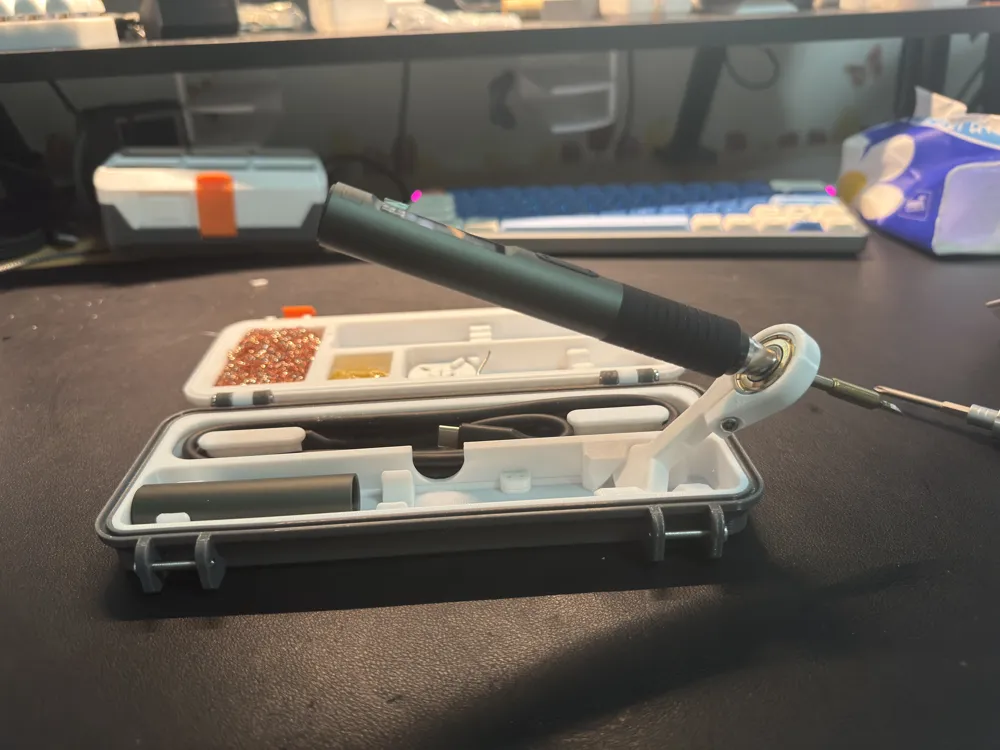

2. More secure soldering iron stand that can be firmly fixed in the storage box https://www.printables.com/model/393246-pinecil-ts100-ts101-ts80-ts80p-thickened-stand

3. Added opening for easier access to the soldering iron



Bill of materials:

1. M3 x 20 6 pieces (for case)
2. M3 nuts 7 pieces (6 for case and 1 for soldering iron stand)
3. 608 bearing 1 piece (soldering iron stand)
4. M3 x 6 (for soldering iron stand, length can vary)
