Any Size Key Holder, Multi-Tool Style

🗝️ Swiss Army knife Style Any Size Keys Holder, No Hardware Required

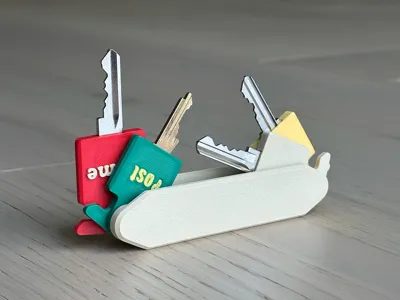

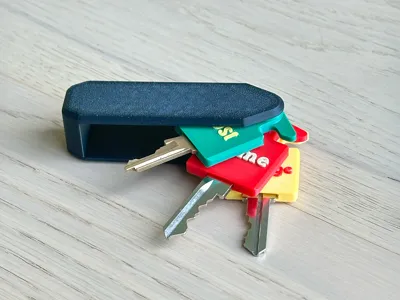

This compact, Swiss Army knife–inspired key holder is designed to organize any number of keys of any size. With fully customizable Key Cover and Key Holder Generators, you can create tailored covers for each key and scale the holder to match your needs.

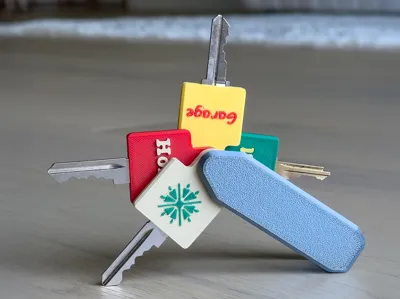

It features a stable pivoting mechanism that keeps keys in place when rotated, offering satisfying clacky haptic feedback—almost like a fidget toy.


🚀 (BETA): Added new, stronger cover, checkout end of Description

🖨️ Printing Plan Overview

1. Generate key covers using the Key Cover Generator based on the shape and size of each key.
2. Add a Text label (optional)
3. Set up a print pause to embed your key mid-print.
4. Generate the main key holder model, specifying the total number of keys and the size of the largest key.
5. Print and assemble the components.

🔧 Key Cover Generator Instructions.

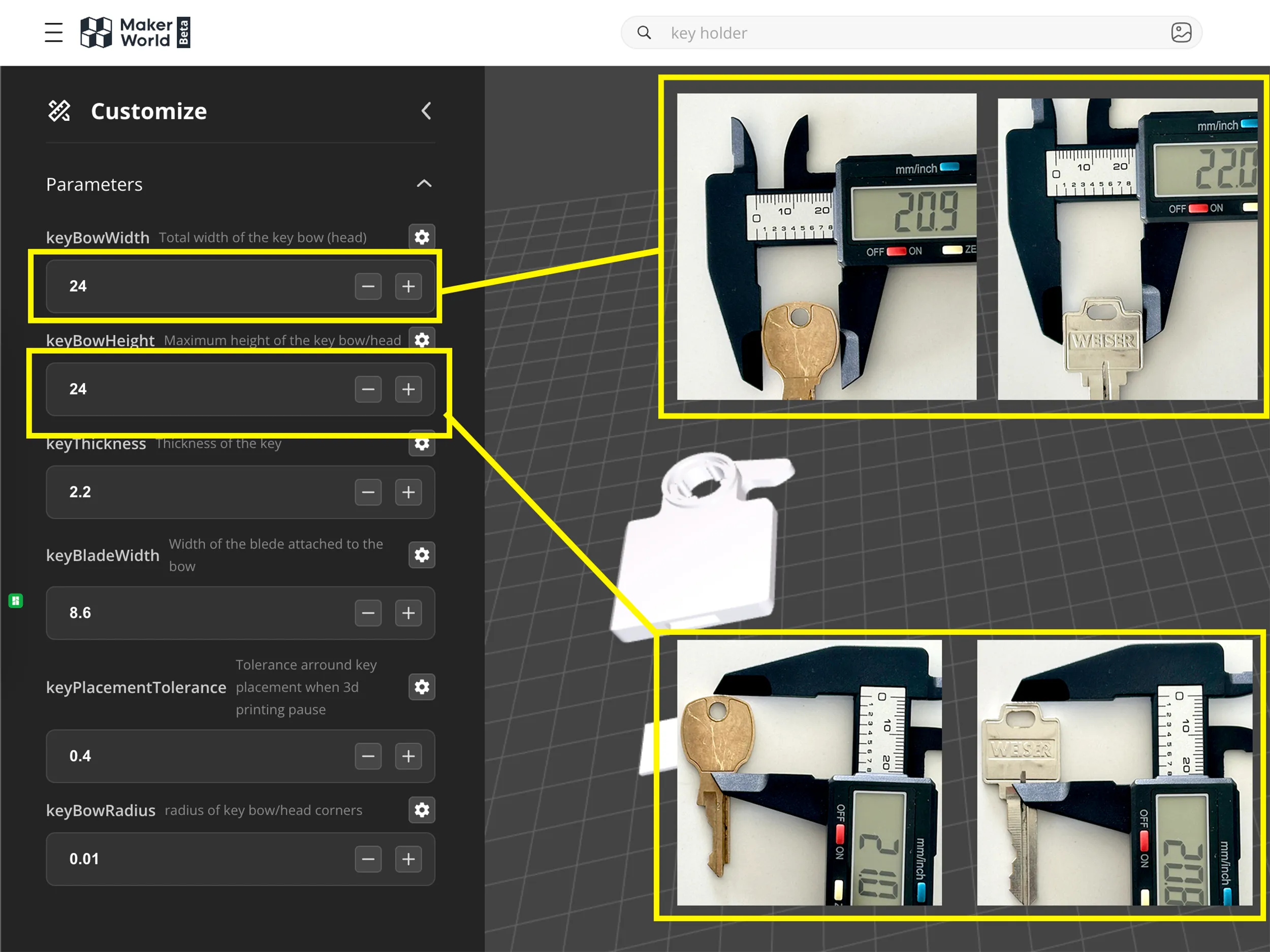

1. Enter dimensions of your key’s bow (top part).

 2. Input key thickness and blade width where it meets the bow.

Note: If your key thickness exceeds 3.8mm, use the new special cover generator “key-cover-generator-double-thickness”, which allows you to create a cover for up to 7.8mm. Just ensure that to count this as two keys when generating the holder for the extra-thick key.

3. Download and open the model in Bambu Studio

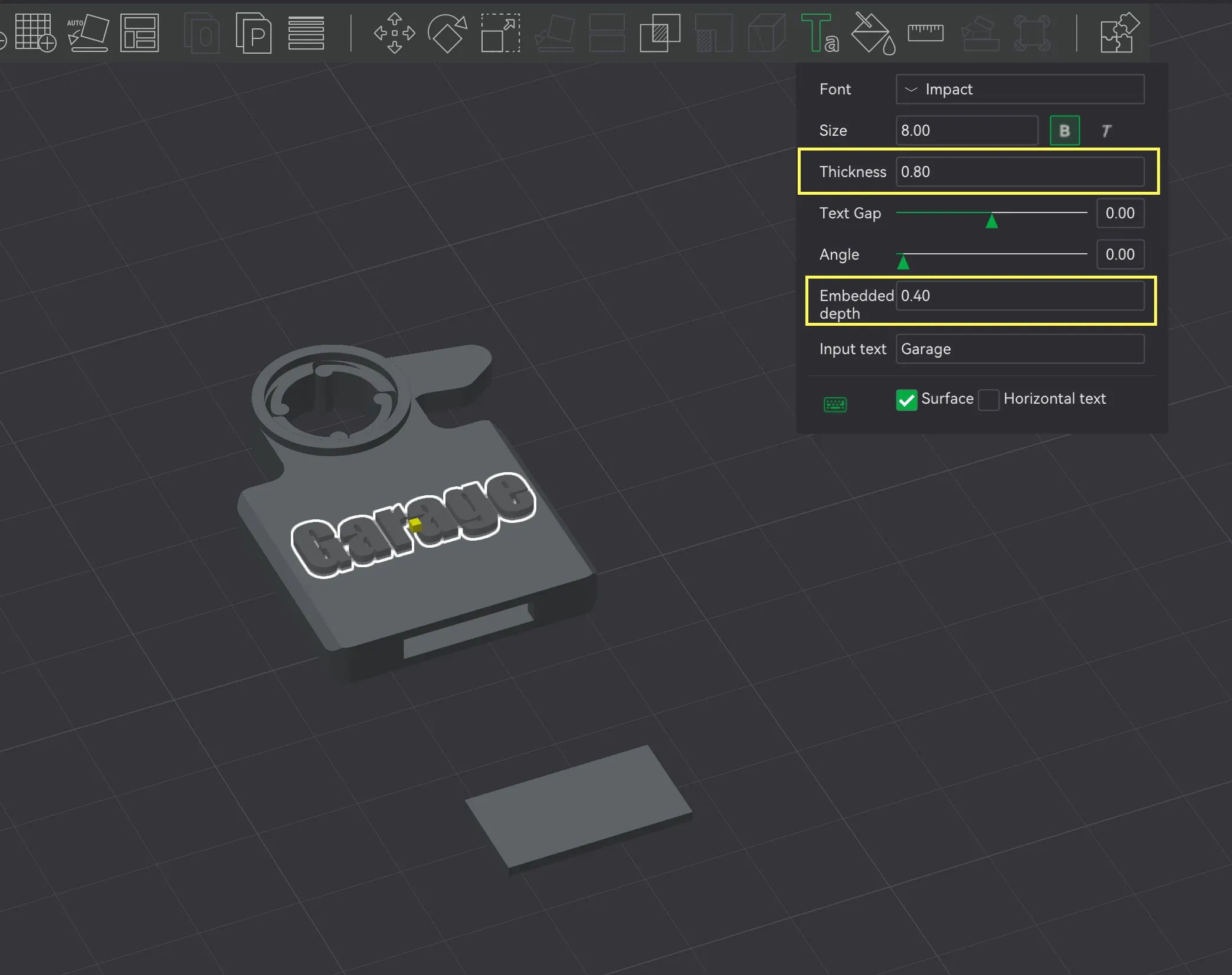

• Optionally, add a label using text.
• Keep text thickness ≤ 1mm and depth ≥ 0.4mm for clarity

Important

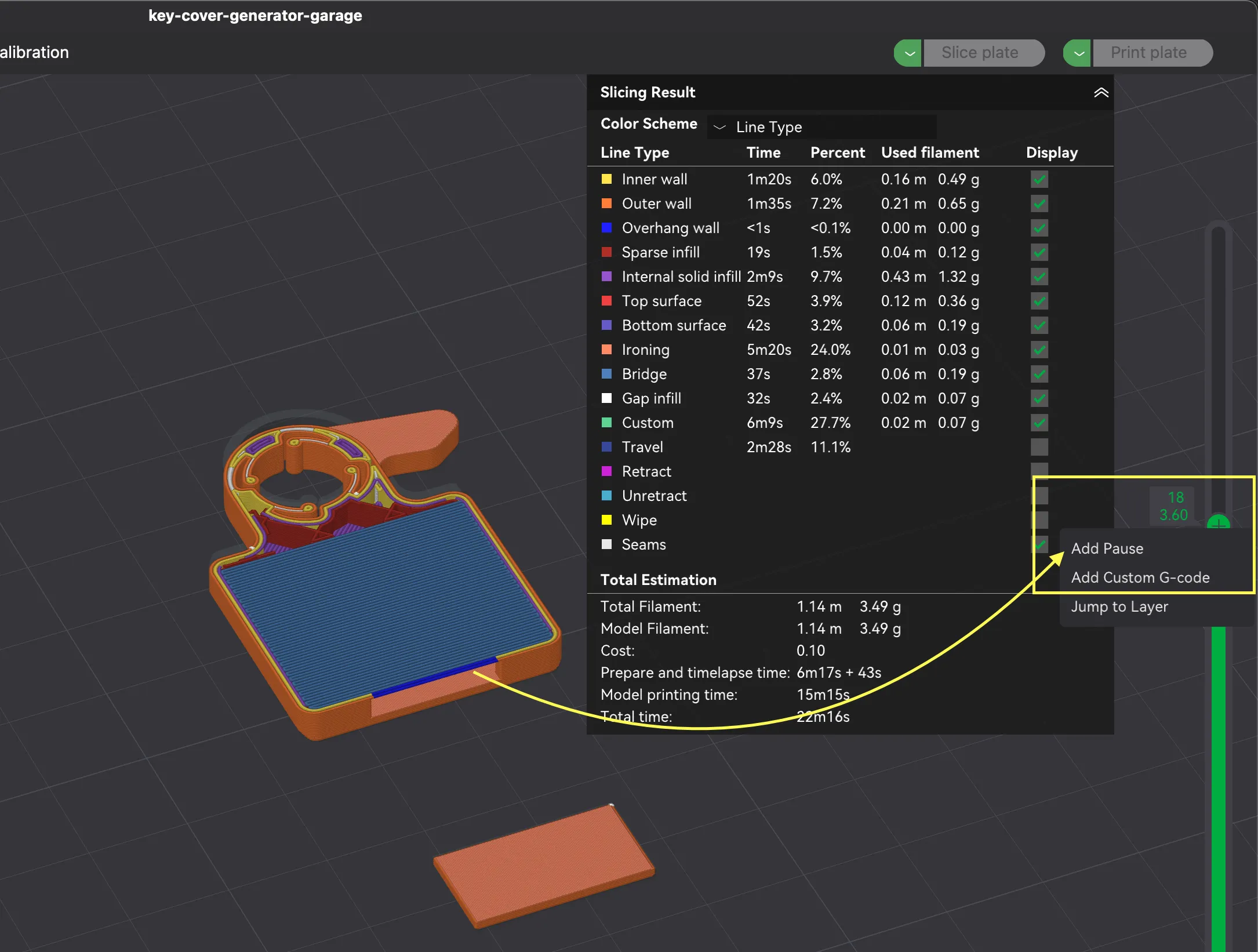

4.  Set a print pause right before the cavity layer begins.

• Once paused, place the key into the print.
• Resume printing to embed it securely—just like inserting magnets mid-print.

🔧 Key Holder Generator Instructions

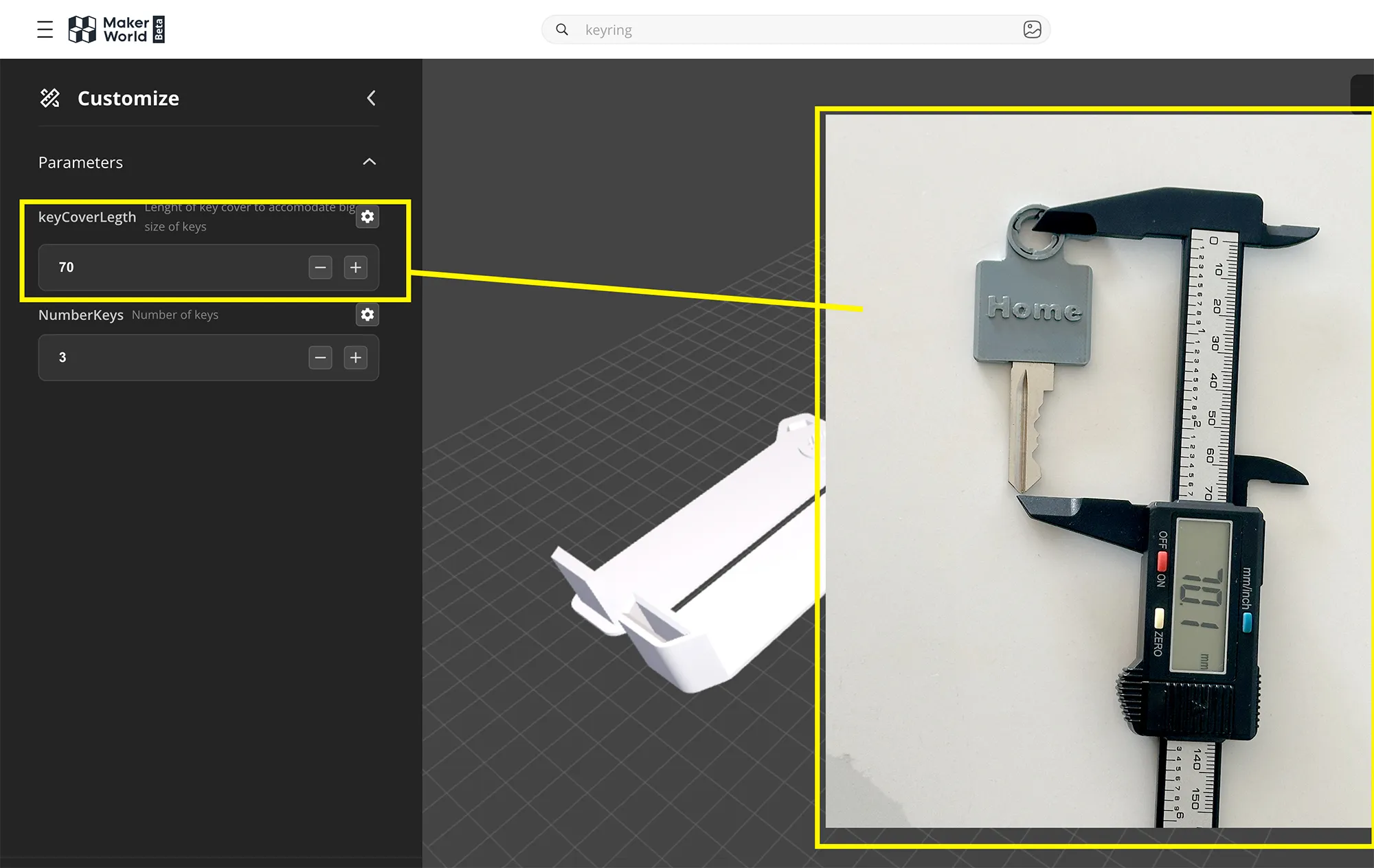

1. Enter the length of your longest key and the number of keys you want to hold.
2. Download and print the generated holder model.


Then download and print,

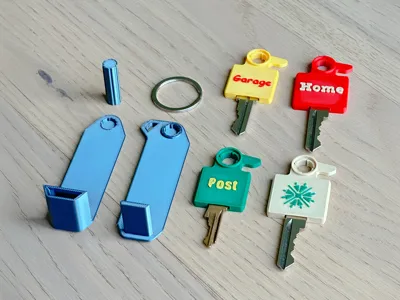

🧩 Assembly Instructions

1. Insert a shaft peg to one side of the holder, the side with the keychain hole.
2. Add your keys, aligning the notched side opposite the keychain hole.
3. Place the second outer cover on top and secure it.


✨ Special Key cover instructions

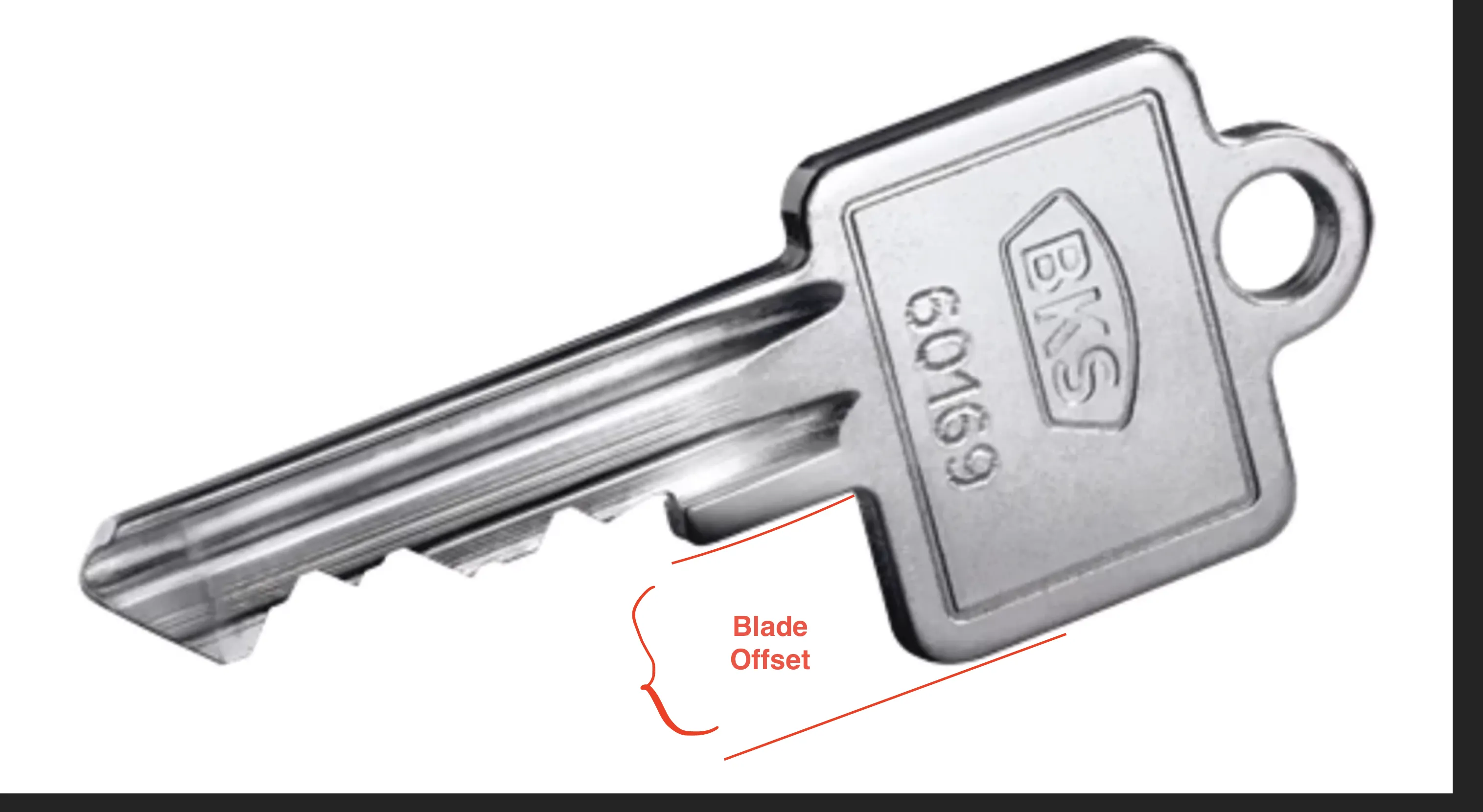

Not centered key blade

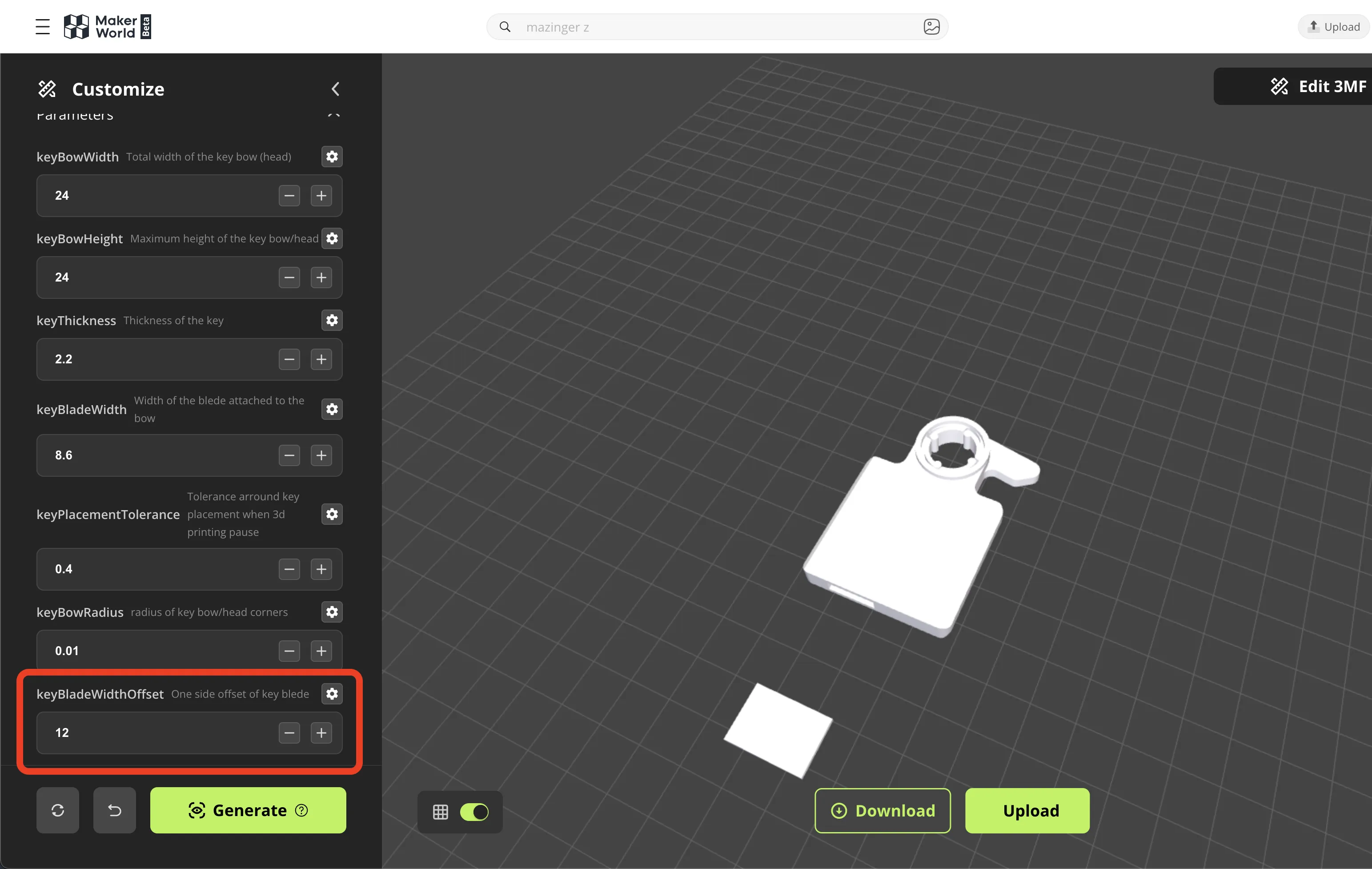

When your key blade is not centered, use `key-cover-generator-with-blade-offset` generator and fill one side of the key blade offset

--------------------------------------------------------------------------------------------------------------------------------------

🚀 BETA Release

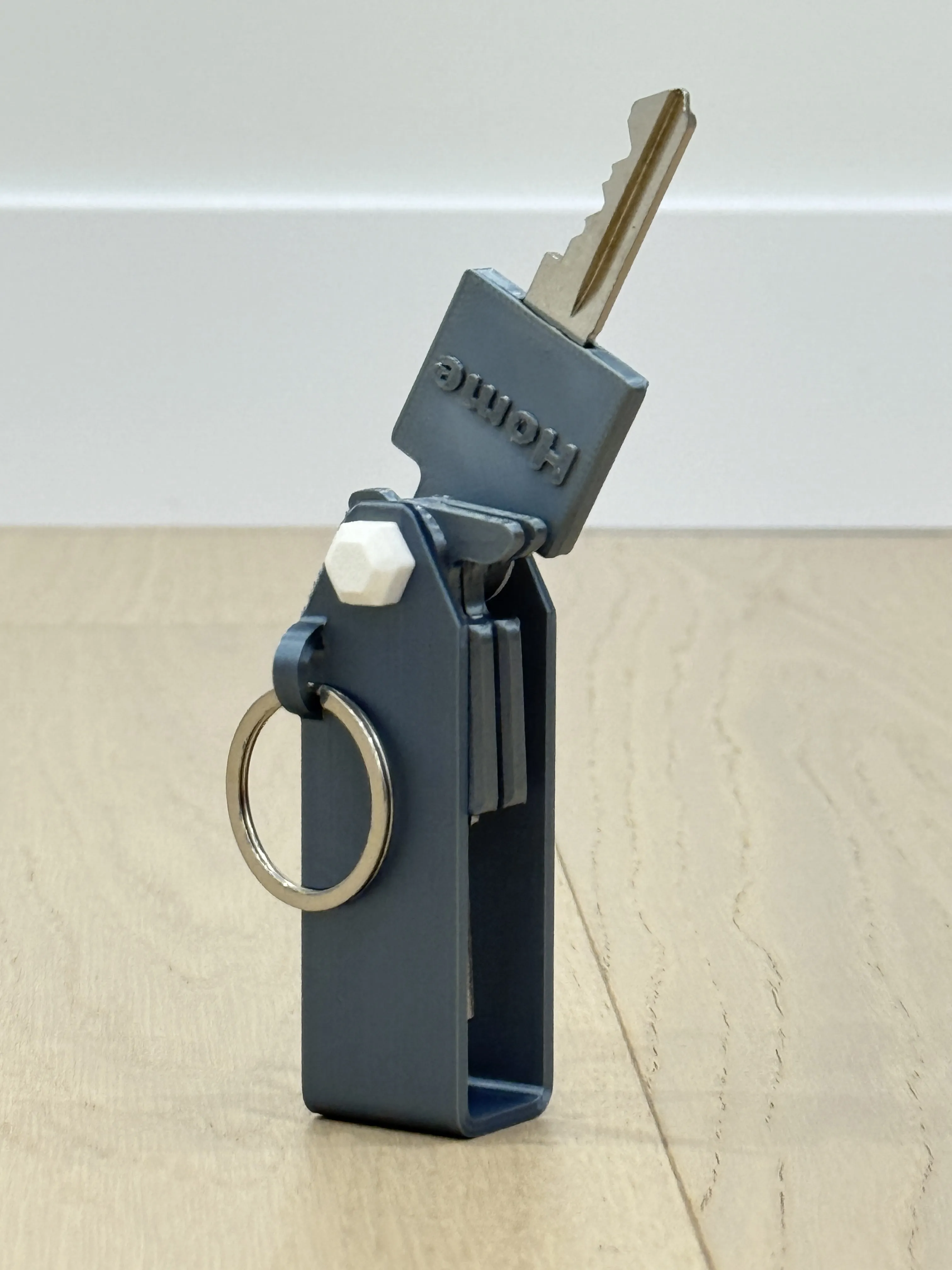

* New, Stronger, and lighter Key cover version.

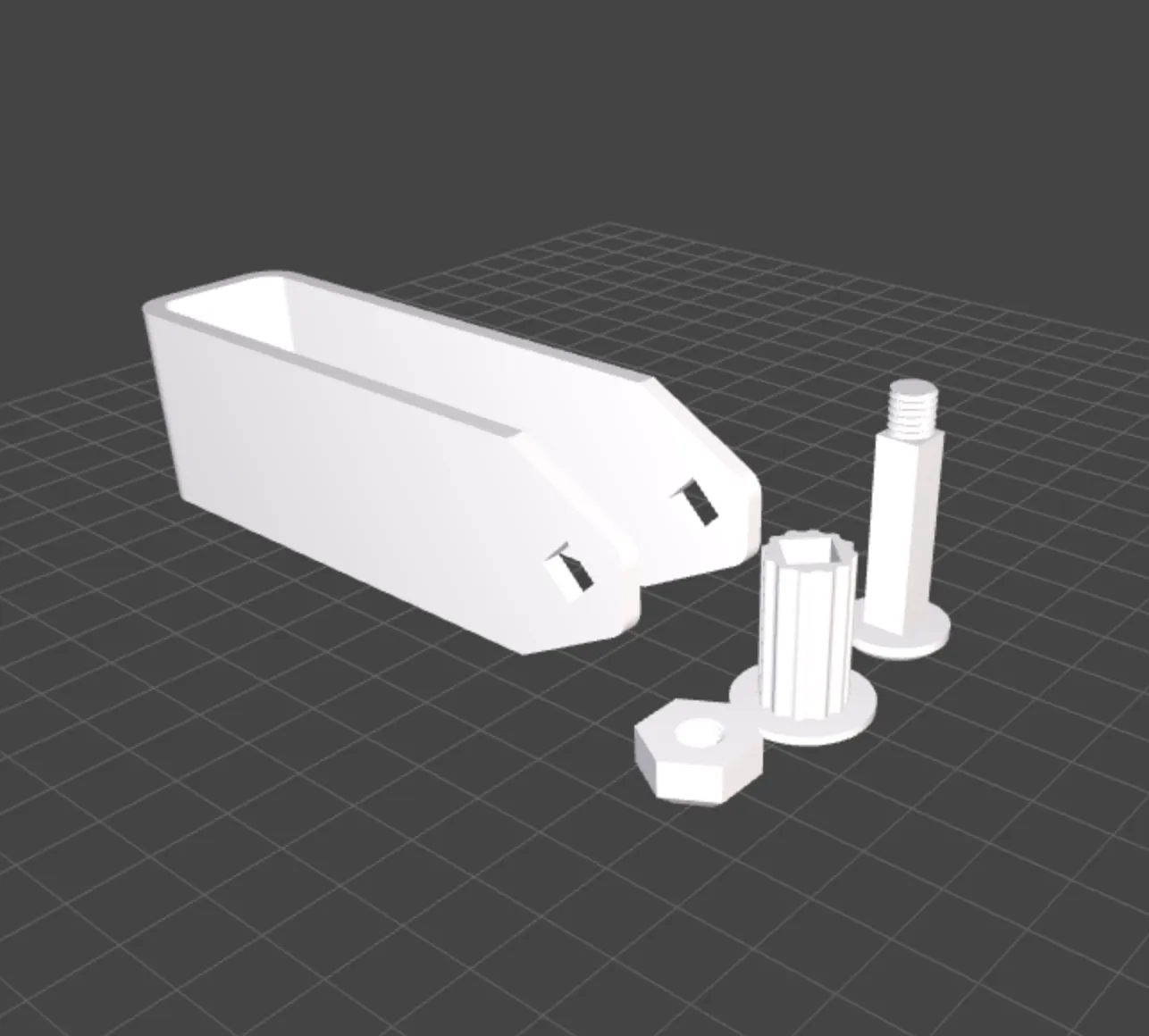

New Generator added `beta-key-holder-system-new`, this will print the key cover vertically, making it stronger. It involves a printable M5x0.8 screw for more secure holding.

Still under testing, please provide your valuable feedback so I can improve and replace the original cover version with a more better version, ⭐️ ⭐️ ⭐️ ⭐️ ⭐️,

How to generate and Print

• Open `beta-key-holder-system-new` generator
• Fill out all parameters; the definition is the same as the current version of the holder generator
• Download the Model, and update the print profile with the following settings
  • 0.20mm Standard
  • Wall loop : 3
  • Top Surface Pattern: Concentric
  • Bottom Surface Pattern: Concentric
  • Enable Support: Checked
  • Remove Small overhangs

Assesmbly

The assembly should be self-explanatory

• Placing keys through the shaft
• Place it between cover
• Pass the peg throw cover and shaft,

• Tighten the other side with the nut





🧪 Experimental Feature: Dual-Side Cover Generator

An experimental generator is available for creating a dual-sided key holder. This version allows keys to be added on both sides of the holder, effectively doubling capacity in the same footprint.

⚠️ Note: This design relies entirely on two side shaft pegs for integrity. Durability has not been tested. So adding glue is recommended.
