Pokeball - Generation 2
Remixed by
IP Report
Print Profile(10)
Fast Ball - 0.2mm, 2 walls, 15% infill
Designer
2.6 h
4 plates
Friend Ball - 0.2mm, 2 walls, 15% infill
Designer
2.6 h
5 plates
Heavy Ball - 0.2mm, 2 walls, 15% infill
Designer
2.5 h
4 plates
Level Ball - 0.2mm, 2 walls, 15% infill
Designer
2.4 h
4 plates
Click to see more
Open in Bambu Studio
Boost
368
1080
128
41
958
560
Released
Description
See original model for assembly instructions: https://makerworld.com/en/models/839922-pokeball#profileId-785849

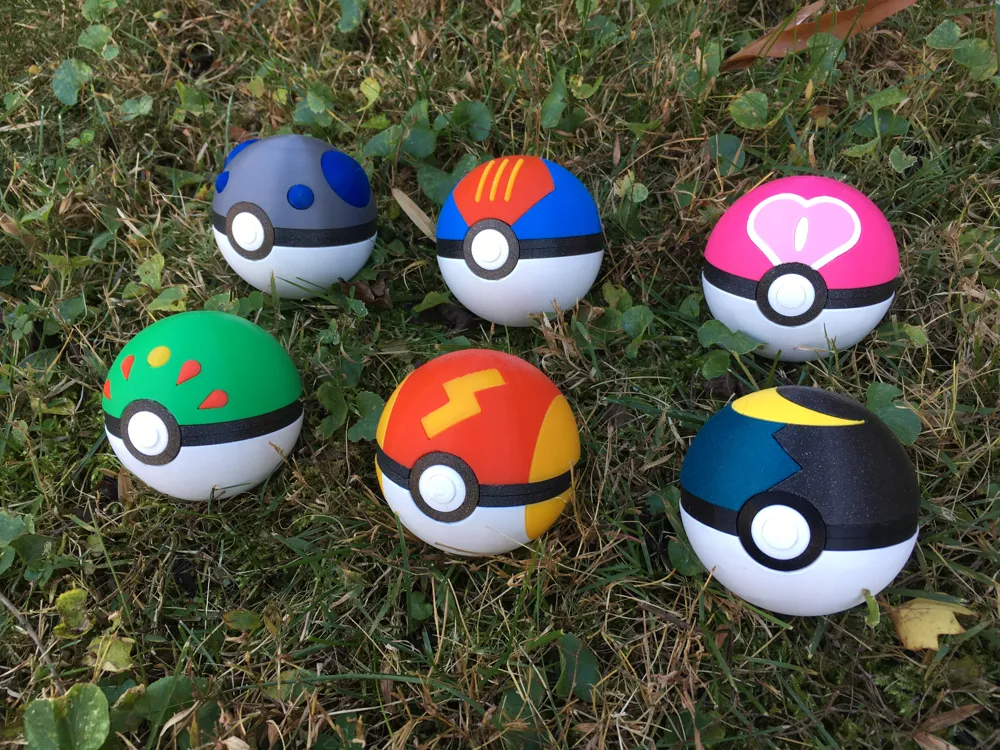

Profiles and models for the Generation II Pokeball designs. The lid geometries have been modified from the original design, but identical mounting alignment pin patterns make them inter-compatible.
Misc. Info:

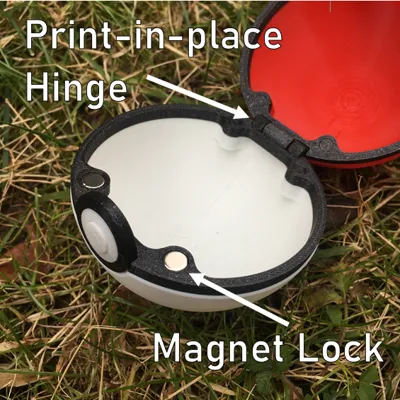

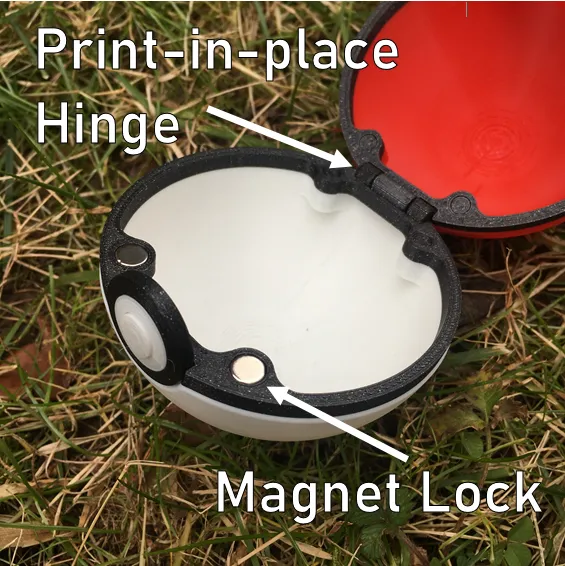

- The print-in-place ring mechanism has two versions with different tolerances. Make sure your elephants foot compensation is set properly to prevent the hinge from seizing.
- The loose version has a minimum gap size of 0.3mm, and should work with most (non-bambu) printers
- The tight version has a minimum gap size of 0.2mm, and should only be printed if you are confident with your printer's capabilities
- The magnets I used measure 6mm x 1.75mm (6x2 nominal). I got them from amazon: https://www.amazon.com/gp/product/B07KJ9H31P
- Printable alignment pins are included, but you can use machined pins too
For Assembly Instructions and Troubleshooting Tips, see the original model
