Elegoo Centauri Carbon Riser for CoB LED

Custom riser for the Elegoo Centauri Carbon printer, designed for CoB LED integration

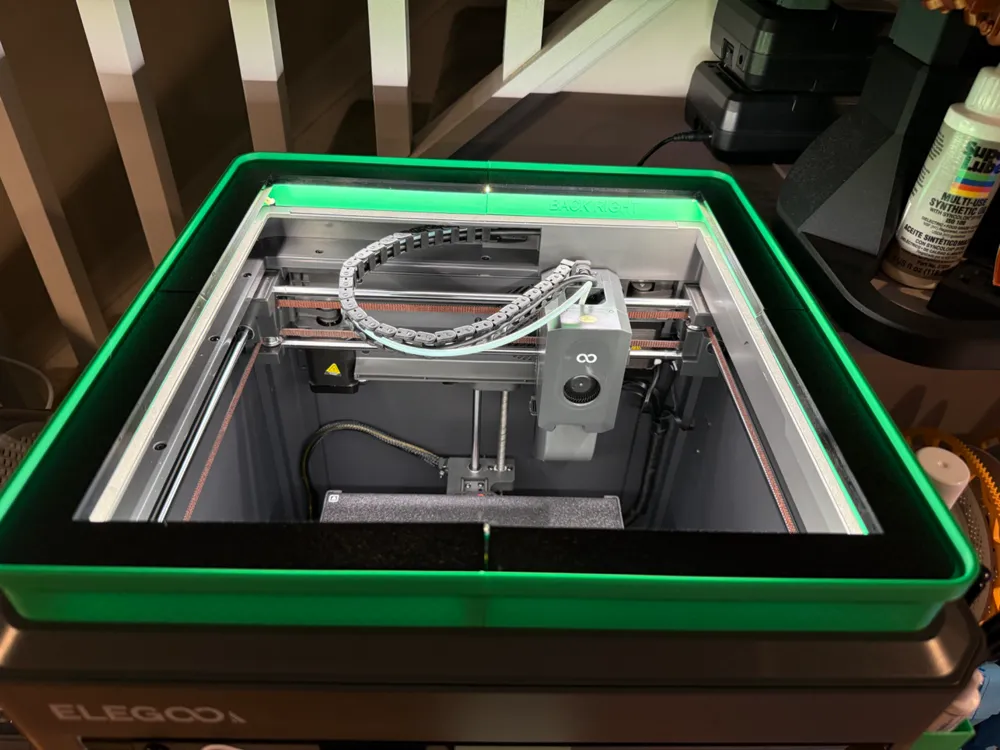

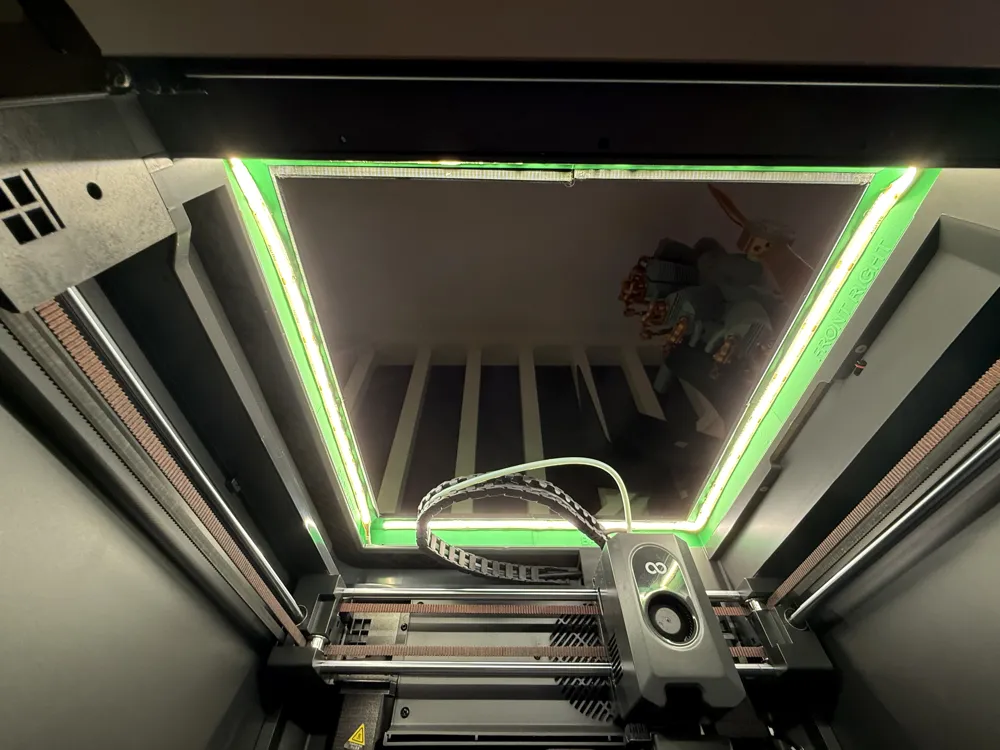

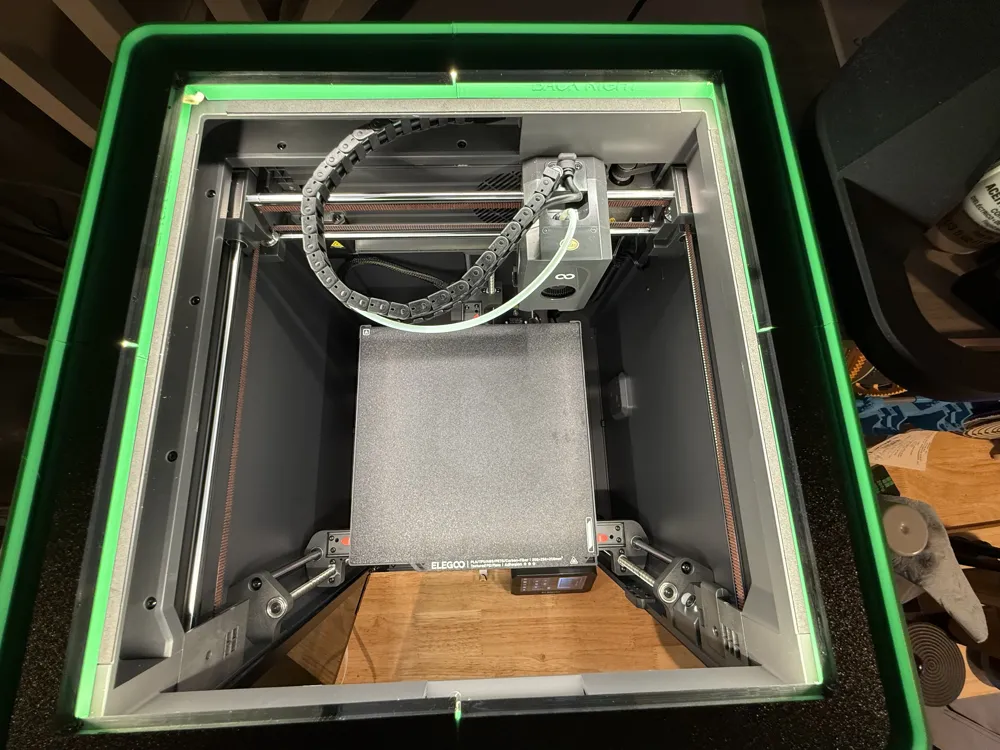

This riser lifts the printer’s glass platform to create space for a CoB LED strip underneath.
Benefits include:

• Improved filament path – lets you remove the PTFE tube from the chain for a smoother curve, avoiding contact with the top glass.
• TPU gasket protection – cushions and protects the glass, while shielding your eyes from LED glare.
• Cable routing flexibility – choose a cable hole on either the back-left or back-right riser section.

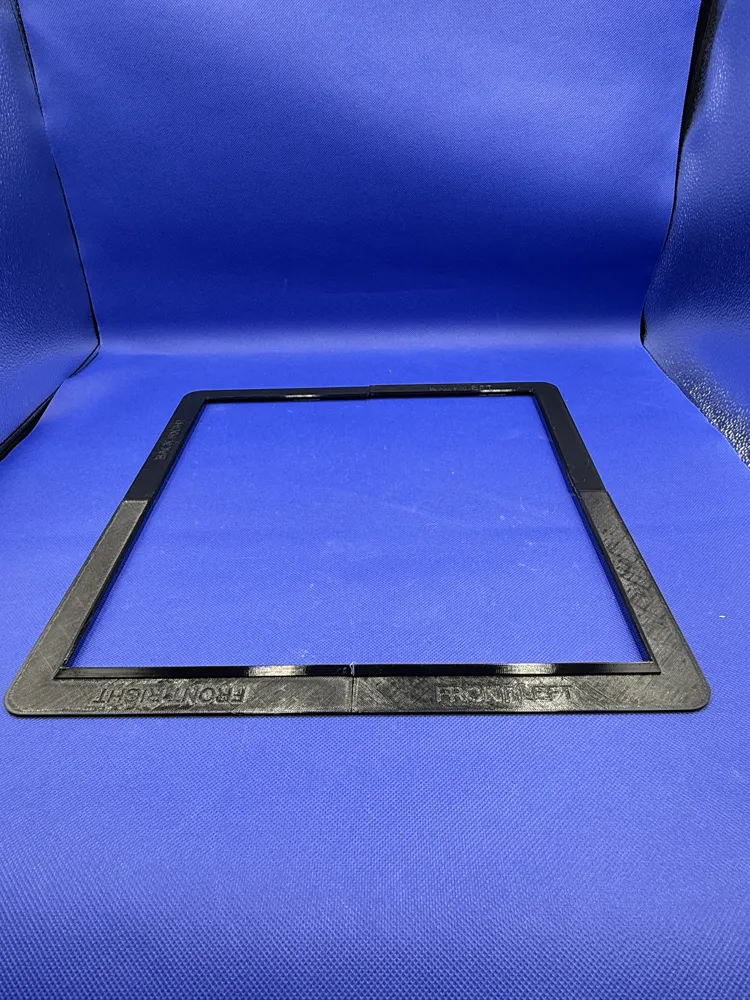

• Easy assembly – all parts are labeled for quick identification.

🖨️ Print Instructions

• Material: PETG or stronger.
• Settings: ≥3 walls, 15% gyroid infill.
• Supports: Normal/Auto supports for riser parts.

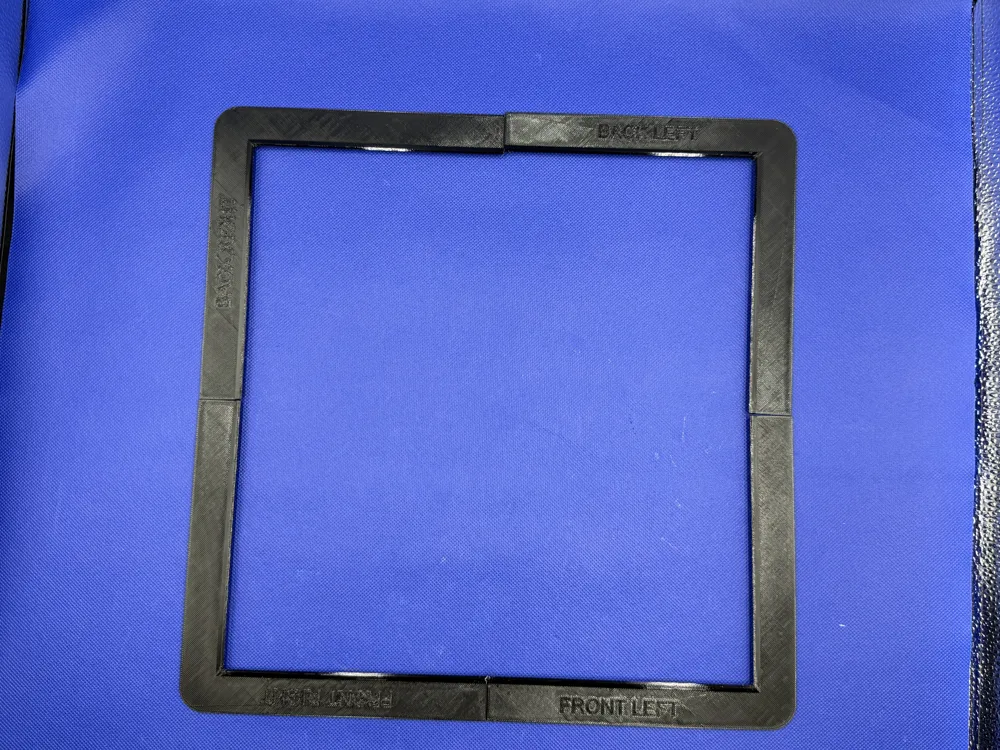

• TPU gaskets: Print in TPU for flexibility.

🛠️ Assembly Instructions

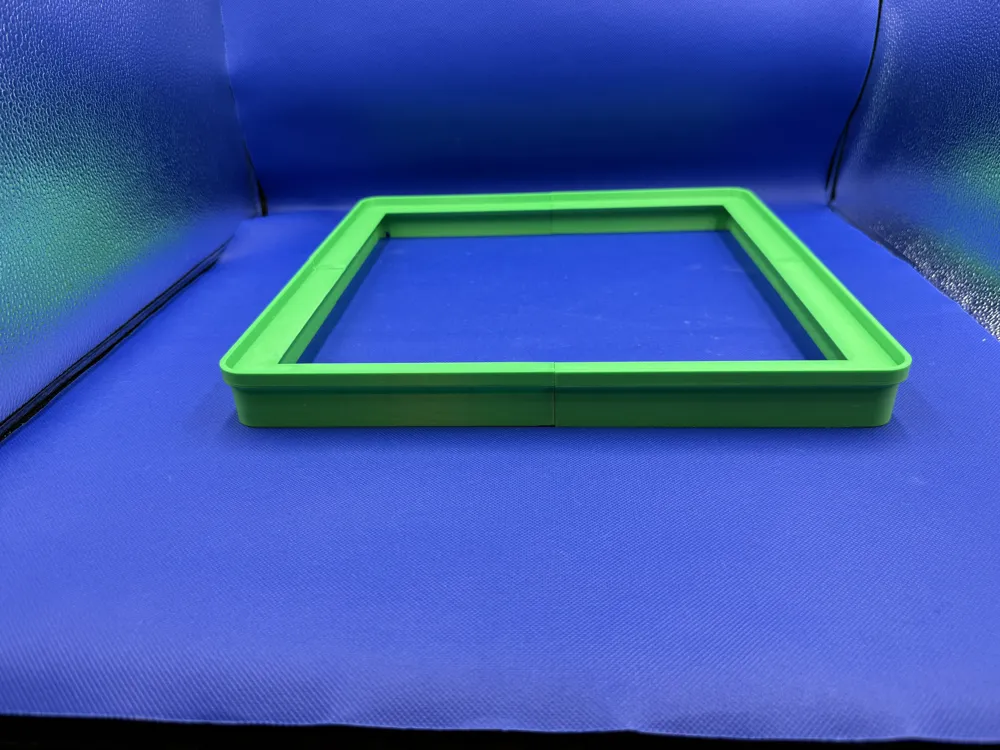

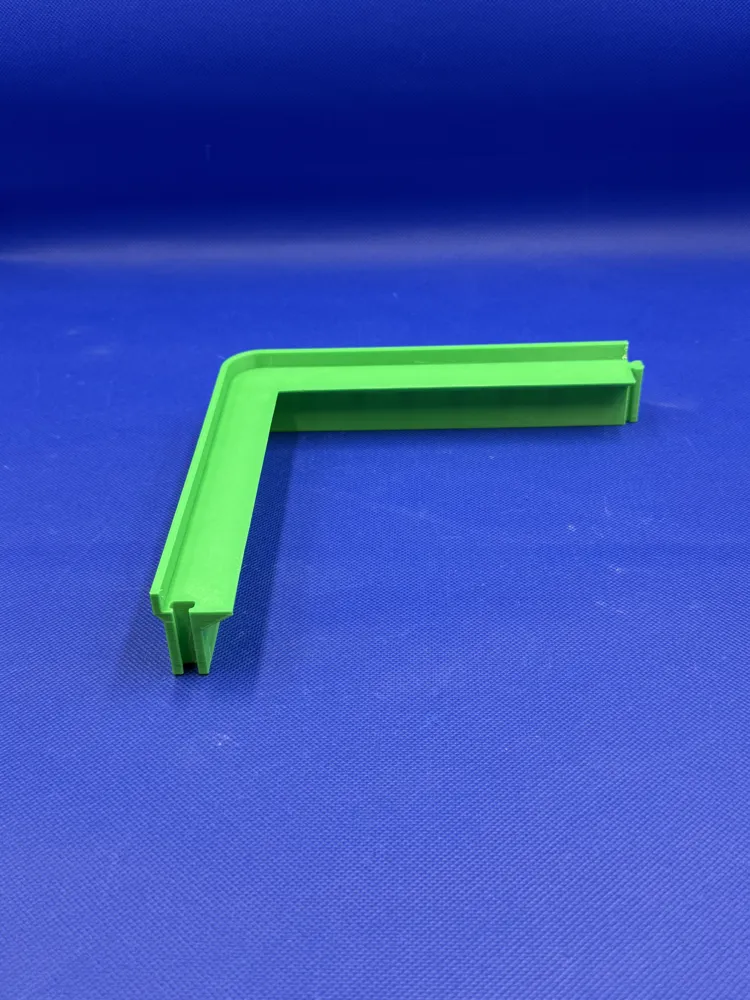

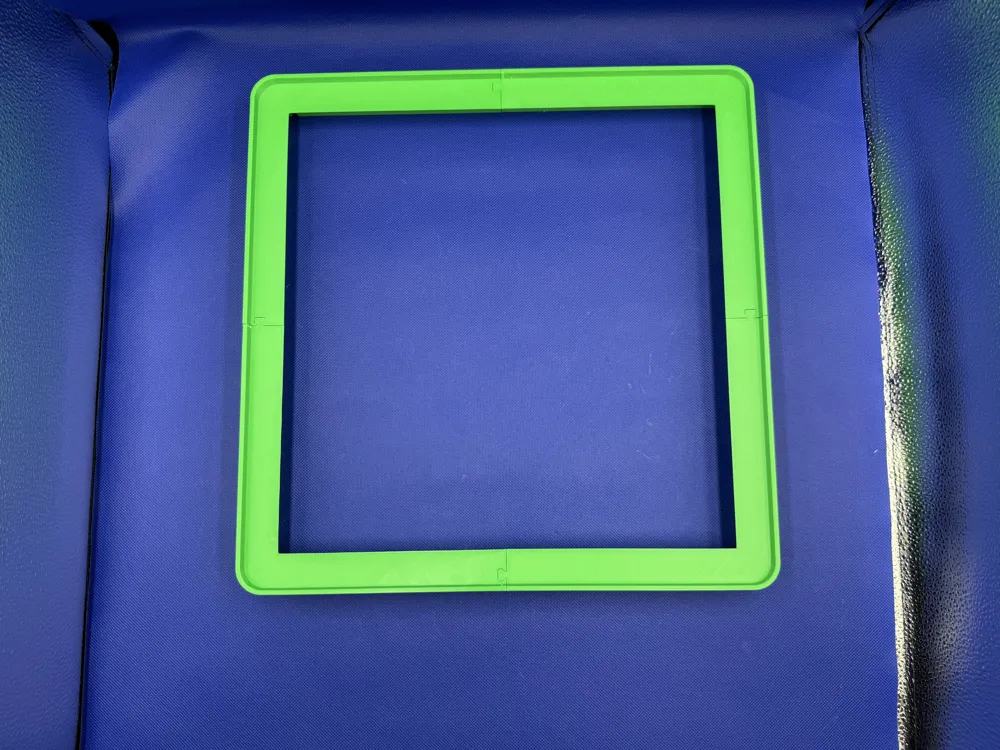

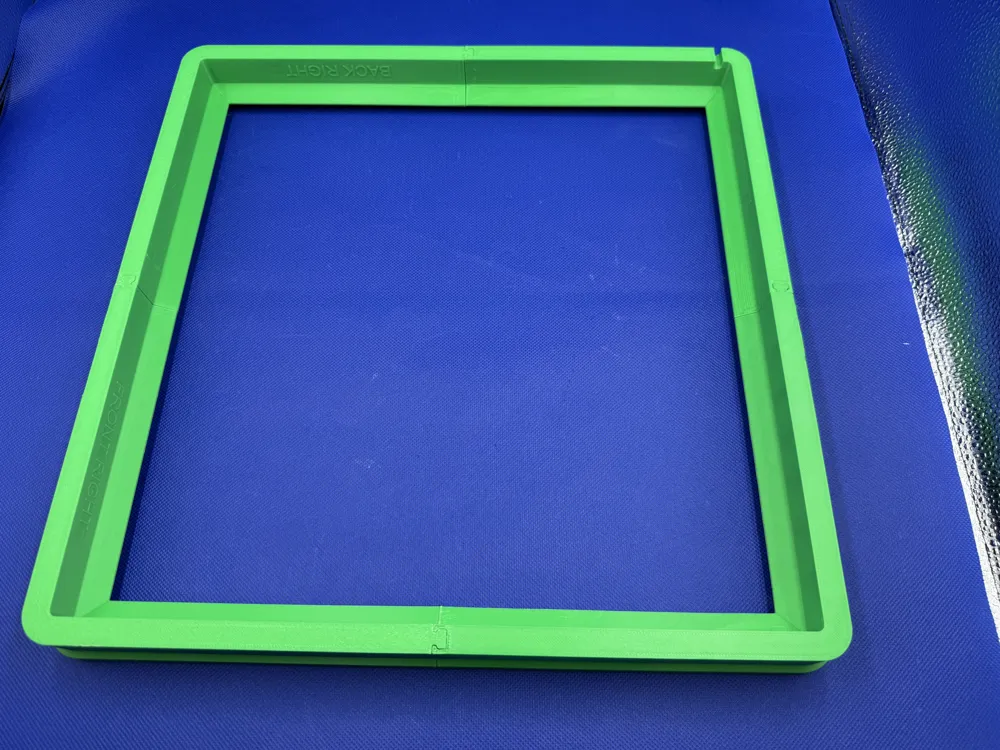

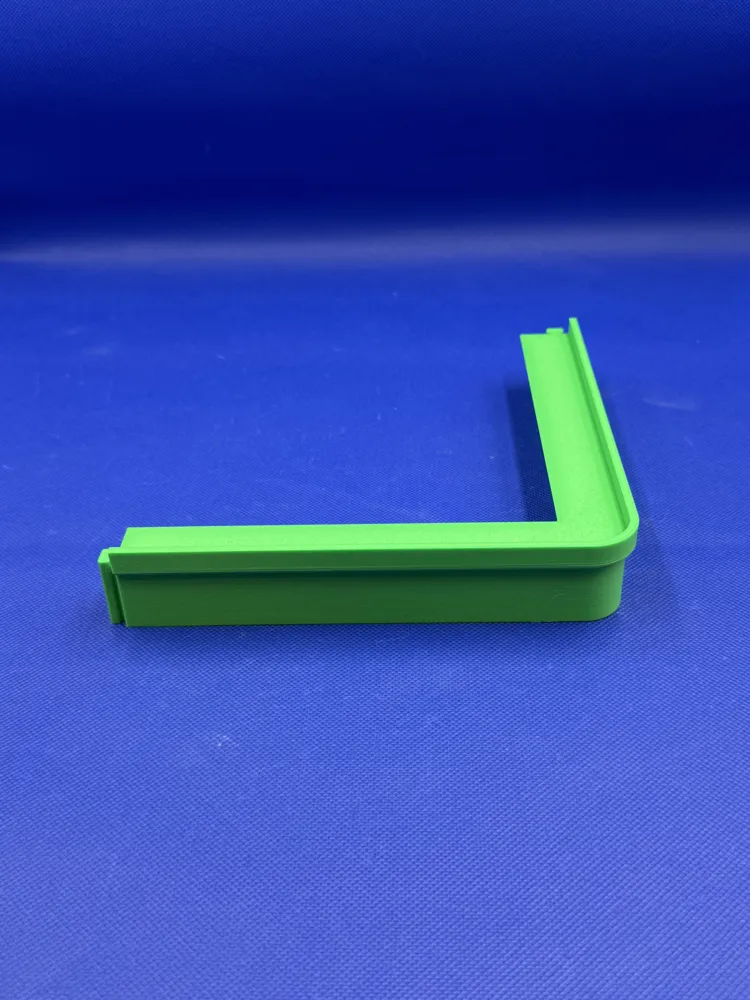

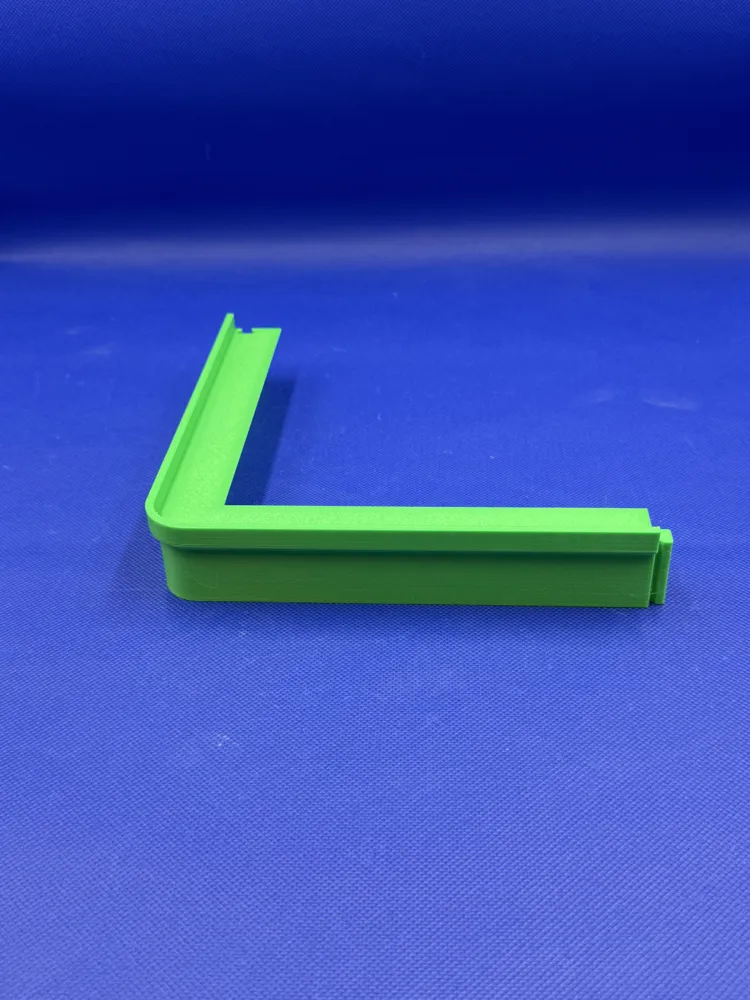

1. Connect the four riser parts:
   • Back left → Back right
   • Front left → Front right
   • Then join the front and back assemblies.

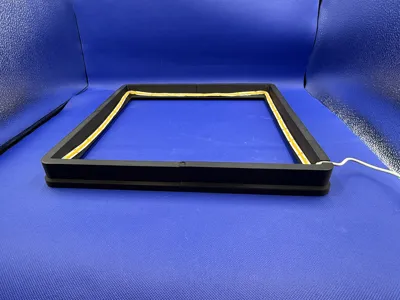

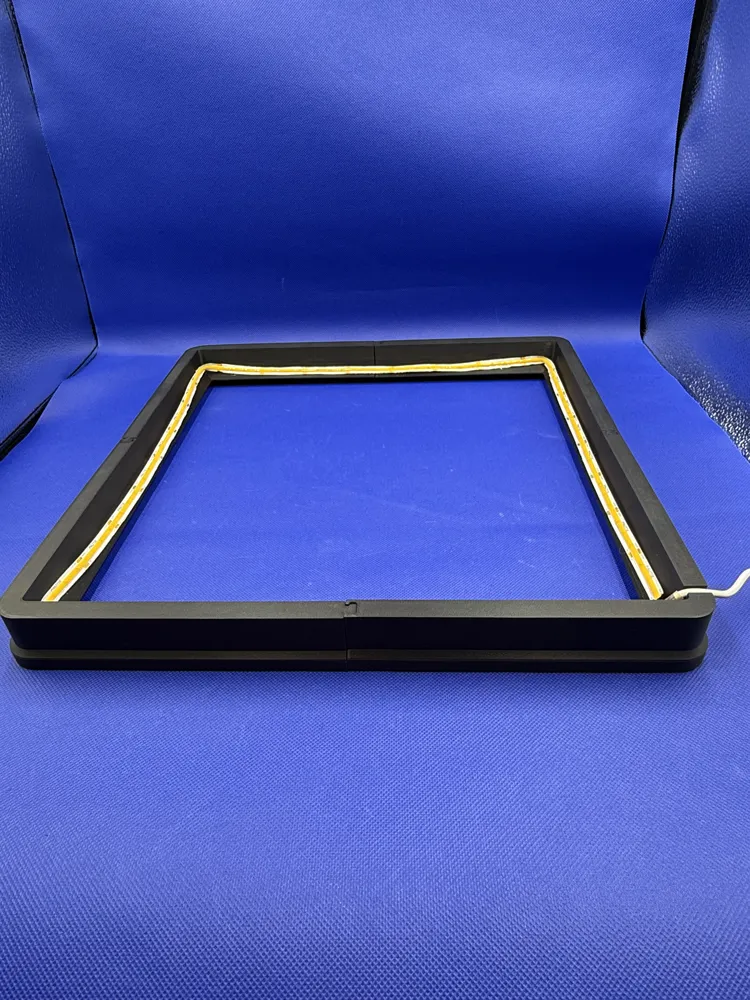

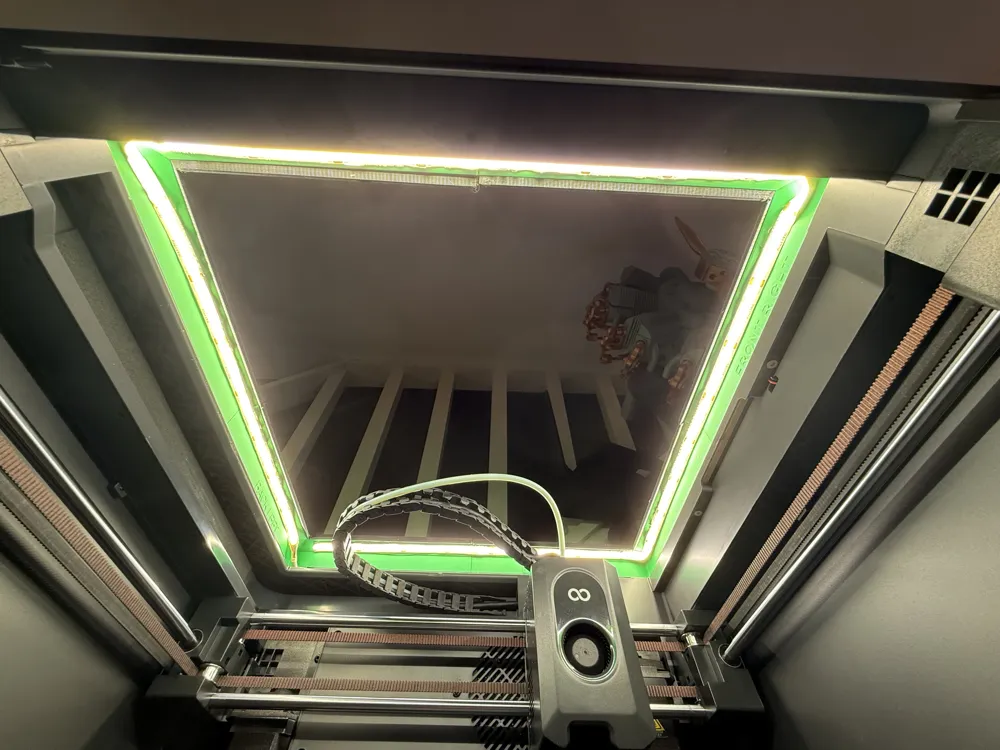

2. Attach the CoB LED strip to the 60° overhang inside the riser.

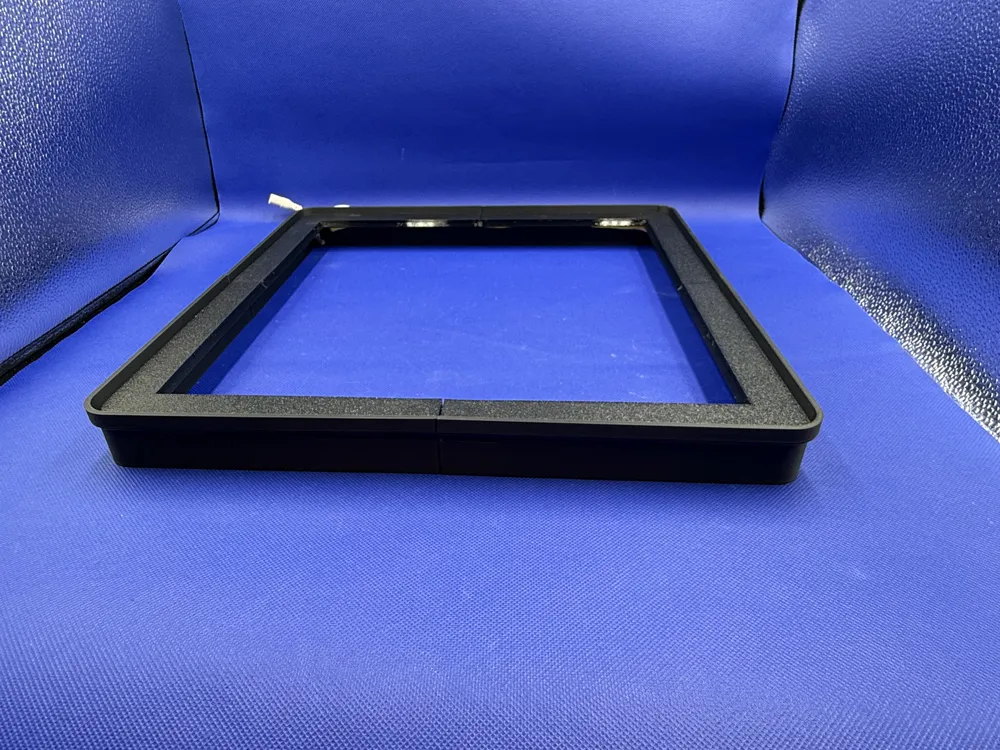

3. Place the TPU gaskets on top (optional: glue them for a secure fit).

💬 Your feedback matters!
If you build this riser, let me know how it works for your setup. Have ideas for improvement?
Drop a comment, post a make, and boost this model so more Centauri Carbon owners can benefit!
