Miniature Paint Rack System

This is a simple desktop paint rack storage solution for miniature paints. I wanted something that would sit on my desktop with minimal footprint, but also be expandable if desired.  I did not design it to be wall mountable.

There are 3 styles of paint rack to accommodate popular paint brands:

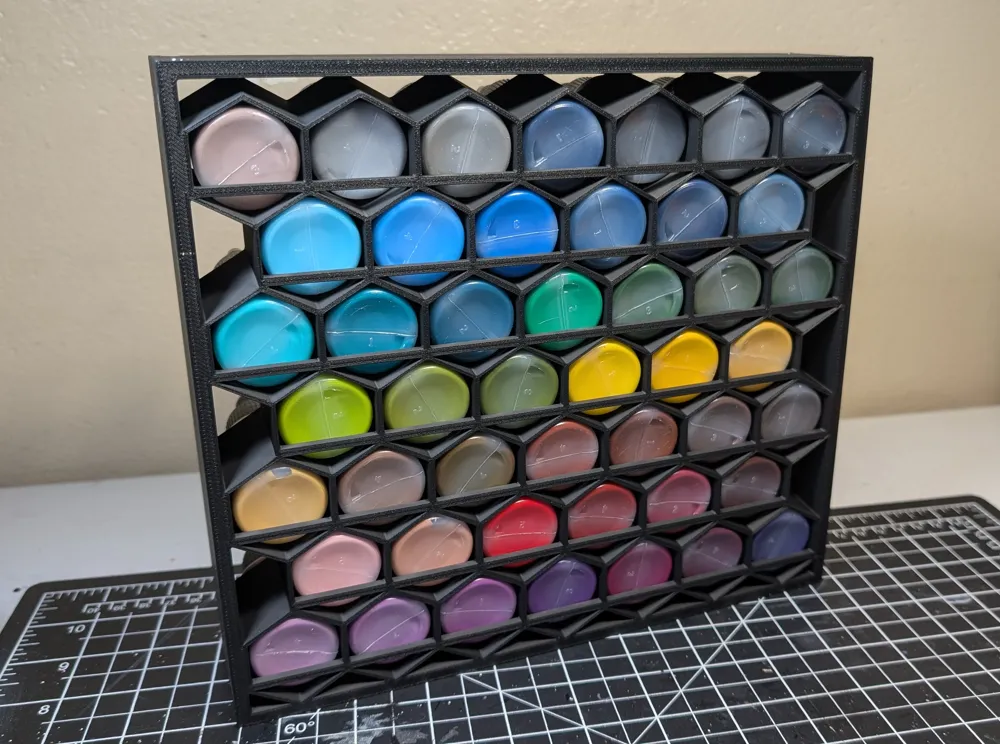

Pro Acryl - Size Large:  Holds 46 bottles

Pro Acryl - Size Small: Holds 18 bottles

Citadel Tall Pots - Size Large: Holds 33 Bottles  (Standard Citadel pots will work, but they will sink into the rack a bit more due to depth)

Citadel Tall Pots - Size Small: Holds 15 bottles

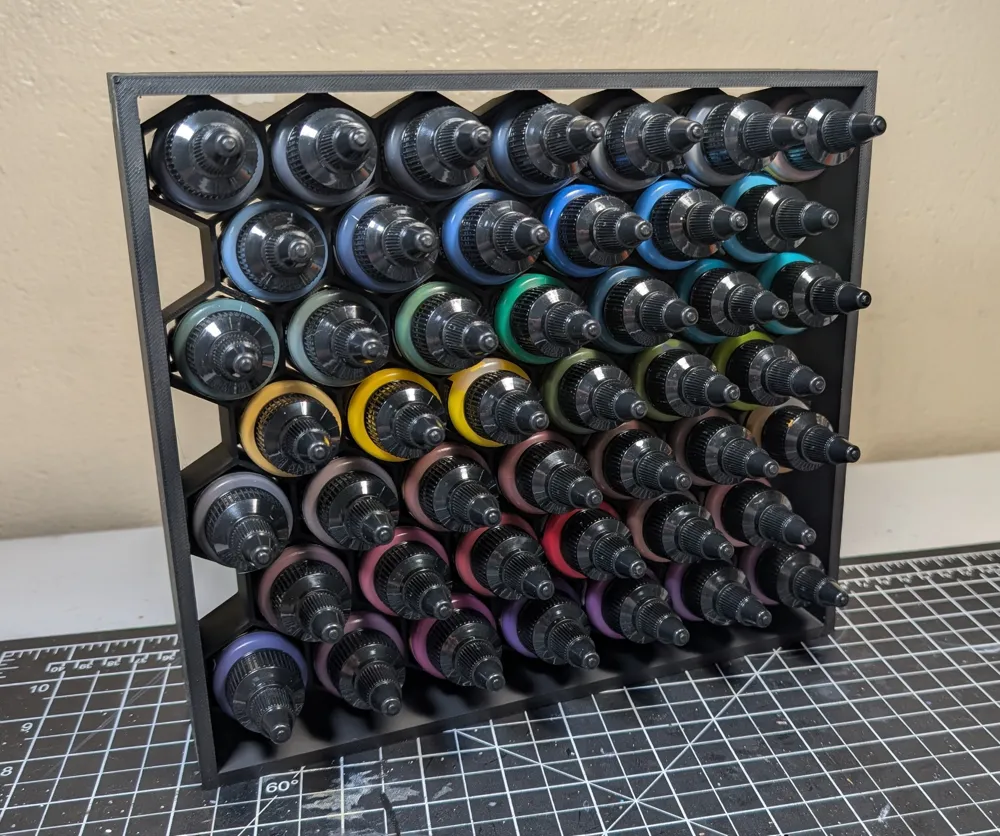

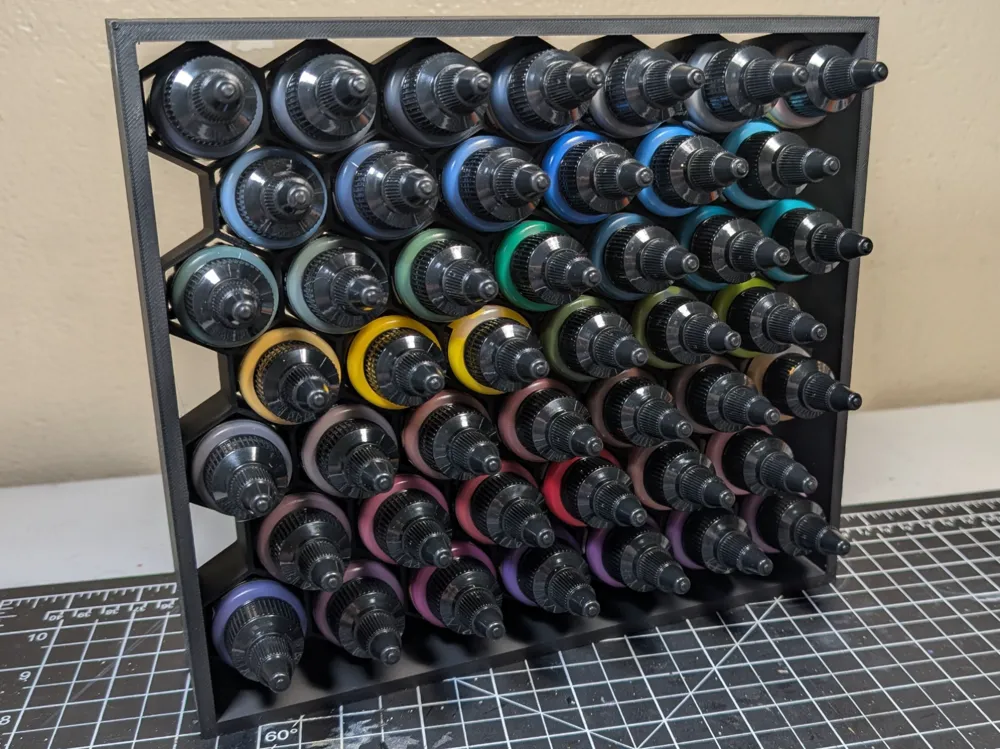

Standard Dropper - Size Large: Holds 60 Bottles  (Army Painter/Vallejo/Reaper etc.)

Standard Dropper - Size Small: Holds 28 Bottles

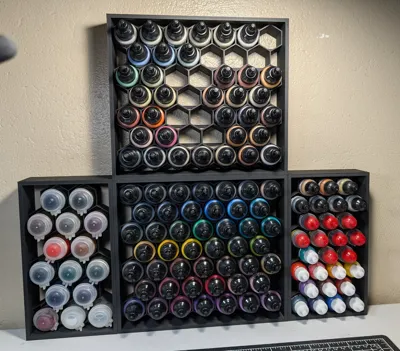

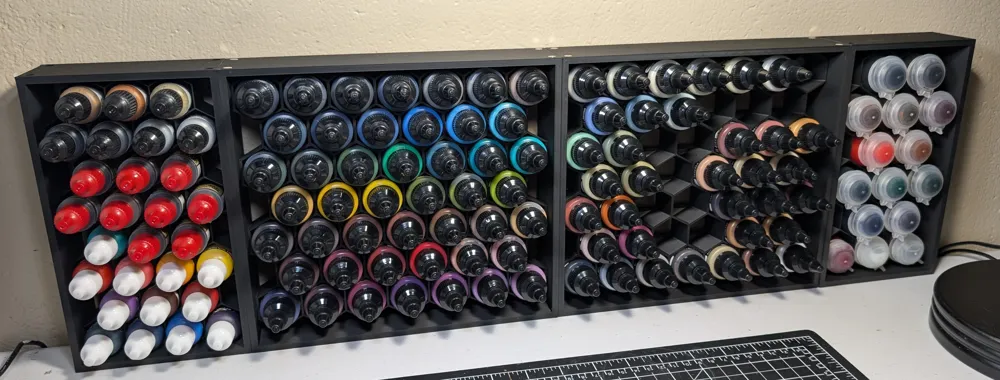

The set is modular with some limitations. All of the racks are the same depth and same height, but the widths vary due to the different sizes in bottles.  If you intend to stack racks on top of each other I recommend doing so with the same style rack.  Example: Proacryl Large on top of Pro Acryl Large.

Each rack has holes that will fit 6mm diameter x 3mm deep magnets if desired.  If installed, make sure to use a super glue that works with plastic and metal. I used Loctite Gel Control Super glue. Also make sure your magnet polarities are correct before gluing them in place!

Racks in pictures were printed with Overture Matte Black PLA filament.

Unfortunately due to the dimensions of the design this print will not work on the A1 Mini.  Any printer with a 256mmx256mm bed size will be fine.
