Description

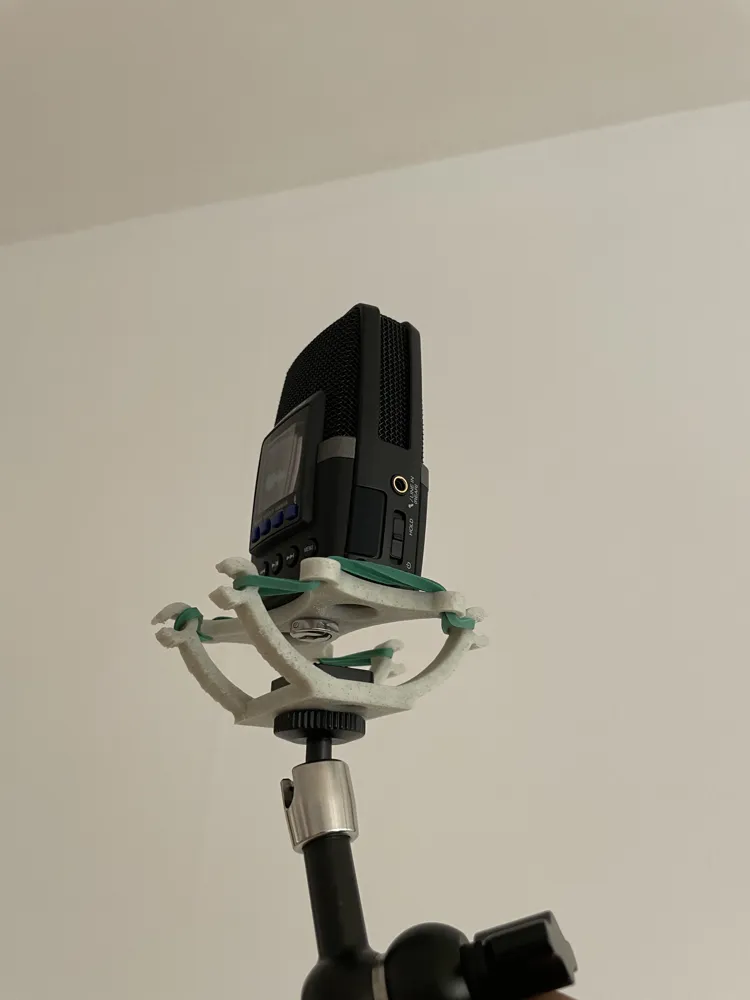

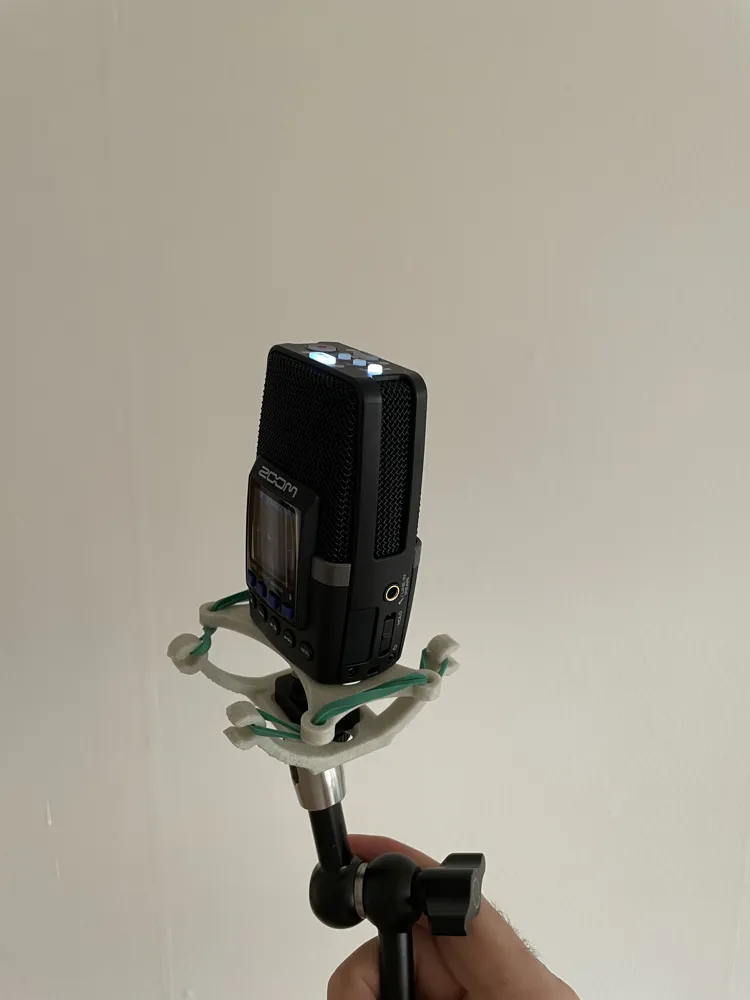

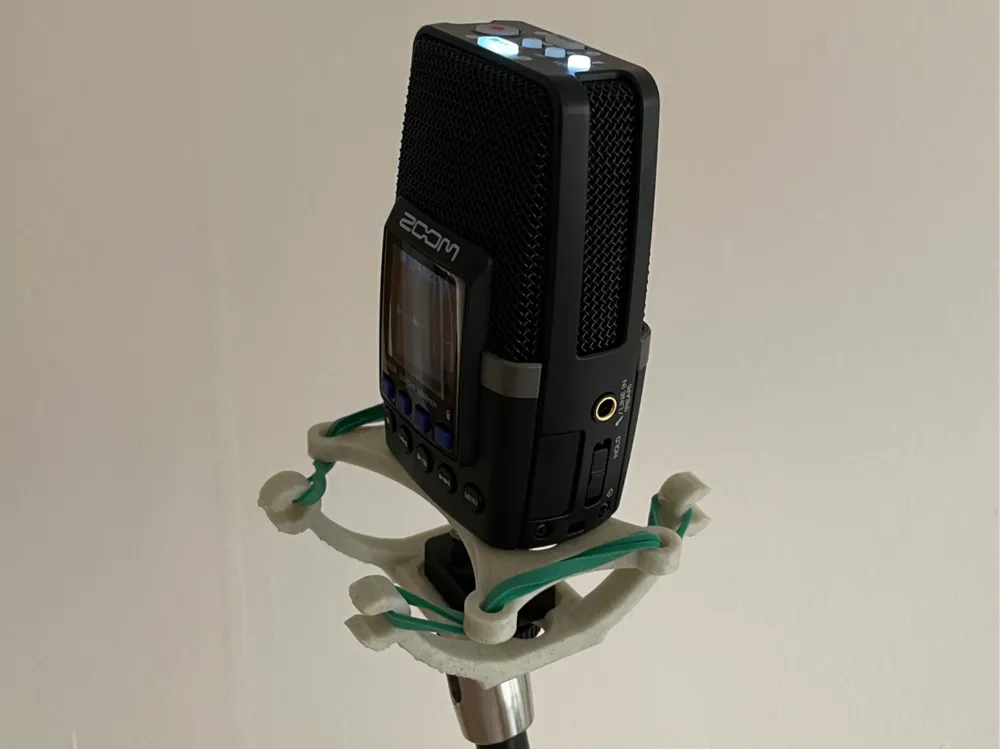

Shockmount for small field recorders like the Zoom H2essential or H1essential.
Just add two rubber bands to suspend the top part, and the recorder, and you are good to go.

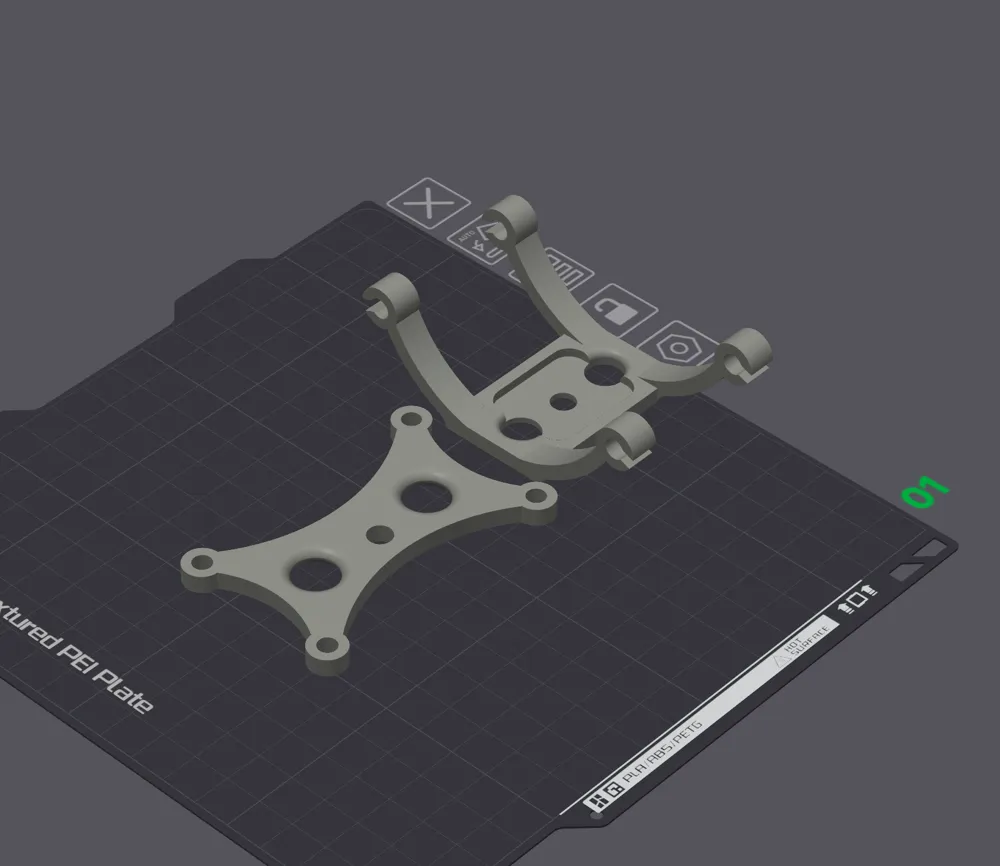

The bottom part needs support because of the angle of the four arms.
Tripod screw hole: Since the tripod screw is off center on the Zoom H2 I have designed the top part to also have an off-center screw hole. If your recorder is different, you might want to center the hole.
