Arduino Uno R3 (Elegoo) Model (with negative STL)
Print Profile(1)
Description
Cad files for Arduino Uno R3 (Elegoo version, some versions MAY differ slightly)

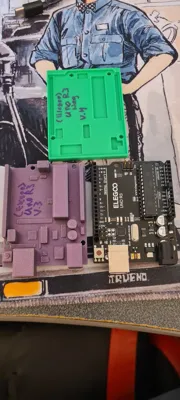

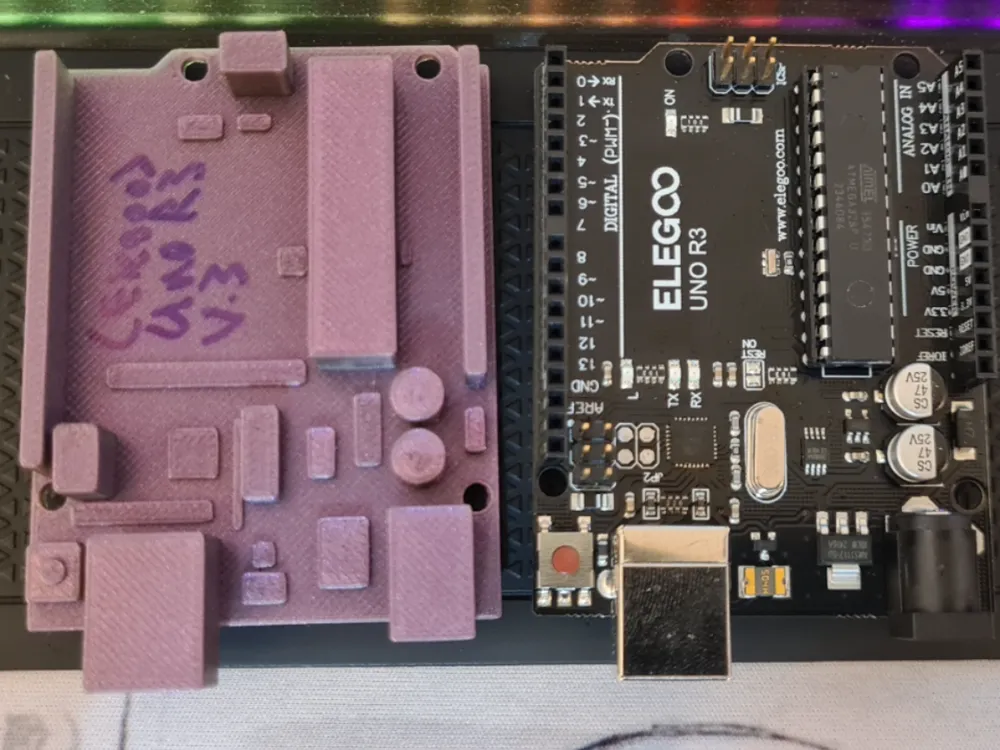

The pre-sliced model prints as a 1:1 replica of the board with key components properly scaled and smaller components grouped as single entities just for reference. The purple board in pictures is printed with this file.

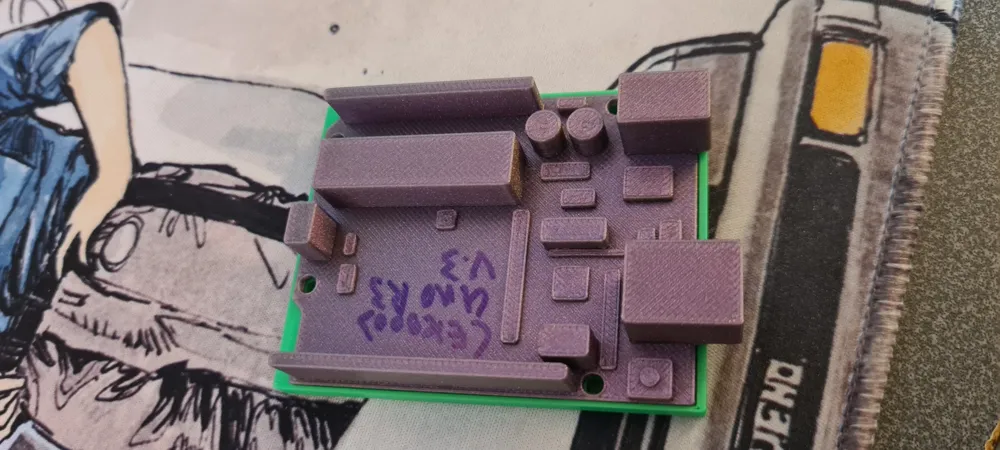

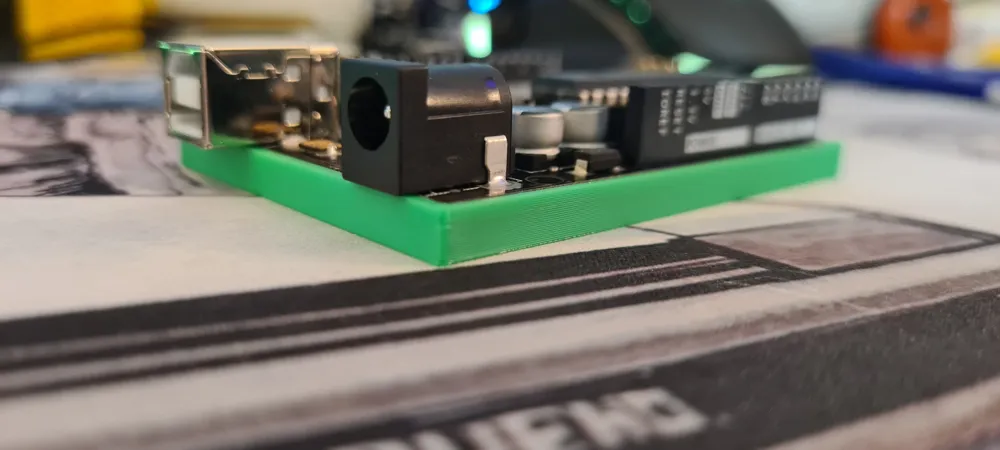

The seperate file titled “NegModel” has components slightly enlarged and has pins instead of holes for screw locations. This file is meant to be used as a “void” or “negative part” in another file to create a mount location for the physical board itself. As pictured in green, i dropped the “NegModel” stl into the slicer and set its object property to “negative part” ontop of a small solid cube to create a hollow area to fit a real board into. This file creates holes intended to be mounted with M3x4mm screws.
NOTE THE SCREW HOLE CLOSEST TO THE POWER BUTTON IS TOO CLOSE TO THE NEARBY PINS TO INSTALL A FASTENER INTO-this is not my doing, but due to the design of the UNO boards.
