Prusawire 360W PSU Mount Generic v1

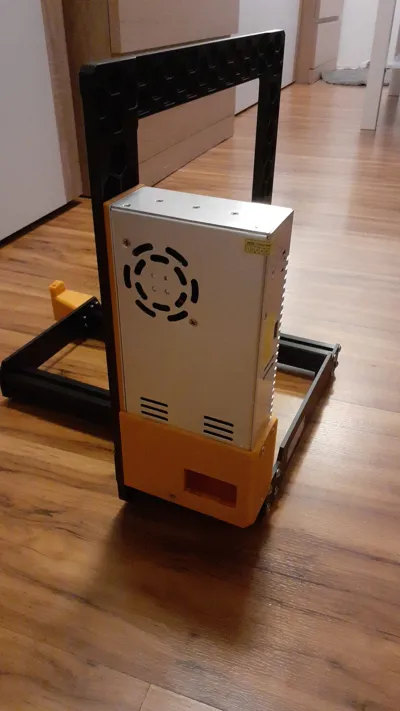

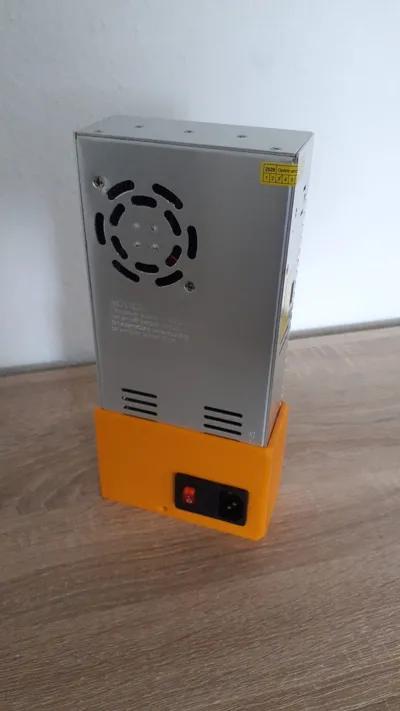

This is an remixed Mount, with an c14 inlet. To fit any Generic 360W PSU to the Prusa Mk3 or Mk4 Frame.

I made this Mount , extra for the Prusawire!

PRUSAWIRE Tak an Look at it , its an Great Project.

Screws needed for the case:

• 2 -- M4 x 8mm Flat Head Hex Drive Screw (Adapter Plate to PSU)
• 4 -- M4 x 10mm Flat Head Hex Drive Screw (Top Cover to PSU)
• 2 -- M4 Nut (Prusa Frame to Adapter Plate)
• 4 -- M3 Square Nuts (Bottom Plate)*Can be reused from your stock PSU case*

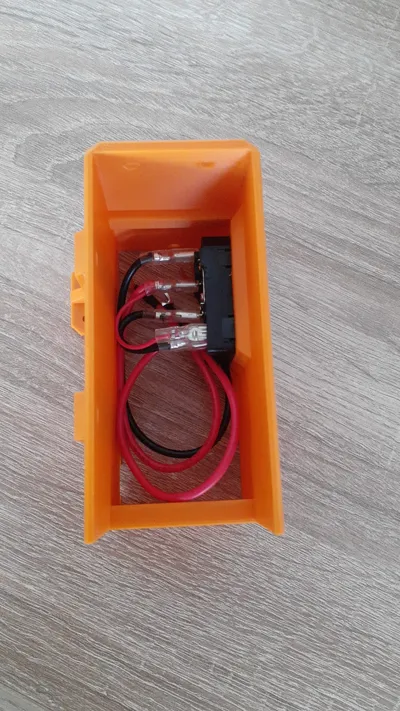

• 6 -- M3 x 8mm Flat Head Hex Drive Screw (Top plate to bottom plate & power receptacle)*Can be reused from your stock PSU case*
• 6 -- M3 Nylon Lock Nut (Power receptacle)*Can be reused from your stock PSU case*
• 1 – IEC320 C14
