Electric Tape Cutter for 3M Scotch 33+
Remixed by
IP Report
Print Profile(1)

0.2mm layer, 2 walls, 15% infill
49 min
1 plate
Open in Bambu Studio
Boost
17
37
4
0
52
33
Released
Description
Summary
This is a remix of https://www.thingiverse.com/thing:6236350

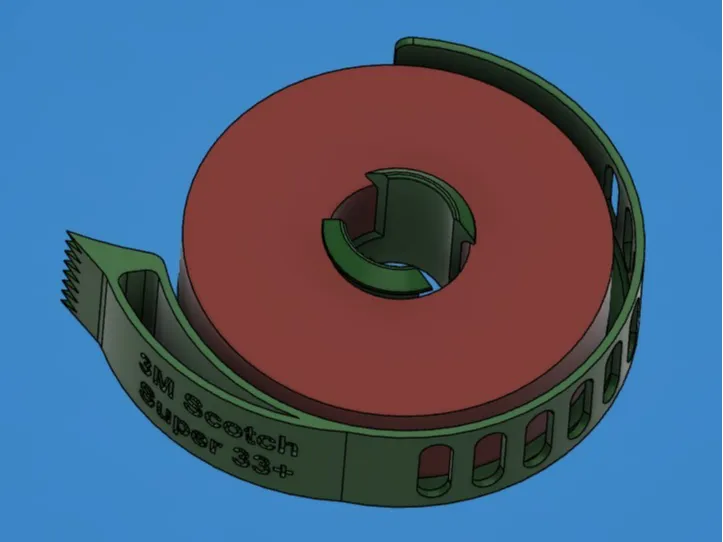

I was asked by someone else to make a cutter to fit scotch super 33+ tape.
I sized the cutter to fit and made more holes to be more economical.
And the name of the tape was engraved on the surface of the cutter.
* Notes ****
I made a mistake so I am correcting the file.
I used parametric design in Fusion 360 for this design. I modified the parameters while changing the size. There was a mistake in uploading a file whose parameters had not been changed.
I modified it again and uploaded it under the name tape_cutter_3M_Scotch_Super33plus_V2.stl
Thanks to member "changefast" for pointing out the mistake.

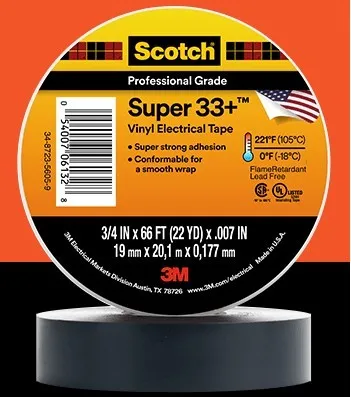

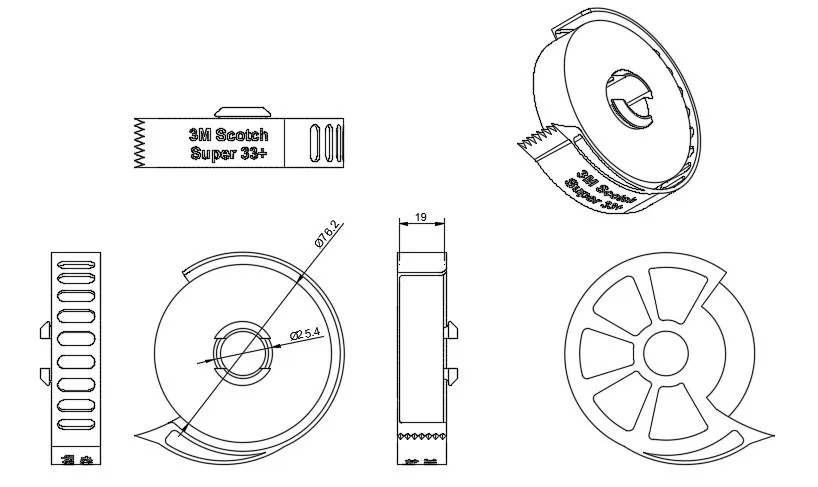

Approximate tape size
- Inner diameter: 25.4mm
- Outer diameter: 76.2mm
- Width: 19.1mm
No support
20% Infill
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
