Description

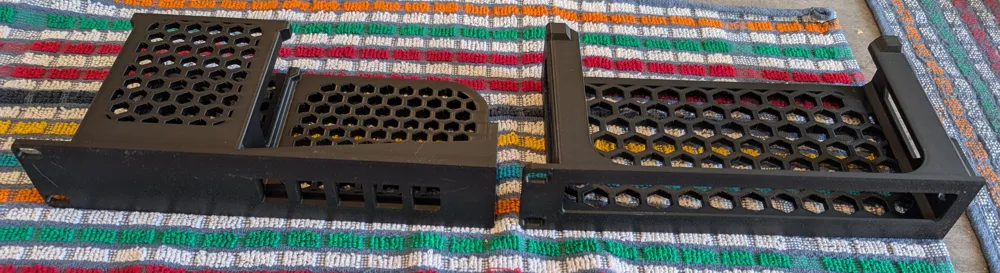

A 10-inch rack mount for the Ubiquiti Unifi UCG-Fiber Power Supply Unit (PSU).
This model comes in 4 variations:
- A plain mount, just for the PSU.
- A version with keystone slots.
- A version with a shelf.

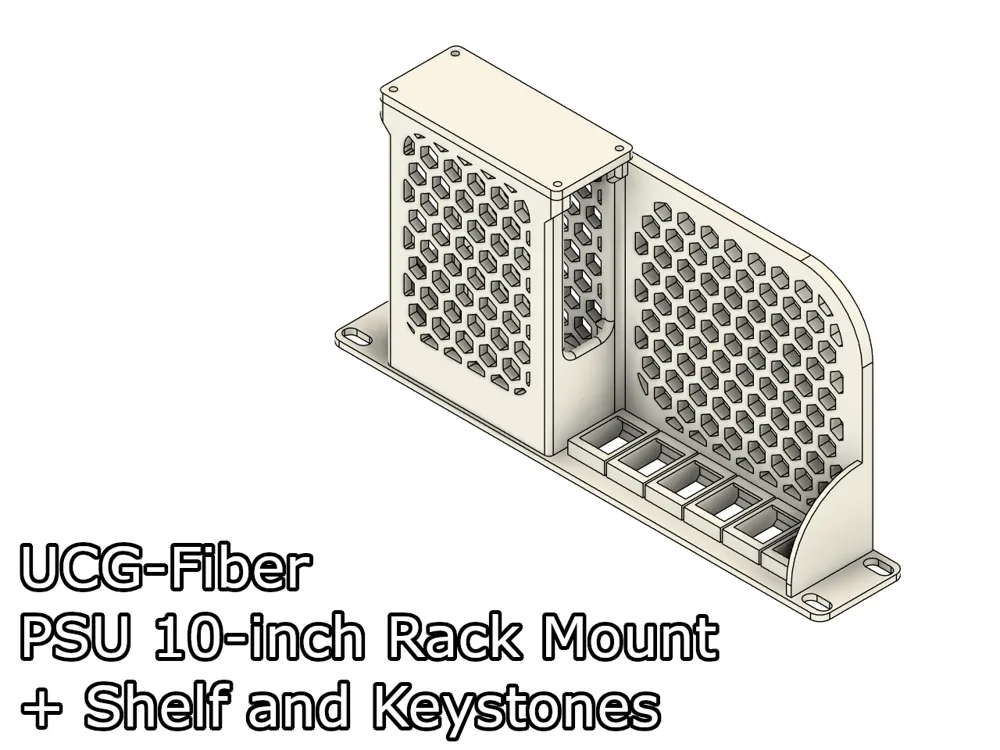

- A version with the keystone slots and a shelf.
They are all available in the provided print profile.
This model is part of a series of 10-inch rack mounts I've designed. You can check out the others here.
Boost Me (for free)
I make these models for free, and it takes time and material to test them out. Your boost will help me keep releasing new models! Thank you!
Membership
Want to support me further? Or sell my prints? Please consider one of my membership tiers. Thank you!
Do you like my models? Consider buying me a coffee ;)
Required parts
- 4x M3x10 or 4x M3x12 for the back plate.
- 4x M3 thread inserts.
- 3x M5 screws (Min size: 12mm, max size: 16mm).
- 3x M5 hex nuts.
Print Settings
Rafts:
Doesn't Matter.
Supports:
No.
Resolution:
0.2 or 0.24
Walls/Perimeters:
4.
Infill:
20% or more.
Filament:
PETG, ABS, ASA, PC, Nylon.
PLA could work, but pay attention to the glass transition temperature of your filament manufacturer.
